Description:

Carbide micro drill bit, made of tungsten steel, with high hardness, high wear resistance, high strength, resistance to bending, anti-breakage, etc.



Features:

1. Precision machining by high accurate equipment;
2. With good milling and cutting performance, ensuring high efficiency;
3. High hardness, wear resistance, and intensity; anti-bending;
4. To removing chips, with big space and small resistance; Smooth chip removal, less heating value, to reduce pollution;
5. Sharp cutting edge, reduce cutting force, lower breaking rate and improve the quality of hole wall;
6. Symmetrical cutting blade, help to high effective cutting, avoiding drilling offset.


Specification:

Material: Tungsten Carbide
Shank Dia: 3.175mm(1/8'')
Overall Length: 38mm

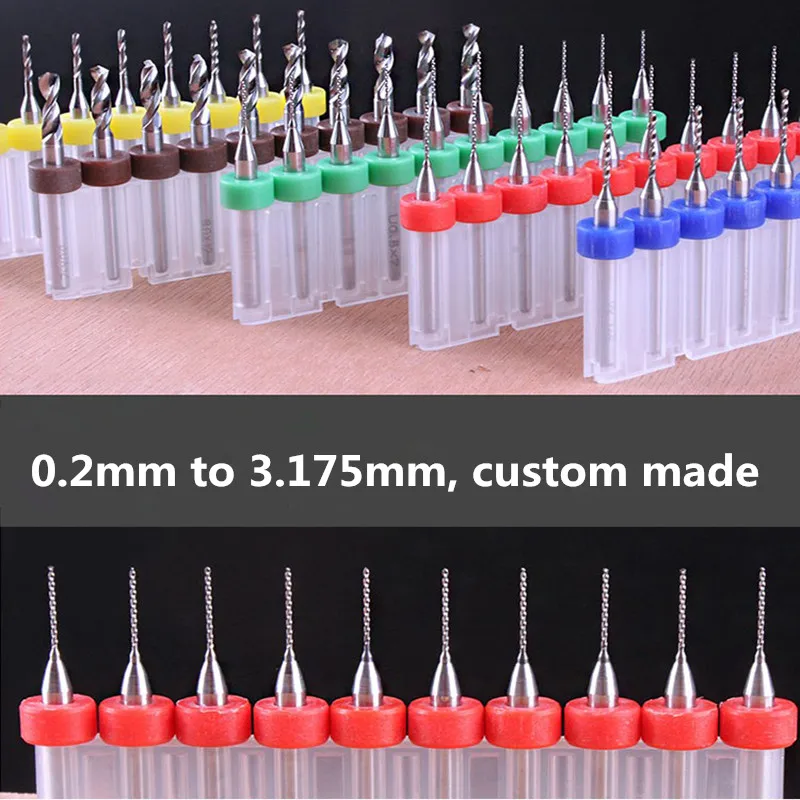

Size Including: 0.2mm-3.175mm
Application: Suitable for processing PCB, normal FR-4, CEM-3 boards, environmental protection board, SMT, CNC, molds, plastic,Circuit board, carbon fiber, composite board, and so on.


Note:
Please allow 1-3mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package Including:

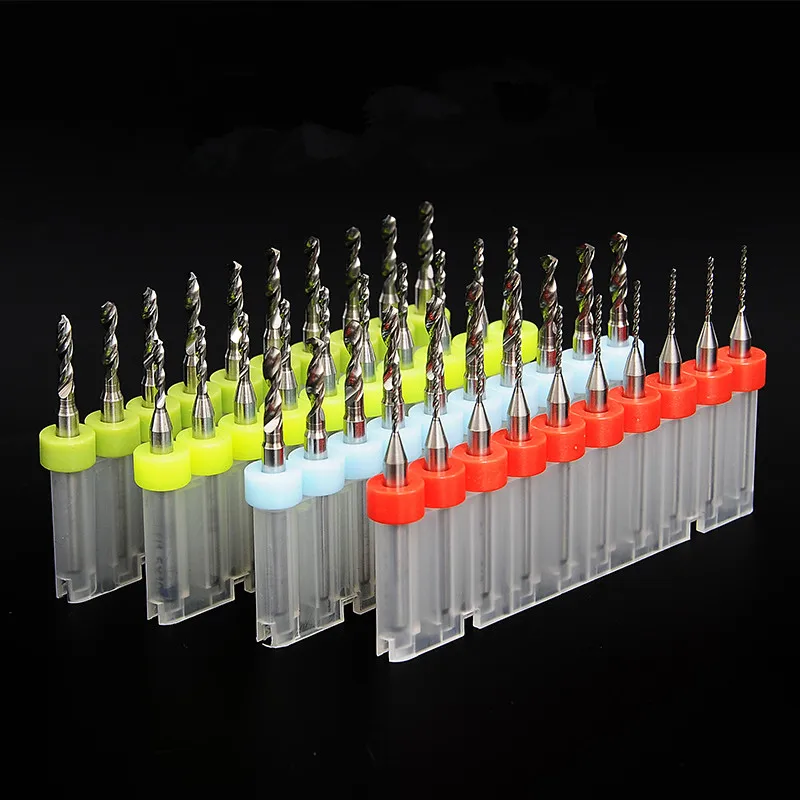

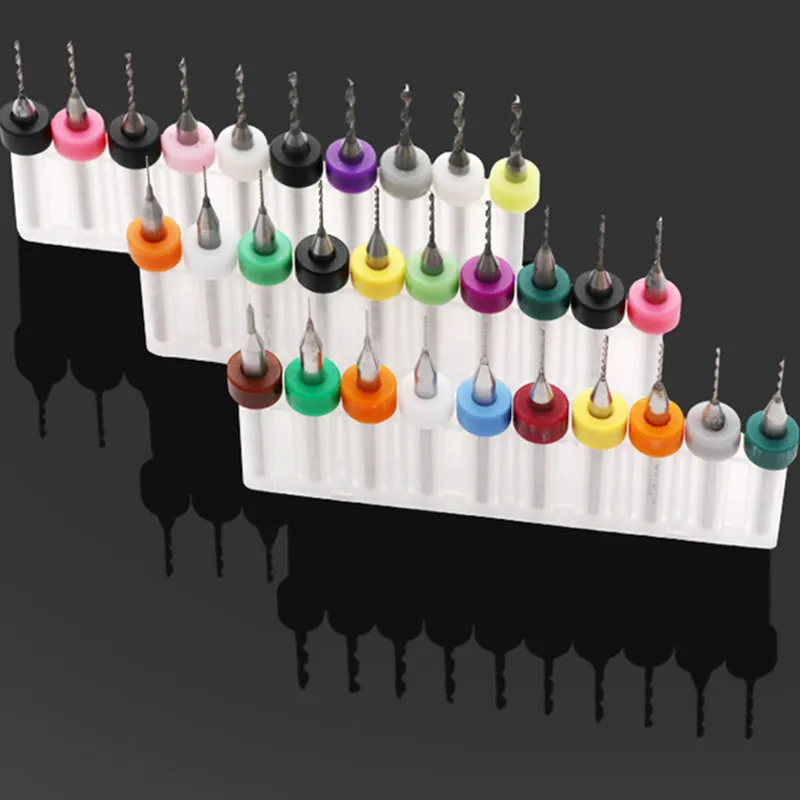

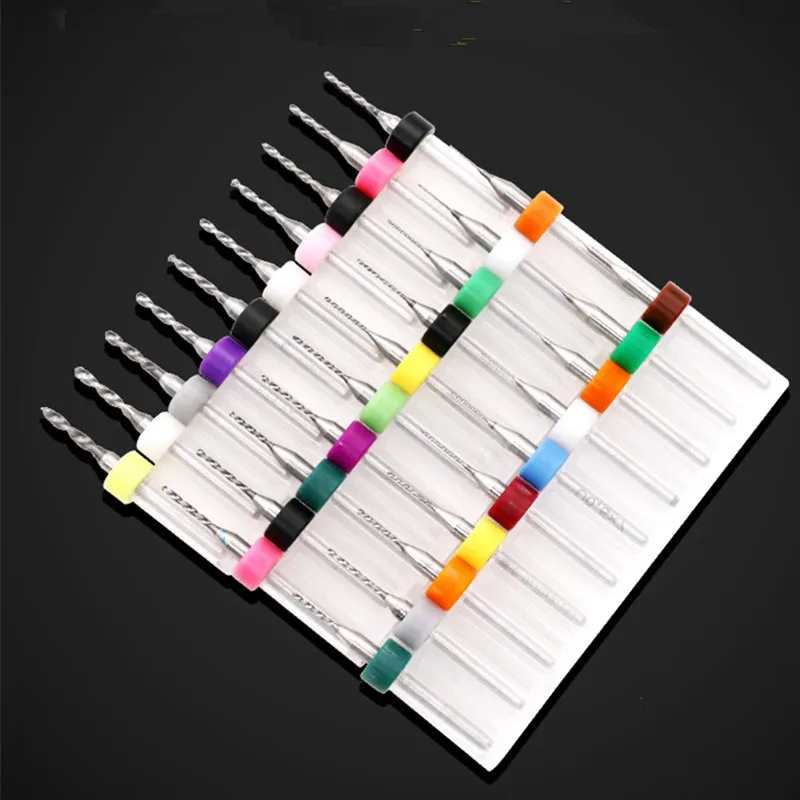

10pcs PCB Drill Bit Set
