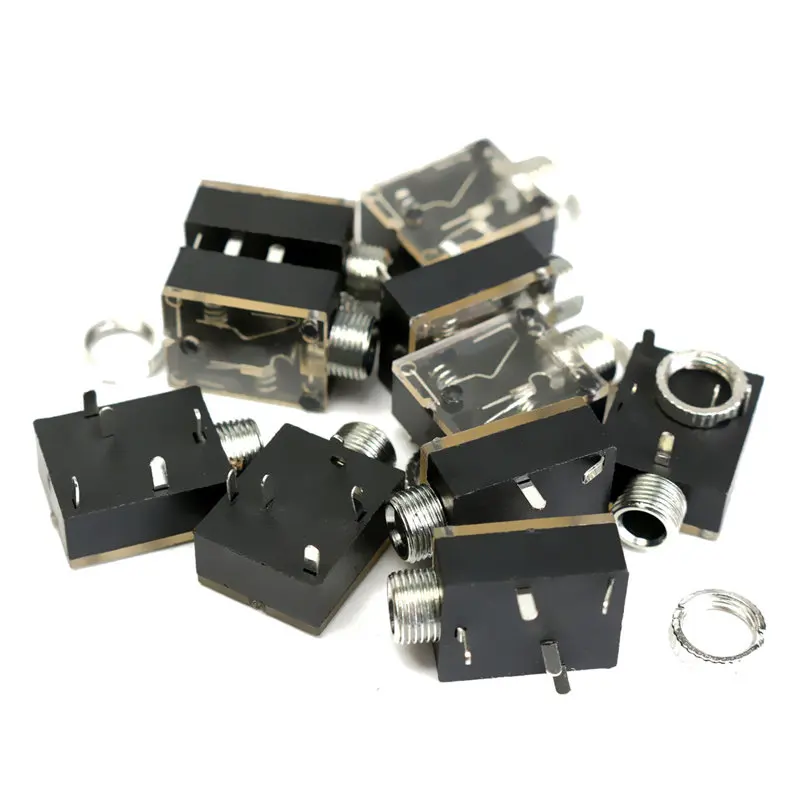

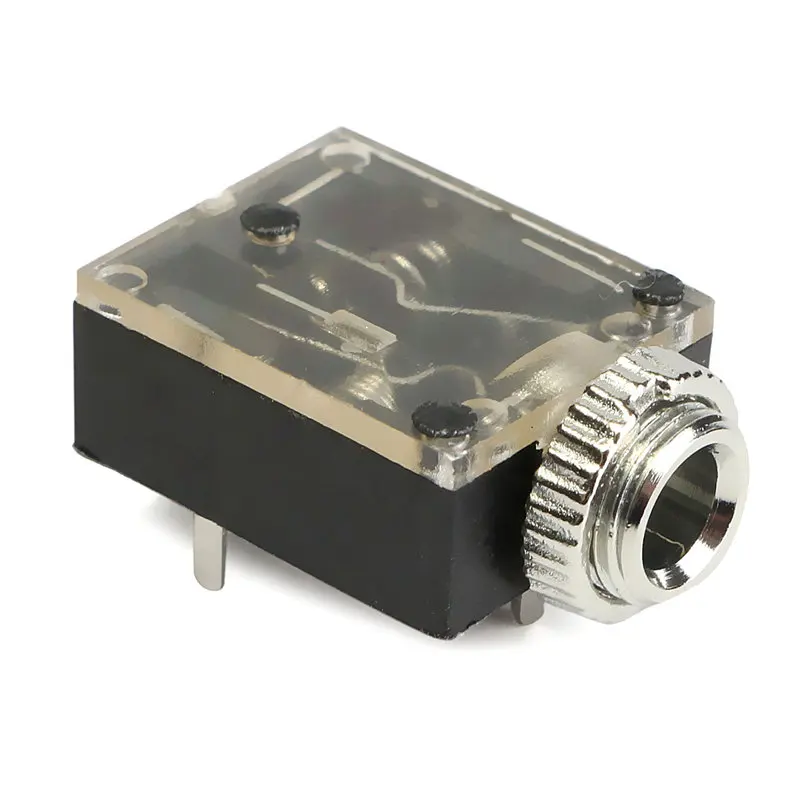

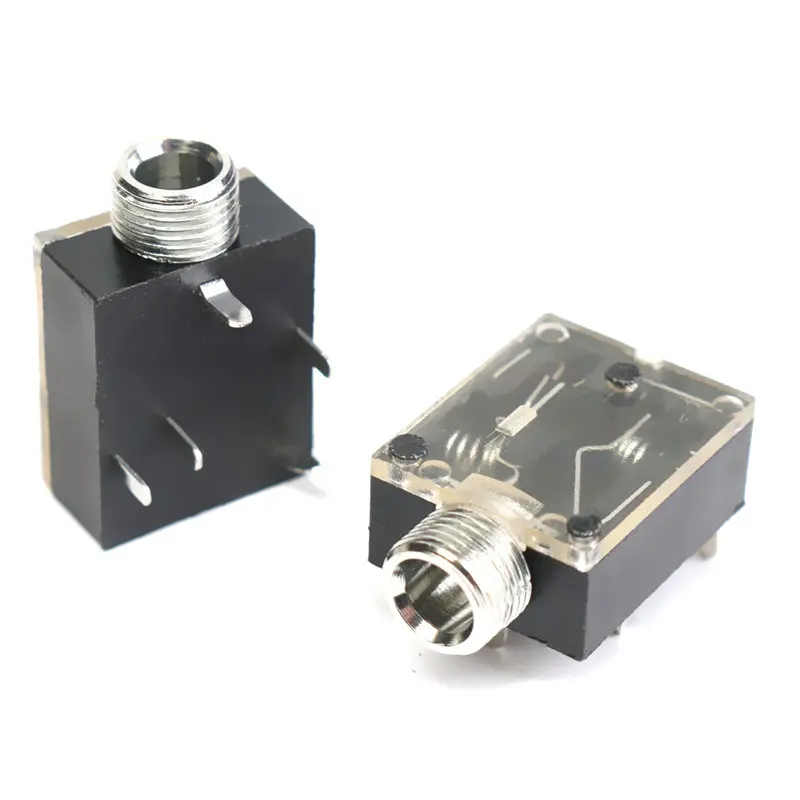

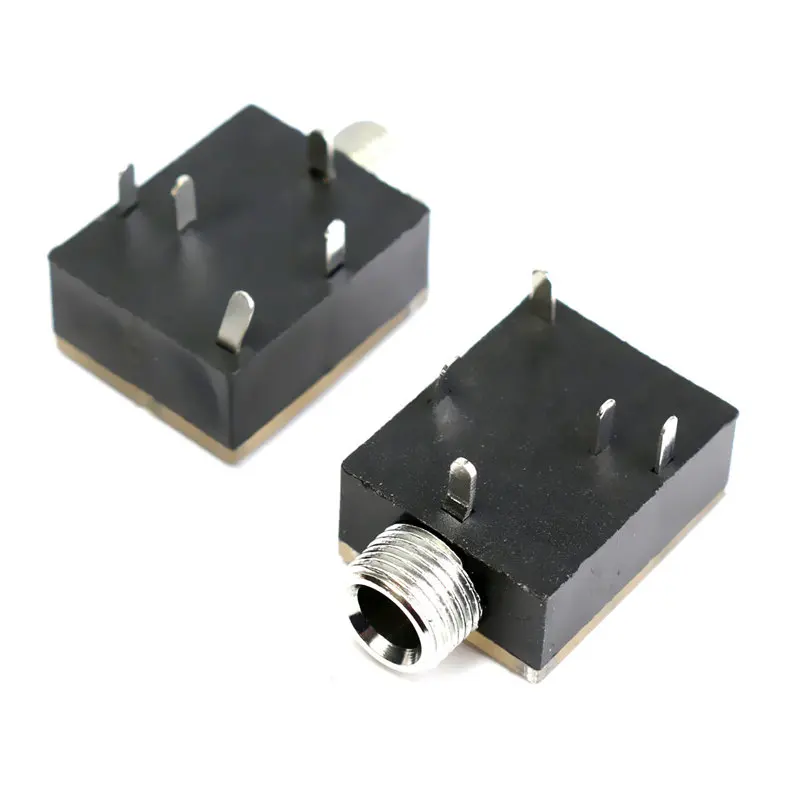

10PCS PJ-324 Headphone Jack 3.5mm Audio Jack with Nut 5-pin Audio Headphone Jack Interface Female PJ324
Limited Time Offer
$1.80
Free shipping over $10
Deliver to
Ship from Local Warehouse
10PCS PJ-324 Headphone Jack 3.5mm Audio Jack with Nut 5-pin Audio Headphone Jack Interface Female PJ324
Free Shipping
over $10
Delivery bySunday, December 7, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000017832064277
Brand: excellence electronic
Security & Privacy
FREE Return
Shop sustainably
PJ324M 3.5 headphone jack audio video socket audio jack socket 3.5MM headphone jackSpecifications:Size: 14.2 * 11.5 * 6.3mm (excluding nuts and pins s…
Related Products
Description
PJ324M 3.5 headphone jack audio video socket audio jack socket 3.5MM headphone jack
Specifications:

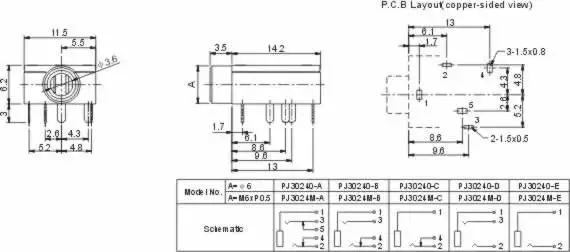

Size: 14.2 * 11.5 * 6.3mm (excluding nuts and pins section)
Solder pin: 2.5mm high
Screw: long 3.5mm, 6mm diameter
Temperature: -30-70 ° C
Withstand Voltage: AC500V (50Hz) / min
Rated load: DC 30V 0.5A
Actuating Forc: 3-20N
Contact Resistance: <0.03Ω
Life: 5000 times
Pin Description:
1 needle ---ground electrode
2/5 needle --- left and right channels
3/4 needle --- After insert audio plug, automatic needle disconnect with 2/5

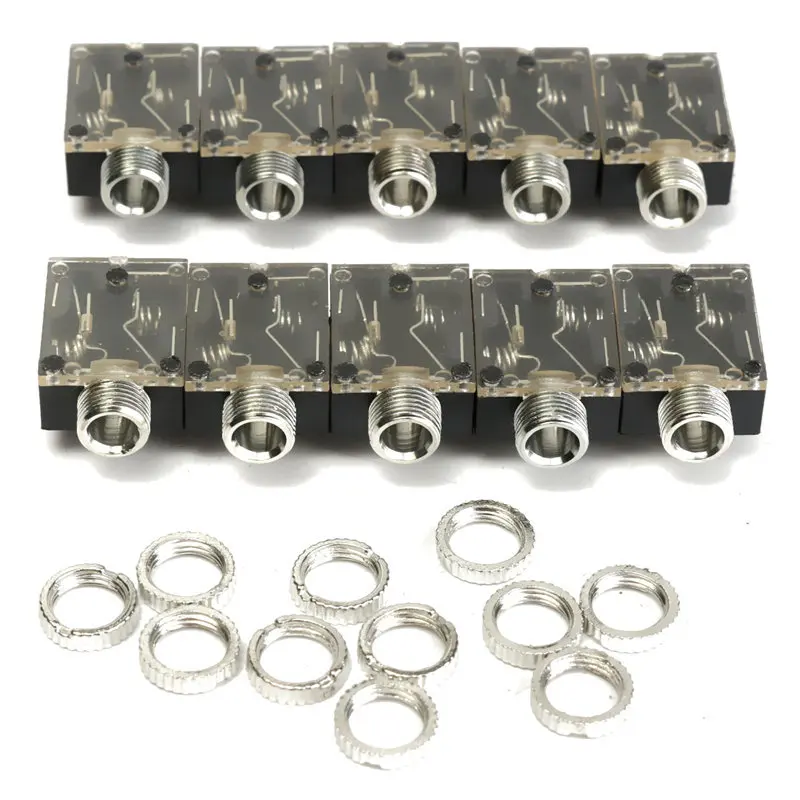

Package contains:
10x headphone jack
