Describe:

Model: 10 strings of 36V/30A

Applicable voltage power: 36V; <1000W

Applicable battery type: 3.7V ternary battery, lithium cobalt oxide, lithium manganate battery

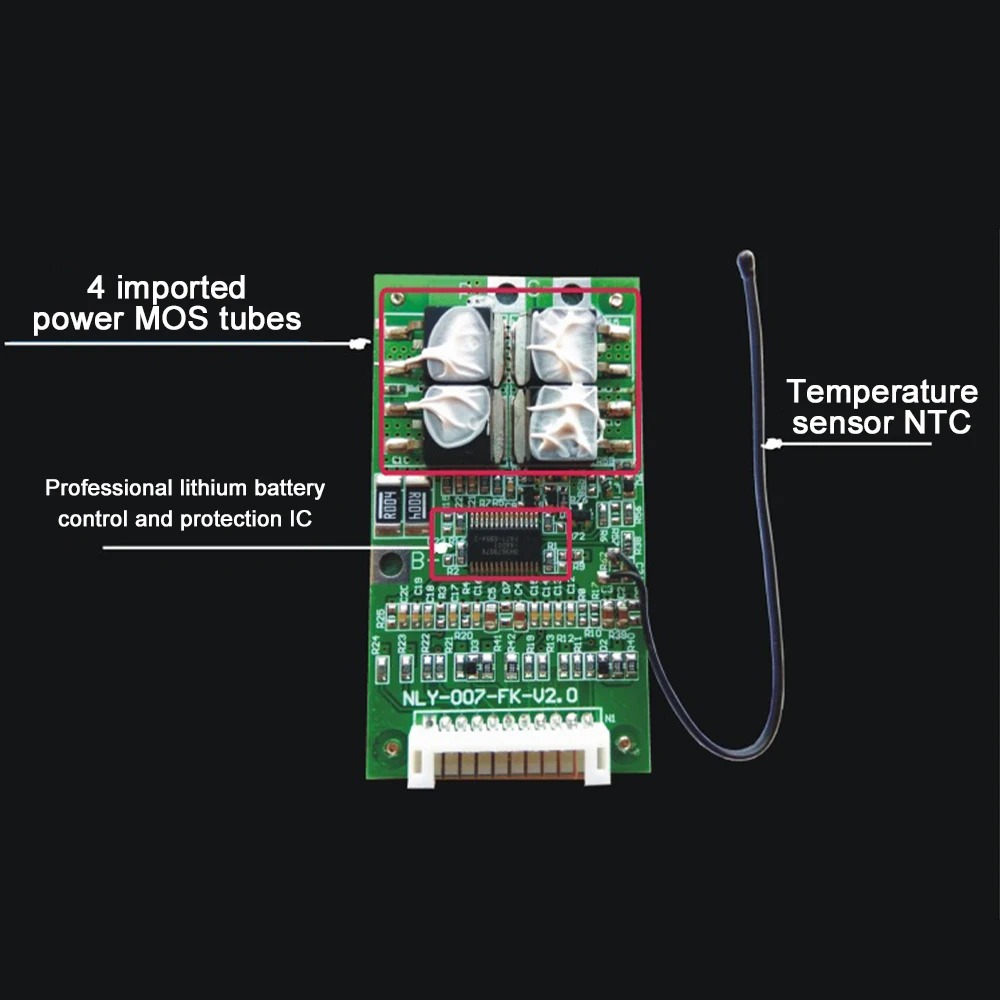

Function description: lithium battery - overcharge protection; overdischarge protection; overcurrent protection; output short circuit protection.

Maximum operating current: 40A MAX

Continuous working maximum current: 25A MAX

Over discharge protection voltage: 2.6V

Overcharge protection voltage: 4.25V

Charging current: 10A MAX

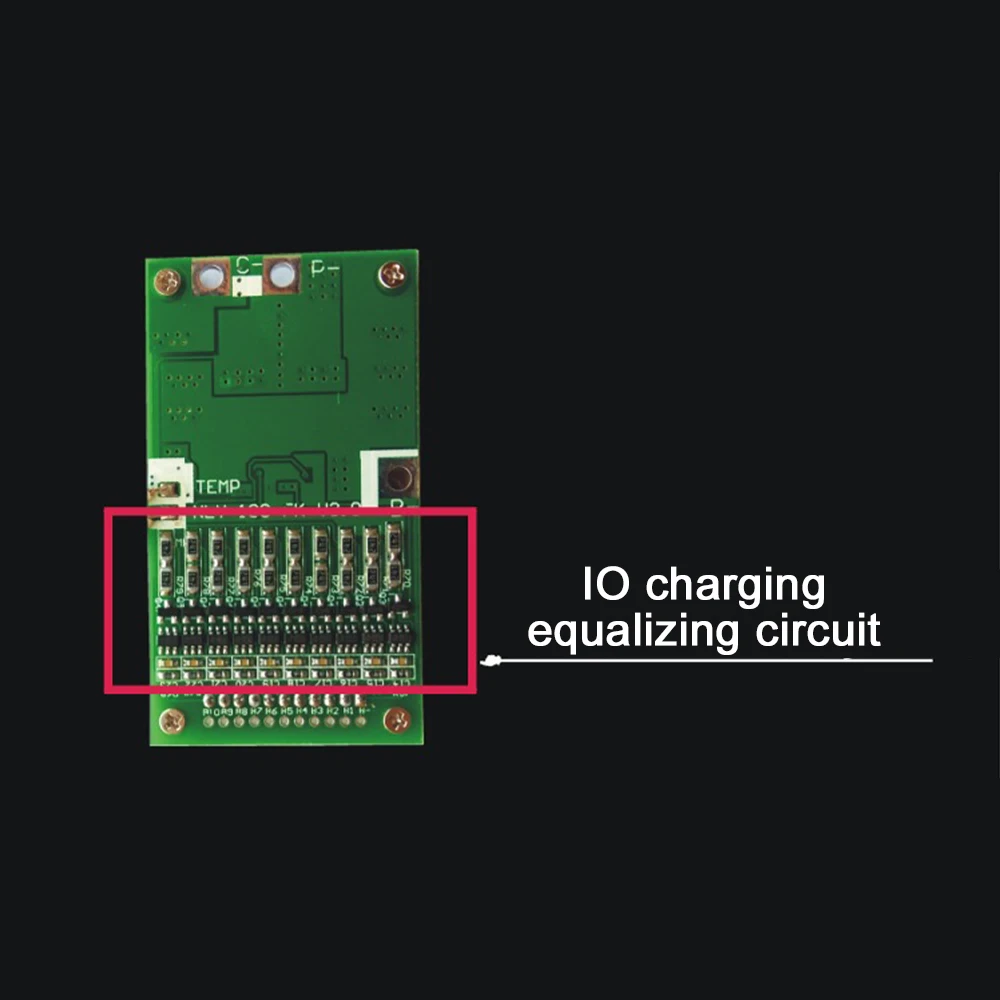

Balance charging function: with this function, the balance voltage is 4.2V

Application areas: electric vehicles; twisting vehicles; electric power bicycles; scooters; inverters, etc.

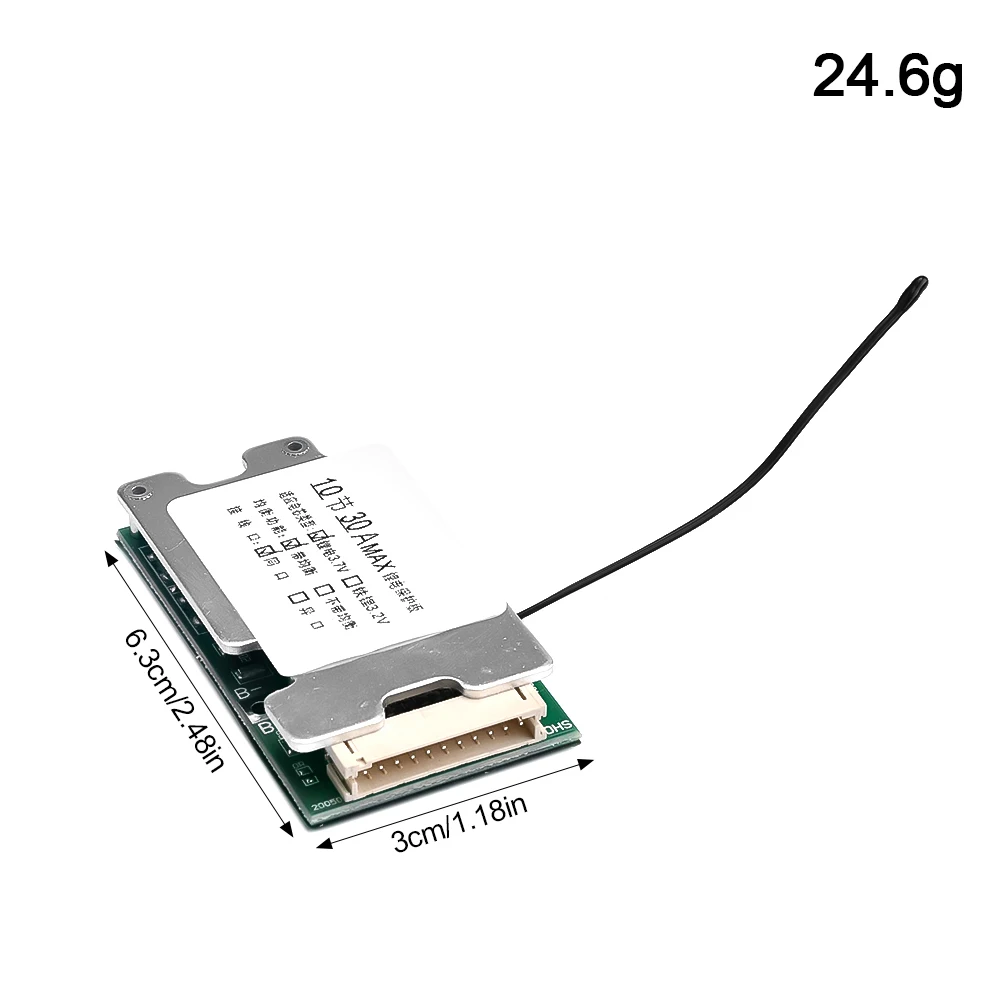

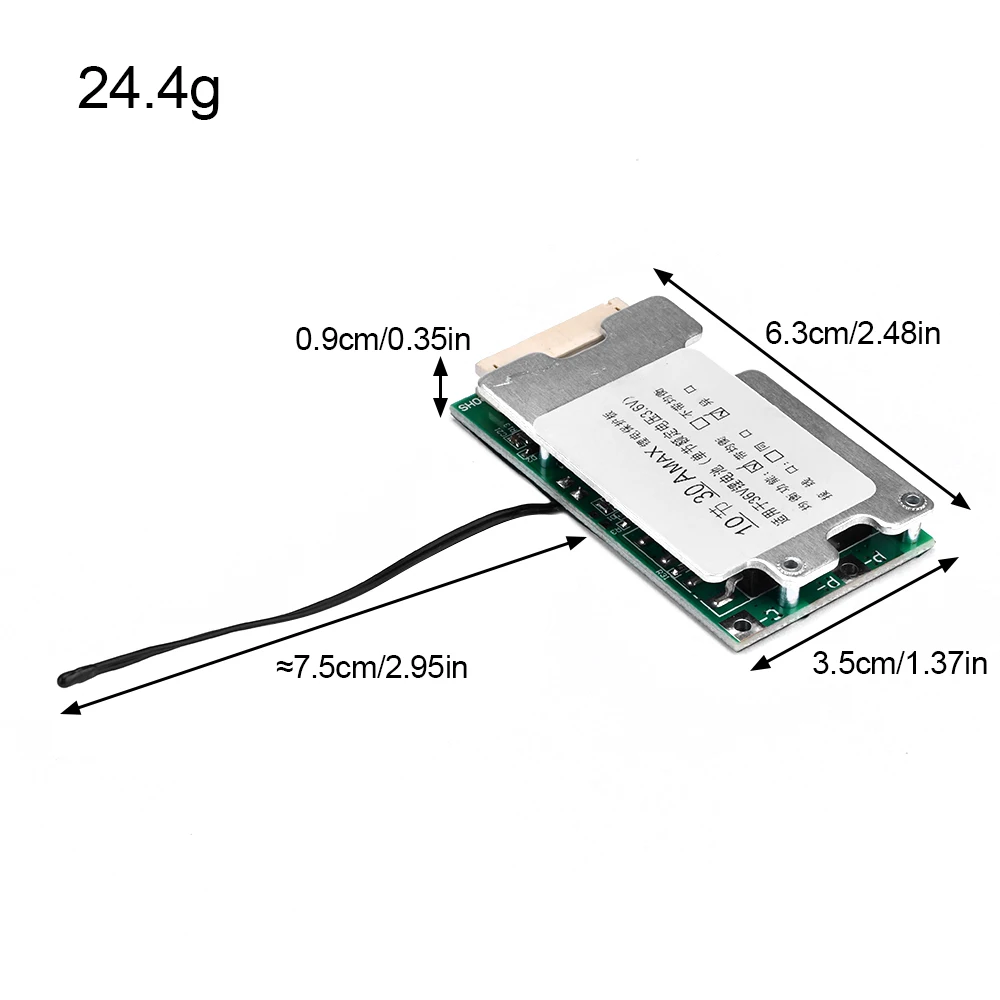

Dimensions: 64mm*35mm*9mm

Unit weight: 60g

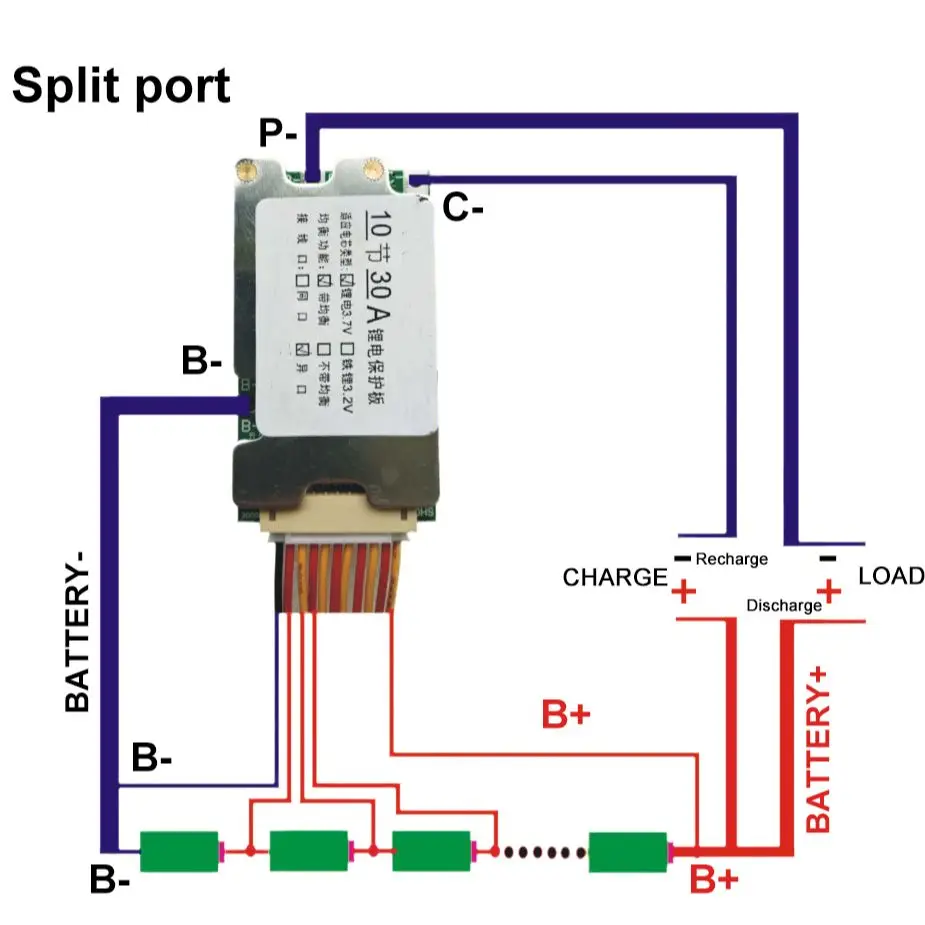

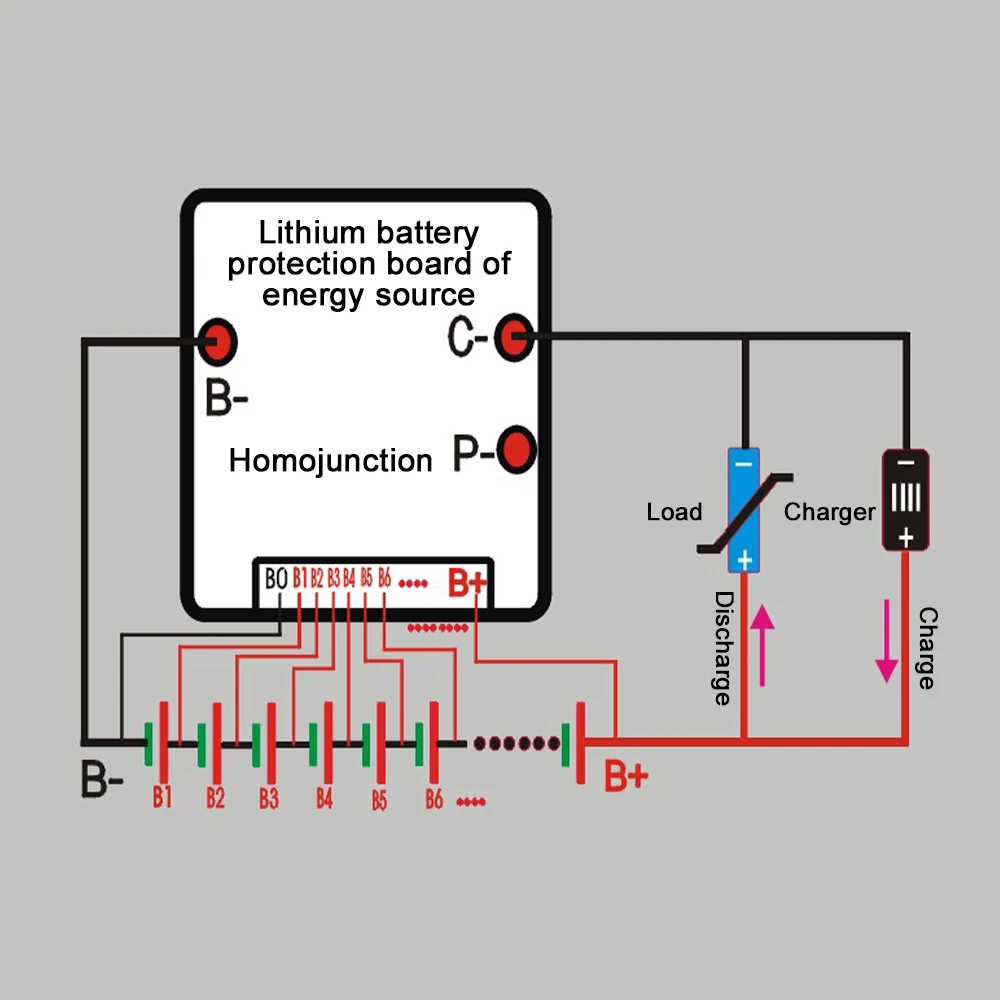

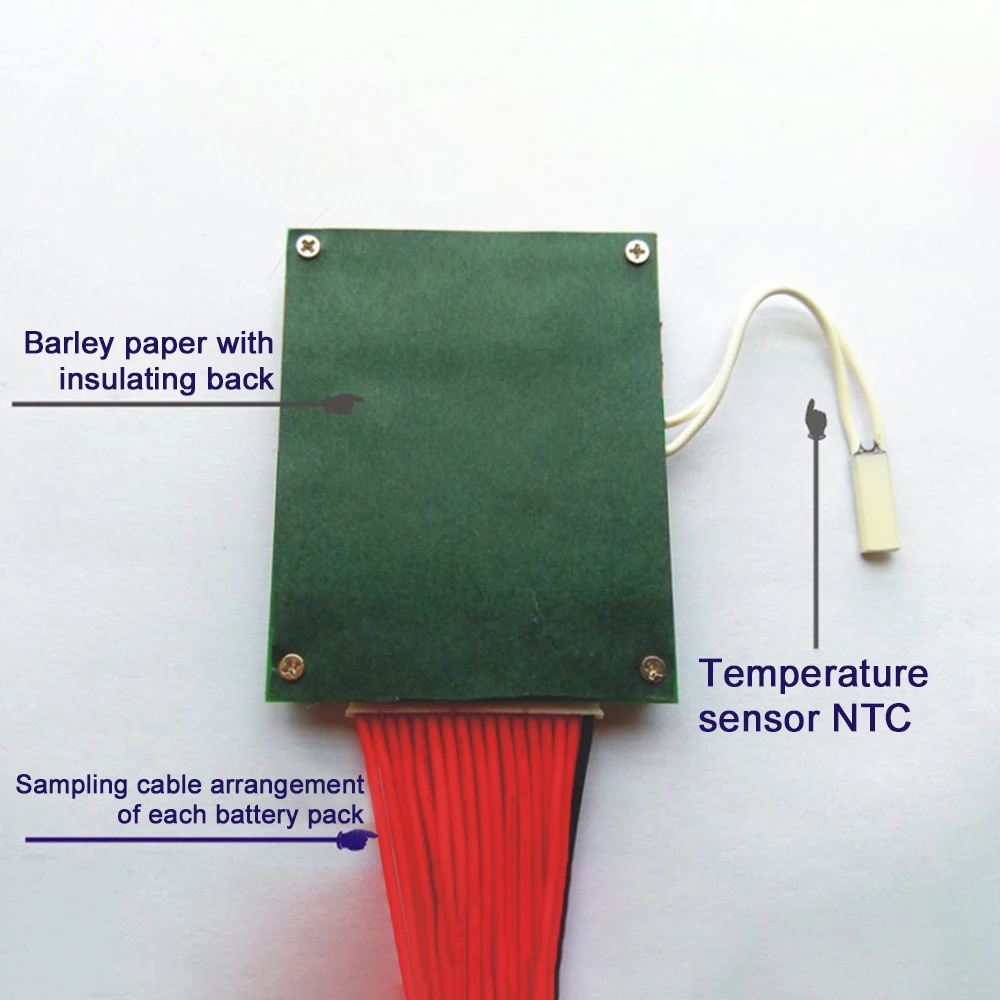

Wiring steps:

(1) Connect the acquisition cable to each section of the battery to ensure the effective connection of the cable.

Make sure that the single potential sequence increases or decreases sequentially at the plug end of the cable.

The potential sequence is consistent with the potential sequence of the socket at the end of the protection board and the potential is - corresponding.

(2) Solder the B- lead of the protection board to the total negative B- of the battery pack.

Make sure that the solder joints are firm and reliable and have good electrical conductivity, that there are no possible hidden dangers such as extrusion and friction at the wiring position, and that the wiring is smooth and short.

Avoid dropping, sticking, or touching solder, conductive objects, or leads into the protective plate.

(3) Connect the plug of the cable with the socket of the protection board.

First complete the welding of the B- lead of the protection board to the total negative B- of the battery pack, and then connect the plug of the cable to the socket of the protection board,

Make sure that the connection between the cable plug and the socket of the protection board is in place, and no charged objects or leads touch the protection board, and take fixing measures.

(4) B+ and c- are connected to the positive and negative poles of the charging interface, respectively.

Make sure to isolate other leads during the soldering process to avoid short circuits.

The voltage of the battery pack tested by the discharge interface and the charging interface is consistent with the battery pack voltage, the correctness of the polarity and the correctness of the wiring position.

Package Included:

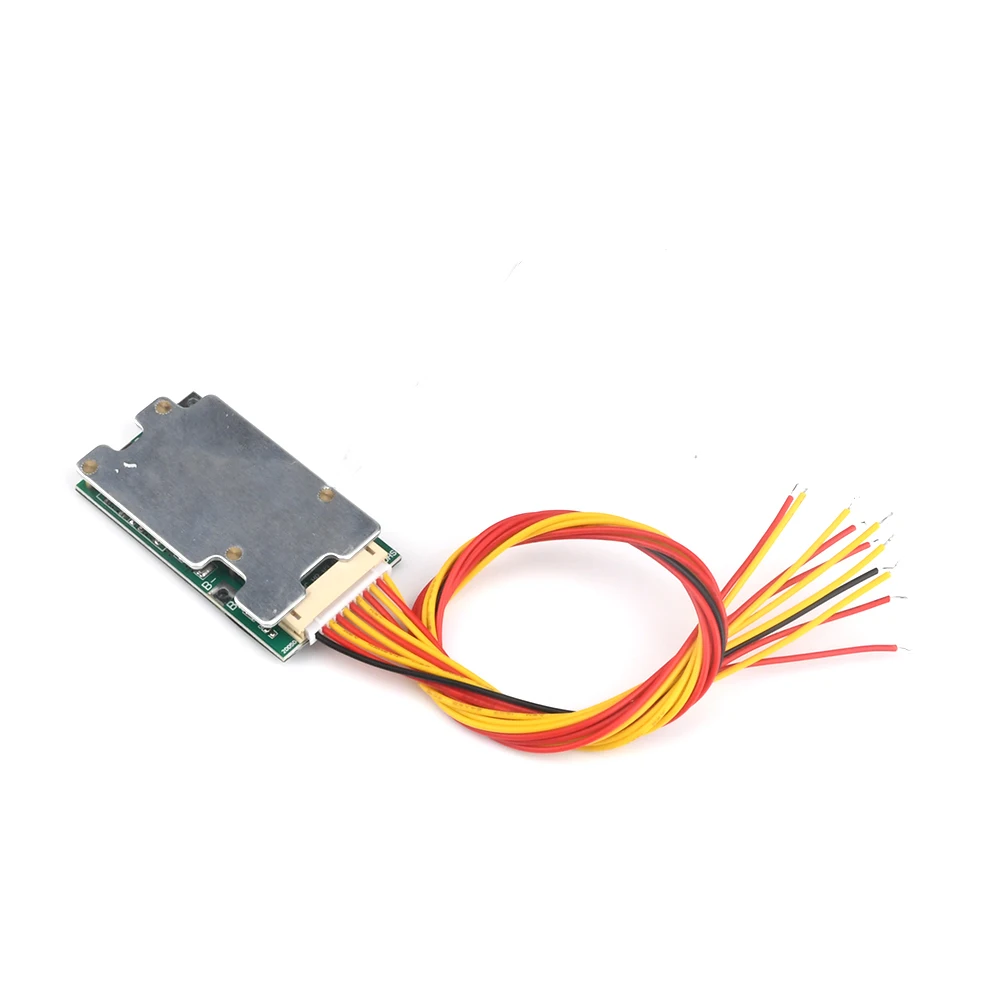

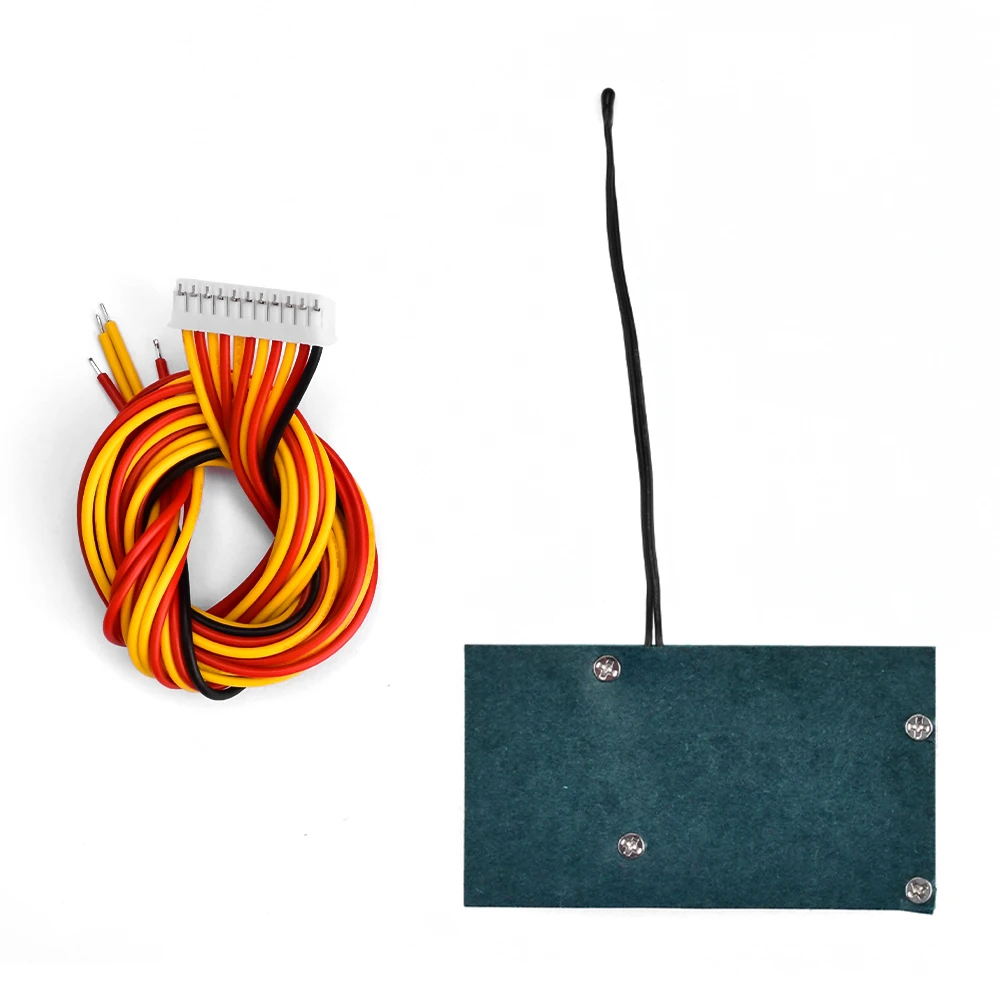

Port balanced lithium battery protection board x1

Cable x1
