12V 24V 48V 96V 60A MPPT Solar Charge Controller PV Solar Panel Charging Controller Regulator 150VDC WIFI RS485 Monitor
Limited Time Offer
Choice
Trending
Now:
$81.00
Was:
$135.00
-40% Now
Up to 4 x $20 with no interest
Deliver to
Ship from Local Warehouse
12V 24V 48V 96V 60A MPPT Solar Charge Controller PV Solar Panel Charging Controller Regulator 150VDC WIFI RS485 Monitor
Free Shipping
Delivery bySaturday, August 30, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000028236876791
Brand: Solar System Tools Store
Security & Privacy
FREE Return
Shop sustainably
Good News for EU and Brazil customer, our product has stock in Poland and Brazil warehouse, customer can get it quickly.EU Customer: 5-10days delivery…
Related Products
Choice
Super Deal
60A MPPT Charge Controller 12V 24V 36V 48V Auto LCD Display 0 layer Solar Regulator Work with AGM Gel Lithium Battery New Update
Now:
$91.66
Was:
$195.02
Description
Good News for EU and Brazil customer, our product has stock in Poland and Brazil warehouse, customer can get it quickly.
EU Customer: 5-10days delivery
Brazil Customer: 7-10days delivery

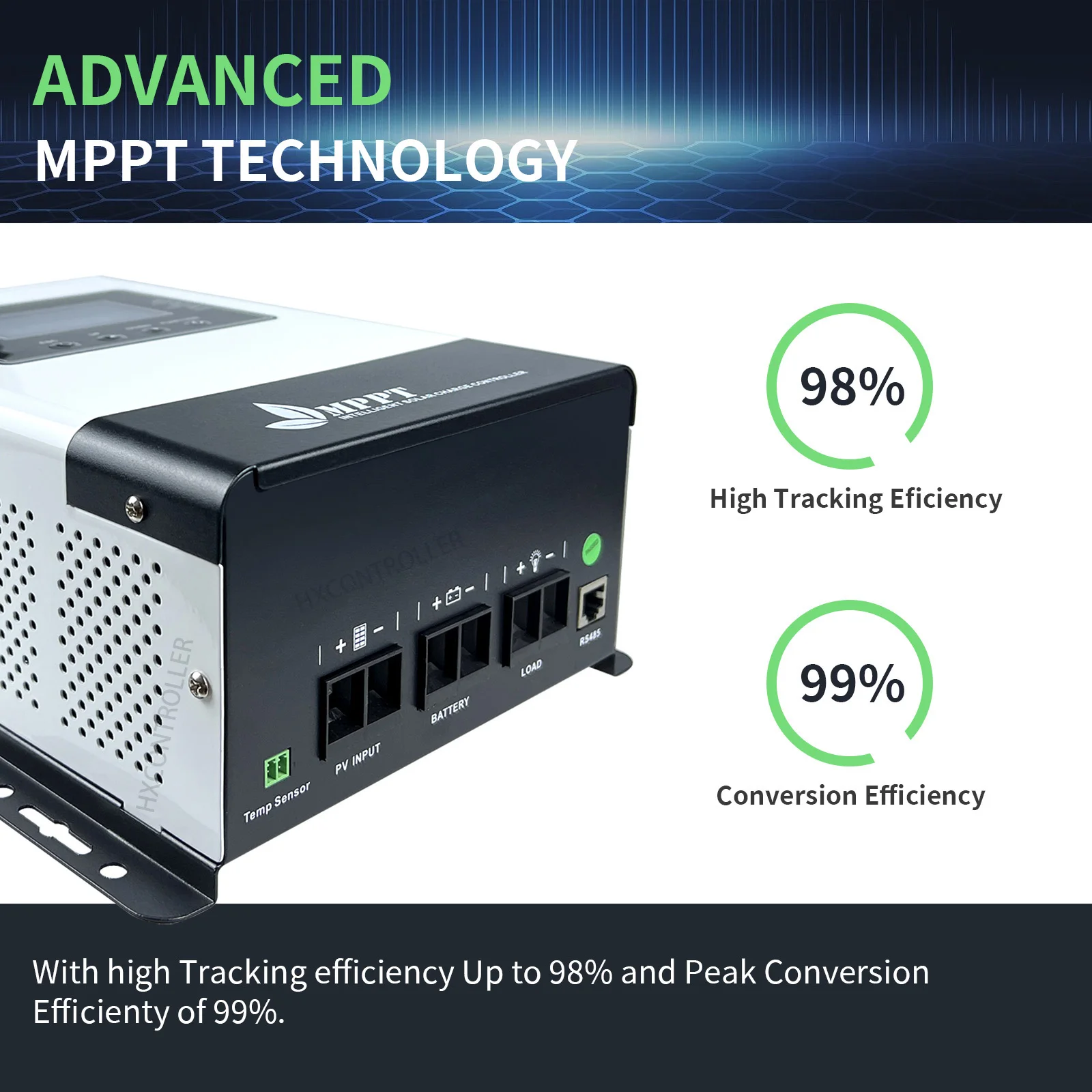

MPPT TEchnology:
Our machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 98%
Featrues:
❶MPPT 60A solar charge controller
❷100% MPPT technology
❸Built-in DSP controller with high performance
❹Automatic switch for 12V/24V/36V/48V/96V battery bank
❺3-stage charging optimizes battery performance
❻Overcharge protection, Input PV polarity reverse protection, Output limited current protection,
Over-temperature protection
❼Troubleshooting promotion function.
❼LCD HD Screen, you can check controller working situation in any time
❼Controller witi wifi function, you can check charging situation in mobile phone( You have to buy wifi seperately, otherwise, you can use wifi function)
❽Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc
❾Easy to be mounted
Model | TGR40 | TGR60 | TGR80 | TGR100 | TGR40-96V | TGR60-96V | TGR80-96V | TGR100-96V | |
Battery Voltage | 12V/24V/36V/48V(Auto Match) | 96V | |||||||
Rate Current | 40A | 60A | 80A | 100A | 40A | 60A | 80A | 100A | |
Charging Mode | MPPT | ||||||||
Battery Type | |||||||||
Charging method | Three stages: constant current, constant voltage, floating charge | ||||||||
Max Input | DC150V(low temperature) | DC250V(low temperature) | |||||||
Start Time | ≤10s | ||||||||
Dynamic response | ≤500us | ||||||||
Static power | ≤4W | ≤8W | ≤4W | ≤8W | |||||
tracking efficiency | ≥99.5% | ||||||||
Maximum conversion efficiency | ≥98% | ||||||||
operating voltage range | 8～64V | 72～128V | |||||||
Maximum power point operating voltage range | 12system | 20～150VDC | (96Vsystem)128～250VDC | ||||||
24Vsystem | 36～150VDC | ||||||||
36Vsystem | 48～150VDC | ||||||||
48Vsystem | 64～150VDC | ||||||||
Rate Charging Power | 12V | 540W | 800W | 1040W | 1300W | ||||
24V | 1080W | 1600W | 2080W | 2600W | |||||
36V | 1620W | 2400W | 3120W | 3900W | |||||
48V | 2160W | 3200W | 4160W | 5200W | |||||
96V | 4160W | 6240W | 8320W | 10400W | |||||
DC load voltage | Can be used directly | / | / | / | / | ||||
Rate DC load current | 40A | / | / | / | / | ||||
Load control method | Normally ON/OFF mode | / | |||||||
Load undervoltage protection | Default 10.5V*N (N is the number of batteries) | / | |||||||
Cooling method | air cooling | ||||||||
Display method | HD LCD backlit display | ||||||||
Protective function | Input and output over-voltage protection, input and output anti-reverse connection protection, | ||||||||
temperature compensation | 一3mV/℃/2V | ||||||||
communication method | RS485( please buy it seperately) | ||||||||
Working temperature | ▬20℃～+50℃ | ||||||||
Storage temperature | ▬40℃～+70℃ | ||||||||
noise | ≤50dB | ||||||||
humidity | 0～90%RH | ||||||||
Altitude | 0～3000M | ||||||||

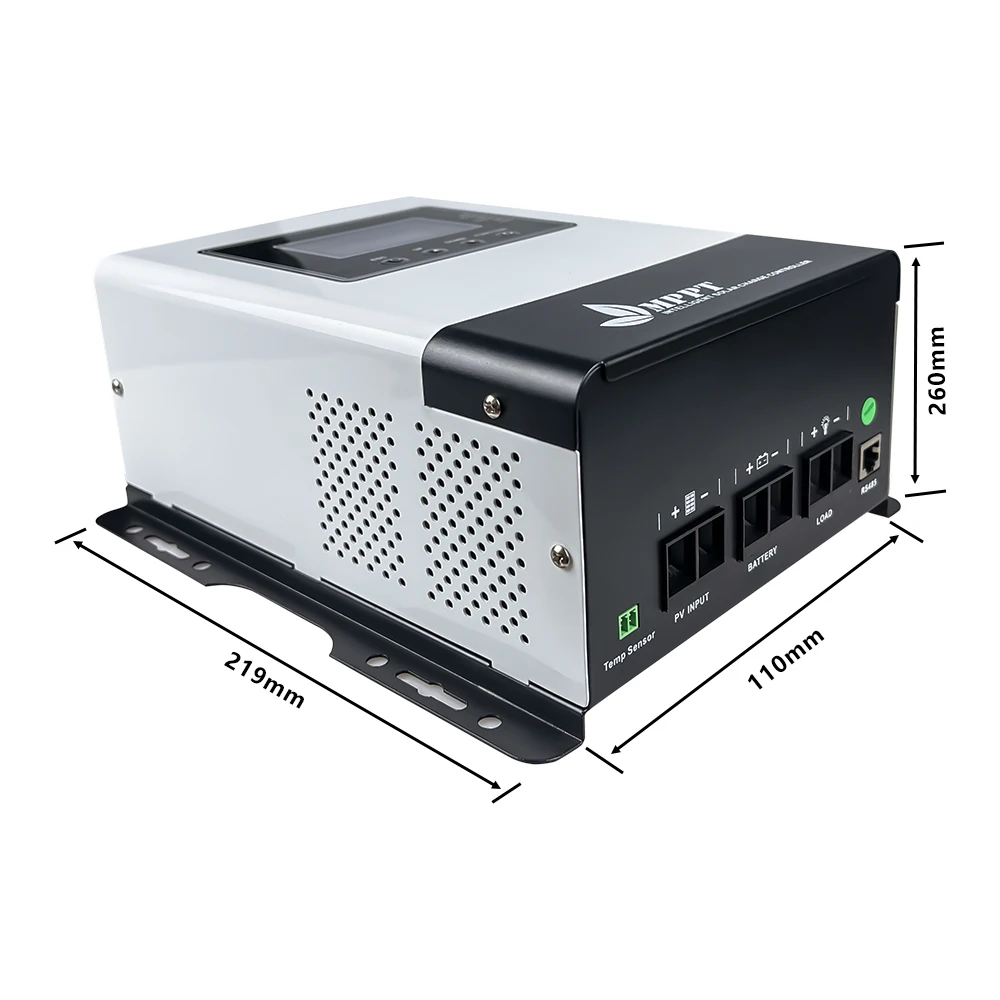

Body size (mm) | 219*260*110 | 275*348*109 | 219*260*110 | 275*348*109 | |||||
Net weight (KG) | 2.8KG | 4.6KG | 5.2KG | 2.8KG | 4.6KG | 5.2KG | |||
Recommended wiring | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 2AWG/35mm² | 7AWG/10mm² | 6AWG/16mm² | 4AWG/25mm² | 2AWG/35mm² | |
