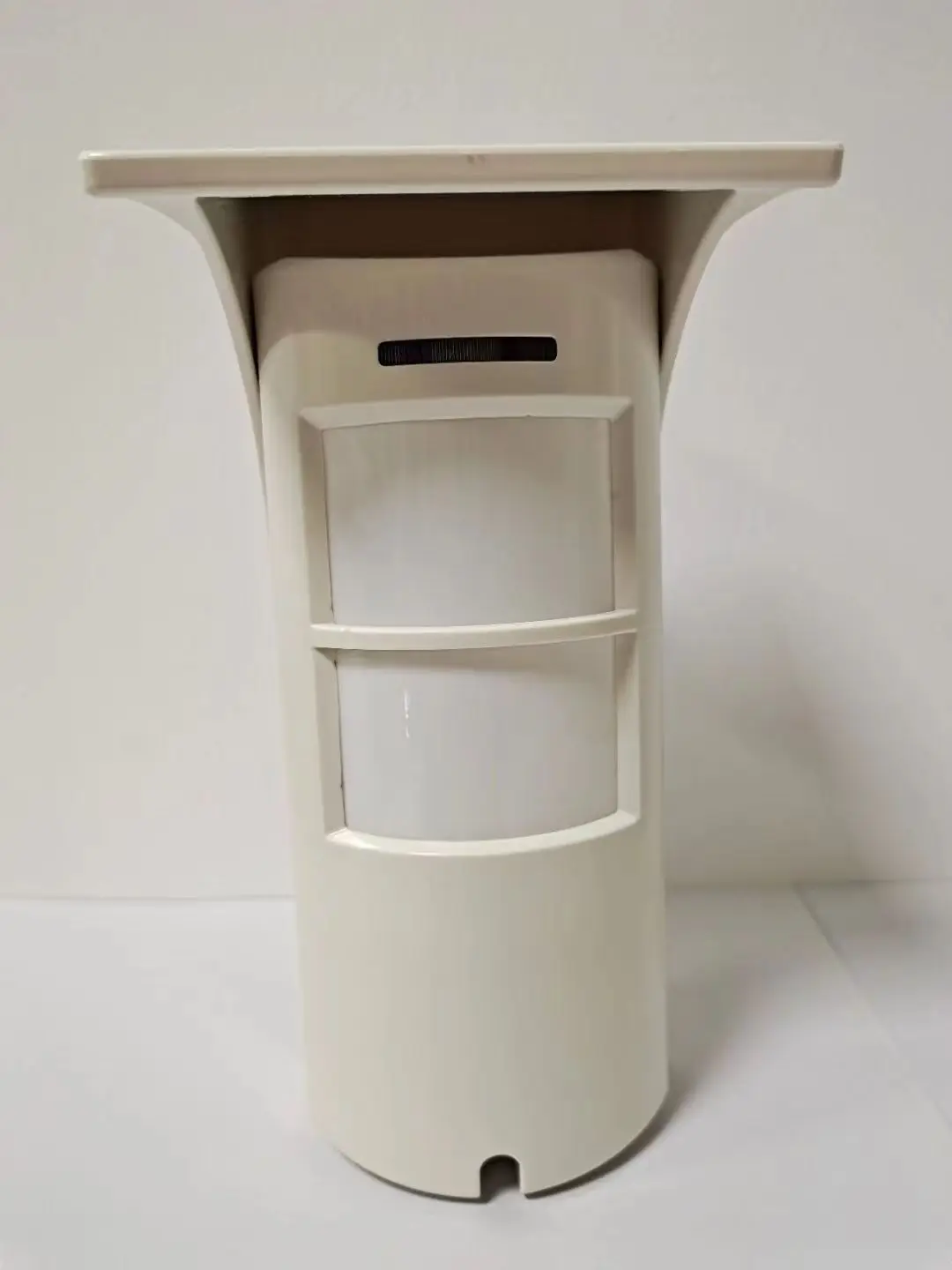

12V Wired Outside Anti Sunlight Triple Tech Alarm Detector Microwave Movement Infrared Passive PIR Motion Sensor Detector

Product Introduction:

This detector is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Signals of 3 sensors are with super stability and depend-ability by its advanced multi-grades digital signal processing technology.And they can offer 3 different detection modes on 2 sensitive grades in order to choose the best the detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal“AND"and“OR " modes,The detector is also with“EI" mode to avoid the damage of dopes spraying on the lens.Its unique water-proof design is totally fit for outdoor installation.At the same time, detector is also with other functions such as anti-masking automatic setting and alarm type memory etc.

Parameter:

-Alternative LED OFF

-Micro-strip MW with pulse transmission

-Two PIR and MW detection tech

-18 beams Fresnel lens with down-view window on its 4 planes

-Automatic setting of anti-masking

-Vertical adjustment

-Microwave synchronization

-Air-proof optical parts

-Detection mode: - EI-OR-AND

-Wall inlay

-Selctable detection sensitivity

-Total view:90°,Monitoring scale:15m

-Alarm type memory

-Corner and wall installation. Universal connector

-Anti white light

-Universal connector for option,

-Anti-pet>25kg

-90° horizontal adjustment 30° vertical adjustment
