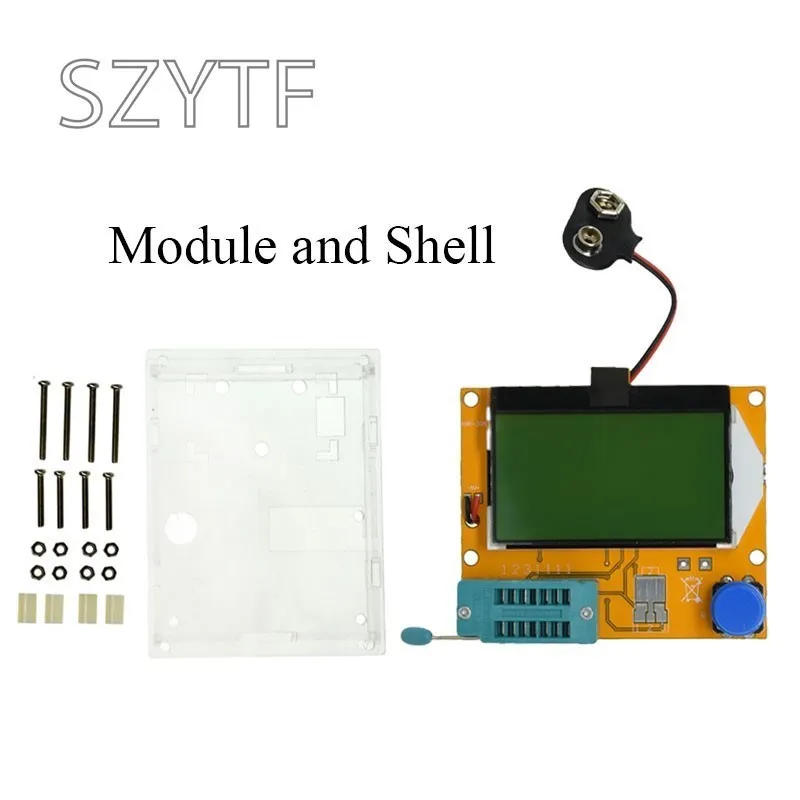

Module and shell (MAROON)

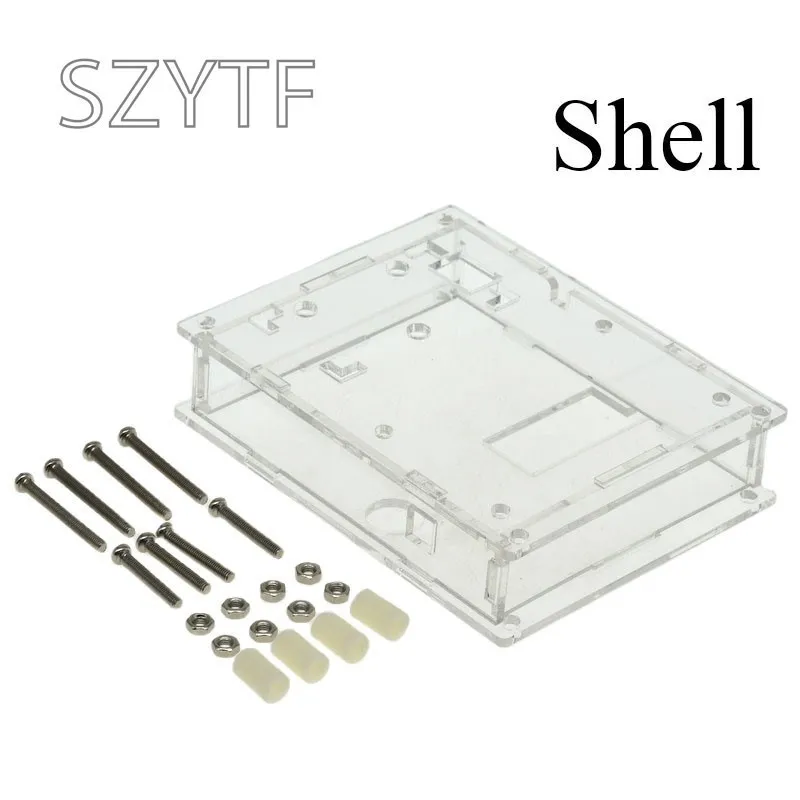

shell (Orange)

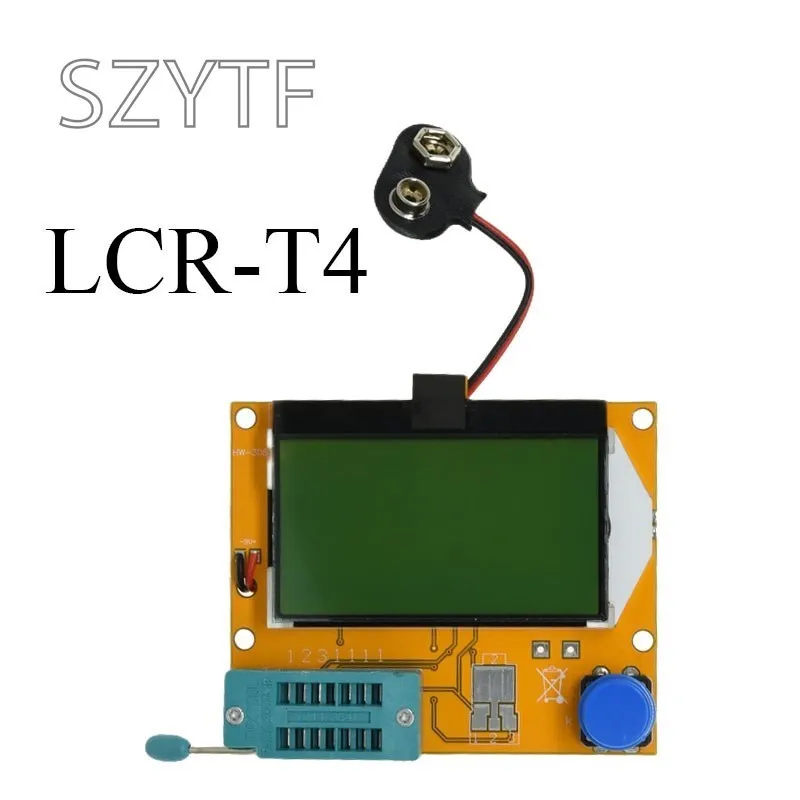

LCR-T4 (Khaki)
Module and shell (MAROON)
shell (Orange)
LCR-T4 (Khaki)
Zoom the image with the mouse

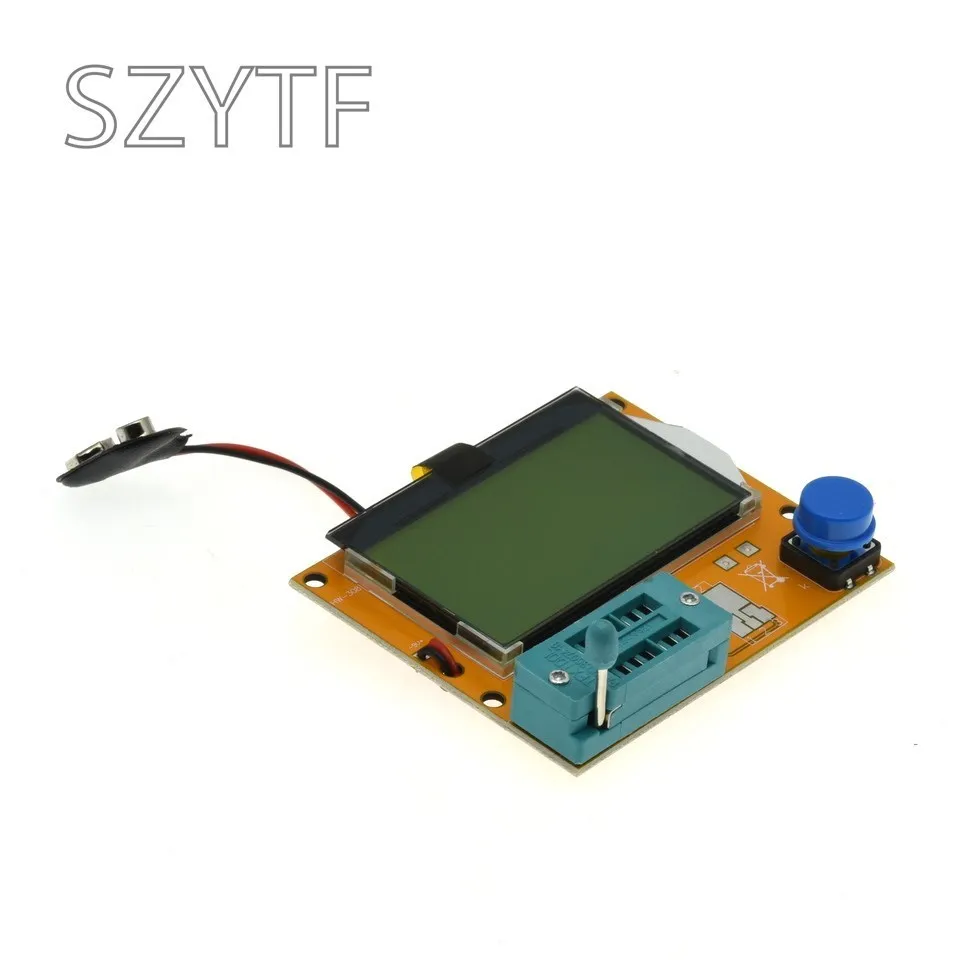

1pcs LCR-T4 ESR Meter Transistor Tester Diode Triode Capacitance SCR Inductance New Drop Ship

No reviews yet Write a Review
8 sold in last 18 hours
Choice
Limited Time Offer
$8.11
31 sold

Deliver to

Columbus
🇺🇸 Ship from U.S.
Free Shipping Delivery byThursday, April 17, Order within
11 hrs 59 mins 52 secs

Shiped By: AliExpress

Fast Delivery
  • $1.00 coupon code if delayed
  • Refund if package lost
  • Refund if items damaged
  • Refund if no delivery in 30 days
SKU: AE12000027434626277
Brand: SZYTF
Security & Privacy
  • Safe payments: We do not share your personal details with any third parties without your consent.
  • Secure personal details: We protect your privacy and keep your personal details safe and secure.
FREE Return
Shop sustainably

Features :• 128*64 big Backlight LCD display,only 2mA when stand by.• Using 9V battery(Not included)• Inductors, capacitors , diodes, dual diode , mos…

Selected Color is Module and shell (MAROON)
Adding to cart… The item has been added

1pcs LCR-T4 ESR Meter Transistor Tester Diode Triode Capacitance SCR Inductance New Drop Ship

$8.11
Choose Options
✕

1pcs LCR-T4 ESR Meter Transistor Tester Diode Triode Capacitance SCR Inductance New Drop Ship

$8.11
6 customers are viewing this product
Description
Features :

• 128*64 big Backlight LCD display,only 2mA when stand by.

• Using 9V battery(Not included)
• Inductors, capacitors , diodes, dual diode , mos, transistor, SCR , the regulator, LED tube , ESR,
• Resistance,Adjustable potentiometer
• Resistance :  0.1 ohm resolution, maximum 50M ohm
• Capacitor :  25pf -100,000 uf
• Inductors :   0.01mh-20H
• Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET,
diode (including double diode), thyristor, transistor, resistor and capacitor and other components

• Automatic test the pin of a component, and display on the LCD

• Can detect the transistor, MOSFET protection diode amplification coefficient
and the base to determine the emitter transistor forward biased voltage

• Measure the gate and gate capacitance of the MOSFET threshold voltage
• Use 12864 liquid crystal display with green backlight


For you reference


Specifications:

1:  One -button operation, automatic shutdown .
2:  Only 20nA shutdown current.

3:  Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET,
JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor.

4:  Automatic identification components pin arrangement .
5:  Measuring bipolar transistor current amplification factor and base - emitter threshold voltage.
6:  Via the base - emitter threshold voltage and high current amplification factor to identify Darlington transistors.
7:  Can detect bipolar transistors and MOS transistors protection diodes.
8:  Measuring the gate MOS FET threshold voltage and the gate capacitance.

9:  Can simultaneously measure two resistors and resistor symbol is displayed.
     Displayed on the right with a decimal value of 4 .
     Resistance symbol on both sides shows the pin number.
     So you can measure the potentiometer.
     If the potentiometer wiper is not transferred to an extreme position ,
     we can distinguish the middle and both ends of the pin.
10:  Resistance measurement resolution is 0.1 ohms , 50M ohms can be measured .
11:  Can measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF.
12:  2uF more capacitors can simultaneously measure the equivalent series resistance ESR values.
       The two can be displayed with a decimal value , resolution 0.01 ohms.

13:  Can be in the correct order and the diode symbol display two diodes , and gives the diode forward voltage.
14:  LED is detected as a diode forward voltage higher . Combo of the LED is identified as two diodes.
15:  Eeverse breakdown voltage is less than 4.5V Zener diode can be identified.

16:  Can measure a single diode reverse capacitance.
       If the bipolar transistor connected to the base and collector or emitter of a pin ,
       it can measure the collector or emitter junction reverse capacitance .
18:  can be obtained with a single measurement rectifier bridge connection.
