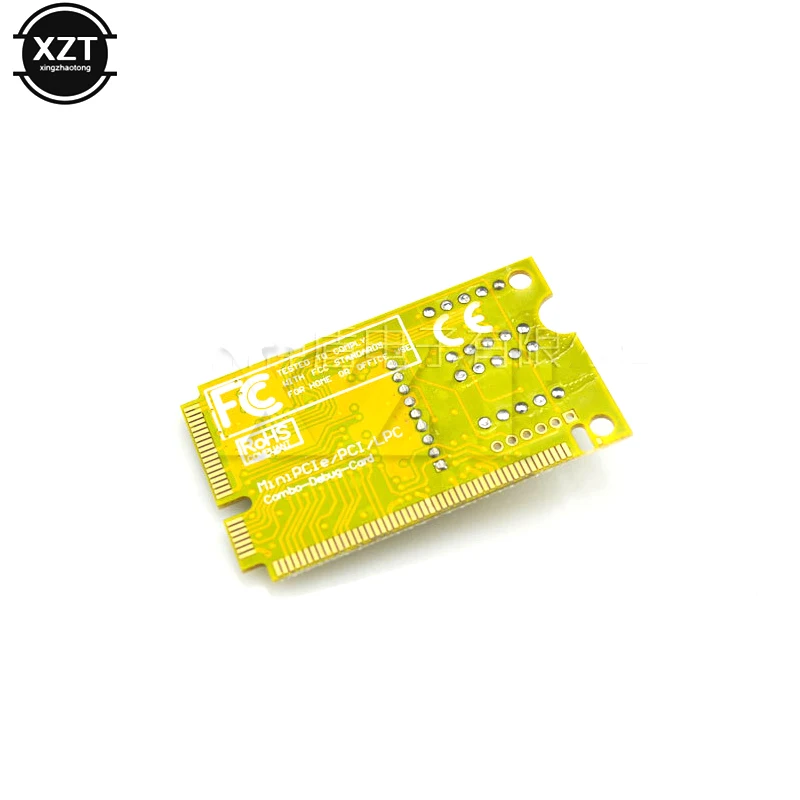

3 in 1 Diagnostic Post Card USB Mini pci-e PCI E PCI LPC PC Analyzer Tester pci express Tester adapter For Notebook Express Card
Limited Time Offer
$3.61
Free shipping over $10
Deliver to
Ship from Local Warehouse
3 in 1 Diagnostic Post Card USB Mini pci-e PCI E PCI LPC PC Analyzer Tester pci express Tester adapter For Notebook Express Card
Free Shipping
over $10
Delivery byTuesday, October 14, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000029947995518
Brand: A+ Phone Accessory Store
Security & Privacy
FREE Return
Shop sustainably
Features:Interface: mini PCI, mini PCI-E, LPCSuitable for laptopSupport Mini PCI, Mini PCI-E, LPC bus interfaceThe laptop motherboard wil output a ser…
Related Products
Choice
USB 3.0 PCI-E Expansion Card Adapter 7 Ports USB 3.0 Hub Adapter External Controller PCI-E Extender PCI Express Card for Desktop
Free Shipping above $10
$17.12 - $18.07
Description
Features:

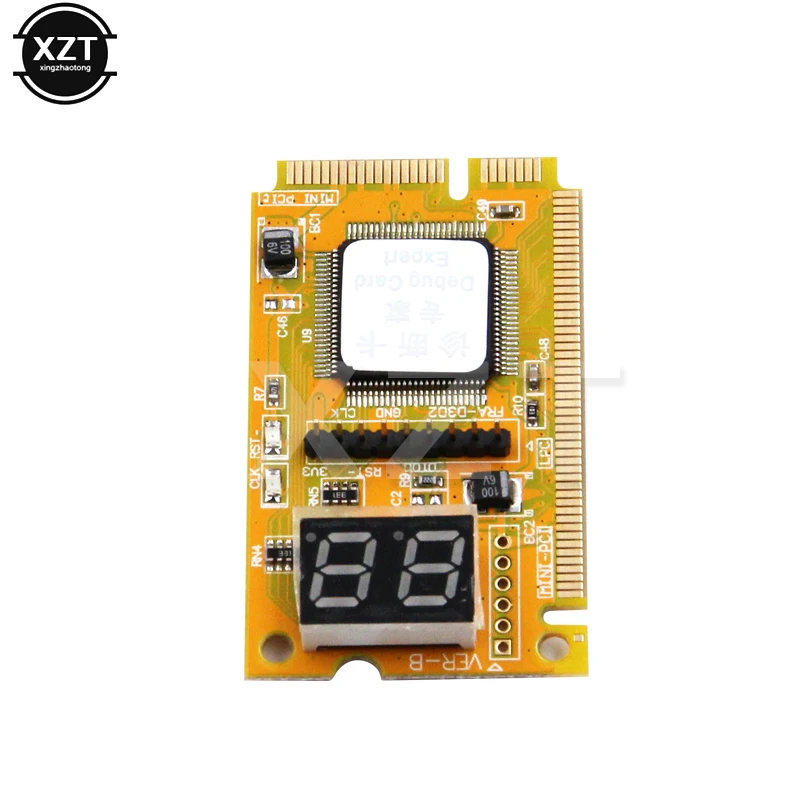

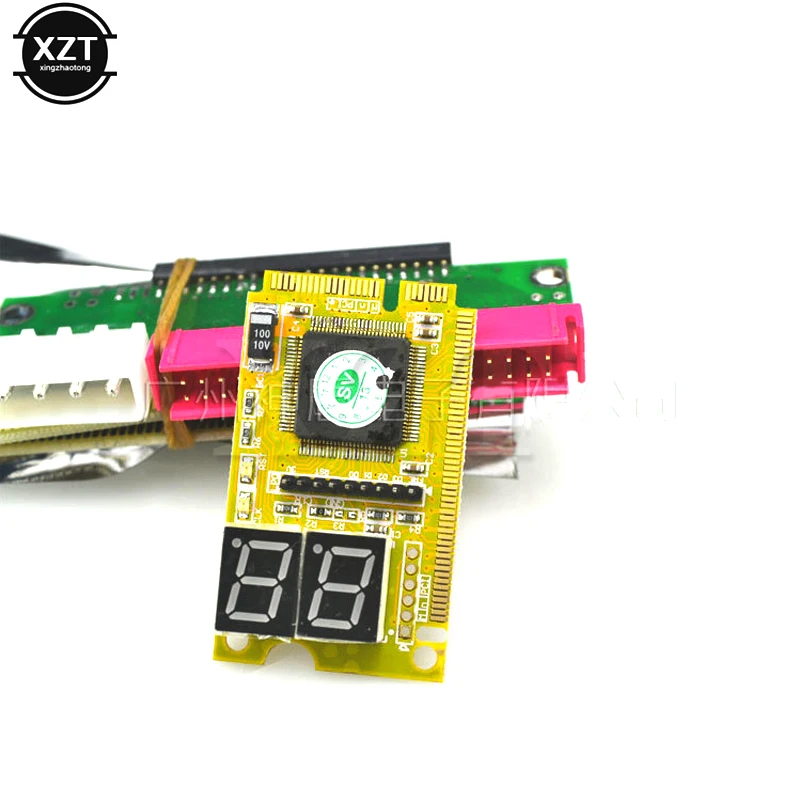

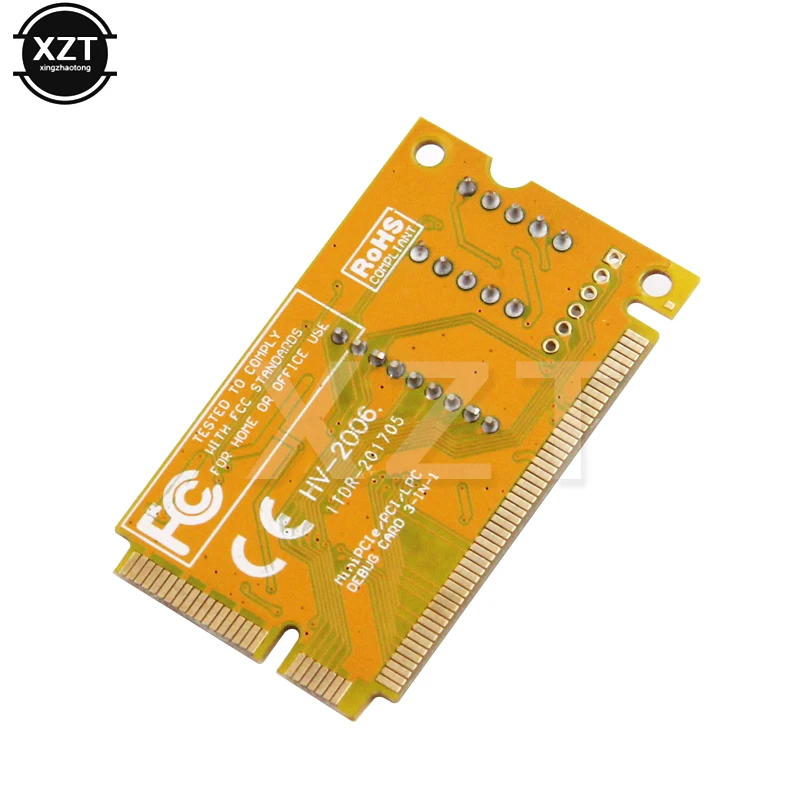

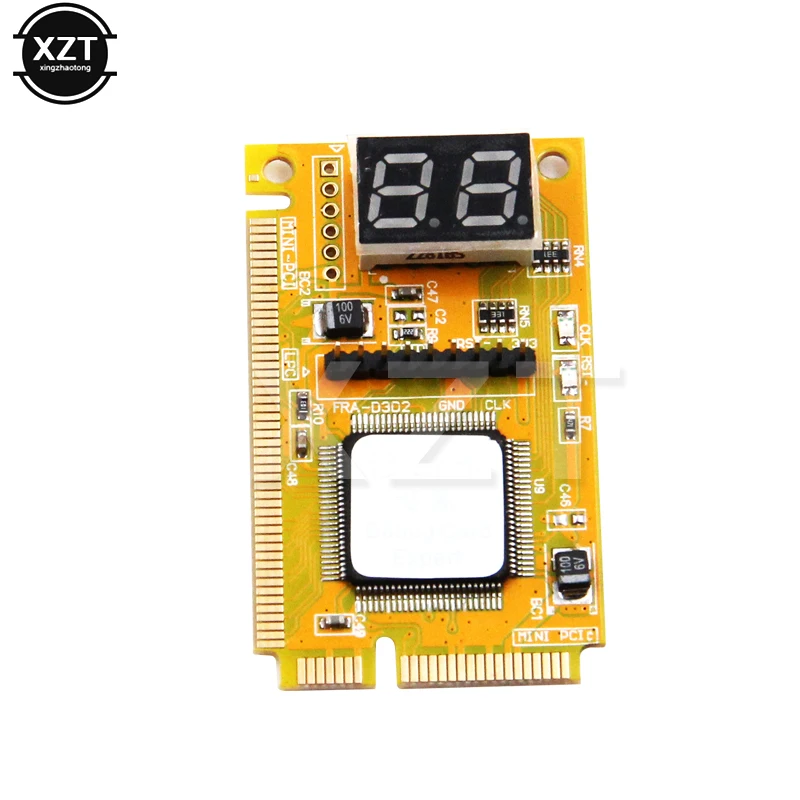

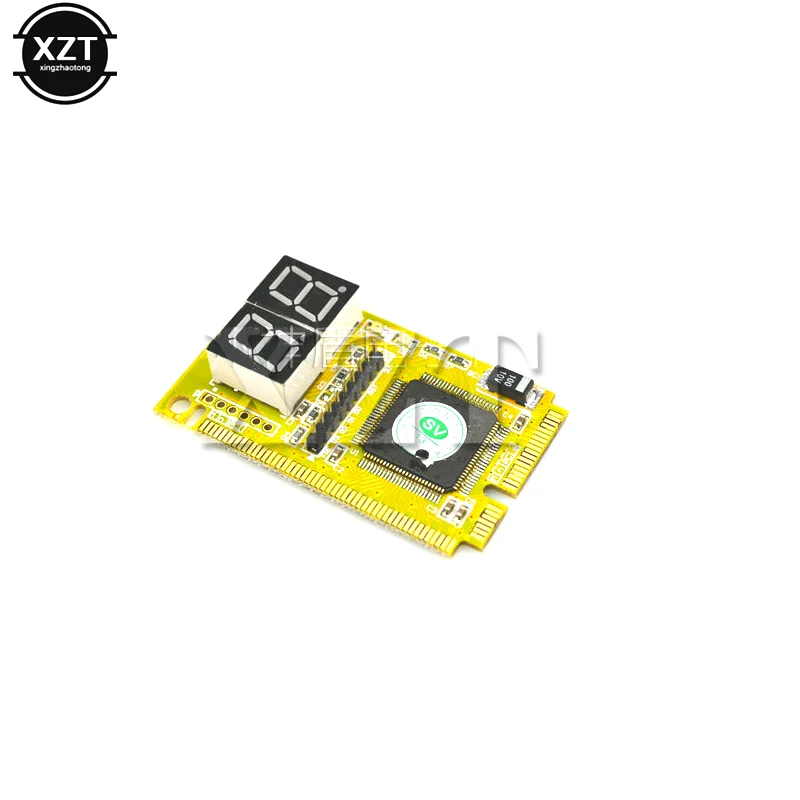

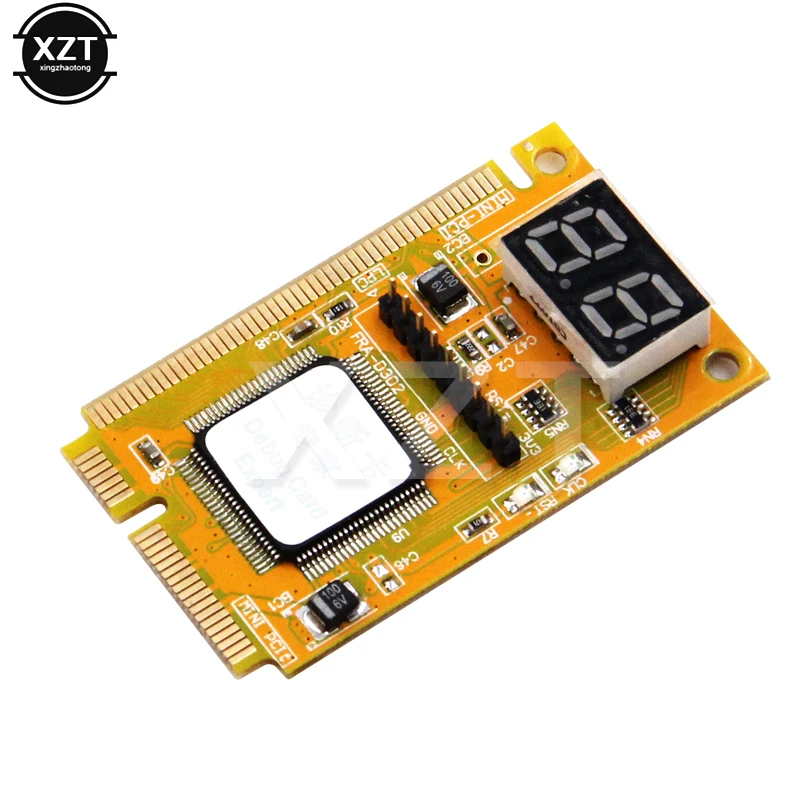

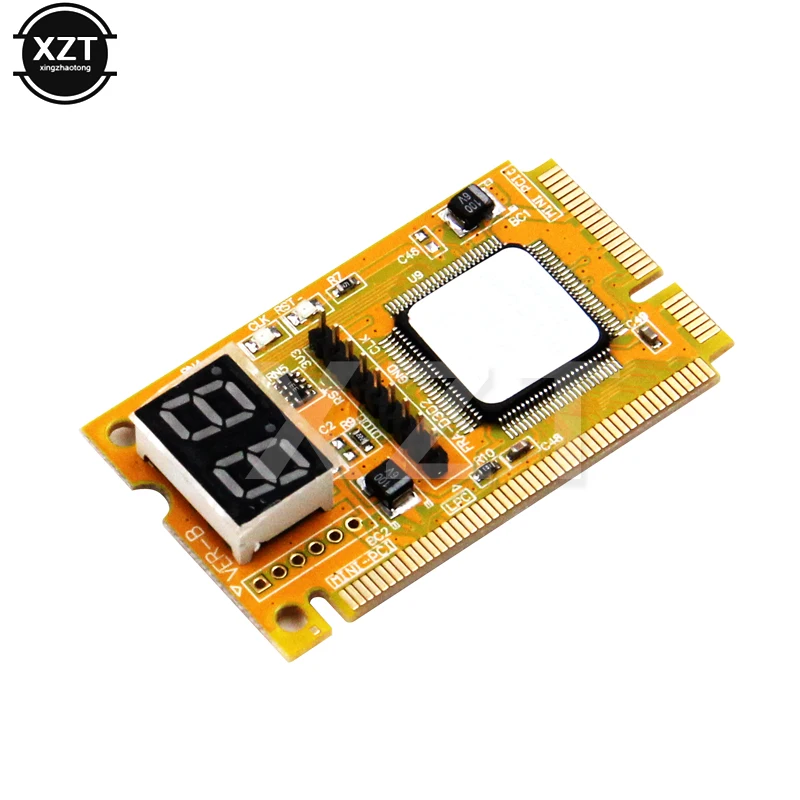

Interface: mini PCI, mini PCI-E, LPC
Suitable for laptop
Support Mini PCI, Mini PCI-E, LPC bus interface
The laptop motherboard wil output a series of fault codes in the process of working.
The disgnostic card will receive these fault codes.
The users can determine the fault of the motherboard through the fault codes.
It is note universal.
RST indicator is off, CLK indicator doesn't flash and the code of the diagnostic card is "00".
It shows that the card does not receive the clock signal and can not work.
Maybe the motherboard does not support the diagnostic card mini PCI-E interface.
Please use the LPC interface or mini PCI interface for testing.
RST indicator is off, CLK indicator flashes and the code of the diagnostic card is "00".
It shows that the RST and clock signal is normal.
Please check the Bus indicator.
If the lower-right corner of the right digital tube is on, it shows that diagnostic card is in mini PCI-E or LPC bus state.
If the lower-left corner of left is on, it shows that the diagnostic card is in mini PCI bus state.
Usually, the motherboard has no slot corresponding with the interface.
So the users need to connect the interface to the motherboard through the flying line.
Generally, for convenience, it is recommended that the user connects the diagnostic card to LPC interface BIOS through the flying line on the motherboard.
Please don't insert the PCI-E to the PCI slot.
1 x Diagnostic card

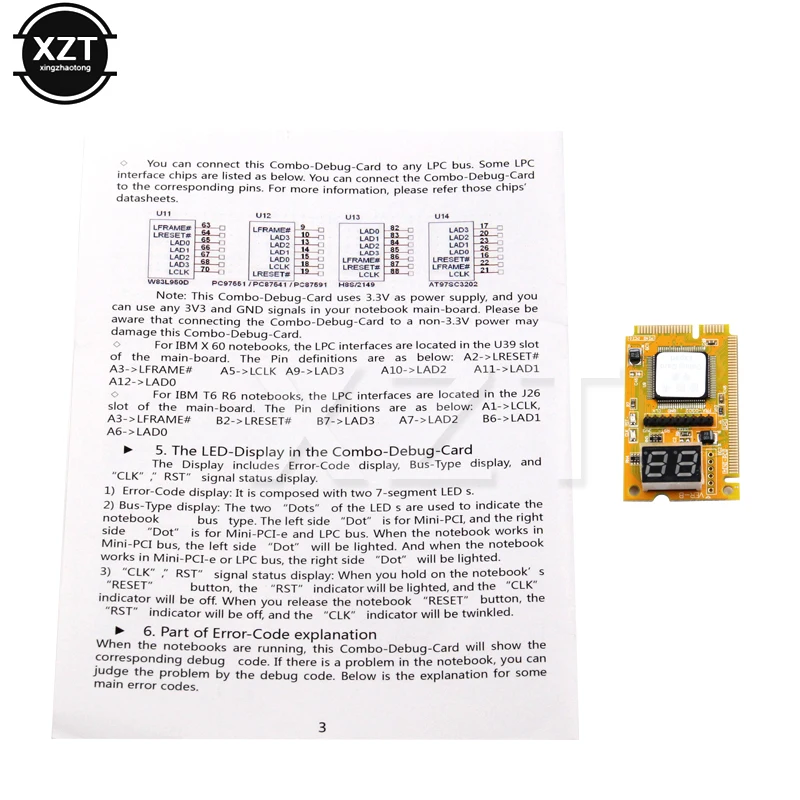

1 x User manual
