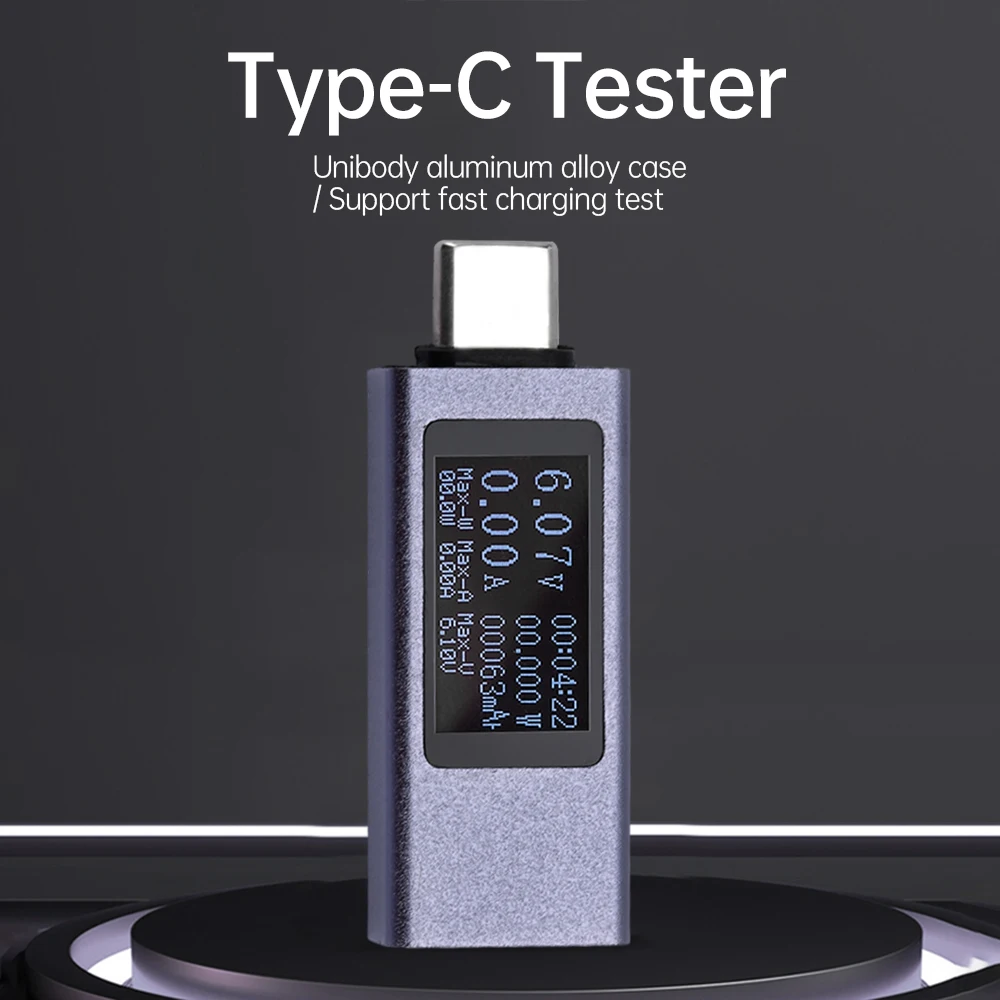

Type-C Tester

Features:
1.Current, voltage, power, electrical energy, capacity, timing and other rapid identification and other parameters, a screen display a variety of parameters.
2.0.77 inch OLED screen displays current, voltage and battery capacity to monitor power charging status in real time.

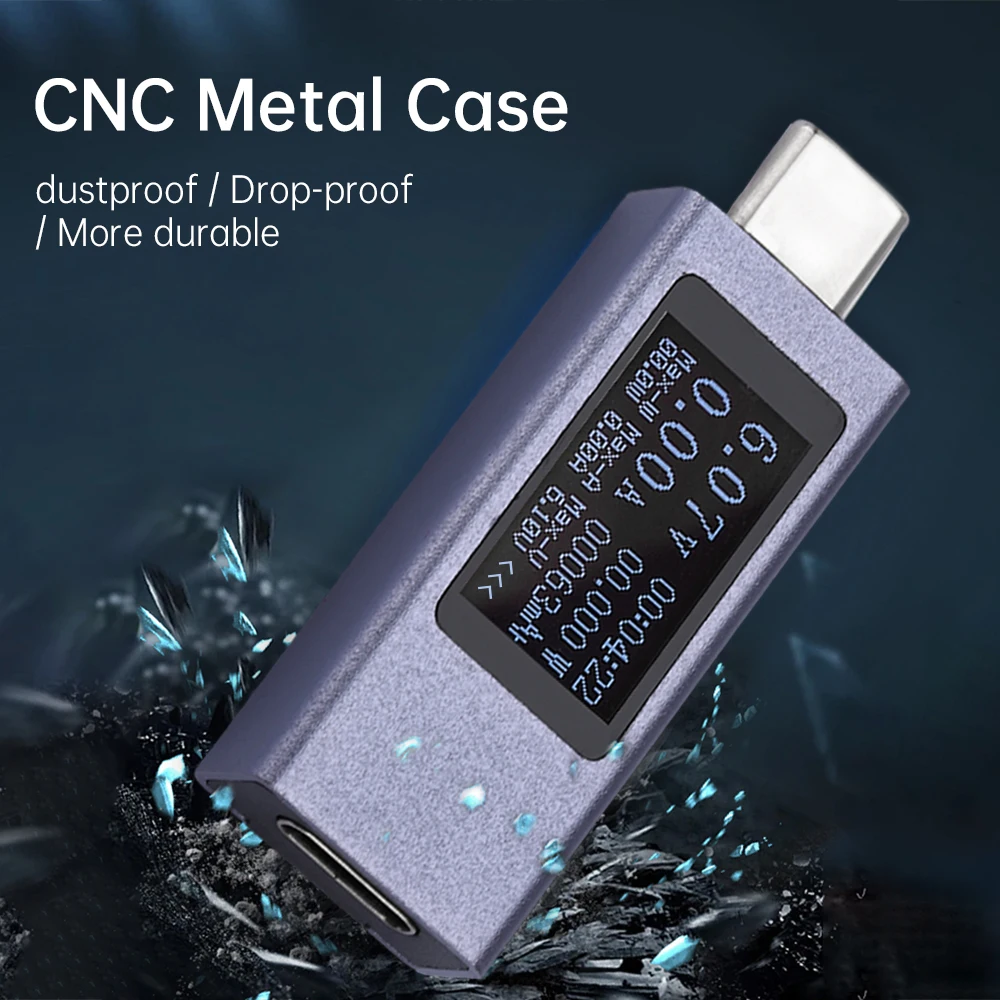

3.CNC metal shell dustproof and drop-proof, two kinds of display interface, more convenient to watch, so that the function is more strengthened.

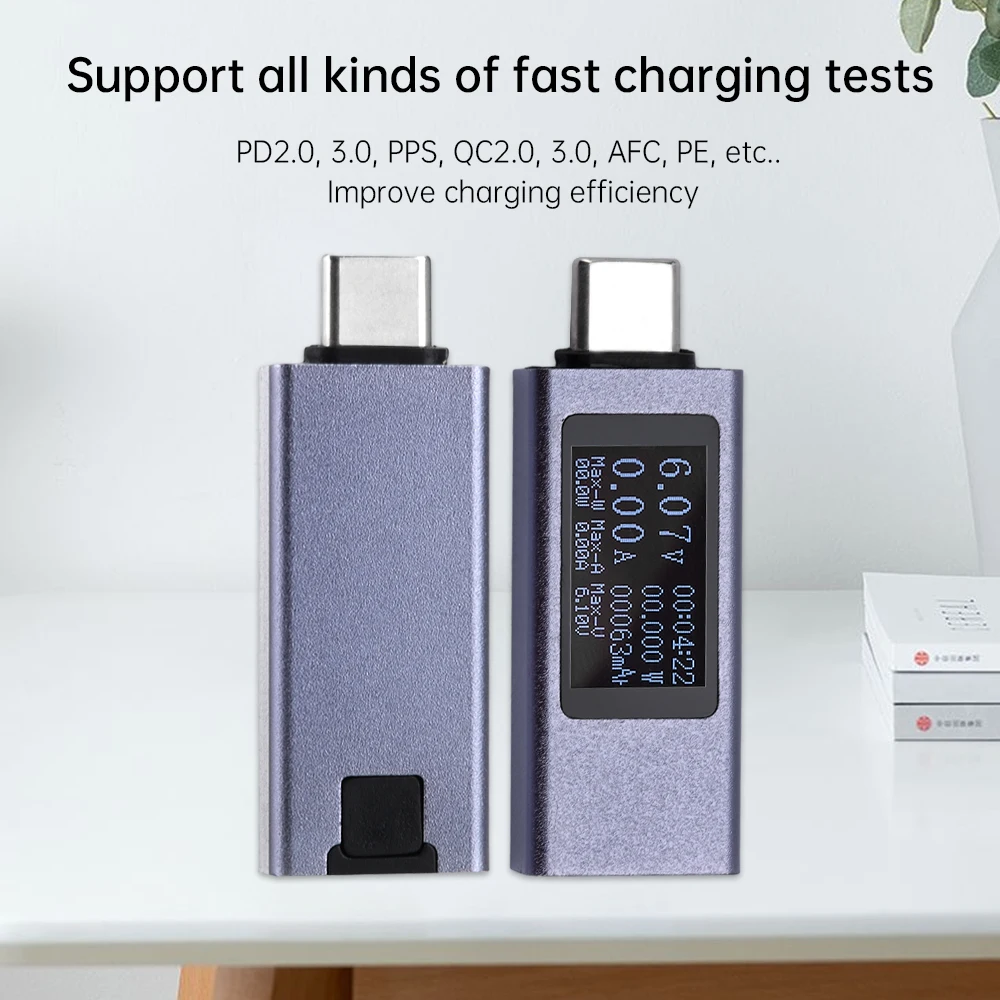

4. Full interface compatibility, bi-directional current test function, real-time charging power detection, support fast charging test.
5. Multi-functional buttons: click the back button to switch pages, double-click the back button to change direction.

Parameter:
Voltage: DC 4~30V
Current: 0~12V
Timing: 0~99 hours
Power: 0~360W
Capacity: 0~99999MAH
Power: 0~99999WH
Interface: Type-c

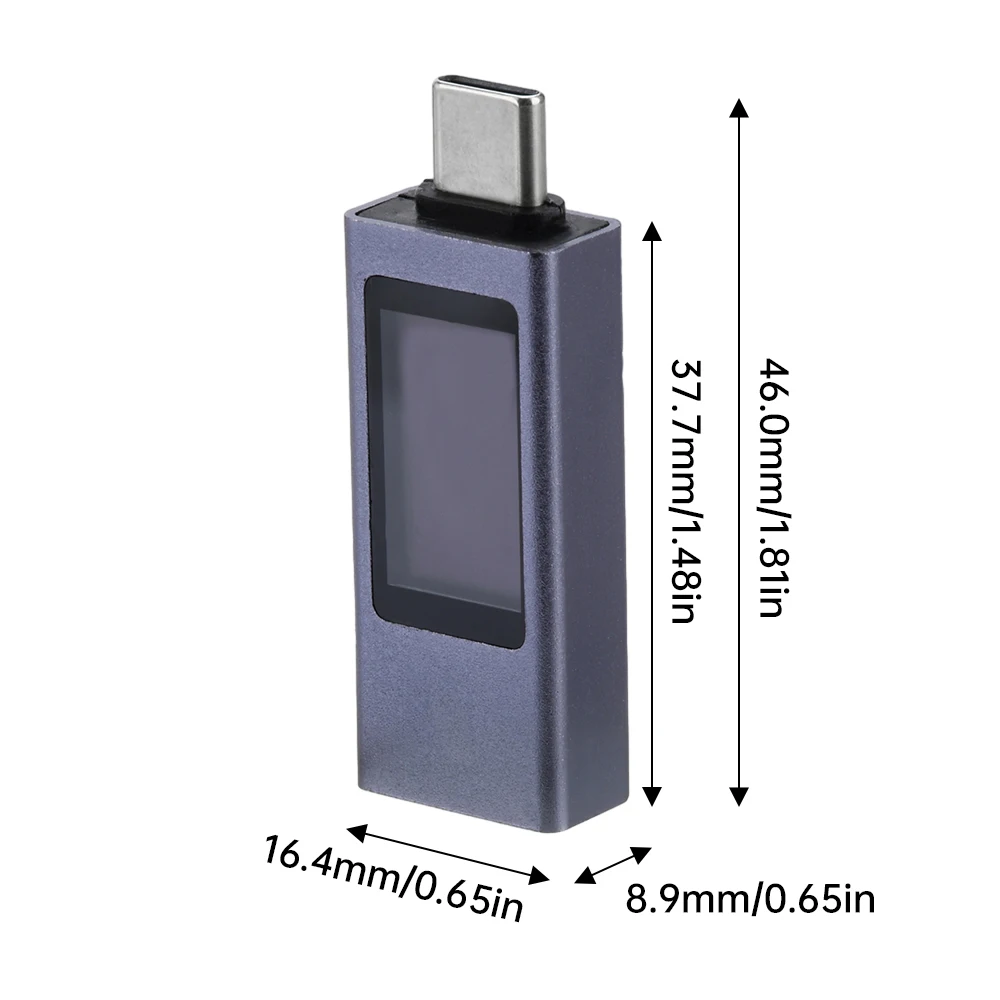

Product Size: 46*16.4*8.9mm

Package include:
Power meter *1

Features:
1.Multi-functional buttons: click the button to switch pages, long press to switch temperature, flip the screen, data clear.

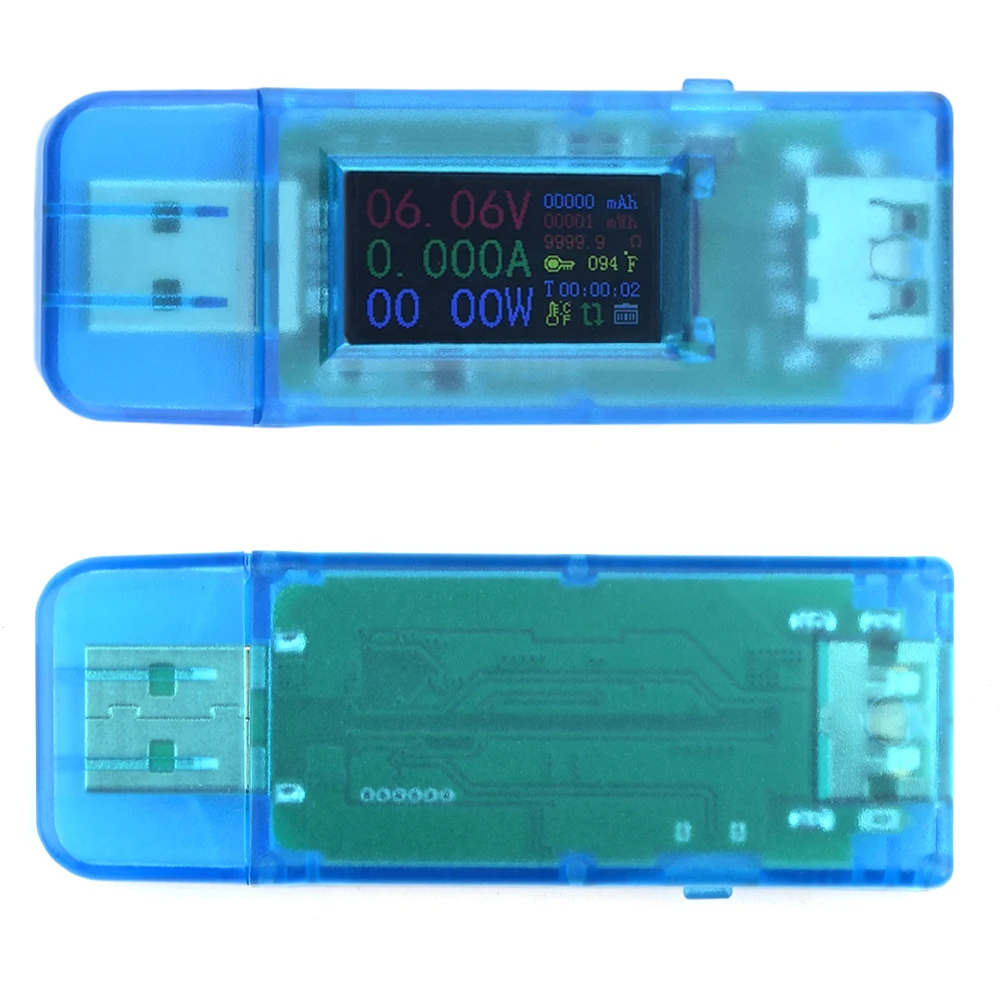

2.0.96-inch IPS HD color LCD display, real-time display of the charging status of electrical appliances, voltage, current, capacity, energy, power, equivalent impedance, temperature and other indicators at a glance!
3.Support QC2.0, QC3.0, APPLE2.4A/2.1A/1A/0.5A, Android DCP, SAMSUNG fast charging protocol recognition, so you know the charging status of your phone at a glance!

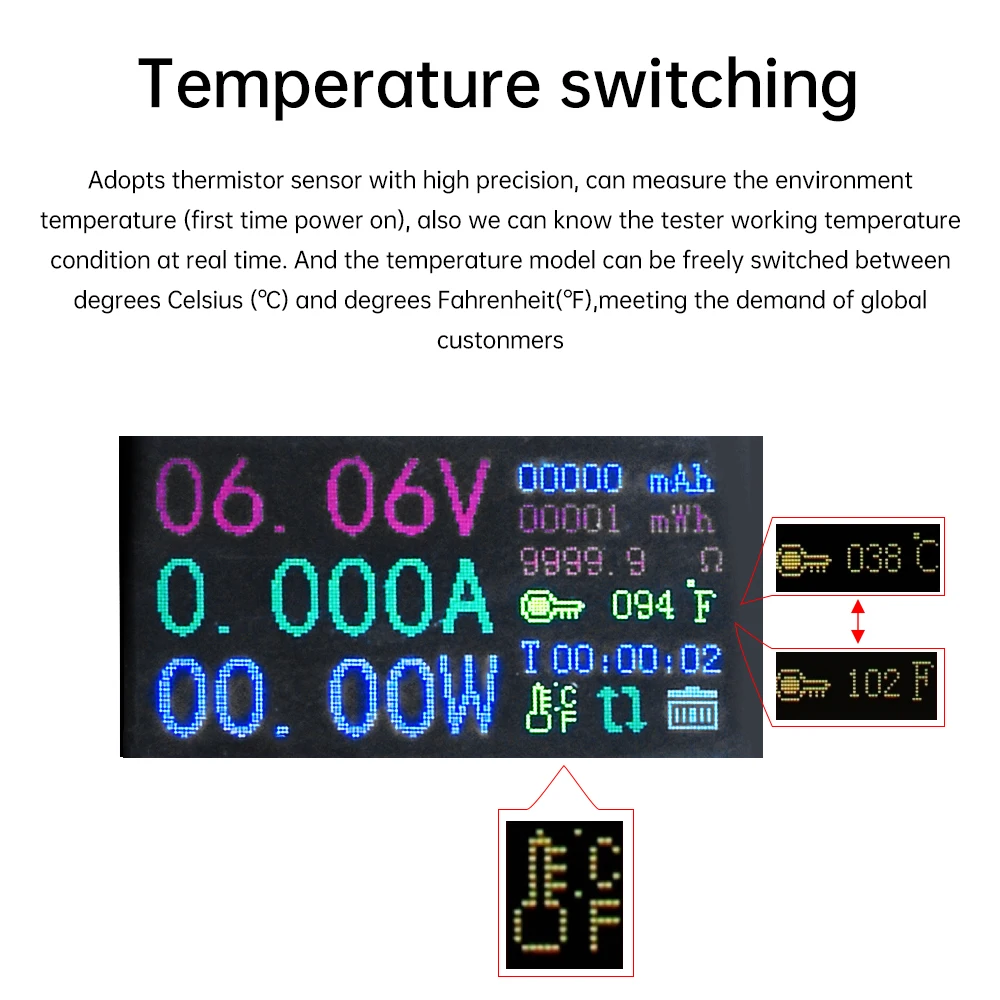

4.Temperature mode can be freely switched between Celsius (℃) and Fahrenheit (℉) to meet different customer needs!
5. Adopting high-precision hot surface resistance sensor, it can not only measure the ambient temperature (when powering up for the first time), but also keep track of the tester's working temperature status.

Parameter:
Measuring voltage(V): DC4.000V~30.00V
Measuring current(A): 0.1000A~5.000A
Capacity range(mAh): 0~99999mAh
Power range(mWh): 0~99999mWh
Power range(W): 0~125W
Impedance range (Ω): 0~9999.9Ω
Temperature range(℃/℉): -30℃~89℃/-22℉~192℉
Timing range(T):99:59:59
Charging mode recognition (mode): QC2.0, QC3.0, APPLE 2.4A/2.1 A/ 1A /0. 5 A, Android DCP, SAMSUNG (fast charging recognition mode is for reference only, cell phone update is fast, can not be accurately recognized)
Refresh frequency: 1.25Hz
Screen display type: 0.96 inch IPS color LCD screen

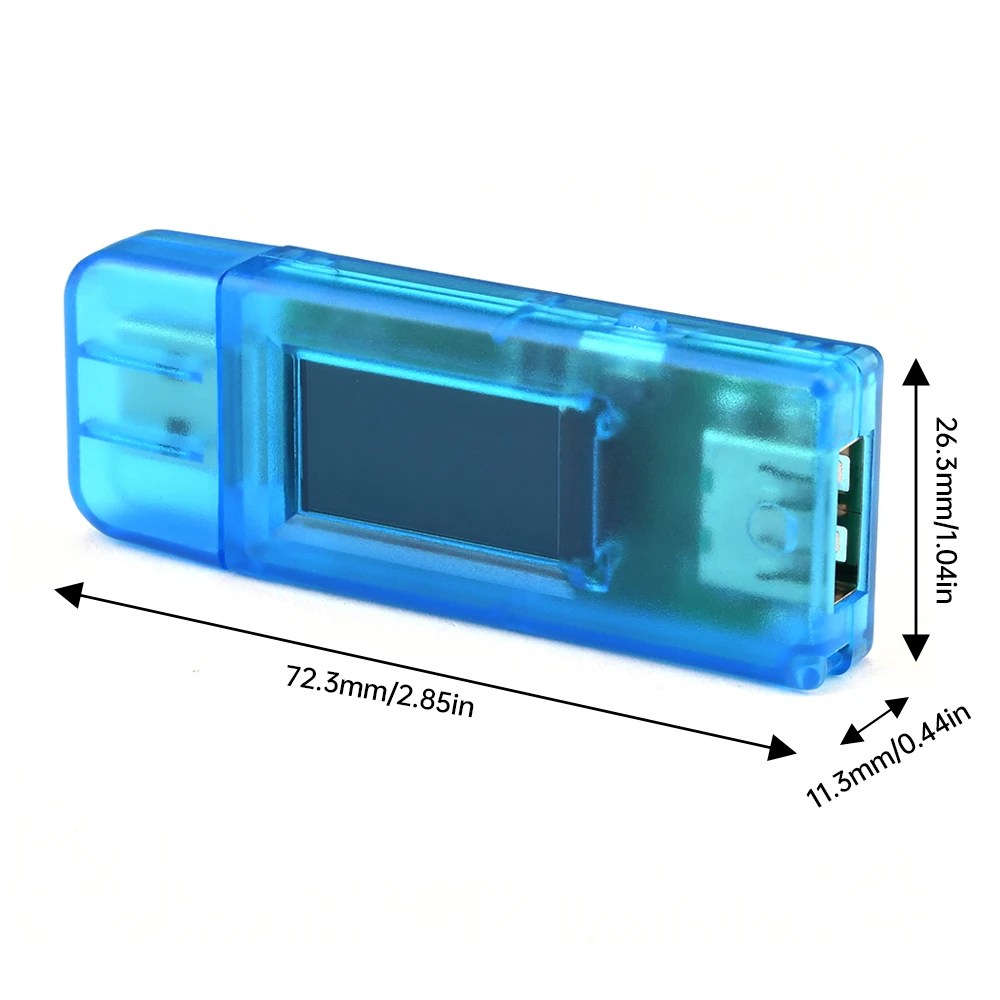

Product size: 72.3×26.3×11.3mm

Package include:
USB Tester*1
