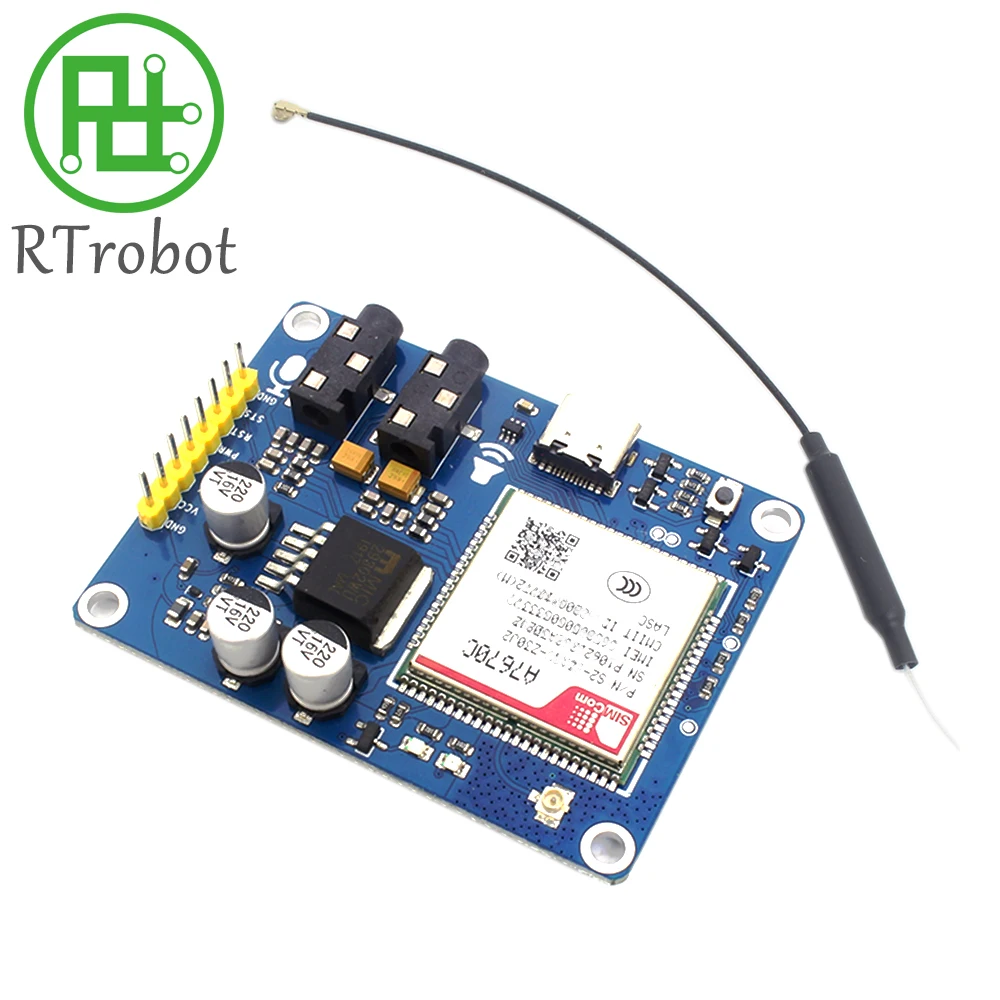

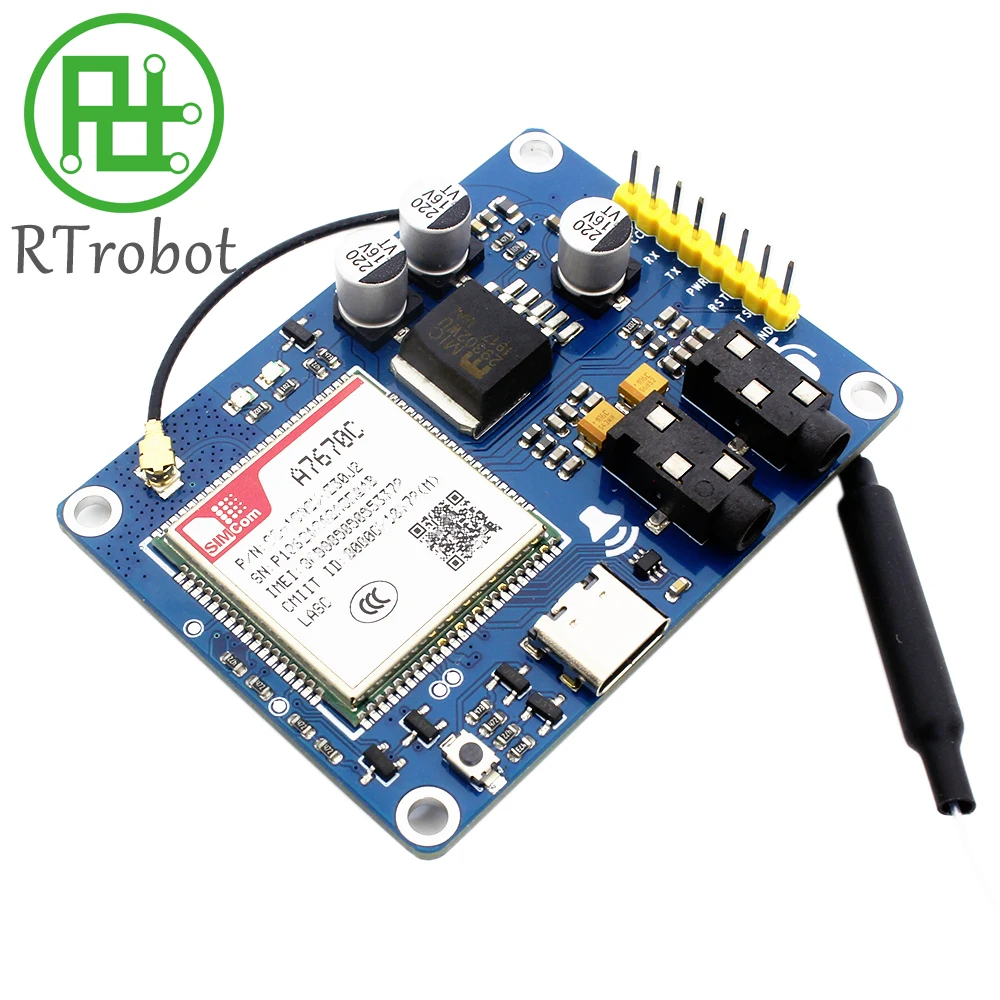

A7670C A7670E A7670SA 4G LTE cat 1 Module is Compatible With STM32, Raspberry pie, etc
Limited Time Offer
$23.39
Deliver to
Ship from Local Warehouse
A7670C A7670E A7670SA 4G LTE cat 1 Module is Compatible With STM32, Raspberry pie, etc
Free Shipping
Delivery bySaturday, December 27, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000030226430125
Brand: rtrobot Official Store
Security & Privacy
FREE Return
Shop sustainably
productQuantityA7670X 4G Module1Antenna1Introduction:●The A7670 series is the LTE Cat 1 module which supportswireless communication modes of LTE-TDD/L…
Related Products
Description
product | Quantity |
A7670X 4G Module | 1 |
Antenna | 1 |
Introduction:
●The A7670 series is the LTE Cat 1 module which supportswireless communication modes of LTE-TDD/LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlinkrate and 5Mbps uplink rate.
●The A7670 series supports multiple built-in networkprotocols, which is suitable for main IOTapplications such as telematics, surveillance devices, POS,industrial routers, and remote diagnostics etc.
●It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
Parameters:
Product | A7670C | A7670E | A7670SA | |
Form factor | LGA | LGA | LGA | |
Frequency Bands | LTE-FDD | B1/B3/B5/B8 | B1/B3/B5/B7/B8/B20 | B1/B2/B3/B4/B5/B7/B8/B28/B66 |
LTE-TDD | B34/B38/B39/B40/B41 | |||
GSM | 900/1800MHz | 900/1800MHz | 850/900/1800/1900MHz | |
Temperature | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ | |
Electrical Features | ||||
Module input voltag(V) | 5~8.4 | 5~ 8.4 | 5~ 8.4 | |
Power | LTE | 3.8 | 3.8 | 3.8 |
GSM,BS_PA_ | 3.5 | 3.5 | 3.5 | |
Data Transfer | ||||
LTE(Mbps) | 10(DL)/5(UL) | 10(DL)/5(UL) | 10(DL)/5(UL) | |
GPRS/EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | |
Software Features | ||||
Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ | TCP/IP/IPV4/IPV6/Multi-PDP/FTP/ | |
TLS | ● | ● | ● | |
File System | ● | ● | ● | |
Audio Record/Play | o | o | o | |
TTS | o | o | o | |
LBS | ● | ● | ● | |
FOTA | ● | ● | ● | |
Android RIL | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | Android 5.0/6.0/7.0/8.0/9.0 | |
USB Driver | Microsoft Windows 7/8/10 | Microsoft Windows 7/8/10 | Microsoft Windows 7/8/10 | |
WWAN (RNDIS) | ● | ● | ● | |
ECM | ● | ● | ● | |
Embedded AT | o | o | o | |
Firmware Upgrade | USB/FOTA | USB/FOTA | USB/FOTA | |
Characteristic:
●Support dial up Internet, phone, SMS, tcp\udp\dtmf\hddp\ftp and other functions

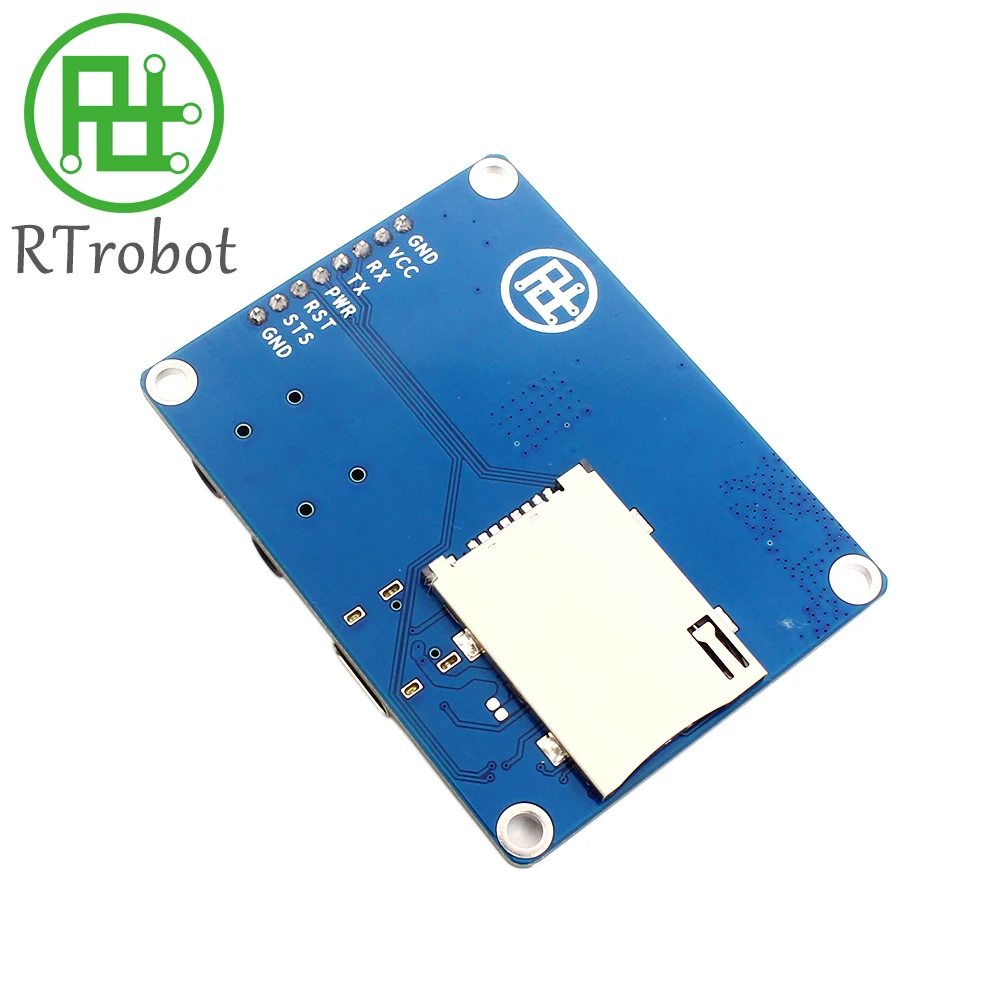

●The UART and other control ports on the lead out module are convenient to cooperate with the main control boards such as raspberry pie and STM32
●With SIM card slot
●With audio interface and audio decoding chip, it can be used for language operation such as making phone calls
●With two LED indicators, it is convenient to view the operation status of the module
●Baud rate range: 300 ~ 3686400 (default 115200)
