Product selling point:
1: Widely used, can be used for stairs, aisles, corridors, toilets, office buildings, schools in various buildings
Community and other public places - switch control of downlights, spotlights, track lights, panel lights, ceiling lights and other lamps
2: It has the functions of rainproof, waterproof and moistureproof, suitable for all kinds of flood lights, outdoor lights
3: The horizontal direction can be rotated 180°, and the vertical direction can be rotated 180°
4: High temperature flame retardant material
5: High sensitivity


Parameters:
Product name: Human body infrared sensor
Material: flame retardant ABS
Product color: black/white
Delay time: 5 seconds - 8 minutes (adjustable)
Detection angle: 160°
Installation height: 1.8-2.5M
Ambient light: 2-200OLUX (adjustable)
Working humidity: <93% RH
Operating temperature: -10°C~+40°C
Product size: 75*42*52mm
Product weight: 45g
Detection distance: 5-12M (24°C) adjustable
Opening size: opening 12mm, 10mm
Power consumption: <0.4W
Working voltage: AC85-265V (support customization)
Working frequency: 50/60Hz
Installation method: opening, when installing, the adjustment button faces down
Rated load: 300W tungsten lamp; 60W energy saving lamp.LED lamp

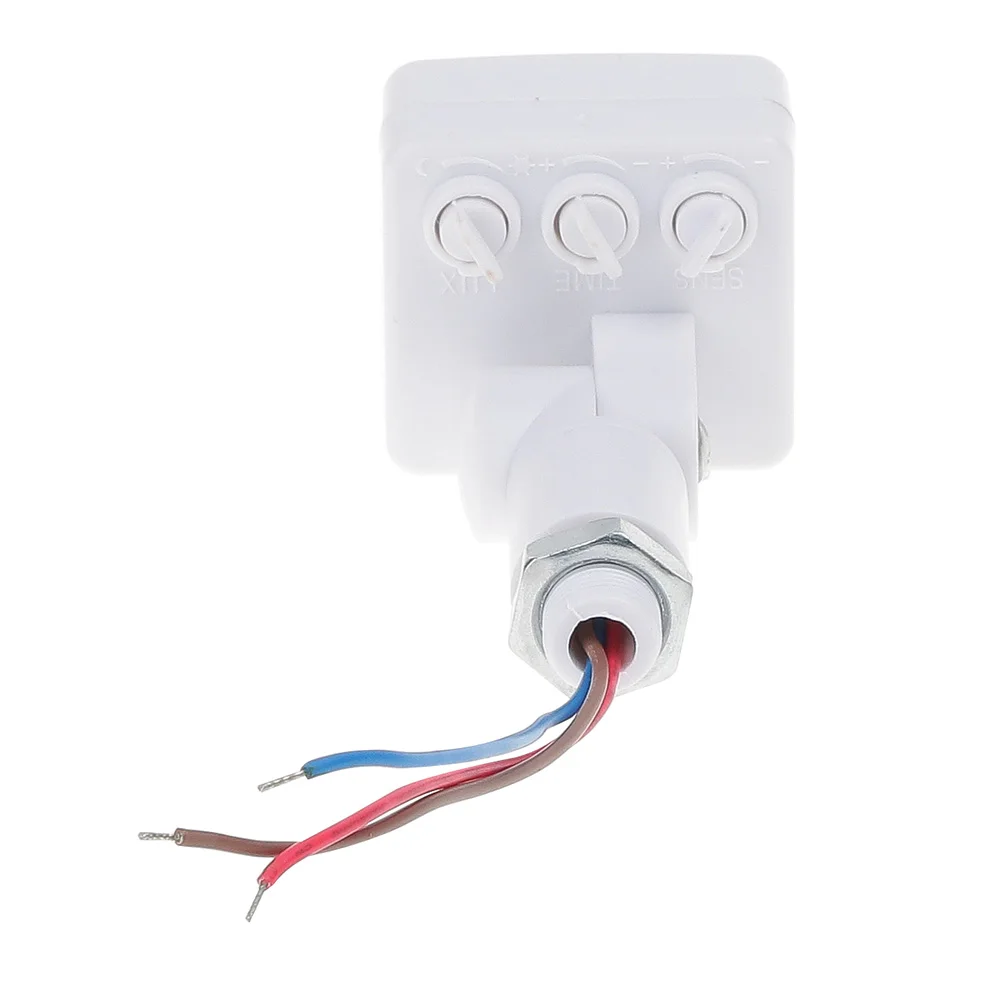

Wiring instructions: N-blue (connected to neutral wire) L-brown (connected to live wire) output a red sensor output wire)
Blue and brown input power blue and red connected to load (lamp)


The package includes:
1*AC85-265V mini small human body infrared sensor switch opening
