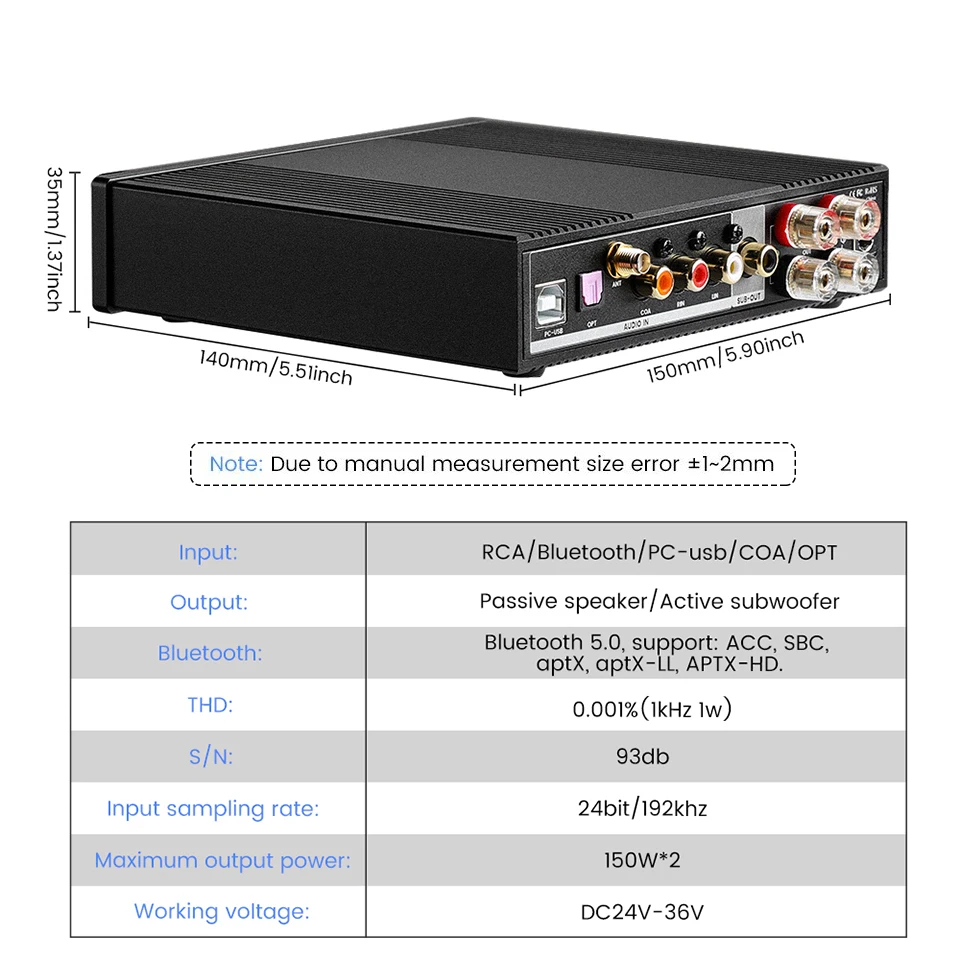

Description:

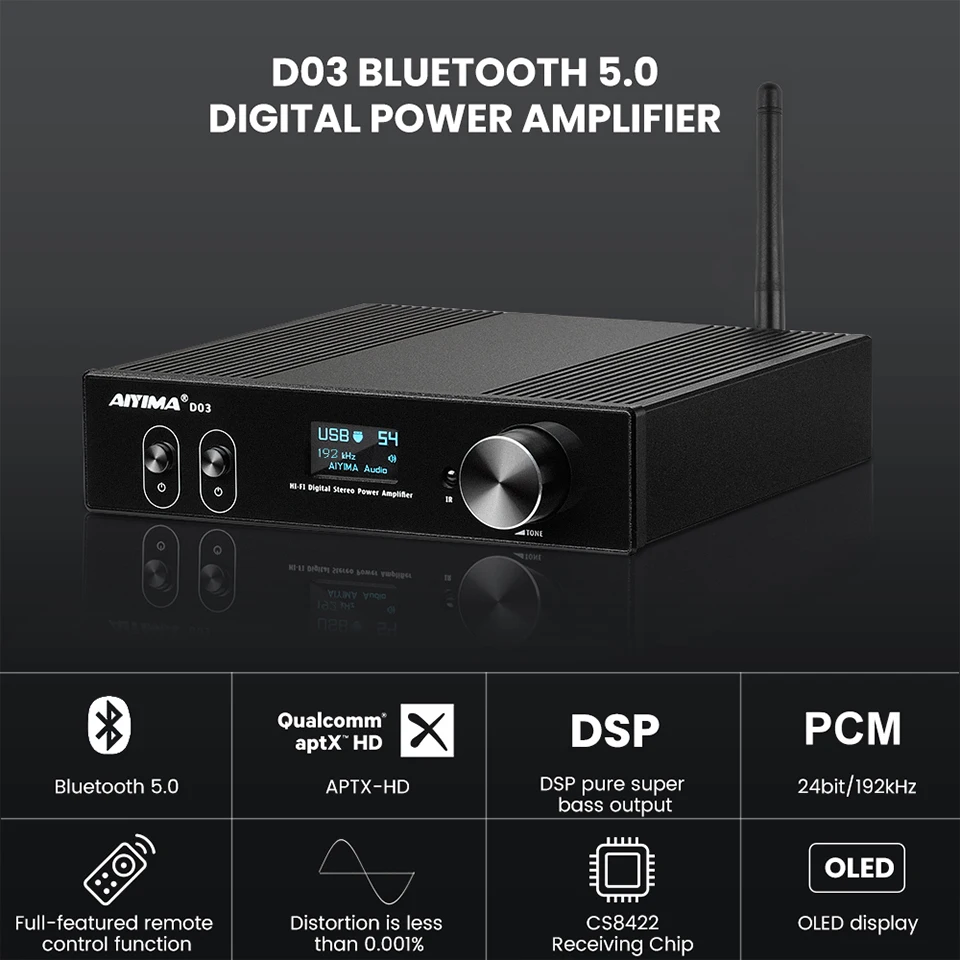

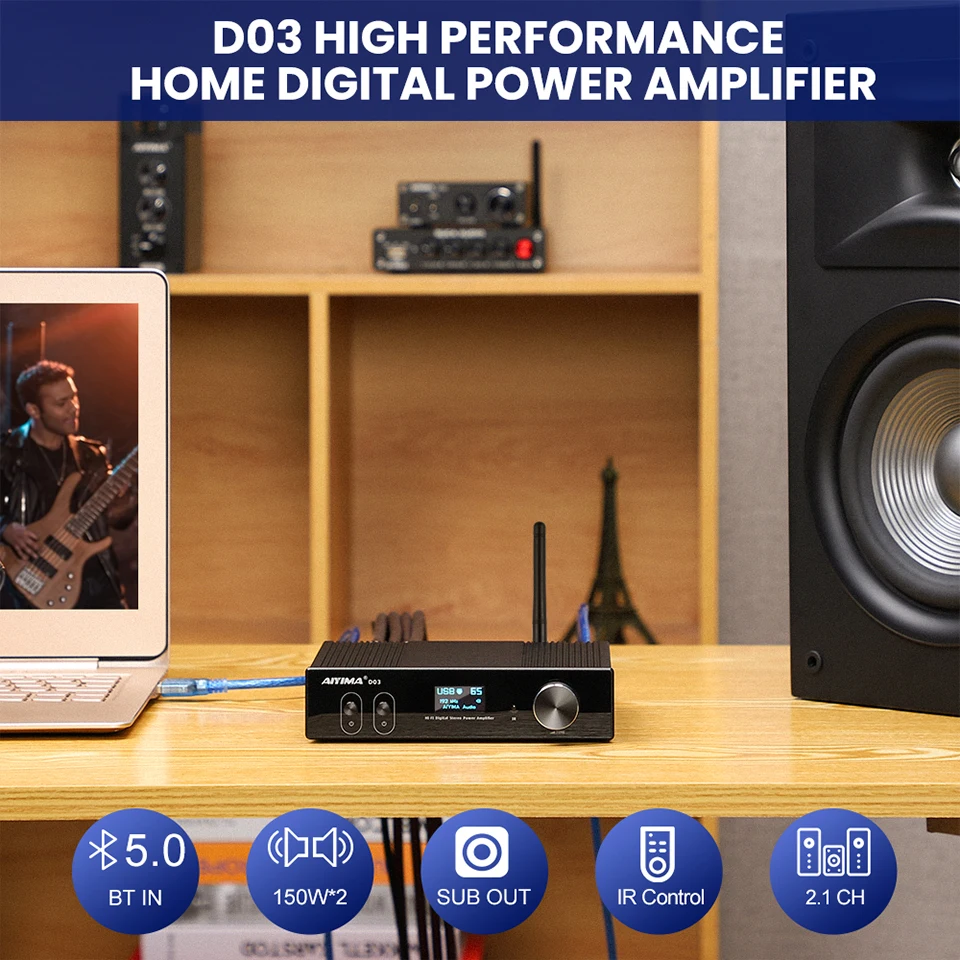

Model:AIYIMA D03
Color:Black

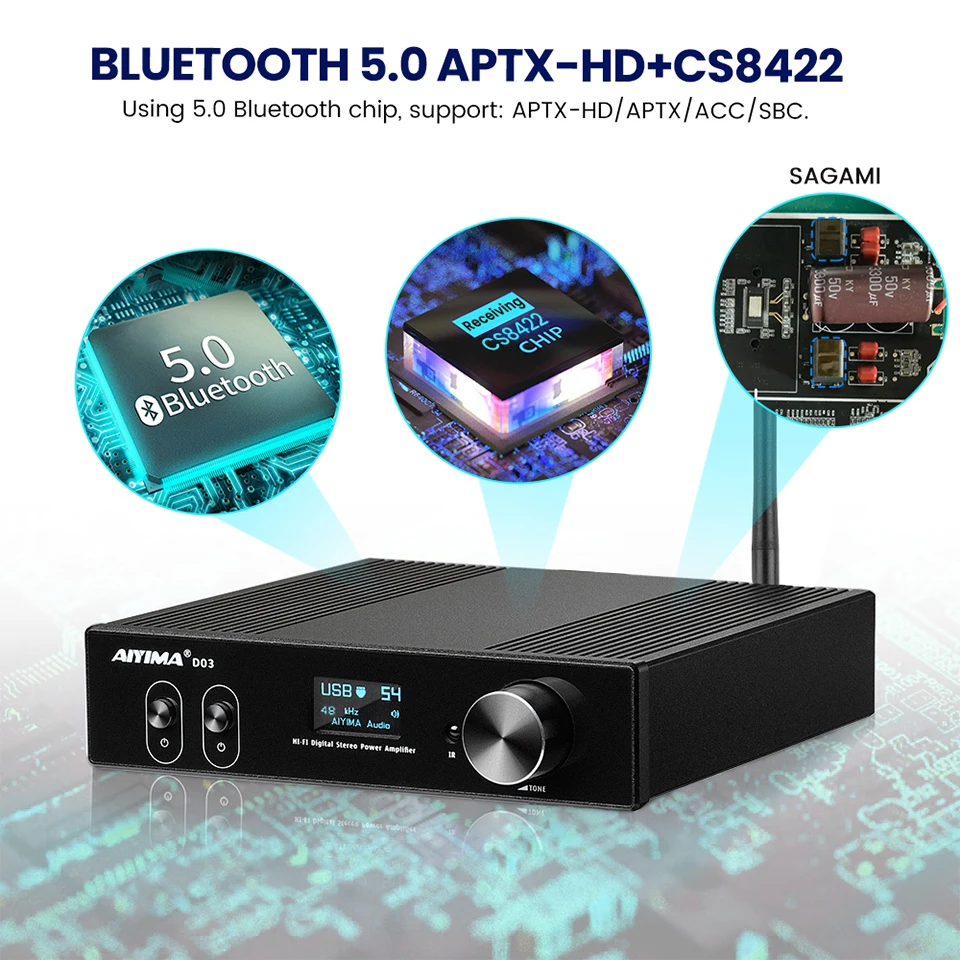

Chipset:CS8422+QCC3034+SA9123I+TAS5548+TAS5624+PCM1808+DRV603
Bluetooth chip: QCC3034 Bluetooth 5.0 support: AAC, SBC, aptX, aptX-LL, APTX-HD.
PC-USB/optical/coaxial sampling rate: 24bit/192khz
PC-USB operating system: Windows XP / Vista7/8/10 / Max OS/MAC/Linux/Mobile OTG
Signal to noise ratio: 93db

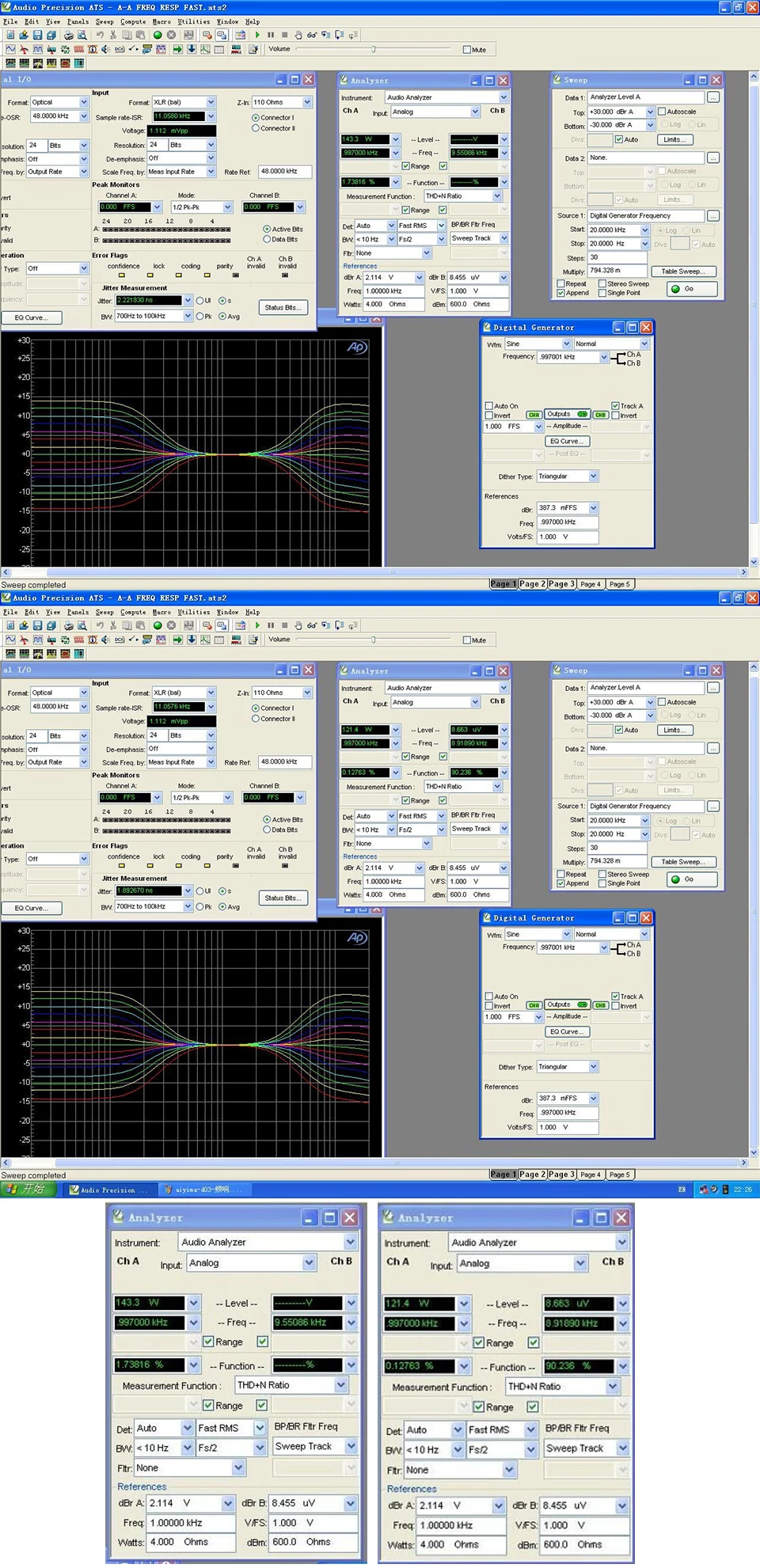

Tonal gain (treble and bass): ±14
Input sensitivity: 0.775V

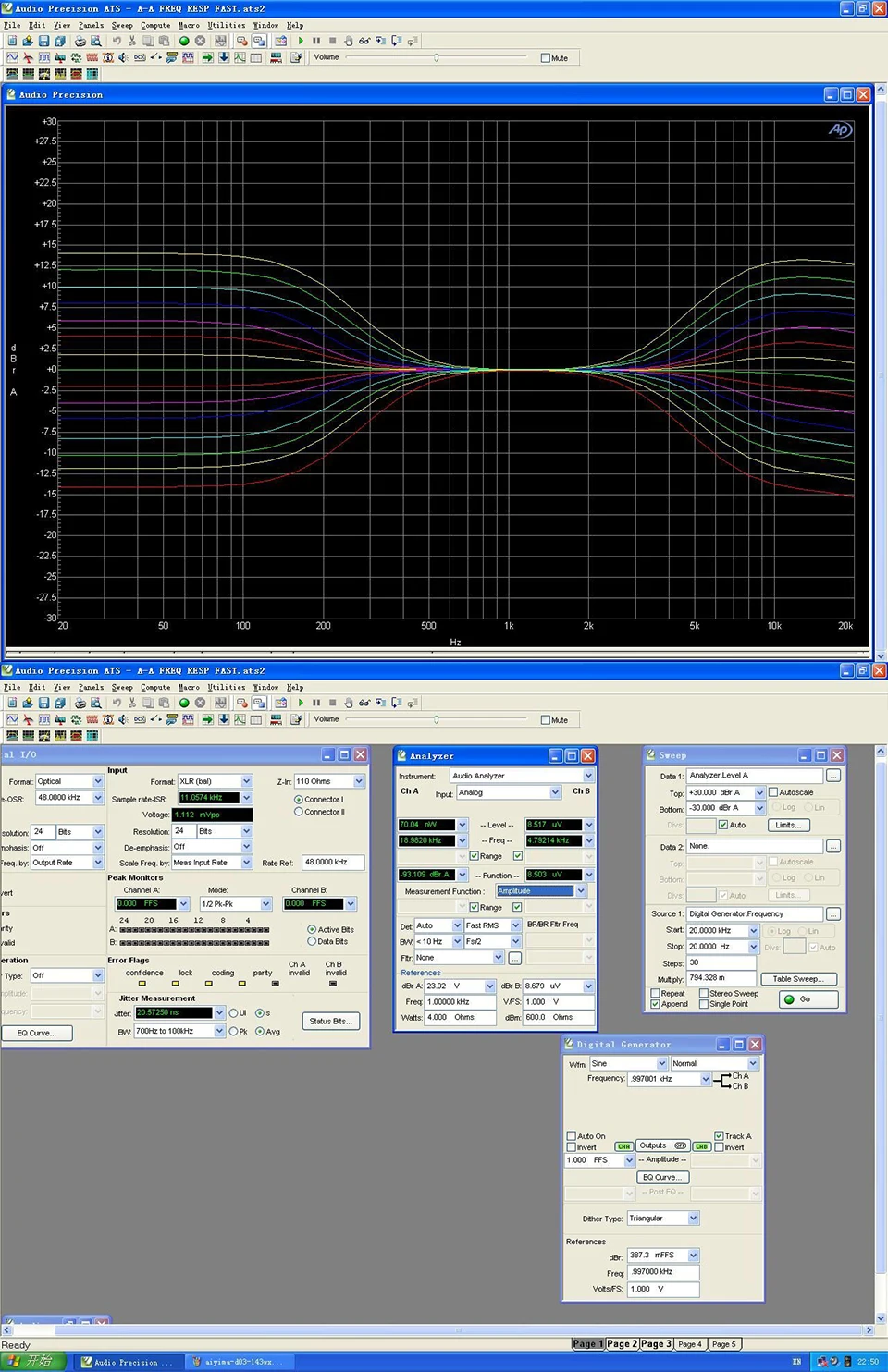

Frequency response: 20-20Khz (±1.25db)
Subwoofer output level: 2.1V
Total harmonic distortion: 0.001% (1kHz 1w)
Speaker impedance: 4-8Ω
Output power: 150W*2 (4Ω load) 36V, 6%THD+N

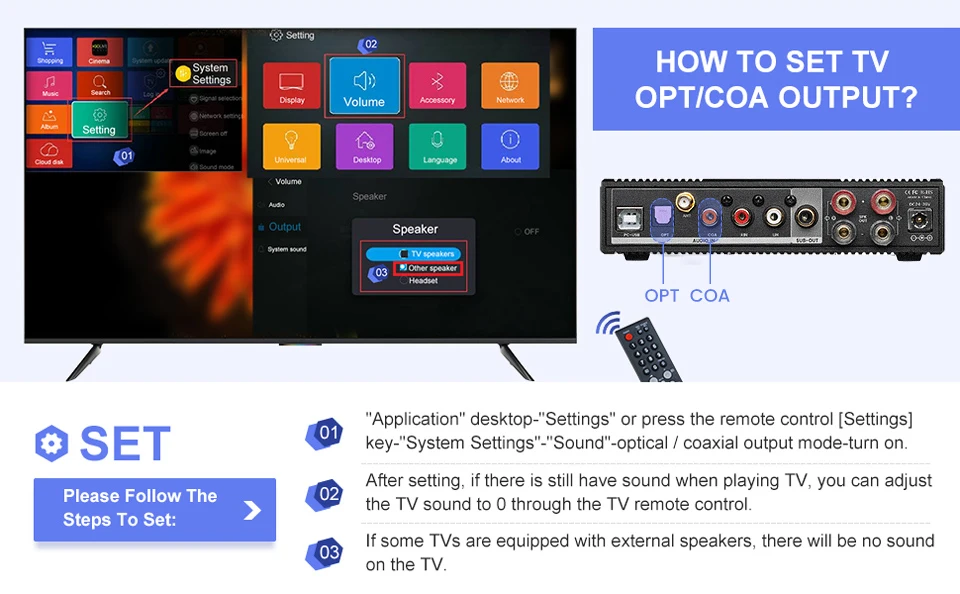

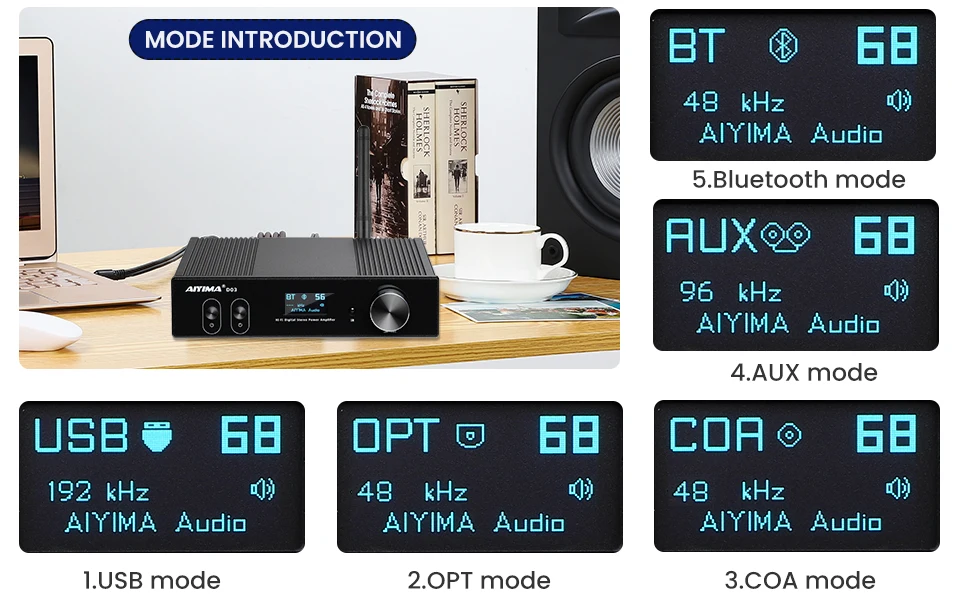

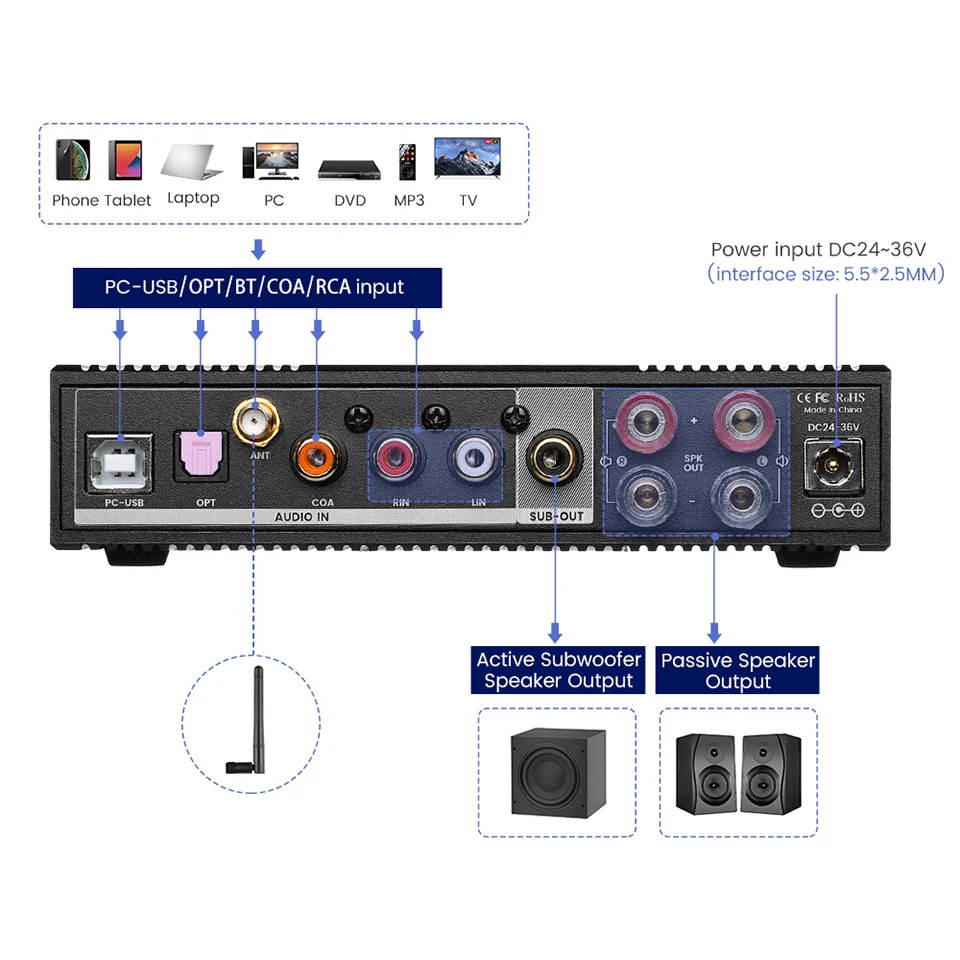

Input mode: RCA/Bluetooth/PC-usb/optical/coaxial
Support equipment: mobile phones, tablets, computers, MP3, TV, etc.
Output mode: passive speaker, active subwoofer speaker
Working power supply: DC24v-36V(DC32V 5A power recommended)

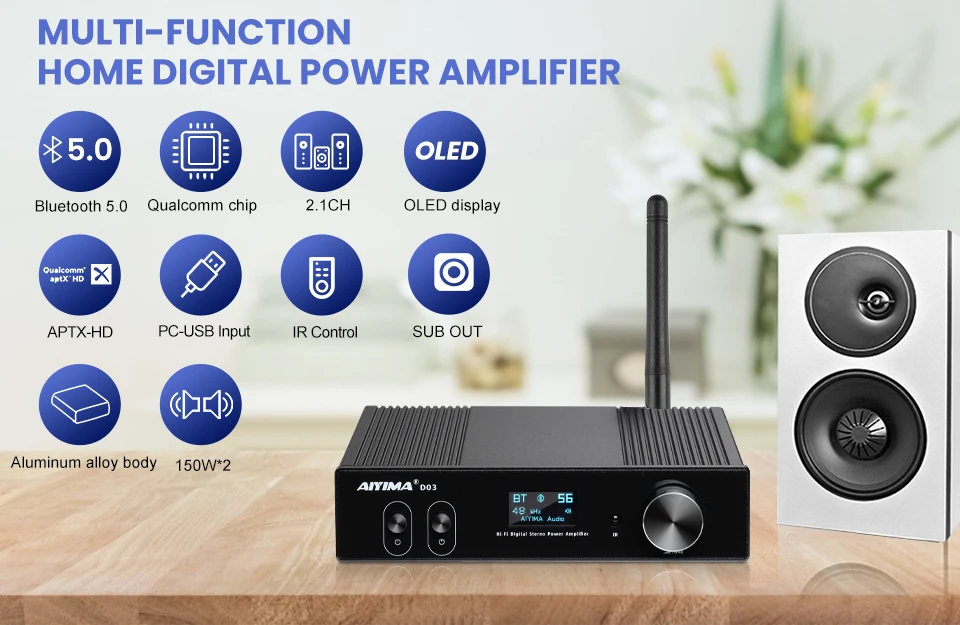

Features:

Upgrade your speakers and subwoofer with a 150W@4ohm x2-channel amplifier, high-fidelity streaming music.
Bluetooth 5.0 amplifier with APTX-LL let you stream music and stereo sound in crisp.
With a world of input mode options, D03 is always getting satisfy in different occasions.

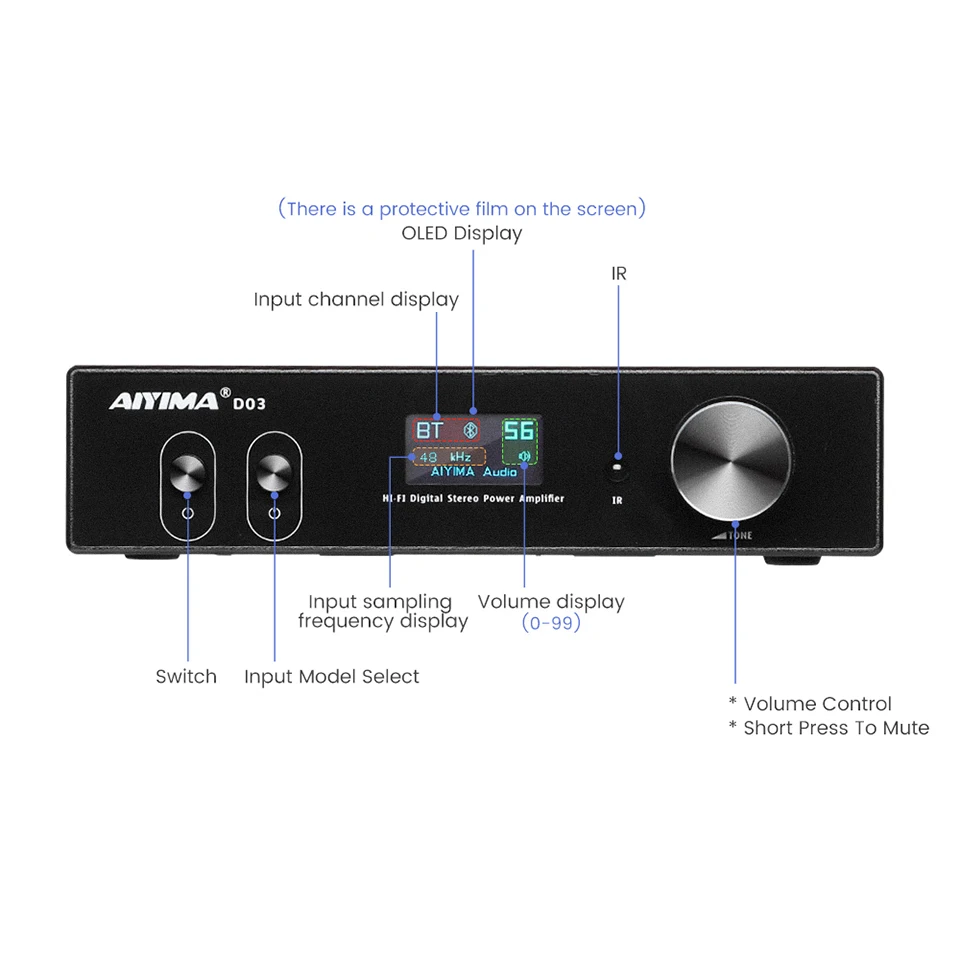

Built with multiple input of Bluetooth/USB/optical/coaxial/RCA, including a remote control that infrared adjust the inputs mode/volume/bass/treble/mute/loudness setting ec

Package included:

1×Amplifier
1×Remote control
1×Bluetooth antenna
1×Power Adapter(optional)
1×USB Cable
1×Optical Cable
