BSIDE S8 NEW Leakage Digital Multimeter Smart multitester Auto/Manual DC AC Voltage Capacitance Ohm NCV Hz Diode Live wire Tester Meter.

• [Smart Mode]: This smart digital multimeter can automatically measure ac and dc voltage, resistance and continuity with the best resolution. All of this functions measurement can be done manually as well.

• [Rechargeable]: The smart digital voltmeter comes with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.

• [Professional Voltage Tester]: The digital multimeter tester can also be used as a professional voltage tester. The flashlight will light different color, and there is different frequency alarm sound when detecting low, medium or high voltage.

• [Leakage Voltage and Environment Tempature Test]: The intelligent multimeter can measure leakage voltage and environment tempature. With this electrical voltage tester, you can solve industrial, vehicle and household electrical problems, etc.

• [VFC Function]: The pocket digital voltmeter can measure the output voltage of inverters. It can also test capacitance, diode, vfc, duty cycle, resistance, v-alert, live wire, resistance, frequency, continuity, etc.

Features:
Pocket smart multimeter
Color display digital multimeter
Rechargeable intelligent digital voltmeter
Measures leakage voltage, capacitance, diode and vfc
Measures voltage, continuity, resistance, frequency and duty cycle
Measures v-alert and environment temperature, live wire check

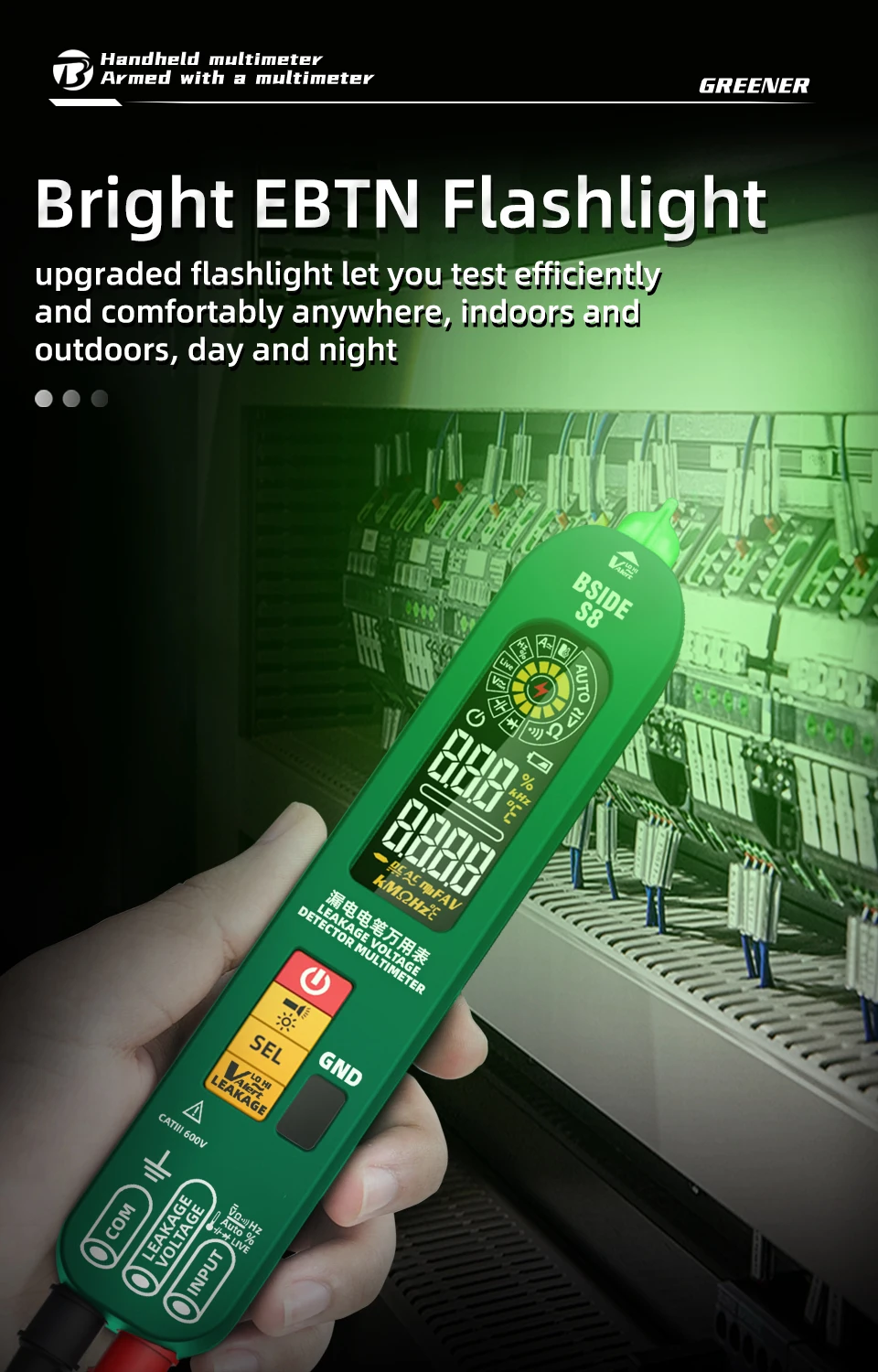

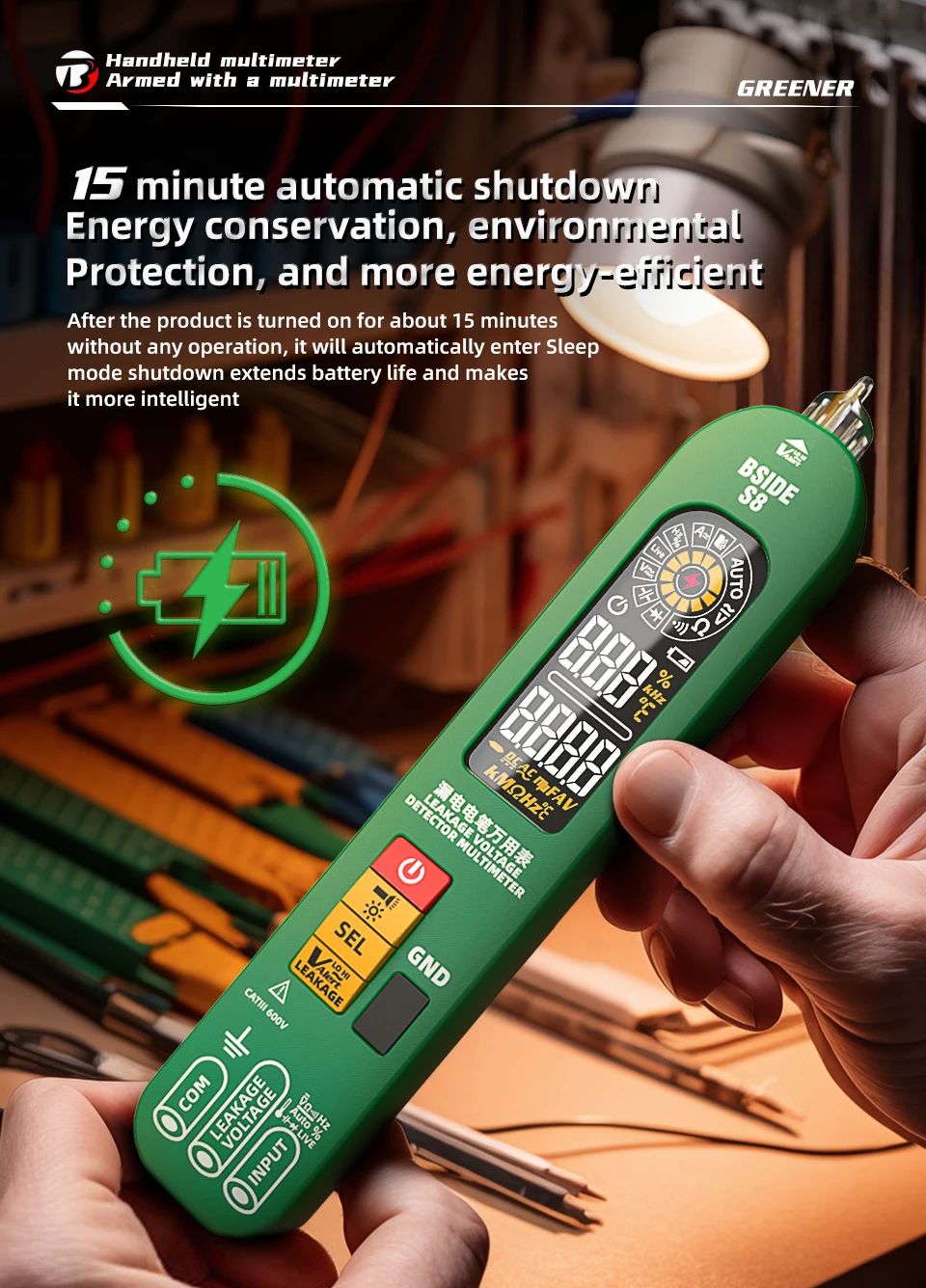

Auto range, Auto power off, low battery indication with flashlight design

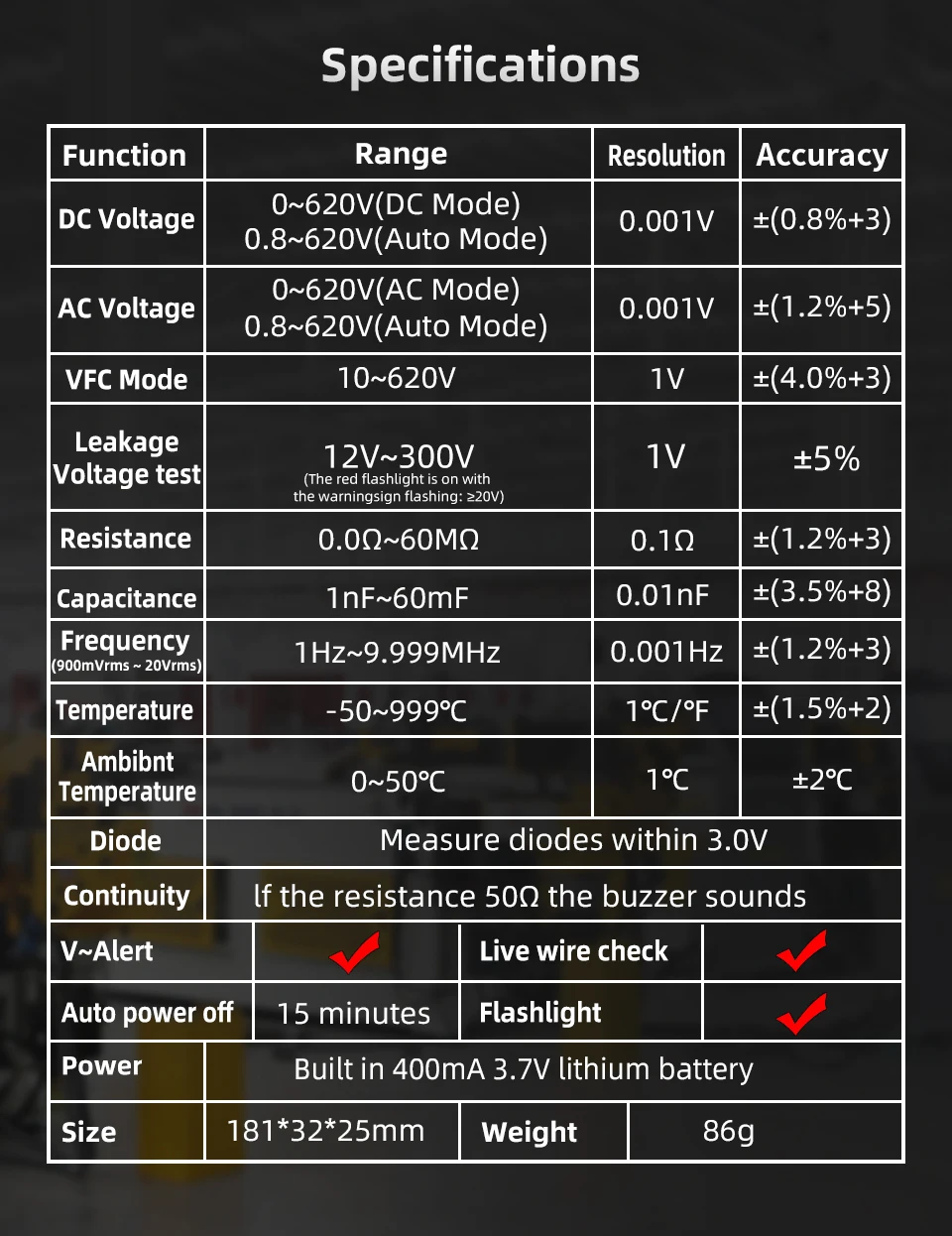

Specifications:
Display: 6000 counts
DC Voltage: 0-6.099V 0.001V ±(0.8%+3); 6.1-60.99V 0.01V ±(0.8%+3); 61-620V 0.1V ±(1%+5)
AC Voltage:
0-6.099V 0.001V ±(1.2%+5); 6.1-60.99V 0.01V ±(1.2%+5); 61-620V 0.1V ±(1.2%+5); 10-620V (VFC Mode) 1V ±(4%+3)
Leakge voltage: 12-300V 1V ±5%
Resistance:
0-609.9Ω 0.1Ω ±(1.2%+3); 0.610KΩ-6.099KΩ 0.001KΩ ±(1.2%+3); 6.10KΩ-60.99KΩ 0.01KΩ ±(1.2%+3);
61.0KΩ-609.9KΩ 0.1KΩ ±(1.2%+3); 0.610MΩ-6.099MΩ 0.001MΩ ±(1.2%+3); 6.10MΩ-60.00MΩ 0.01MΩ ±(2%+10)

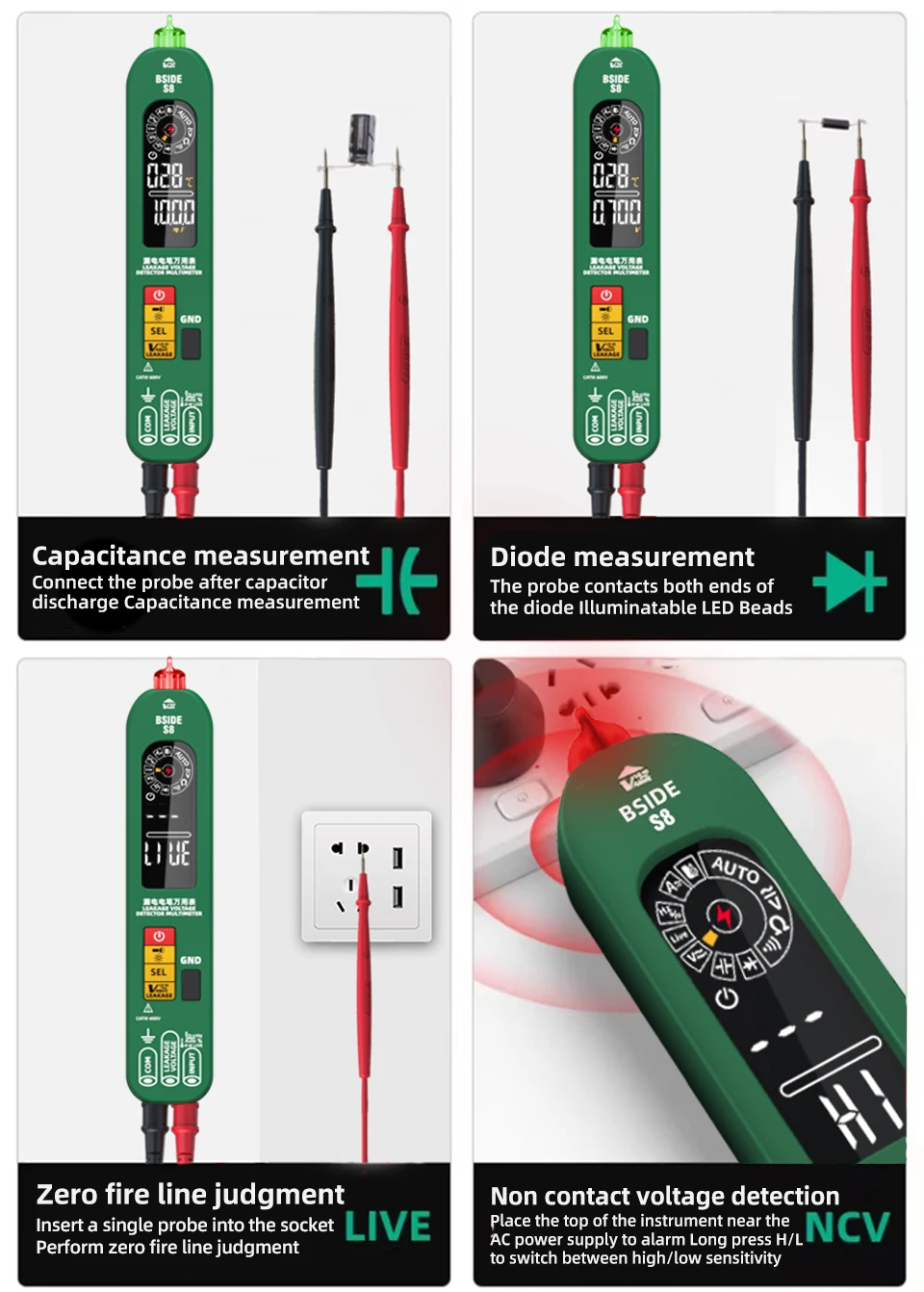

Capacitance:
1nF-60.99nF 0.01nF ±(3.5%+8); 61nF-609.9nF 0.1nF ±(3.5%+8); 0.61 µF-6.099 µF 0.001 µF ±(3.5%+8);
6.1 µF-60.99 µF 0.01 µF ±(3.5%+8); 61 µF-609.9 µF 0.1 µF ±(3.5%+8); 0.61 mF-6.099 mF 0.001 mF ±(3.5%+8); 6.1 mF-60 mF 0.01 mF ±(4.5%+10)

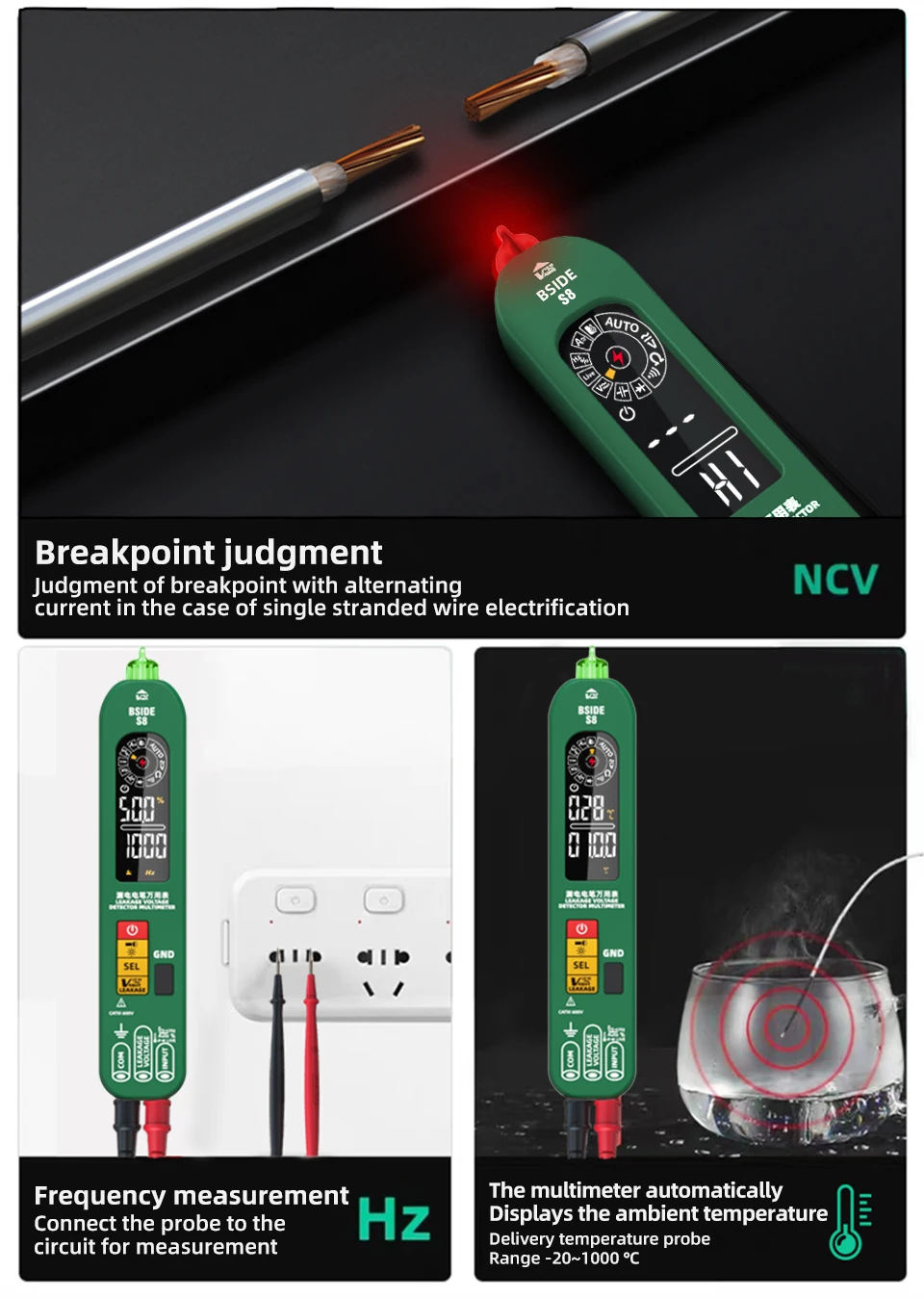

Frequency: (90mVrms-20Vrms)
1-9.999Hz 0.001Hz ±(1.2%+3); 10-99.99Hz 0.01Hz ±(1.2%+3); 100-999.9Hz 0.1Hz ±(1.2%+3); 1KHz-9.999KHz 0.001KHz ±(1.5%+5);
10KHz-99.99KHz 0.01KHz ±(1.5%+5); 100KHz-999.9KHz 0.1KHz ±(1.5%+5); 1MHz-9.999MHz 0.001MHz ±(2%+10)
V-Alert (Non-contact Voltage Detection): Yes
Live Wire Check: Yes
Diode: Measures diodes within 3V
Continuity: If the resistance is less than 50Ω, the beeper sounds
Ambient Temperature: 0-50℃ ±2℃
Power: 3.7V battery (built-in, rechargeable)
Size: 181.5 x 32.6 x 25 mm
Weight: 86.2g

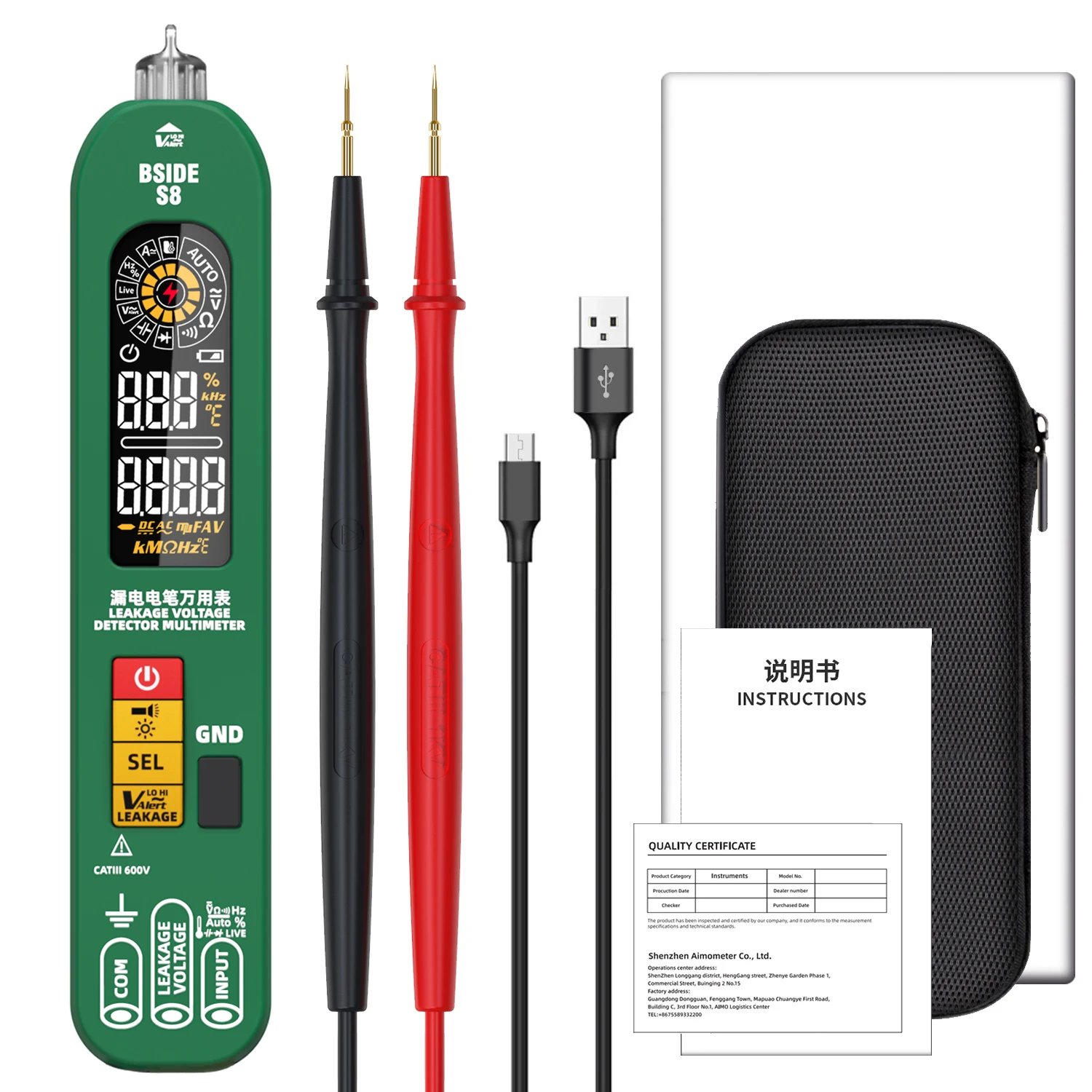

Package Includes:
1 x Digital Multimeter Tester
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x User Manual
