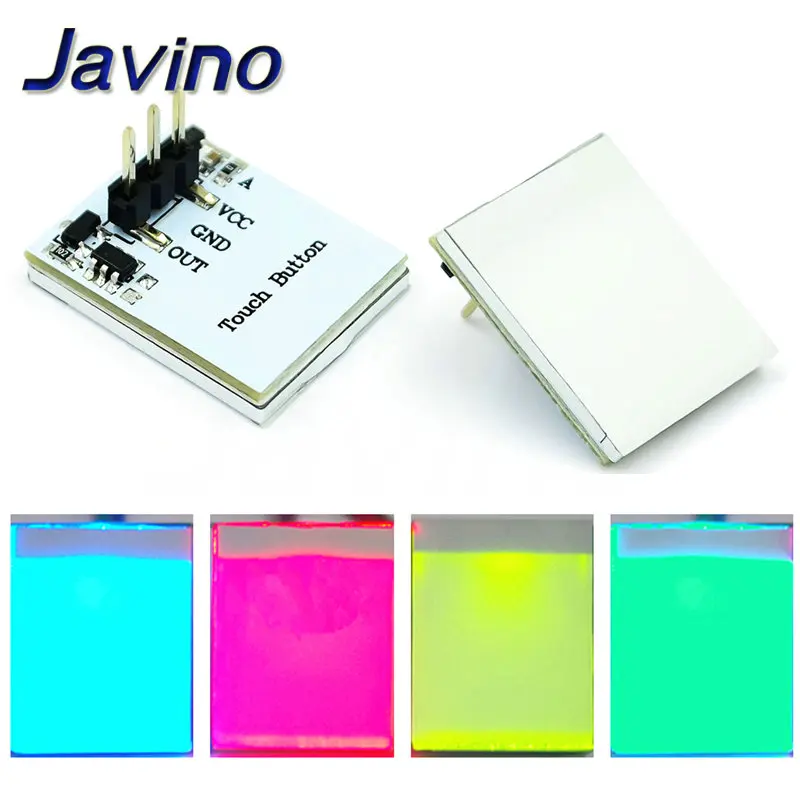

HTTM-□ ◇ △

HTTM is a shorthand for HelTec Touch Model;

□ → the number of keys: S-key,D-double bond,T-triple key,F-four built;

◇ → version attribute: C-regular version,S-special edition (customized version);

△ → Backlight color: B-blue,R-red,G-yellow-green

E.g:

HTDS-SCR: single-key,conventional,red backlit touch module

In touch media,such as portable media players and mobile handheld devices,such as large-capacity,high-visibility products,has been widely adopted. Because of its ease of use,fashion and low cost advantages,more and more electronic products from the traditional mechanical keys to touch the touch button.

Existing customer application case

LRange hood operating panel;

LTouch switch

LHandheld home air environment detector;

LIndustrial control device with waterproof function Keyboard;

LCar Equipment;

LBluetooth test stand information display.

HTTMSeries touch key module has the following characteristics:

1.There is no mechanical parts,will not wear,unlimited life,reduce the cost of late maintenance;

2.The sensing part can be placed behind any insulating layer (usually glass or plastic material),it is easy to make the keyboard with the surrounding environment sealed to play the role of moisture and water;

3.Panel design arbitrary,button size,shape any design,characters,trademarks,perspective and other combinations,so that the overall sense of the product stronger;

4.Compared with the physical buttons,touch the button is more vulnerable;

5.The output of the adjustment signal can be output by latching the output or level by modifying the resistance on the back (see section 3.3.2);

6+ 2.7V ~ +6 V wide voltage input range,+3.3 V signal output,can be directly used to drive the relay,optocoupler,LED lights and other original;

7.-30 ~ +70 ° Operating temperature range;

8.Touch sensitive,no hysteresis,delay,flicker and other adverse reactions;

9.Built-in anti-jamming algorithm,with excellent anti-jamming performance.

Pin definitions and parameters

• Working voltage: + 2.7 ~ 6V

• Working temperature: 30 ~ +70 °

• OUT pin Output voltage: + 3.3V ± 0.1V

• OUTPin maximum output current:500mA

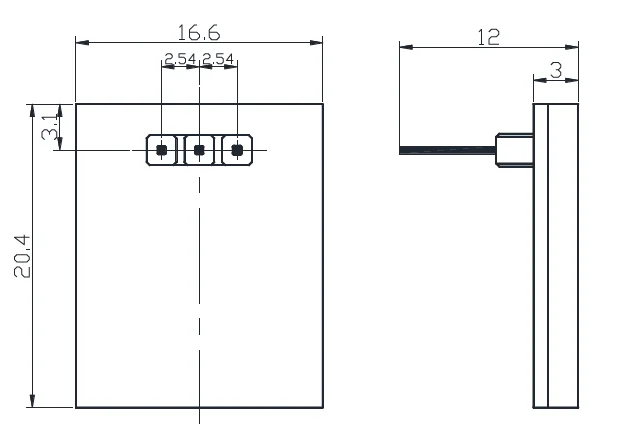

Mechanical size:
