If you cannot accept the shaking amplitude of the stand in the video, please do not purchase. Thank you for your cooperation.HDMI VGA 60FPS 1080P Came…

Description

If you cannot accept the shaking amplitude of the stand in the video, please do not purchase. Thank you for your cooperation.

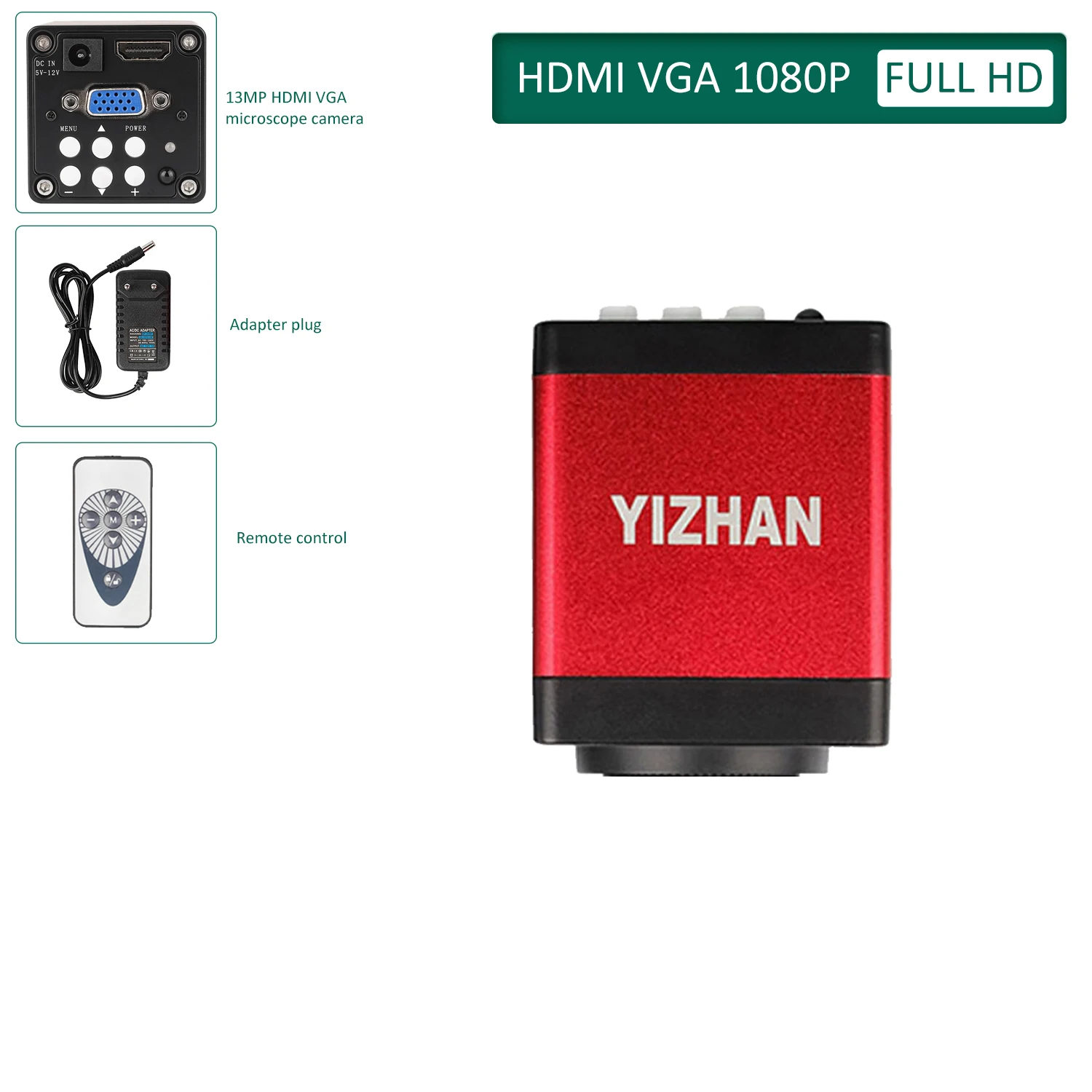

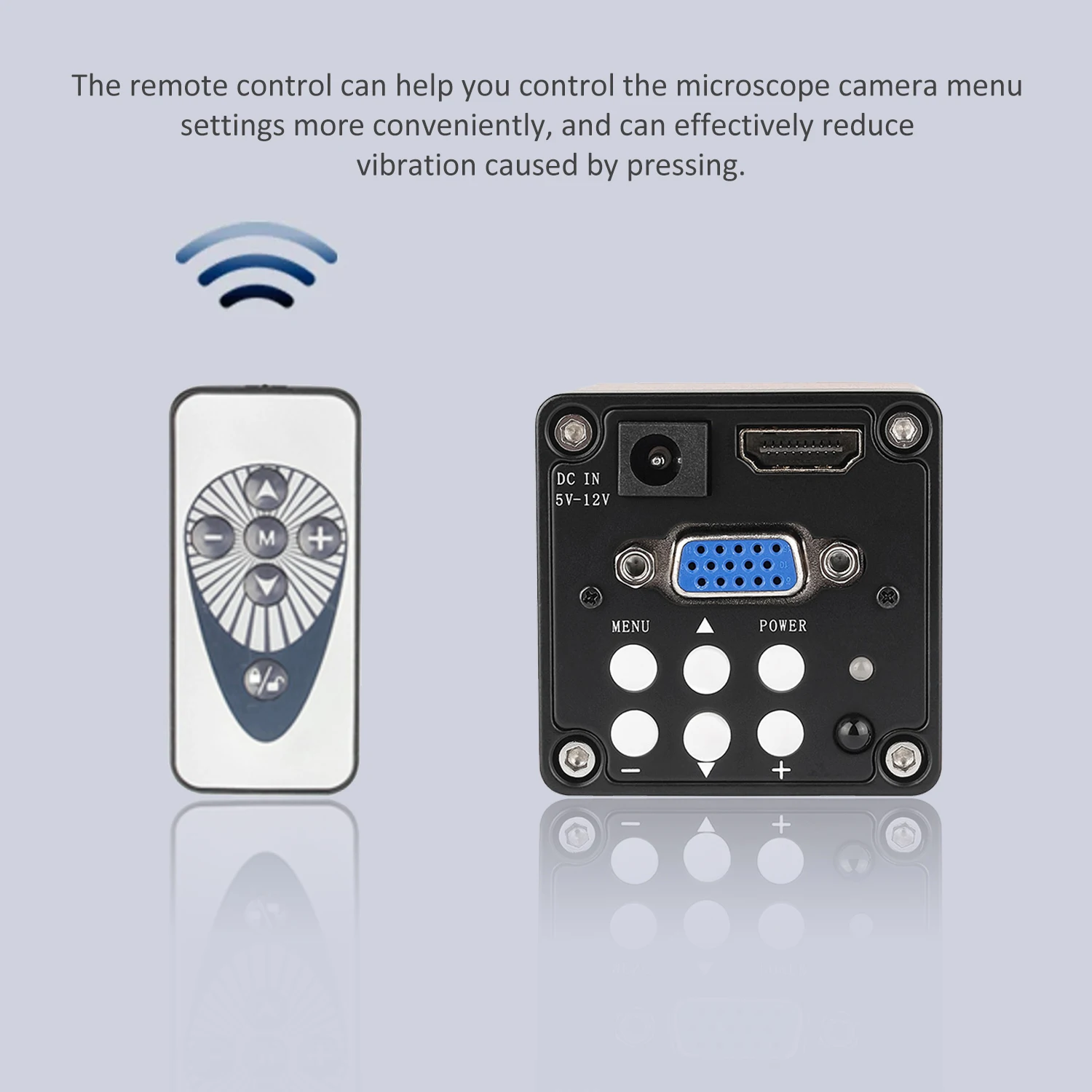

HDMI VGA 60FPS 1080P Camera

Pixel array:13MP

The sensor: gc2053

Overall dimension: 75*50*50mm

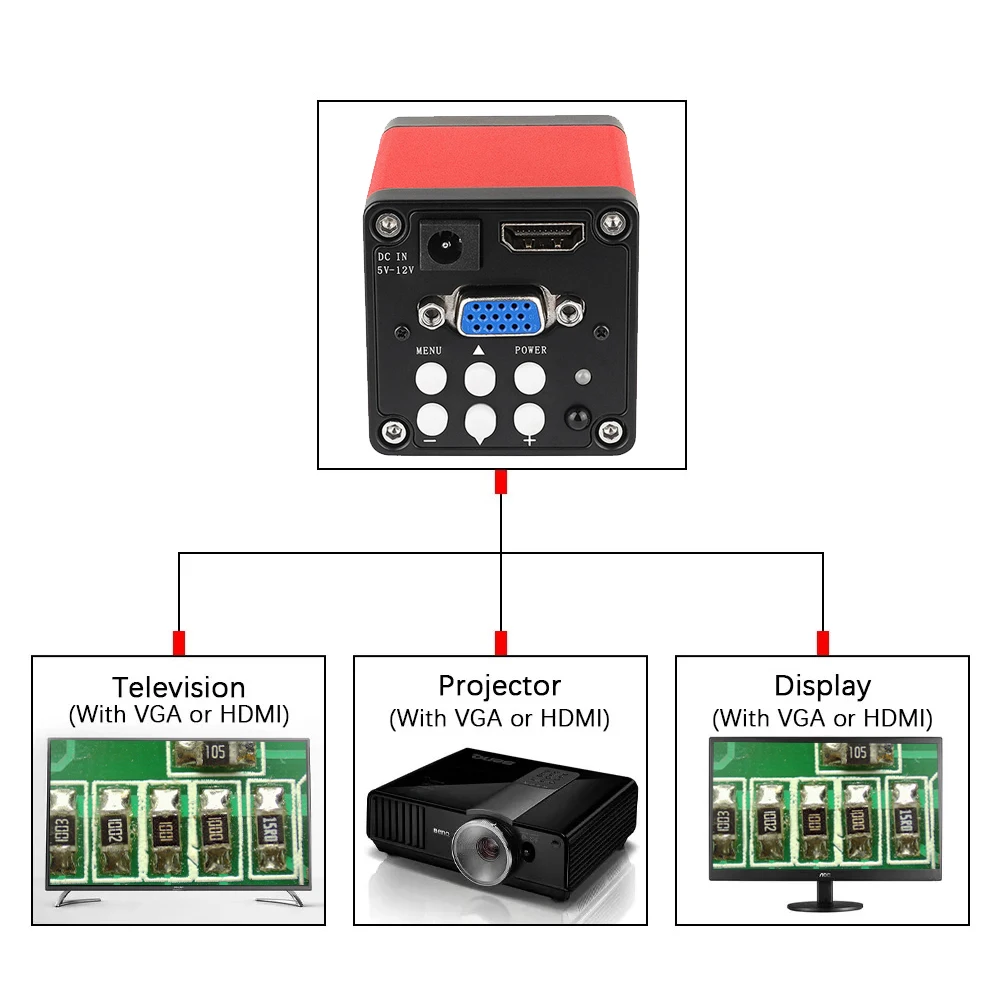

Video Interface:HDMI VGA

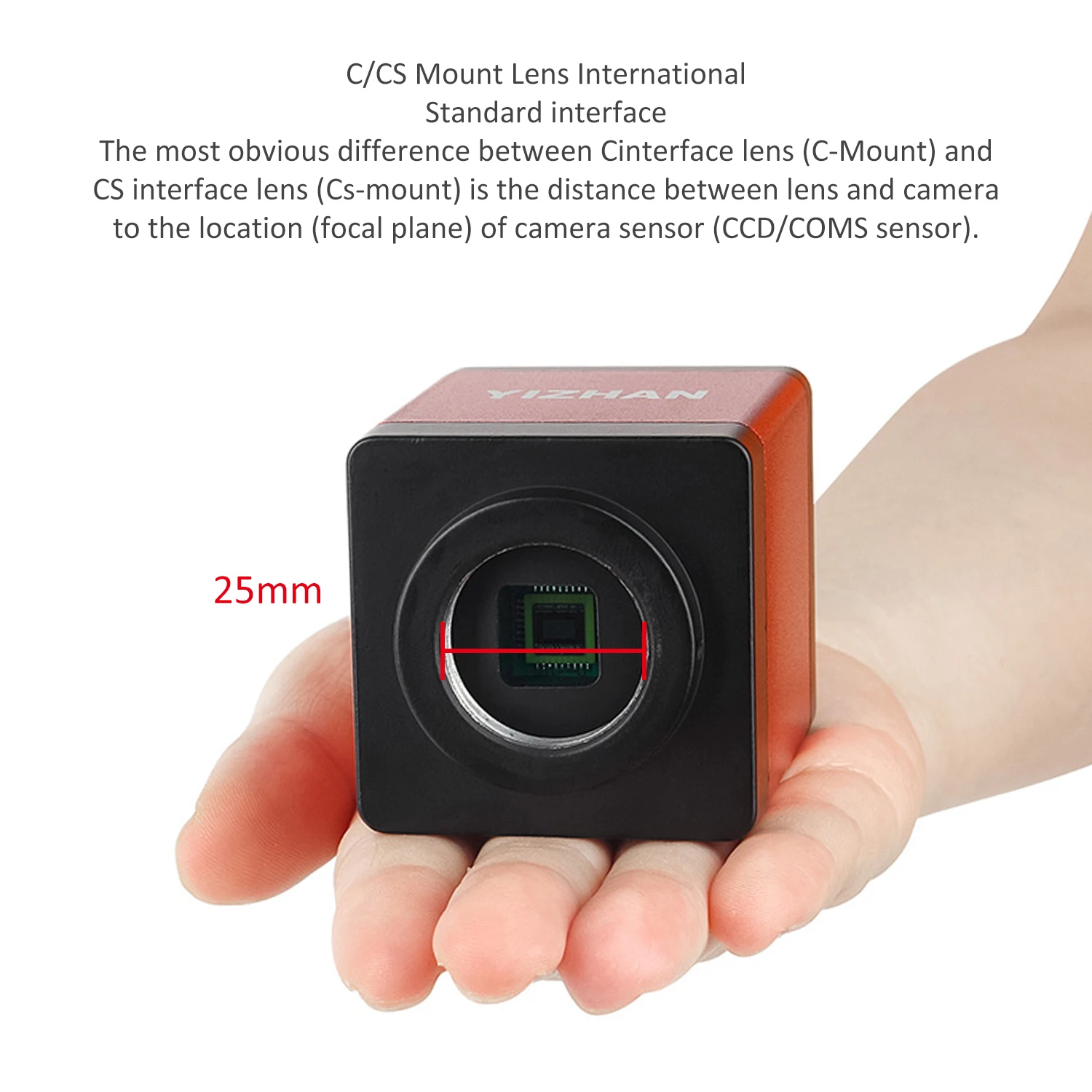

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

TV Lines:1200TVLine

FPS of max image:60FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI:16:9, 4:3 VGA:Above 1920*1080P


1X-150X C-mount Lens:

Working distance: 50mm-1000mm

zoom ratios: 1 : 15

Magnification Power by 0.15- 2X (about 1 - 150X on the display)

view field of Max multiple : 4.2mm*2.4mm

view field of Min multiple : 130mm*70mm

Size: 30mm(diameter) * 99mm(length)

Weight: 195g


56 bright white LED bulbs:

100,000 hours of life

Intense and focused shadow-free illumination

The brightness of 0-100%Adjustable,high brightness

Variable intensity control

Power input: 90-260V, 50-60HZ

Suit for the dia of the lens: 30mm-63mm

Working distance:400mm

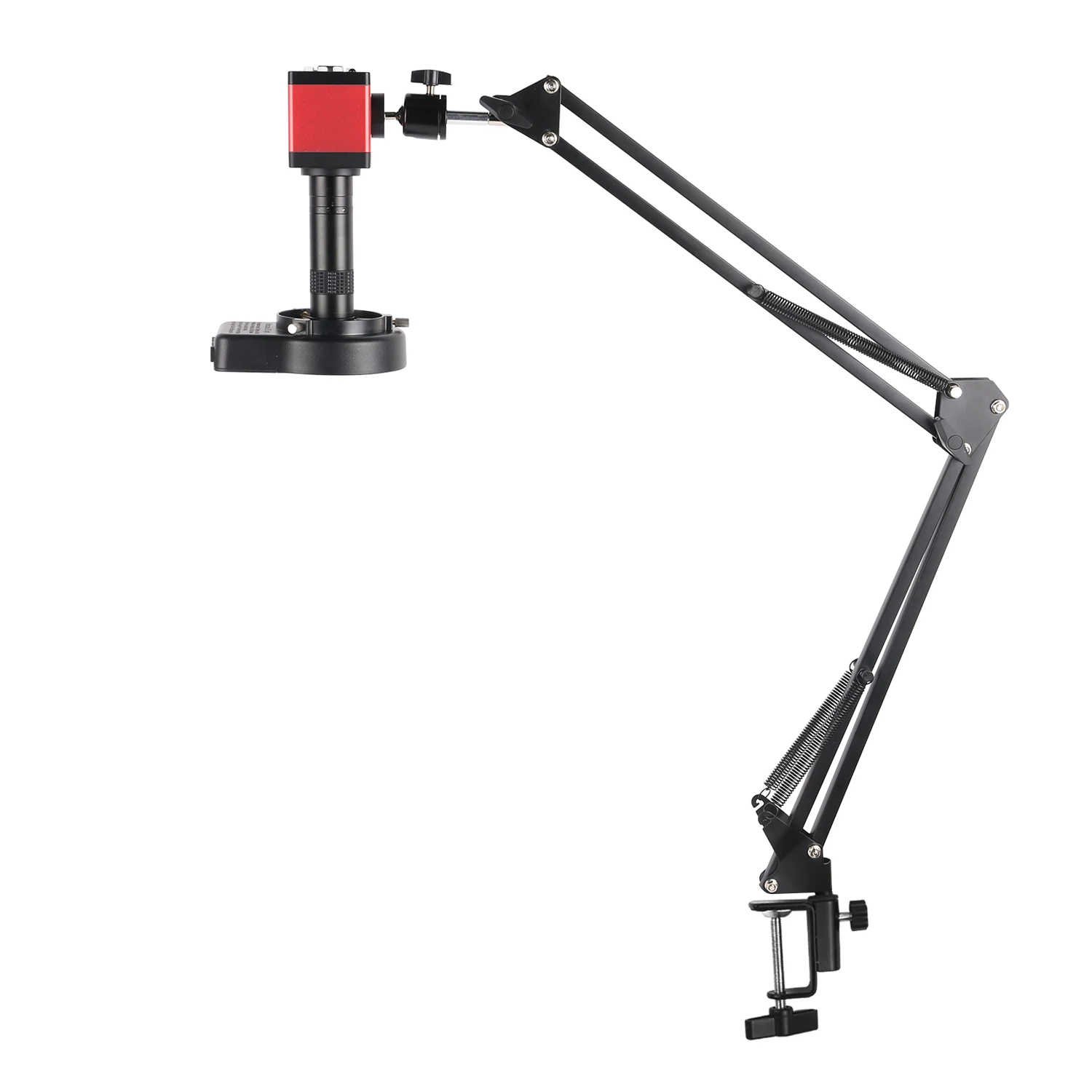

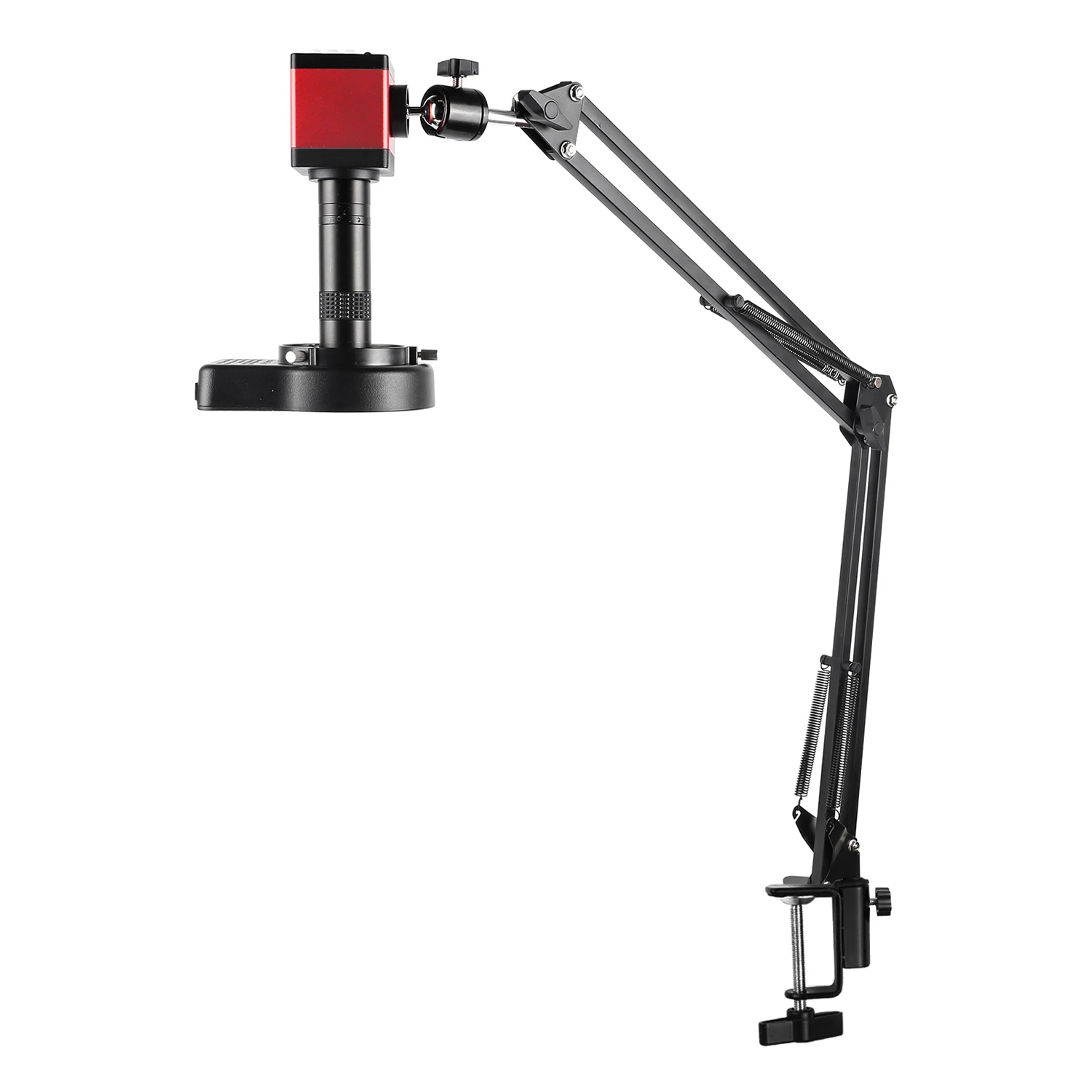

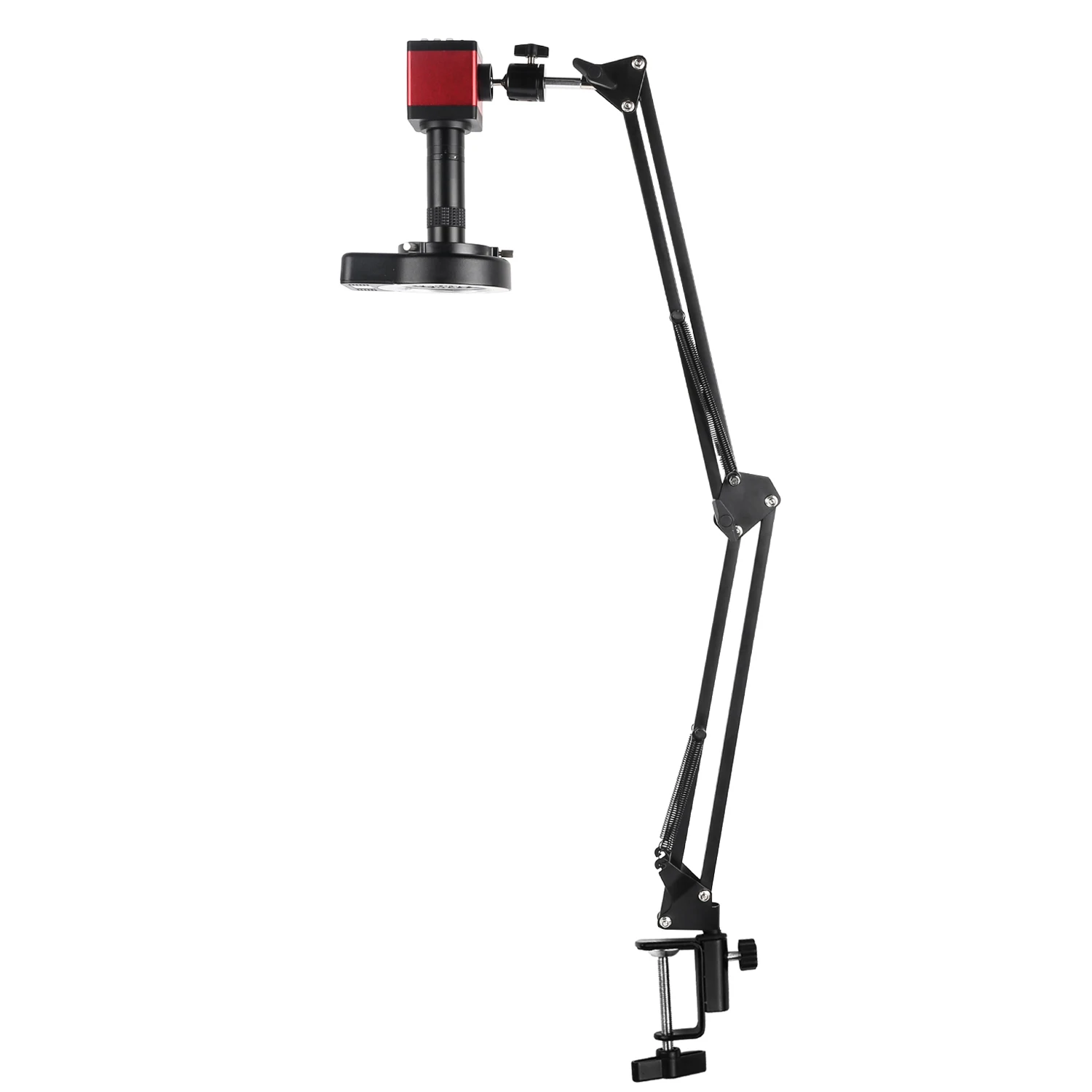

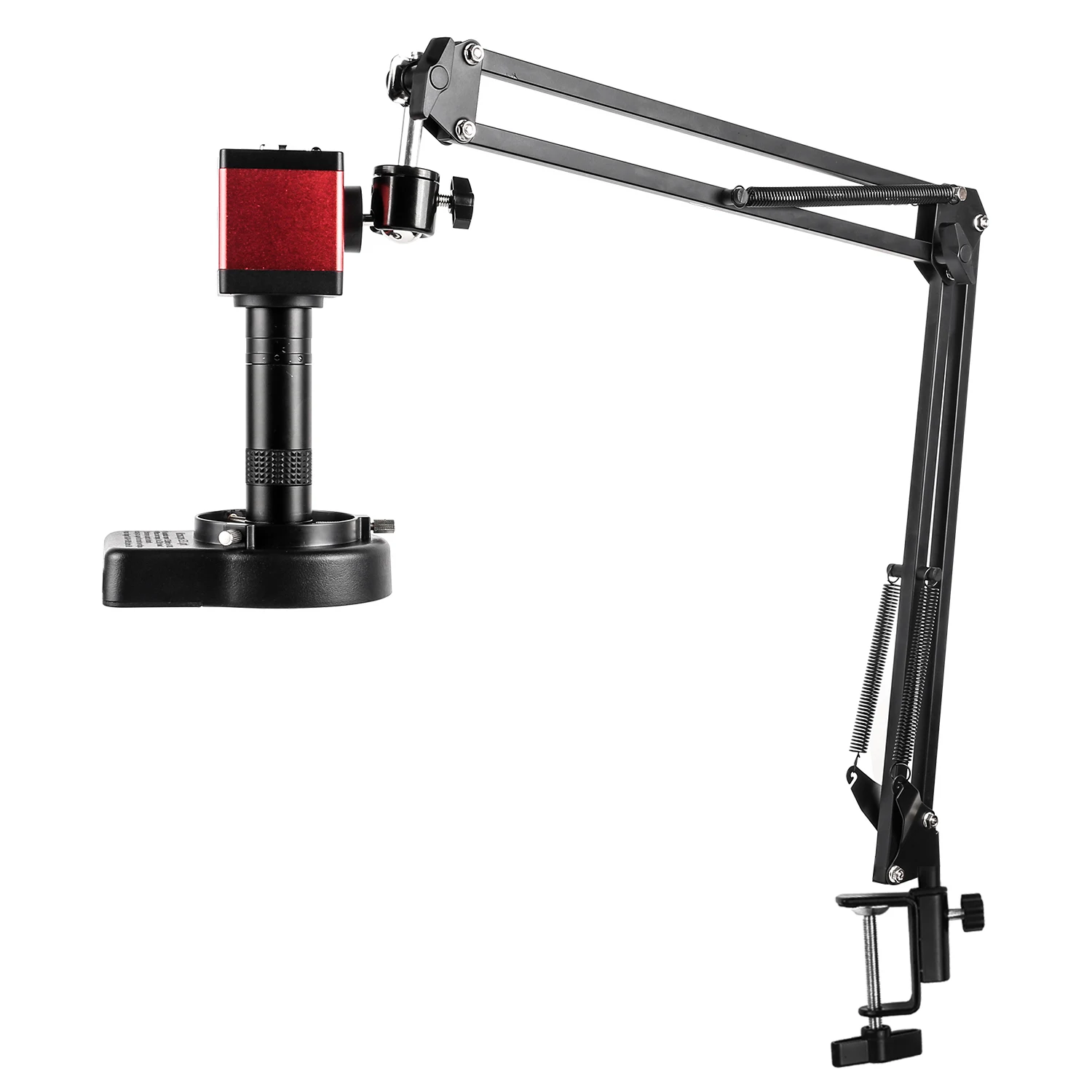

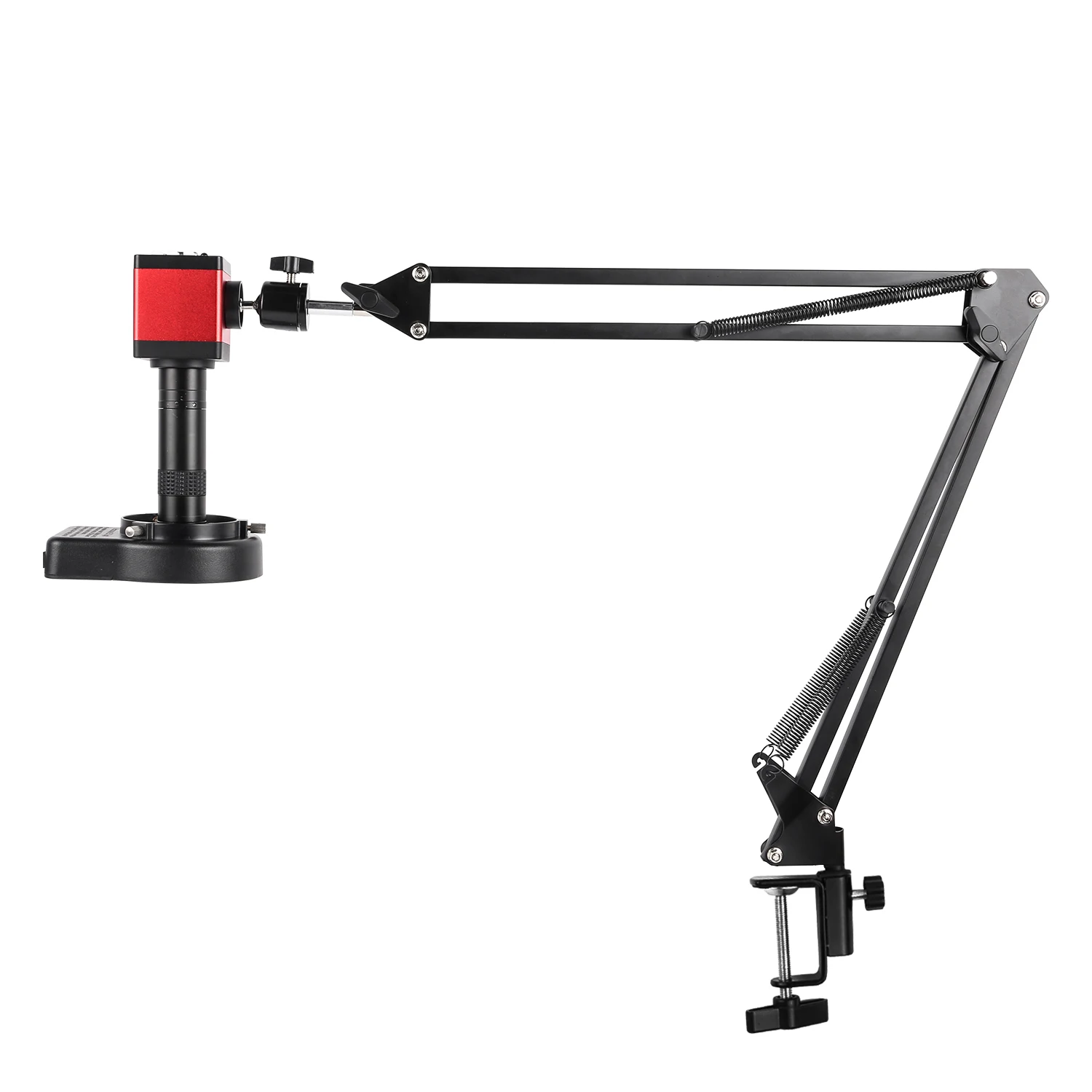

Adjustable bracket :

size: 400mm+390mm

Maximum thickness of bracket installation: 50mm

It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.


List of packing:

1 x Microscope Camera Set

1 x 150X lens

1 x 56 led ring light

1 x Stand
