Description

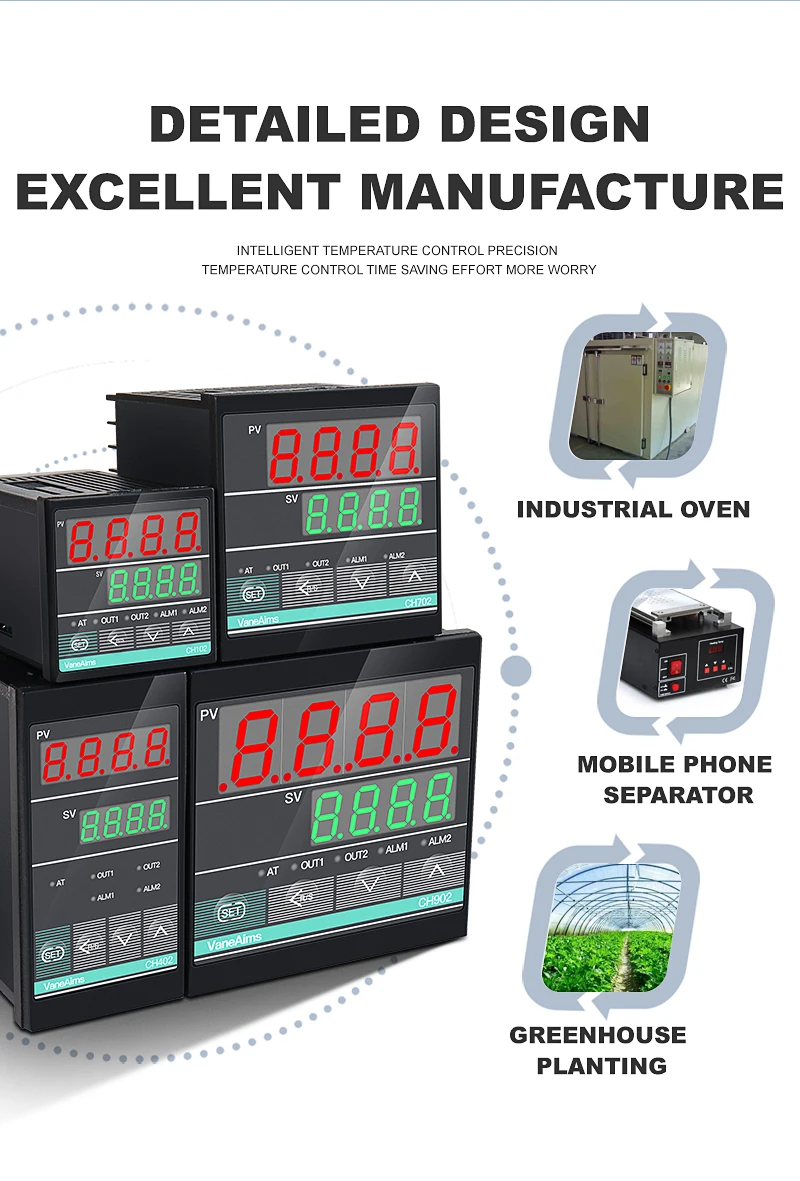

Digital PID Thermostat CH102 CH402 CH702 CH902 Relay/SSR Dual Output Intelligent Temperature Regulator Controller 0-400℃

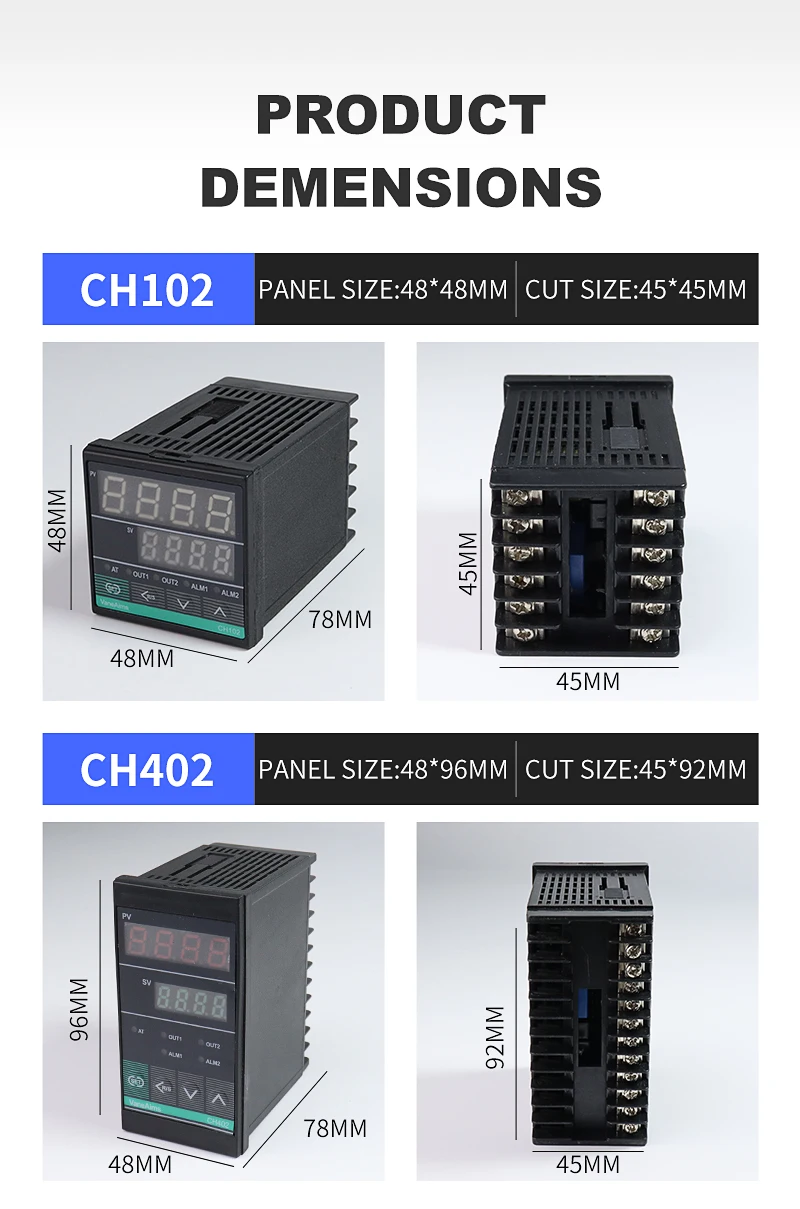

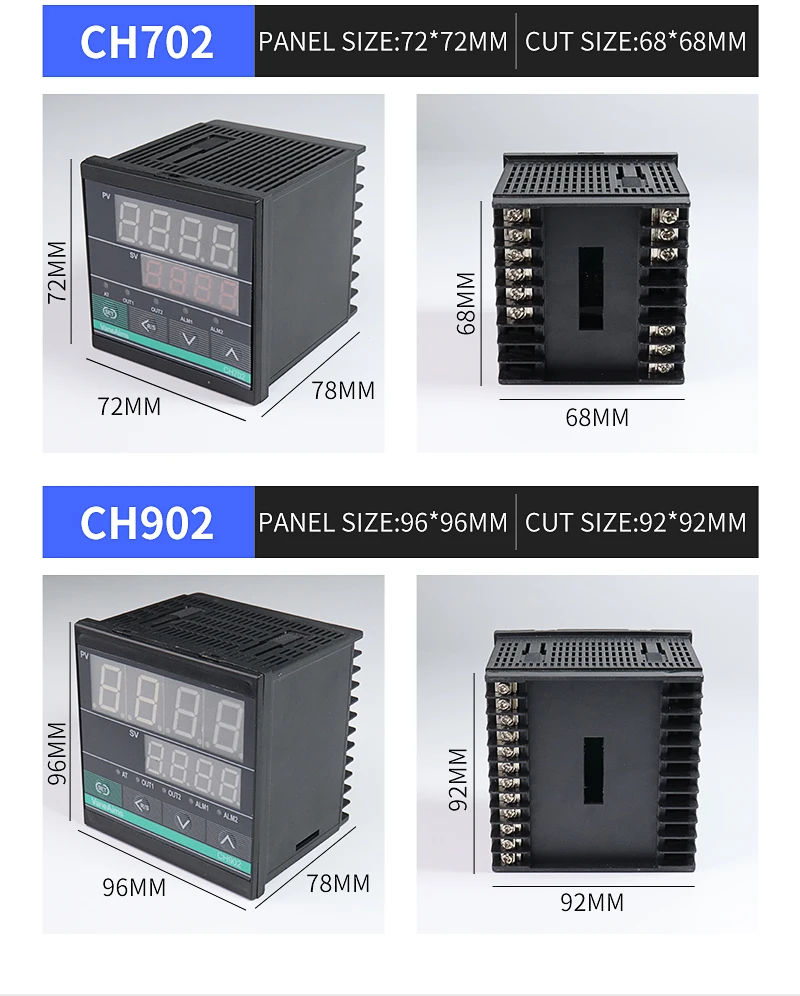

Model number and dimensions
Model number | External dimensions | Perforation dimensions |
CH102FK02-MV*AN | 48x48x78 mm | 45x45 mm |
CH402FK02-MV*AN | 48x96x78 mm | 45x92 mm |
CH702FK02-MV*AN | 72x72x78 mm | 68x68 mm |
CH902FK02-MV*AN | 96x96x78 mm | 92x92 mm |
Product parameters
Product Model | CH series short type |
Supply Voltage | AC85-265V 50/60Hz |
Measurement Precision | ±0.5%FS |
Temperature Measurement Range | 0-1300℃ （32-2372℉） |
Input types | K,E, J, PT100, CU50 Available |
Output types | Electromagnetic relay + SSR |

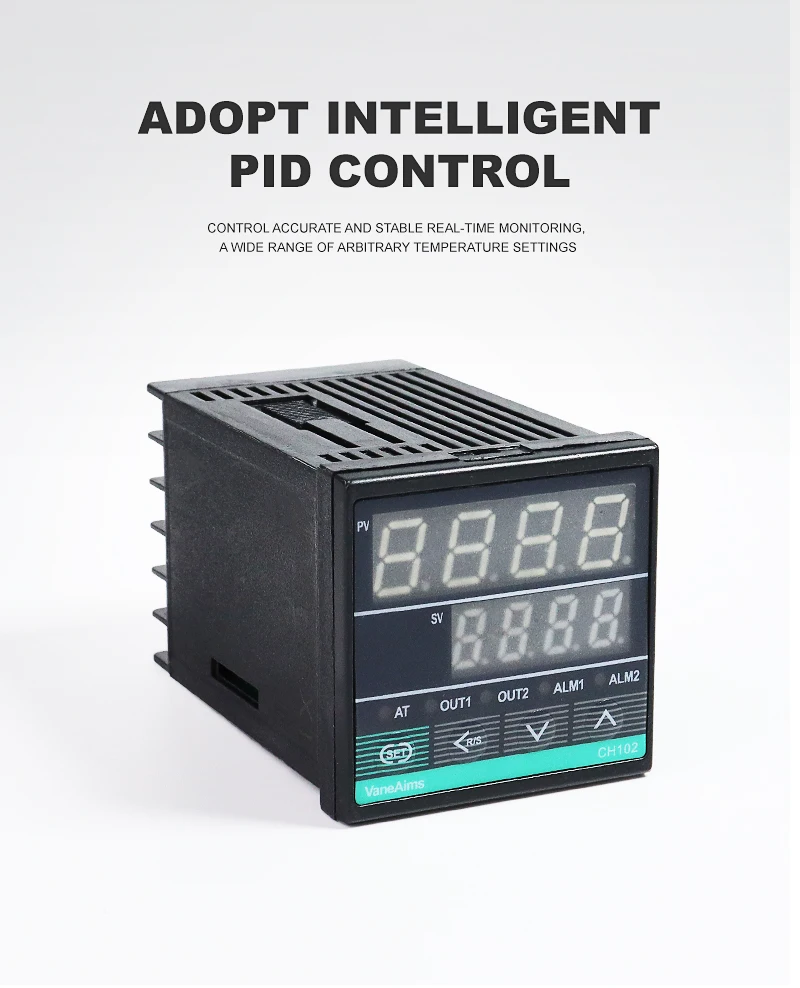

Control Mode | Industrial-grade expert auto-tuning PID technology, campared with the traditional PID control with rapid temperature control, fast response, small overshoot,high precision control |
Resolution | 14 bit |

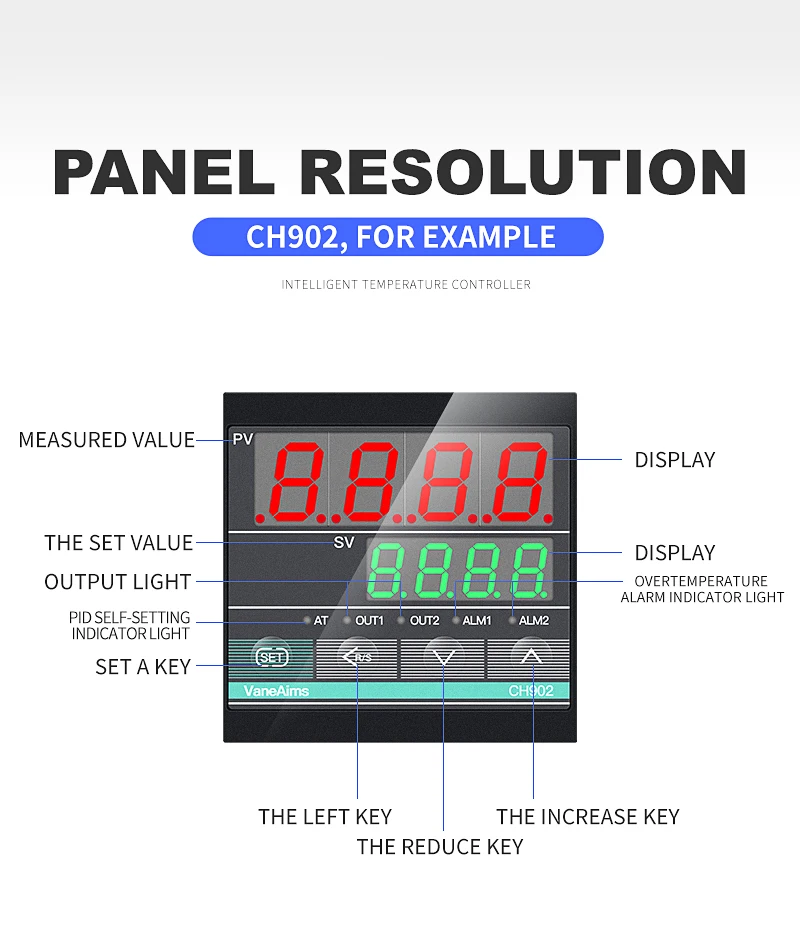

Indication method | 8-segment 4-digital display and LED indication |
Alarm Quantity | 1pcs / 2pcs |
Cold Junction Compensation Error | ±2℃（0-50℃ within the software correction） |
Insulation Resistance | ＞500mΩ（500VDC） |
Operating Environment | 0 to 50 °C (32 to 122 °F)，30-85% RH non-corrosive gases |
To buyers: The temperature range of this temperature control is 0-1300 ℃.The 0-400 ℃ marked on the label is the default factory setting. It is necessary to change thermocouple and the thermocouple input type of the temperature controller to achieve temperature control of 0-1300 ℃.
