Description:

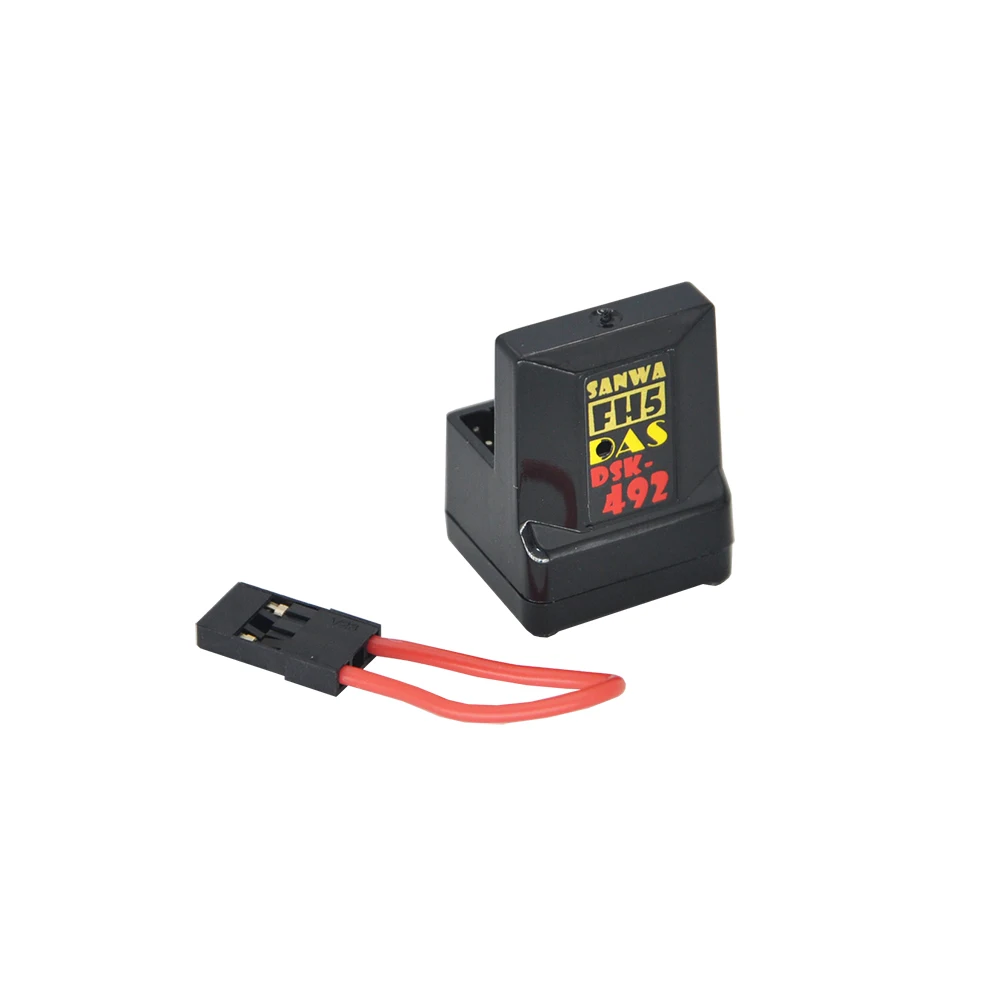

The DasMikro DSK-492N 2.4GHz 4-Channel FHSS-5 SSL Telemetry Receiver uses a built-in antenna with exceptional range and response time. With a lightweight design and a small footprint, this receiver is great for 1/10 and 1/12 scale electric RC cars. This receiver is SSL compatible with either the Super Vortex or PGS Servos (Sold Separately). Package includes one receiver and one bind plug.

Compatible Transmitters:

Sanwa M17

Sanwa MT-5

Sanwa MT-R

How to bind:

1.Turn on transmitter, enter [BIND] to be bind mode.

2.Connect BIND plug in BIND port then turn on receiver.

3.LED will change from slow flashing blue to fast flashing blue.

4.Turn off receiver, remove BIND plug, then turn on.

5.Finish BIND mode on transmitter.

Features:

1. Sanwa 2.4GHz FHSS5U/FHSS5 Spread Spectrum System compatible

2. Compatible with SSL (SUPER VORTEX Series, etc...)

3. Ultra Response Mode (SUR)

4. Extreme Response Mode (SXR)

5. Dual ID system (able to bind with 2 transmitters)

6. Micro size (18.2x20.2x27.4 mm)

7.Operating Voltage 3.5V - 8.4V

8. Weight: 5g

Indicator Function compatible:

Indicator function can be checked signal strength connected transmitter. The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter. Indicator function can be checked signal strength without any effect with response.

NOTE:

- RPM sensor (SNW107A41061A) and temperature sensor are not compatible

- RPM and temperature telemetry are only capable with the Sanwa Super Vortex series

- FH5U RF mode is not capable to use telemetry

- SXR response mode is only compatible with transmitter M17.

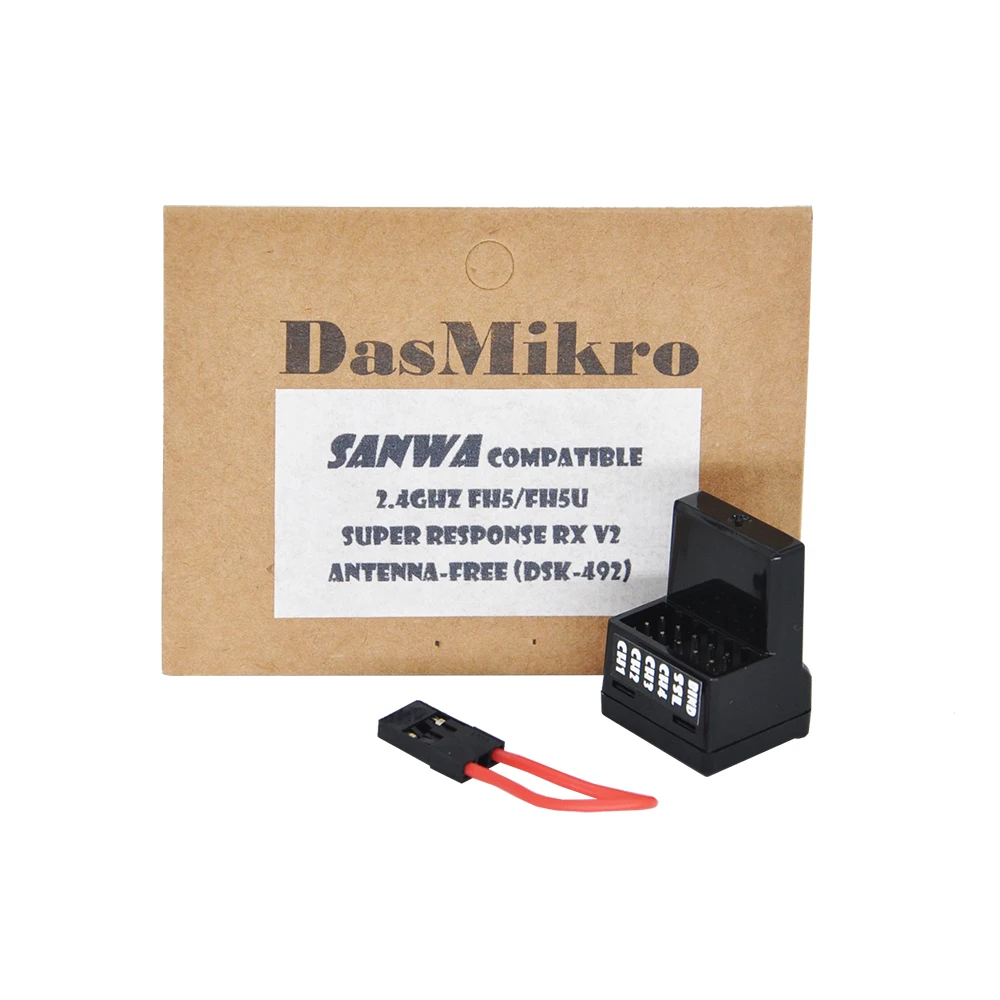

Package Included:

1 x Receiver

1 x Bind cable
