Characteristics：

• The main chip of the development board is Altera EP4CE6, with a variety of peripheral interfaces such as LCD, VGA, serial port and so on. And contains schematics and sample programs, the development kit is very suitable for college student.

• The FPGA chip of the board uses QFP package chip, compared with the BGA package, it is easier to learn and debug.

• The main chip IOs are all drawn to 2.54mm pitch pins, scalability is strong.

• The development board is equipped with a transparent protection board to protect the chip and prevent electrostatic damage.

• The product includes a USB programmer for programming the FPGA.


• The product includes a USB cable for powering the development board.

• Each development board and usb programmer will be fully tested before shipment to ensure that their function are normal.


• We provide datasheet, schematic, sample programs and software. We will send you a OneDrive link to download these files.

Parameters:

1.Main chip: ALTERA Cyclone IV EP4CE6E22C8N.

2.Memory configuration:

1) The board with 16Mbit EPCS16N serial configuration chip, the user can download and debug the program code via JTAG interface or AS interface.

2) The board with 64Mbit SDRAM, support SOPC, NIOSII development.

3.The voltage regulator chip:

1) Using 1117-3.3V voltage regulator chip, to provide 3.3V voltage output.

2) Using 1117-1.2V voltage regulator chip to provide FPGA core voltage.

3) Using 1117-2.5V voltage regulator chip, to provide PLL voltage output.

4.Voltage input:DC 5V. The board also can be powered through the USB interface.

5.Program debug and download interface：

1) JTAG interface: download .SOF file, the speed is fast. No loss of data after power failure.

2) AS interface: download .POF file. No loss of data after power failure.

6.Expansion interface:leads to all pins of the main chip, 2.54mm spacing.

7.Size:136mm * 106mm

Peripheral interfaces and resources:

1. 1 self-locking button power switch, 1 reset key, 4 user keys.

2. 4 LED diodes.

3. 4-digit tube.

4. 4-digit DIP switch.

5. 1 buzzer.

6. PS2 interface.

7. RS232 serial port

8. 1*20 pin LCD socket, support LCD1602, LCD12864, TFT LCD.

9. Precision adjustable resistance, adjustable LCD backlight.

10. Temperature sensor chip LM754A.

11. 8-color VGA interface.

12. I2C serial EEPROMAT24C08, for IIC bus experiment

13. Infrared receiving module.

14. RS232 Serial port.

15. Leads to all pins of the main chip, 2.54mm spacing.

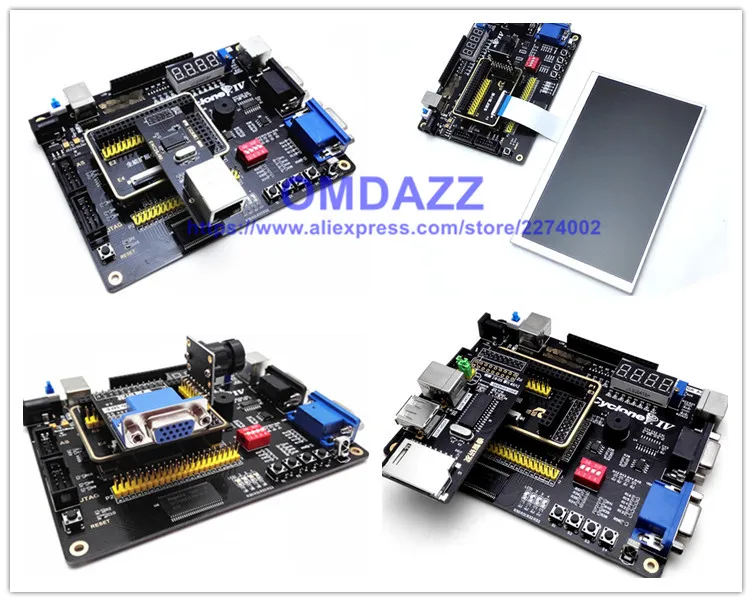

Connecting Board:

OV7670 camera module:

VGA Module:

• 16 bit true color, support 65536 colors

• The VGA module with SD card socket

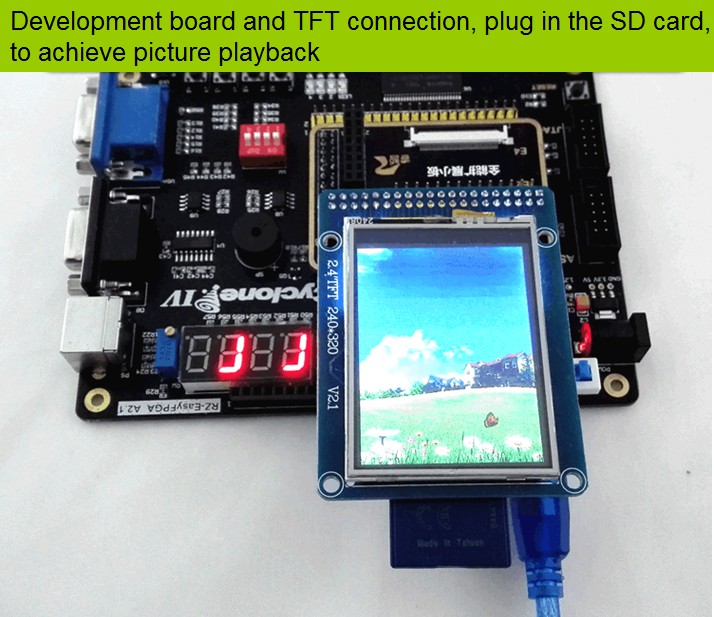

2.4 inch TFT Module:

• With touch IC

• With SD card socket

Ethernet Module:

USB Module:

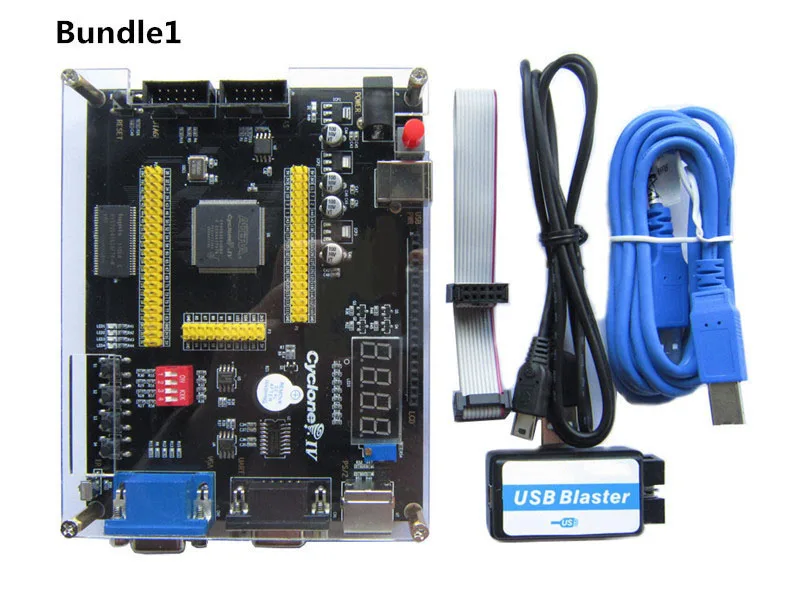

Shipping List of Bundle1:

• 1 * EP4CE6 FPGA development board

• 1 * USB Programmer (Used to program the FPGA)

• 1 * USB cable (Used for power supply)

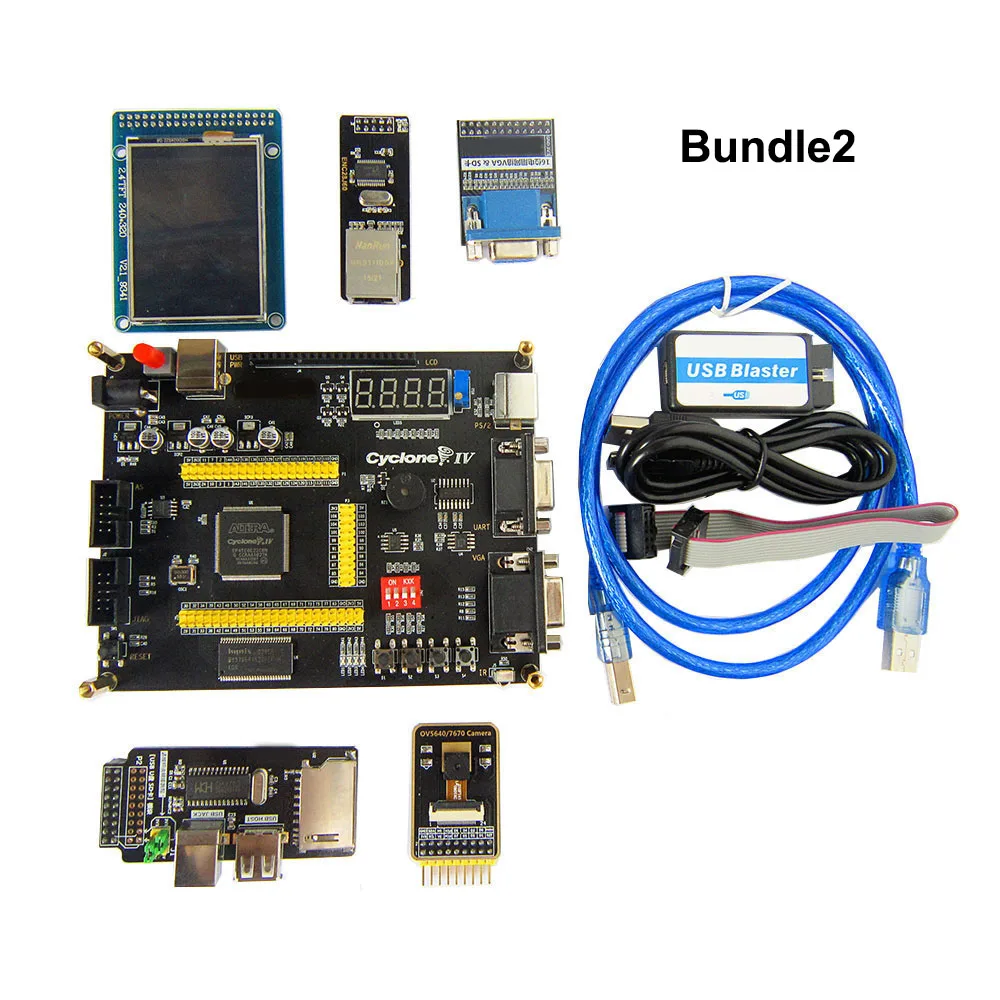

Shipping List of Bundle2:

• 1 * EP4CE6 FPGA development board

• 1 * USB Programmer (Used to program the FPGA)

• 1 * USB cable (Used for power supply)

• 1 * Connecting board

• 1 * 16-bit 65526 color VGA Module

• 1 * OV7670 camera

• 1 * 2.4-inch LCD Module

• 1 * Ethernet Module

• 1 * USB Module

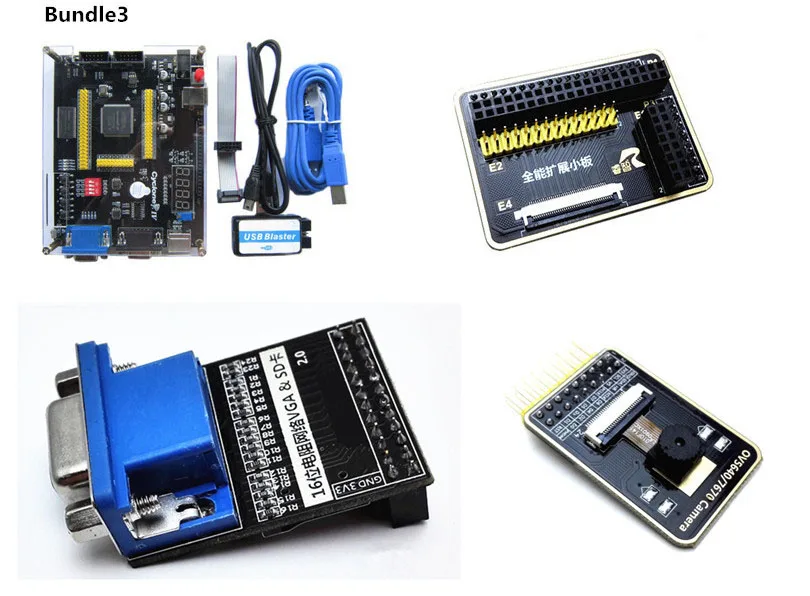

Shipping List of Bundle3:

• 1 * EP4CE6 FPGA development board

• 1 * USB Programmer (Used to download programs to FPGA)

• 1 * USB cable (Used for power supply)

• 1 * Connecting Board

• 1 * 16-bit 65526 color VGA Module

• 1 * OV7670 camera

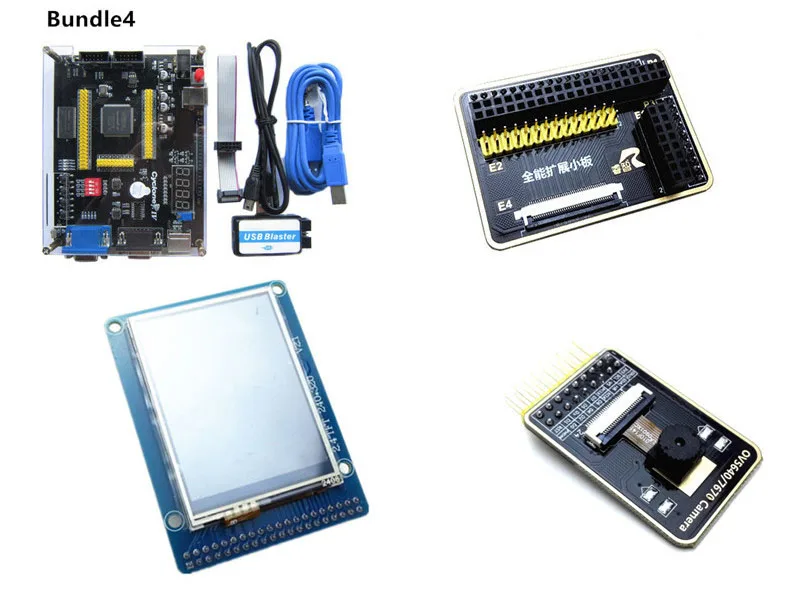

Shipping List of Bundle4:

• 1 * EP4CE6 FPGA development board

• 1 * USB Programmer (Used to download programs to FPGA)

• 1 * USB cable (Used for power supply)

• 1 * Connecting Board

• 1 * 2.4 inch TFT Module

• 1 * OV7670 camera

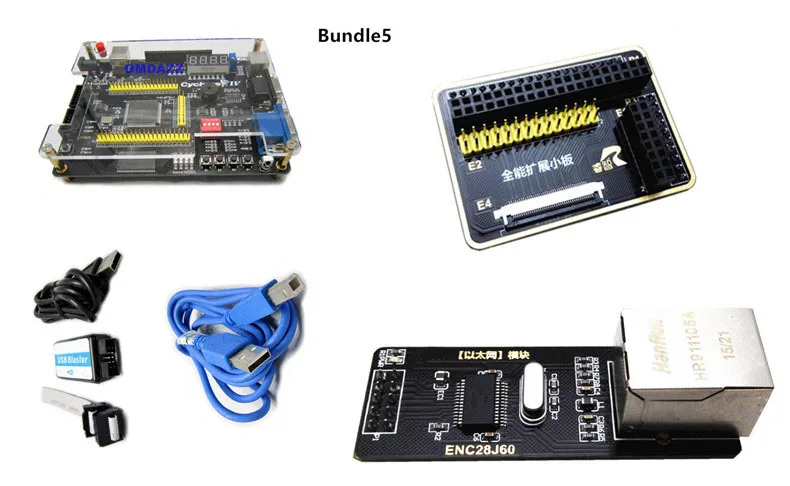

Shipping List of Bundle5:

• 1 * EP4CE6 FPGA development board

• 1 * USB Programmer (Used to download programs to FPGA)

• 1 * USB cable (Used for power supply)

• 1 * Connecting Board

• 1 * Ethernet Module

Shipping List of Bundle6:

• 1 * EP4CE6 FPGA development board

• 1 * USB Programmer (Used to download programs to FPGA)

• 1 * USB cable (Used for power supply)

• 1 * Connecting Board

• 1 * USB Module

Packaging:

Anti-static bag + bubble wrap + strong cardboard box

The development board is compatible with the following modules:
