Description
Specification:

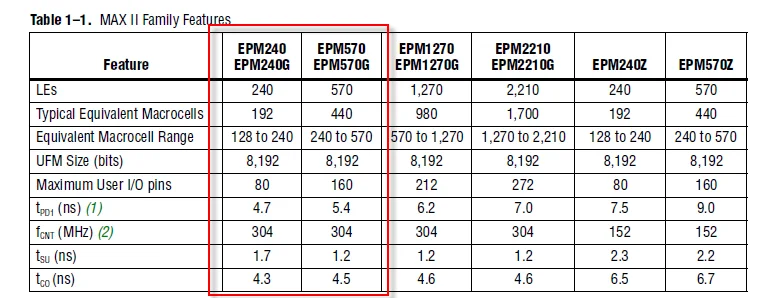

Main Chip: Altera MAXII EPM240T100I5N or EPM570T100I5N
Size: 140mm * 100mm
Supply voltage: 5V

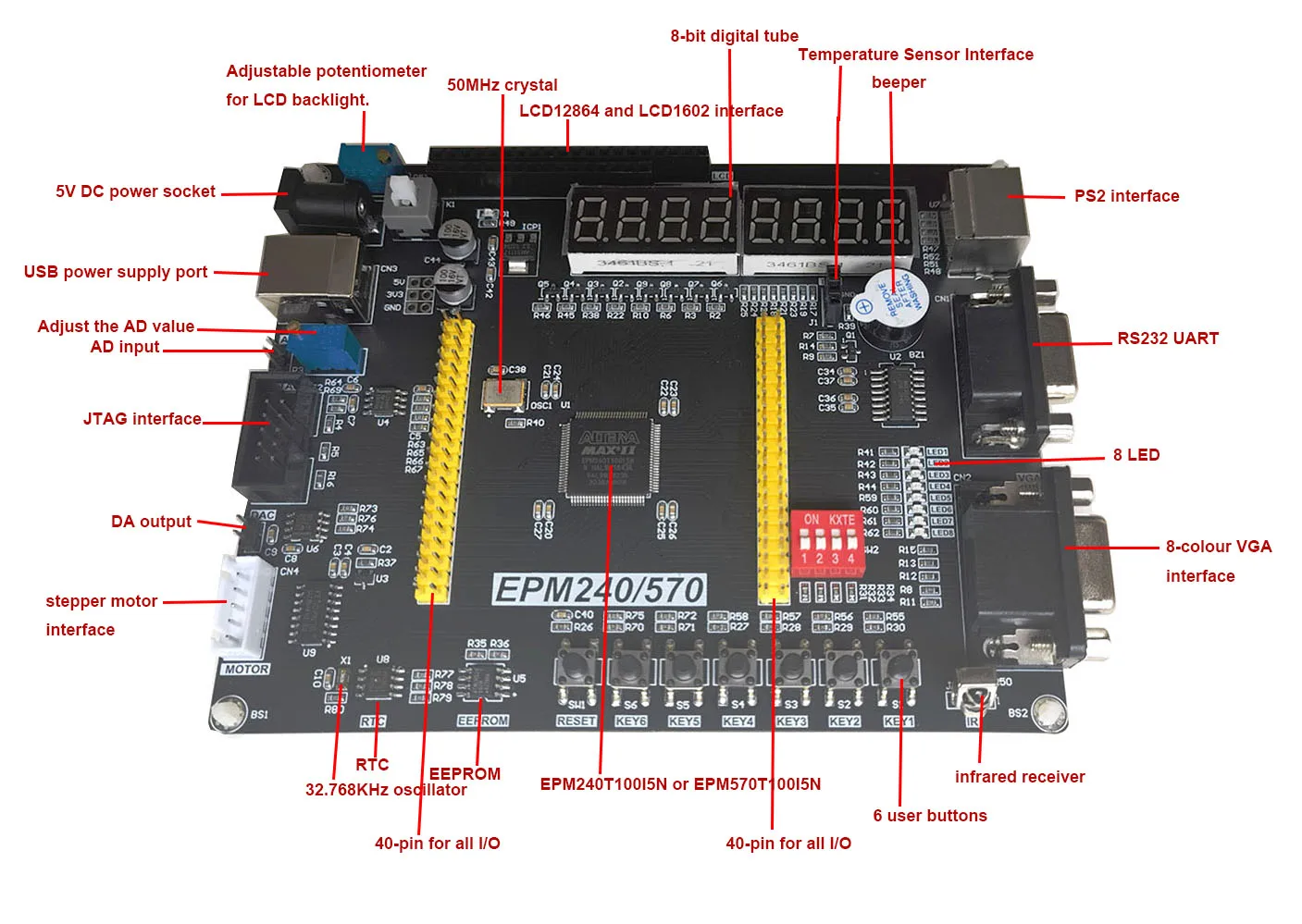

The main hardware resources:
On-board 50MHz active crystal provides the system master clock.
On-board 5V DC power socket.
On-board USB power socket.
A LED Power indicator.
Self-locking key power switch.
A reset button, can also be used as a user input key.
All I/O pins are lead out through 2 * 20-pin, 2.54mm pitch.
On-board 6 independent keys.
On-board 8-bit LED light-emitting diodes.
On-board 8-bit digital tube, do dynamic or static digital display experiments, frequency, stopwatch, and so on.
On-board 4-bit DIP switch, do switch control experiments.
On-board 1-bit buzzer for sound and music experiments.

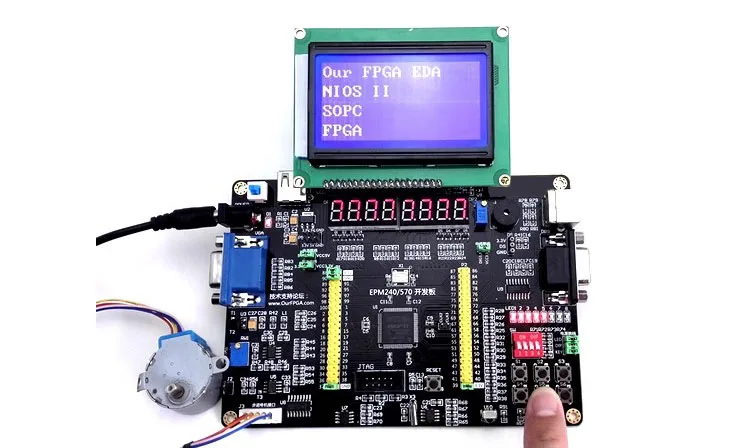

On-board LCD1602 and LCD12864 interface, do characters display experiments.
On-board RS232 serial port, do serial communication experiments.
PS2 interface, do PS / 2 keyboard experiment.

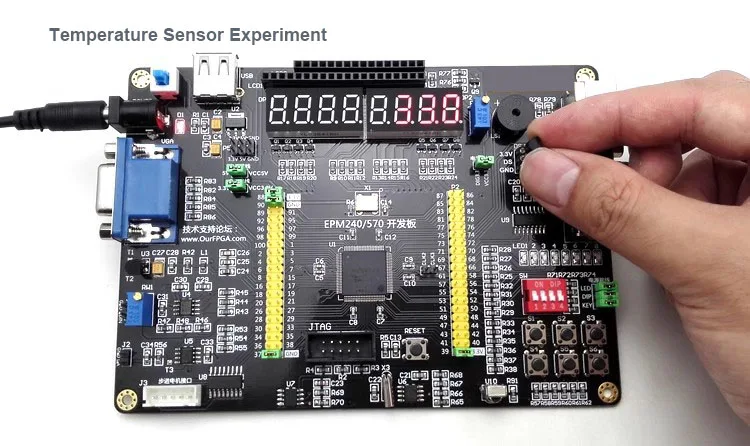

A temperature sensor interface (without temperature sensor ), do thermometer experiments.

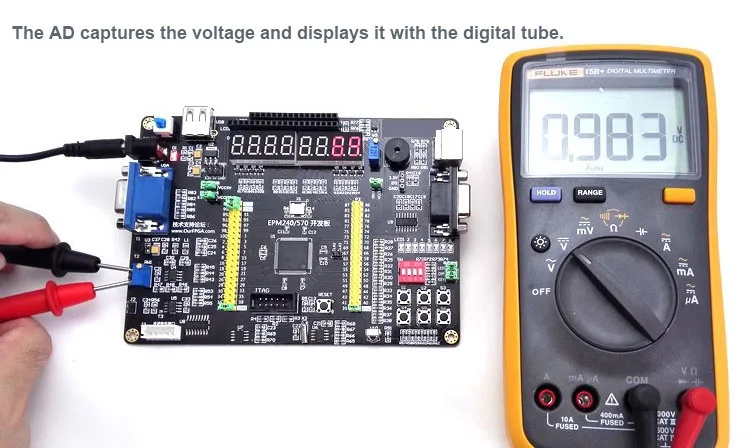

TLC549 AD converter, do voltmeter experiments.

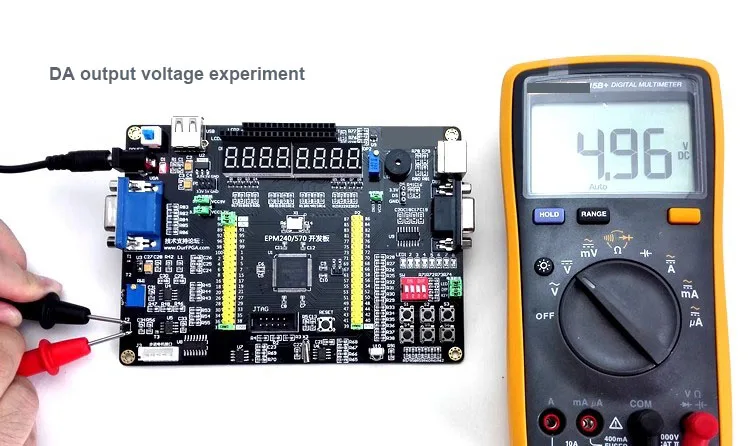

TLC5615 DA converter, do DA output control experiment.
ULN2003 stepper motor control module.
Infrared receiver module.
VGA interface, do display experiments.
32.768KHz reference oscillator.
TL431, can be used as 2.5V voltage reference.
Adjustable potentiometer, adjust the DA value.
I2C serial EEPROMAT24C08, do IIC bus experiment.
PCF8563T real-time clock.
Package included:
1 * EPM240 or EPM570 development board
1 * USB blaster programmer
1 * USB cable for power supply
1 * UART to USB cable
1 * plastic box
