Development board hardware resources:FPGA chip: EP4CE10F17C8N, with 10K logic cell, 180 IO PIN, 423936bit RAM, 64 multipliers.Memory: SDRAM: 128Mbit, …

Description

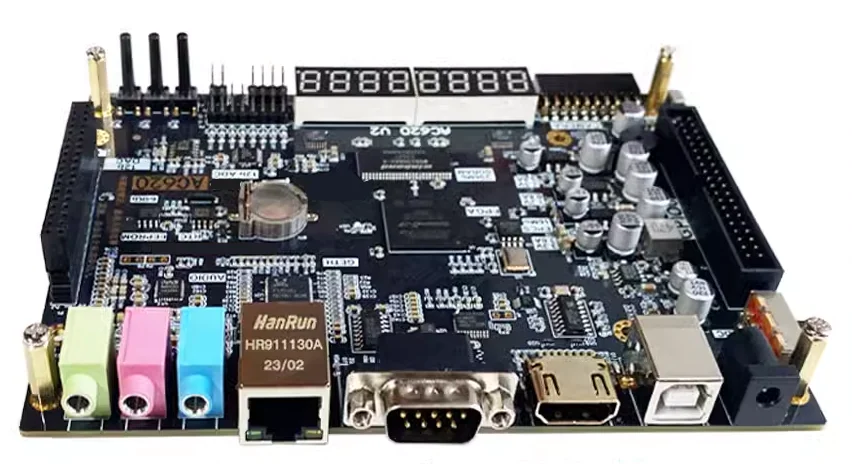

Development board hardware resources:

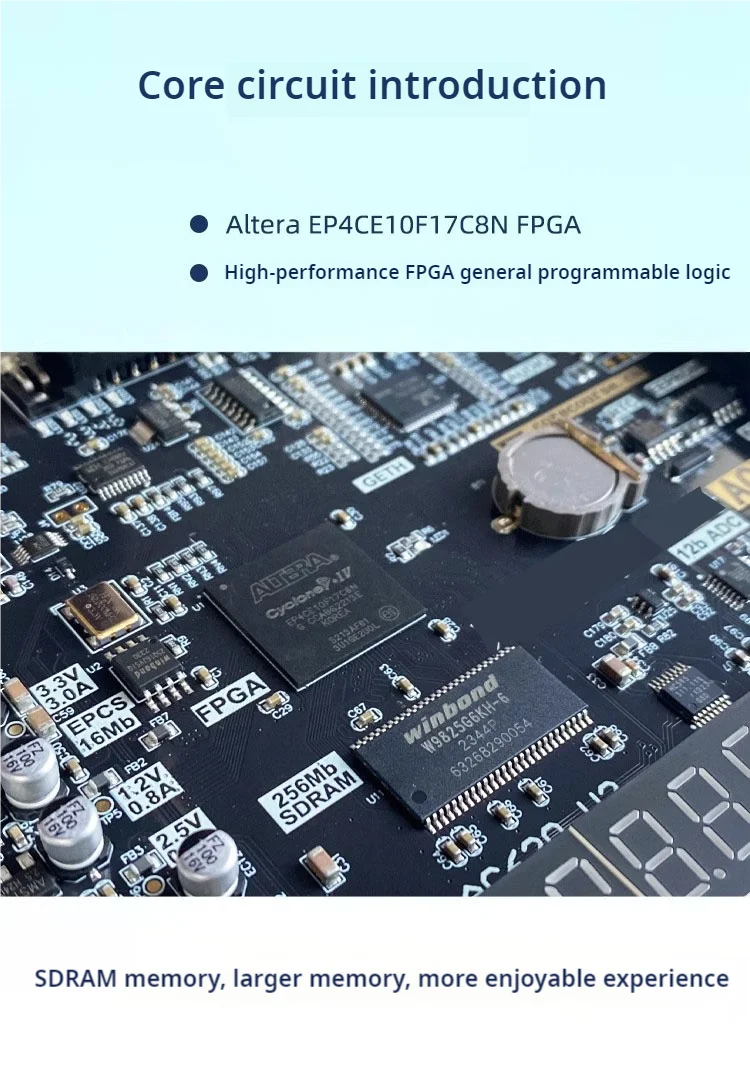

FPGA chip: EP4CE10F17C8N, with 10K logic cell, 180 IO PIN, 423936bit RAM, 64 multipliers.

Memory:

  • SDRAM: 128Mbit, 133MHZ frequency

  • EEPROM: 64Kbit, IIC interface

  • FLASH: 16Mbit, SPI interface

Analog Digital:

  • ADC: ADC128S0922, 8 channels, 200KSPS, 12-bit high precision.

  • DAC: TLV5618, 2 channels, 1MSPS, 12-bit high precision.

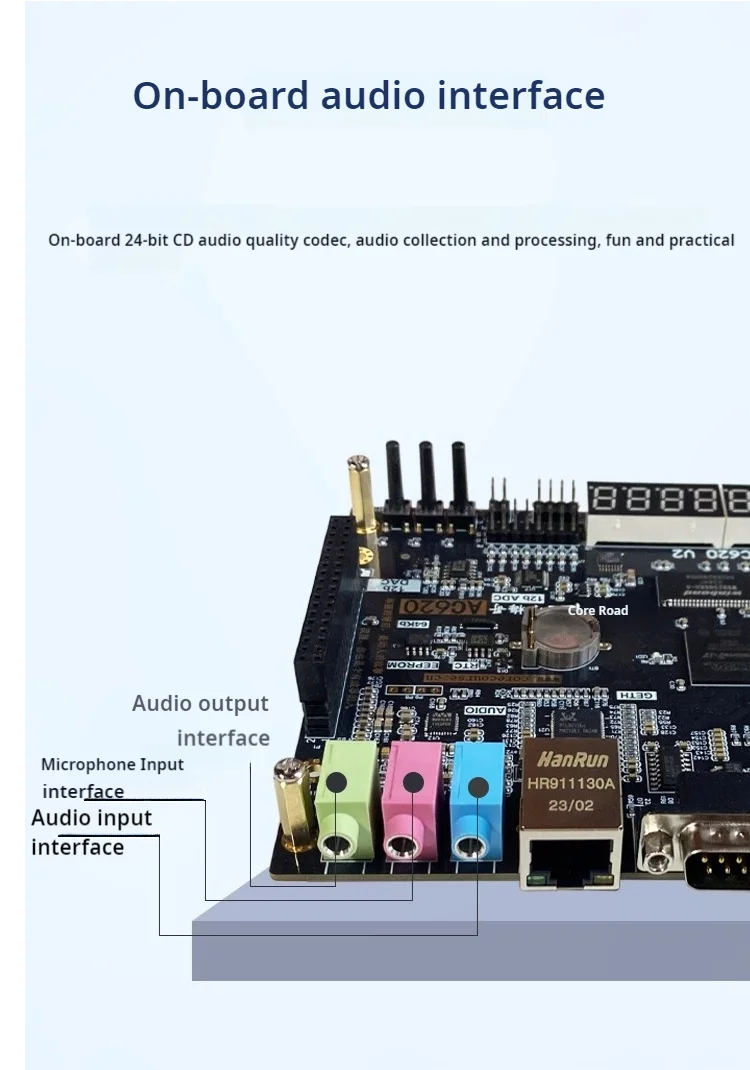

  • Audio codec: WM8731, I2S bus, audio input and output, microphone input.

Communication Interface:

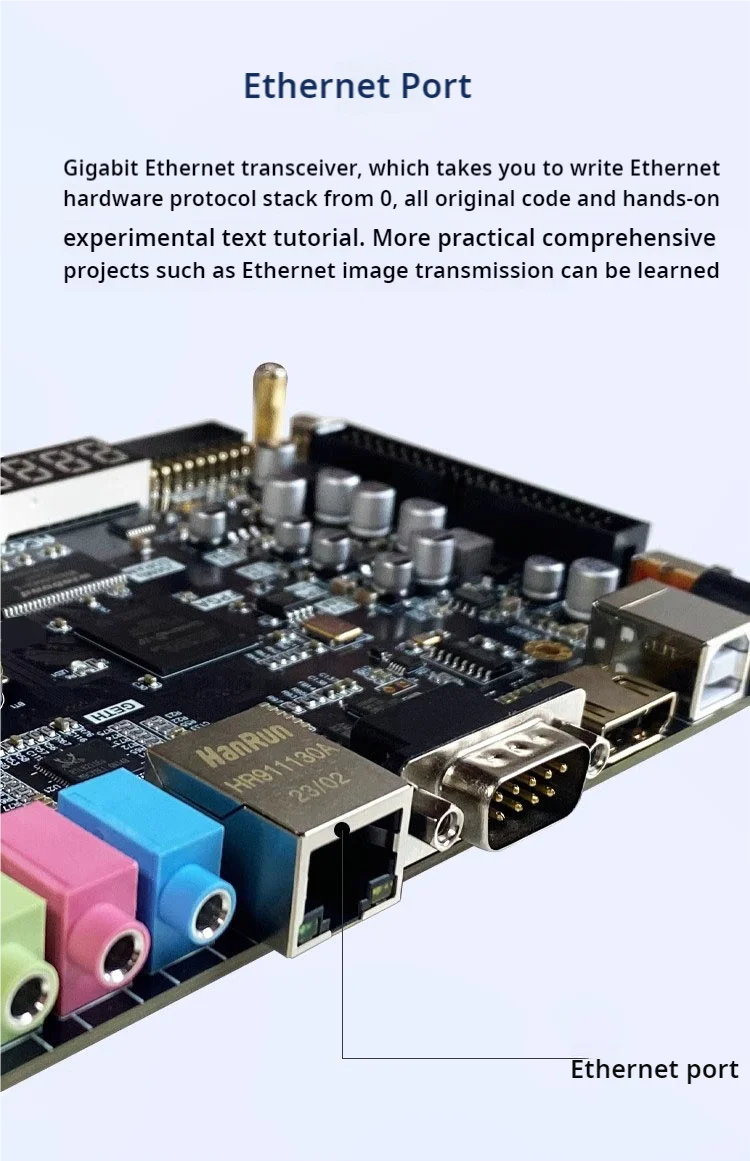

  • Ethernet: RTL8211, 10M/100M/1000M

  • RS232: SP3232

  • RS485: SP3485

  • Infrared communication: HS38B, 38KHZ modulation.

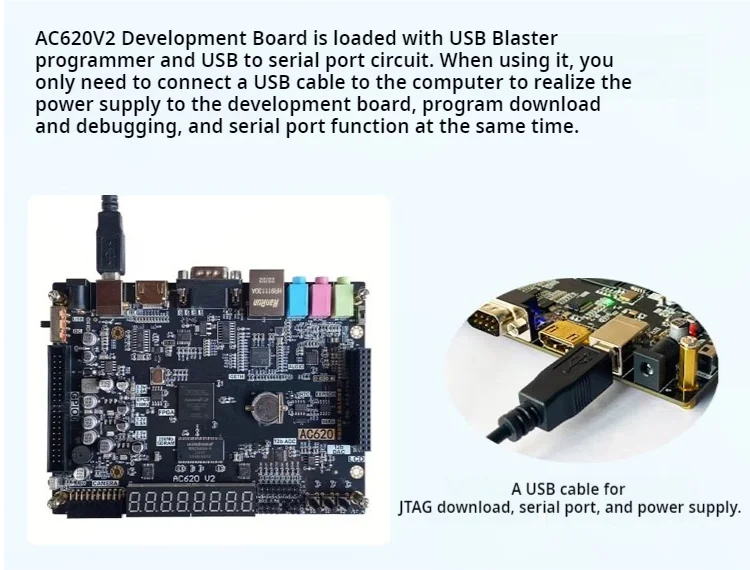

  • USB to serial port: CH340G, USB to TTL.

Other functions:

  • Real Time Clock

  • I2C

  • Buzzer

  • 4 LEDs

  • 3 buttons

  • 8-bit Digital Tube

  • HDMI-compatible output




Shipping List of Bundle1:

  • 1 * Altera EP4CE10 Development Board

  • 1 * USB cable

  • 1 * Power supply cable

  • 1 * Audio cable

  • 1 * Network cable
