Product Description

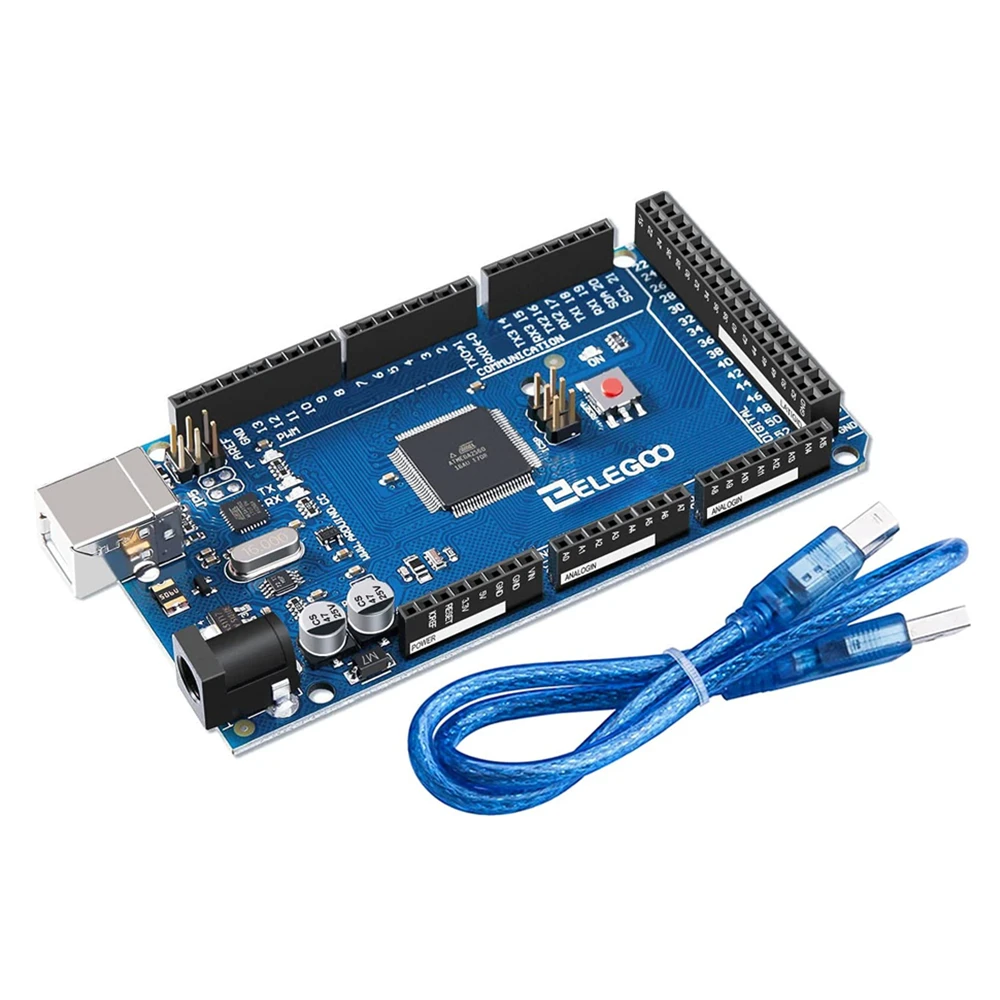

We have the manufacture factory, making productions and selling by ourselves. So we can control the quality of our productions by ourselves for you. We'd like to receive your valuable suggestions for our products and make your idea come true. This version is optimized in the original version , mainly for customers under the functional requirements for product quality and high case designed both to ensure consistent and compatible with the original, but also easy to use. Microcontroller: ATmega+2560R3 Compatible with Arduino IDE Operating Voltage: 5V Input: Voltage(recommended) : 7-12V Input Voltage (limits) : 6-20V Digital I/O Pins: 54 (of which 15 provide PWM output) Analog Input Pins: 16 DC Current per I/O Pin: 40 mA DC Current for 3. 3V Pin: 50 mA Flash Memory: 256 KB of which 8 KB used by bootloader SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz Package includes: 1 x Mega +2560 ATmega+2560-16AU Board (Arduino-compatible) 1 x USB cable.

Products Features

1、The Mega is 100% compatible with Arduino IDE and most of the shields are designed for the Arduino mega R3，RoHS Compliant

2、The chip is Atmega + 2560-16au and 16u2, same with the official version.

3、Improved and expert version: 1. 0 pinout: added SDA and SCL pins that are near to the AREF pin

4、Stronger RESET circuit. Use 5. 5 * 2. 1mm DC barrel jack (compatible with 5. 5 * 2. 5mm DC barrel jack)

5、It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Technical Specification

Microcontroller: ATmega+2560

Operating Voltage: 5V ; Input: Voltage (recommended):7-9V

Digital I/O Pins: 54 (of which 15 provide PWM output)

Analog Input Pins: 16 DC

Current per I/O Pin: 40 mA ; DC Current for 3.3V Pin: 50 mA

Flash Memory: 256 KB of which 8 KB used by bootloader

SRAM: 8 KB EEPROM: 4 KB Clock Speed: 16 MHz LED_BUILTIN: 13

Length: 101.5 mm Width: 53.3 mm Weight: 34 g

Extra Points

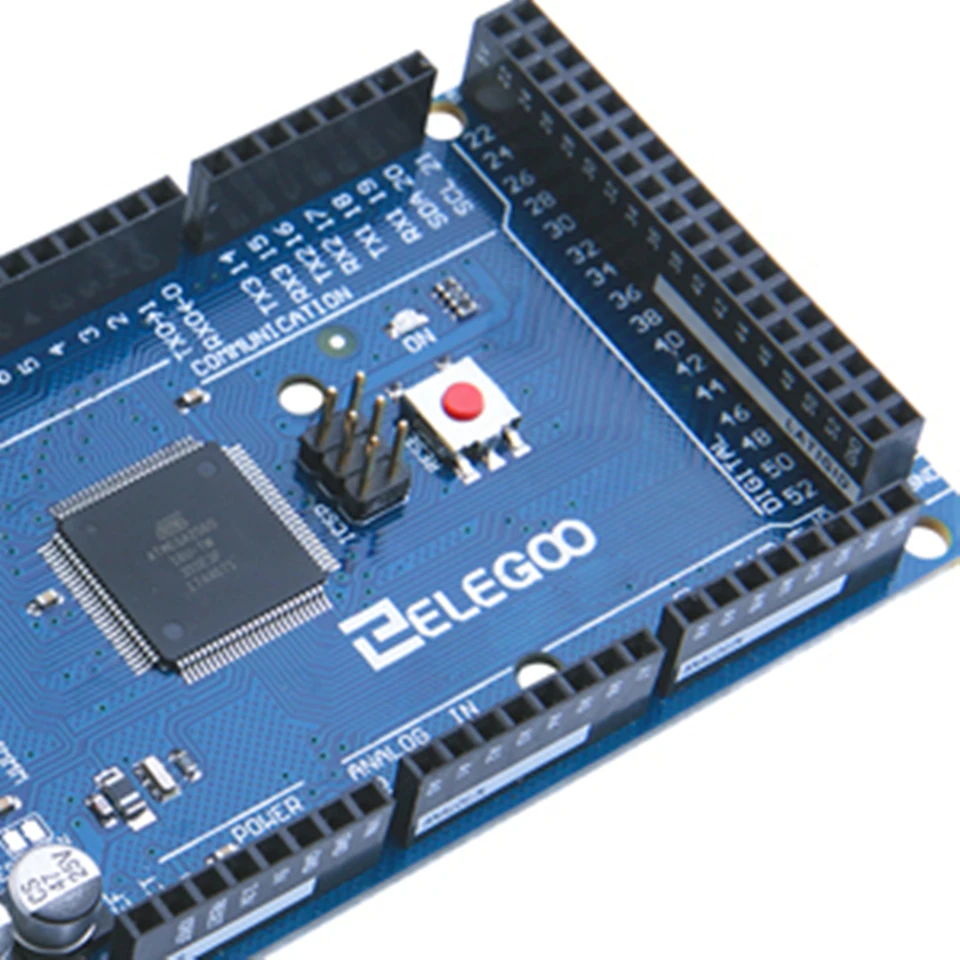

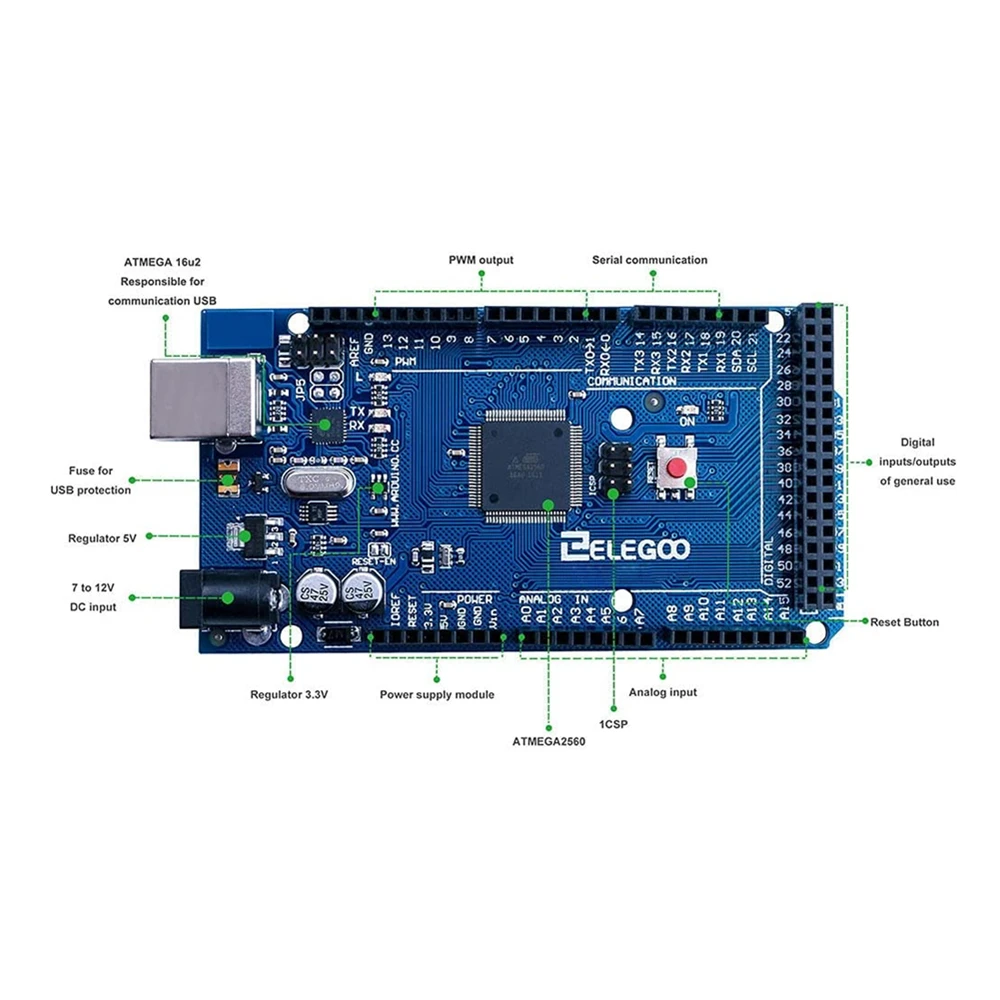

Besides the 54 digital I/O pins and 16 analog inputs, it also has 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It provides everything needed to support the micro-controller. You will simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Simplification and Security

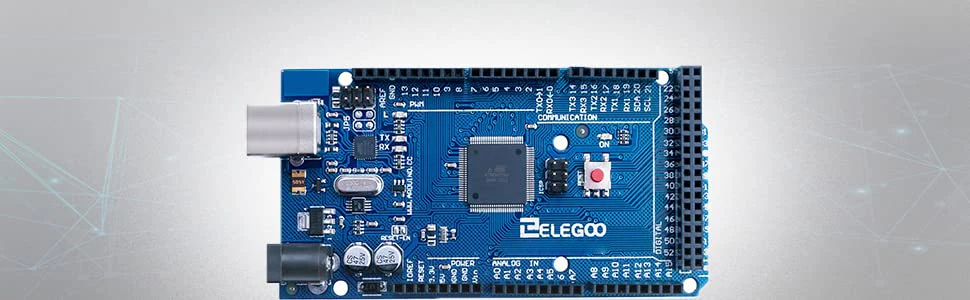

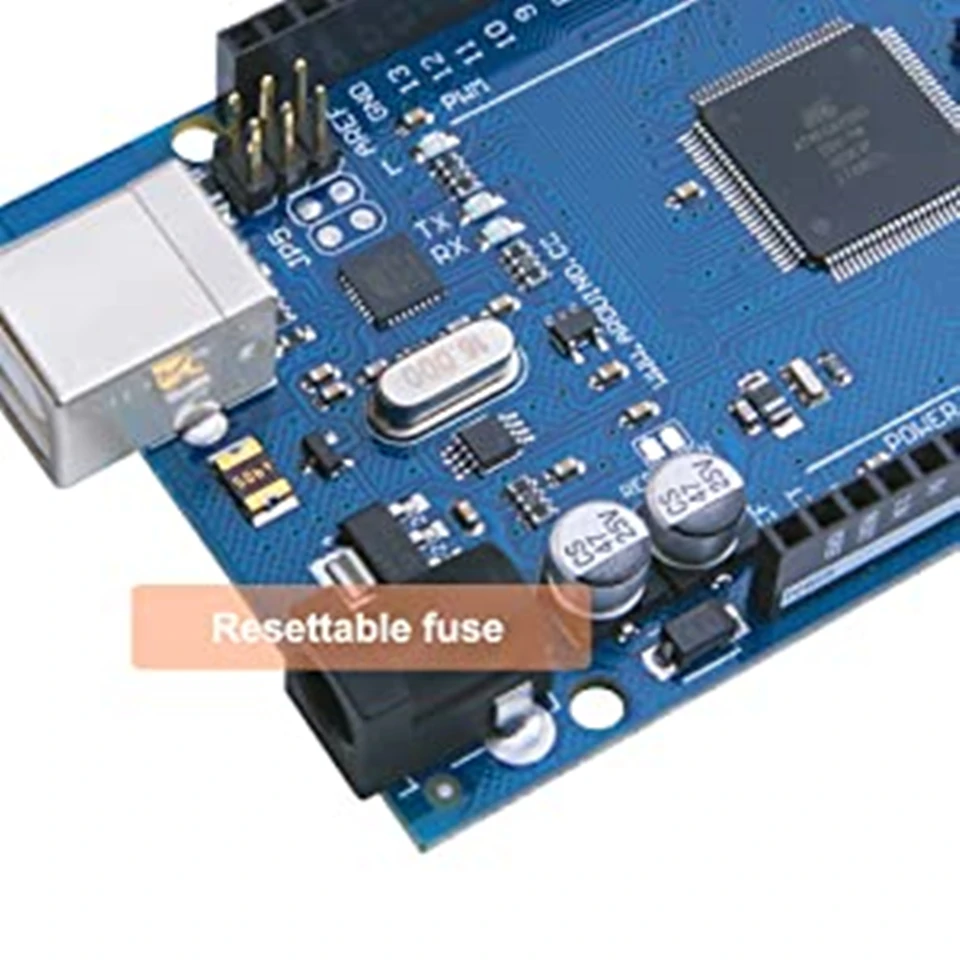

The ATmega+2560 on the Elegoo Mega comes preprogrammed with a bootloader that allows you to upload new code to it without the use of an external hardware programmer. The Mega R3 has a re-settable fuse that protects your computer's USB ports from shorts and over-current. Although most computers provide their own internal protection, the fuse provides an extra layer of protection. If more than 500 MA is applied to the USB port, the fuse will automatically break the connection until the short or overload is removed.

Memory Store

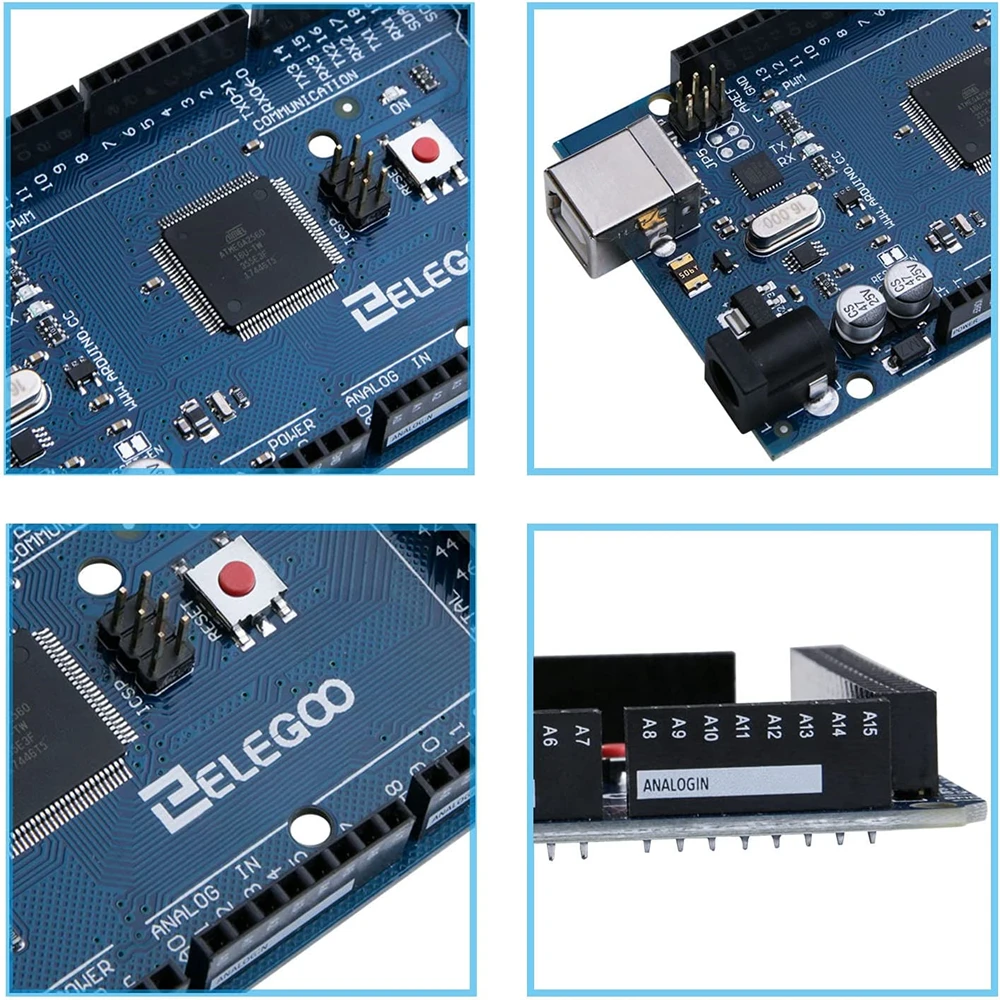

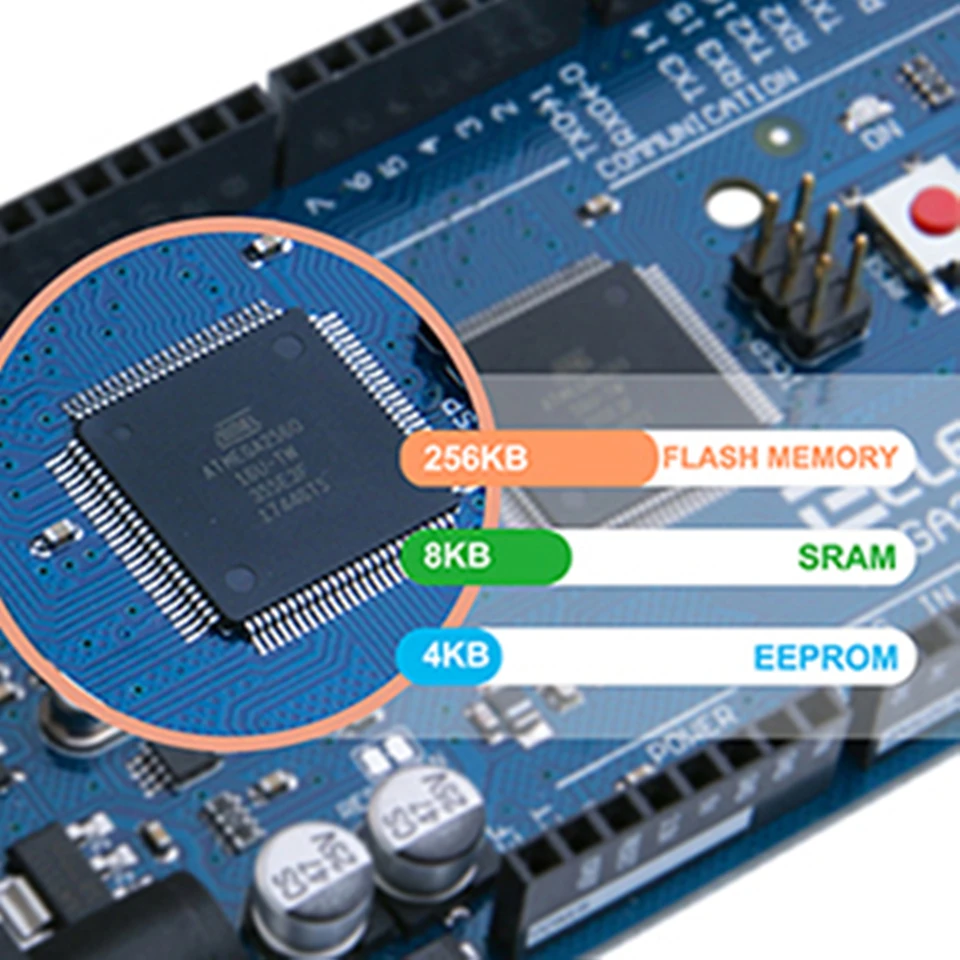

The ATmega+2560 of ELEGOO Mega R3 Controller Board has 256 KB of flash memory for storing code (of which 8 KB is used for the bootloader), 8 KB of Spram and 4 KB of EEPROM (which can be read and written with the Eeprom library).

Diverse Power Methods

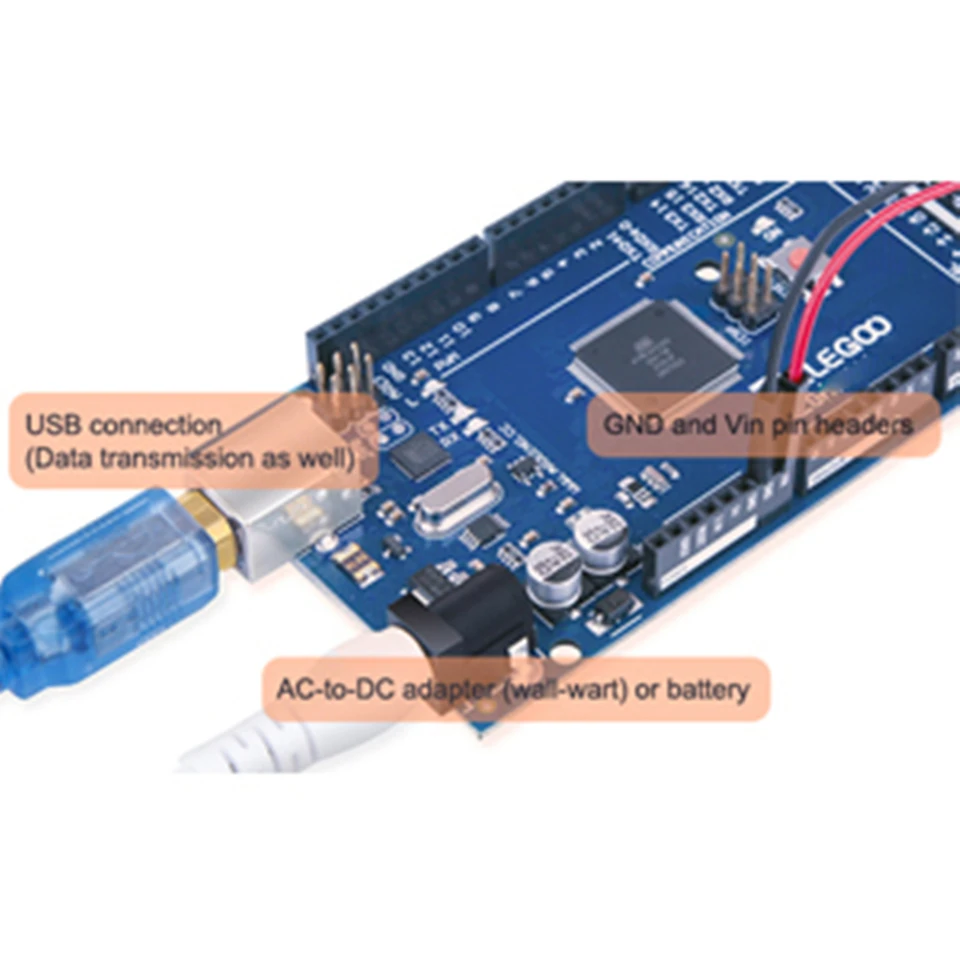

The ELEGOO Mega R3 can be powered via the USB connection or with an external power supply. The power source is selected automatically. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the GND and Vin pin headers of the POWER connector.

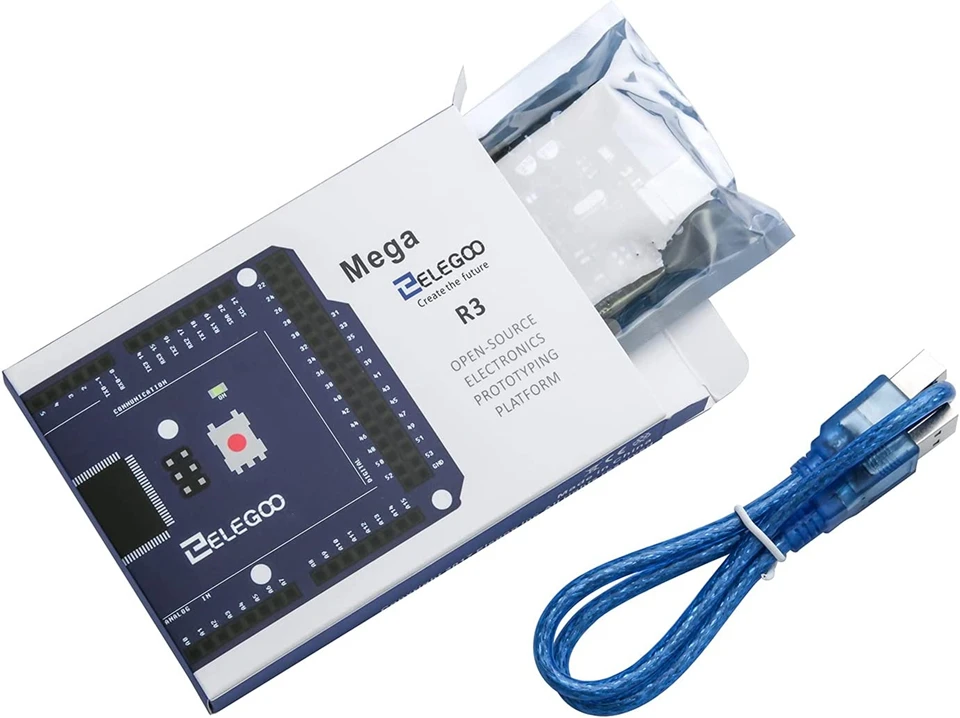

Package
