ESP32 Breakout Board GPIO 1 into 2 + ESP32 CP2102 NodeMCU-32S Lua 30Pin GPIO WiFi+Bluetooth-compatible Development Board

Feature:

1. WiFi and Bluetooth-compatible Features: The ESP32 WROOM-32 module is a versatile WiFi+BT+BLE MCU module that supports both low-power Bluetooth-compatible and WiFi connectivity, providing wide application potential.

2. Integrated SPI Flash: The module has an integrated SPI flash that allows for fast and reliable data storage, making it more efficient for various applications.

3. Wide Range of Wireless Communication: With built-in WiFi support, the module can connect to the internet directly via a router, allowing for efficient wireless communication and data transfer over long distances.

4. Easy Signal Detection: The module's Bluetooth-compatible capabilities allow users to detect signals easily and conveniently via their mobile devices, making it ideal for signal detection applications.

5. Wide Application Potential: The module is widely used in applications such as WiFi solutions, WiFi mini cameras, mesh networking, smart homes, and mobile IoT, providing a solution for various IoT and smart device development projects.

Style【Optional】:

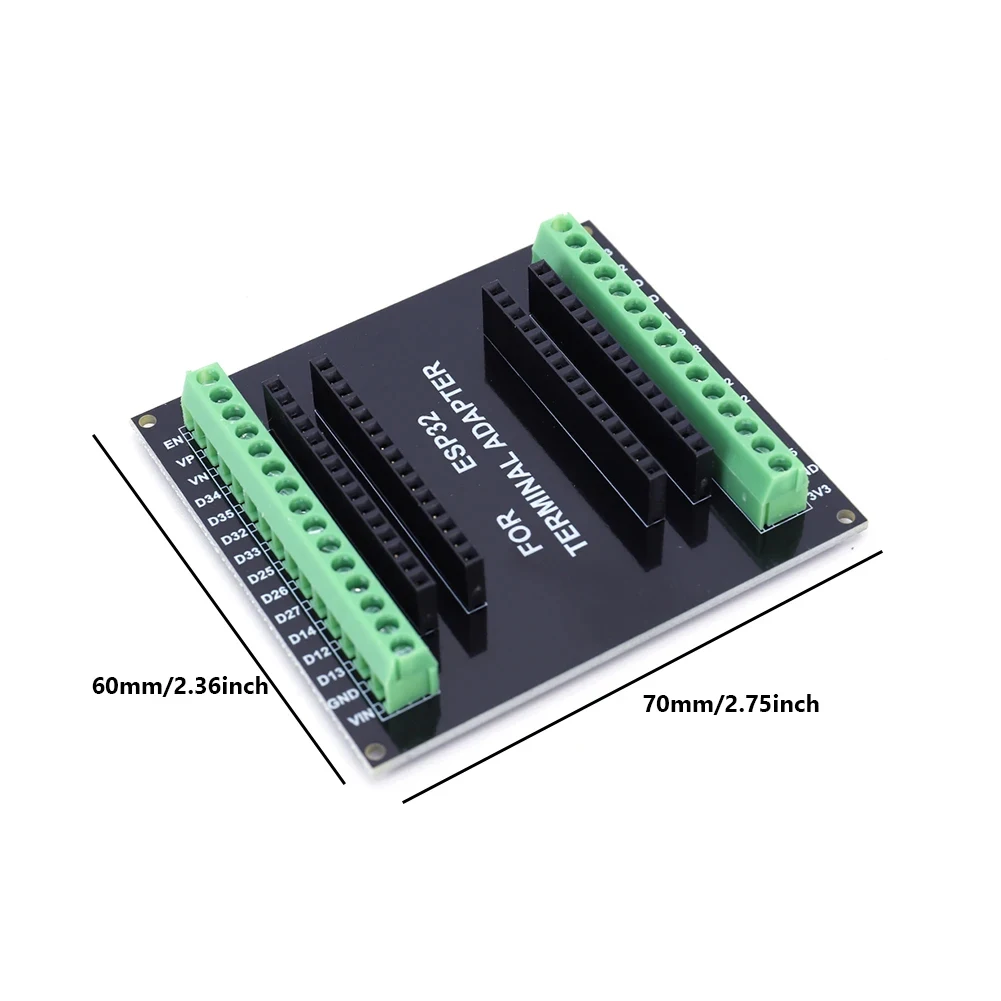

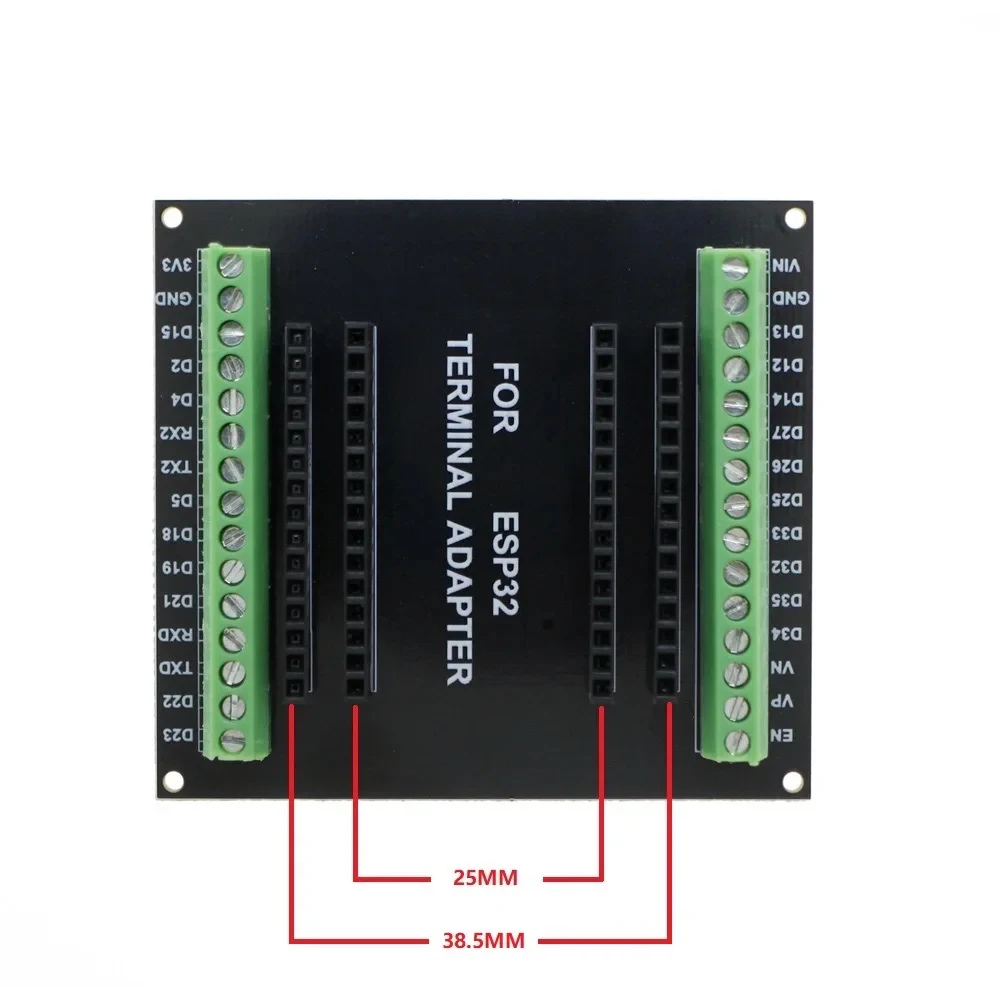

A: 1 x Expansion board

B：1 x ESP32 CH340C 30pin Type-c

C: 1 x ESP32 CP2102 30pin Micro USB

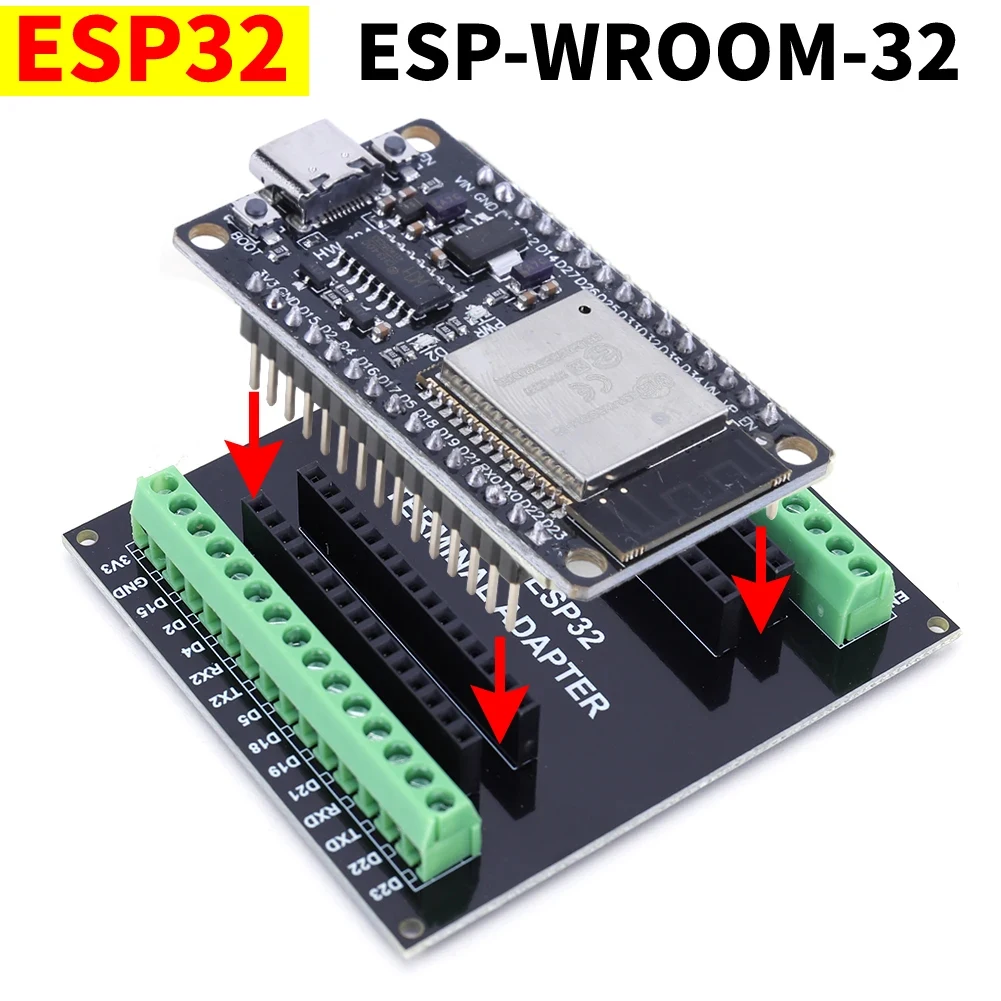

D: 1 x Expansion board+1 x ESP32 CH340C 30pin Type-c

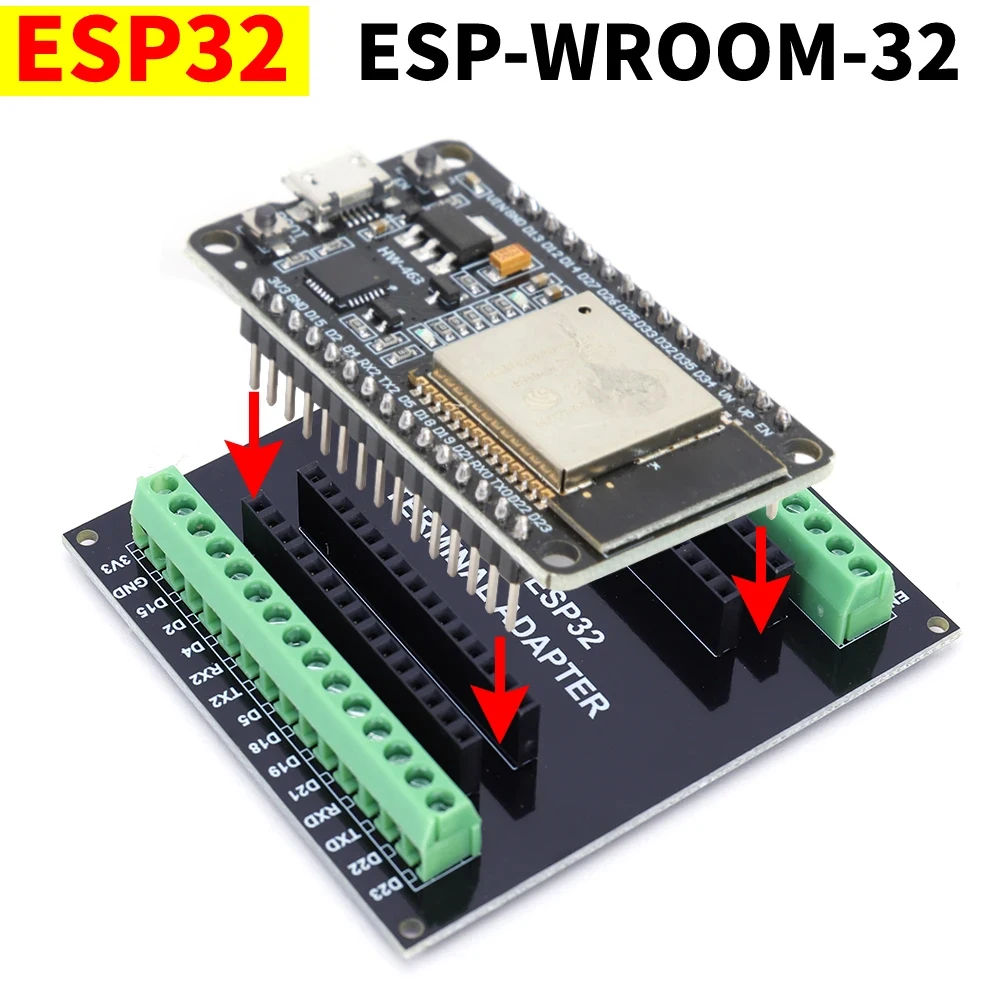

E：1 x Expansion board+1 x ESP32 CP2102 30pin Micro USB

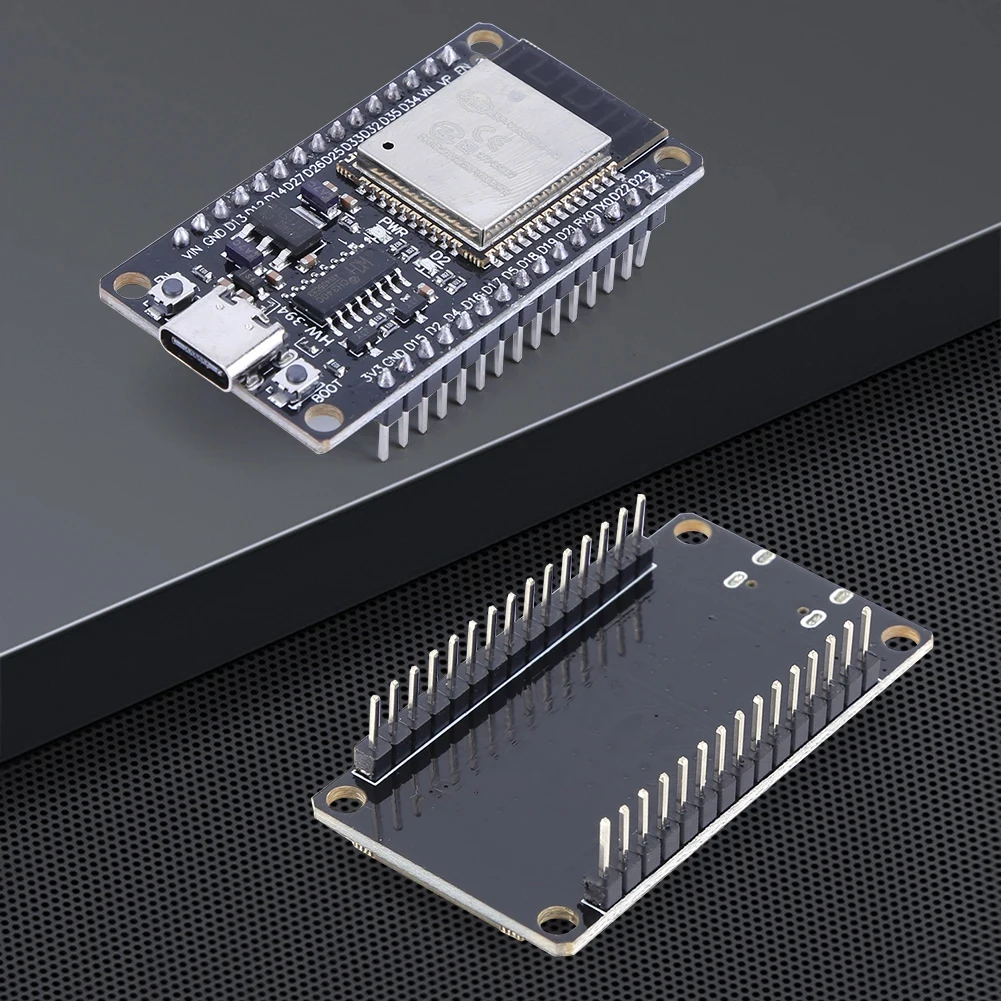

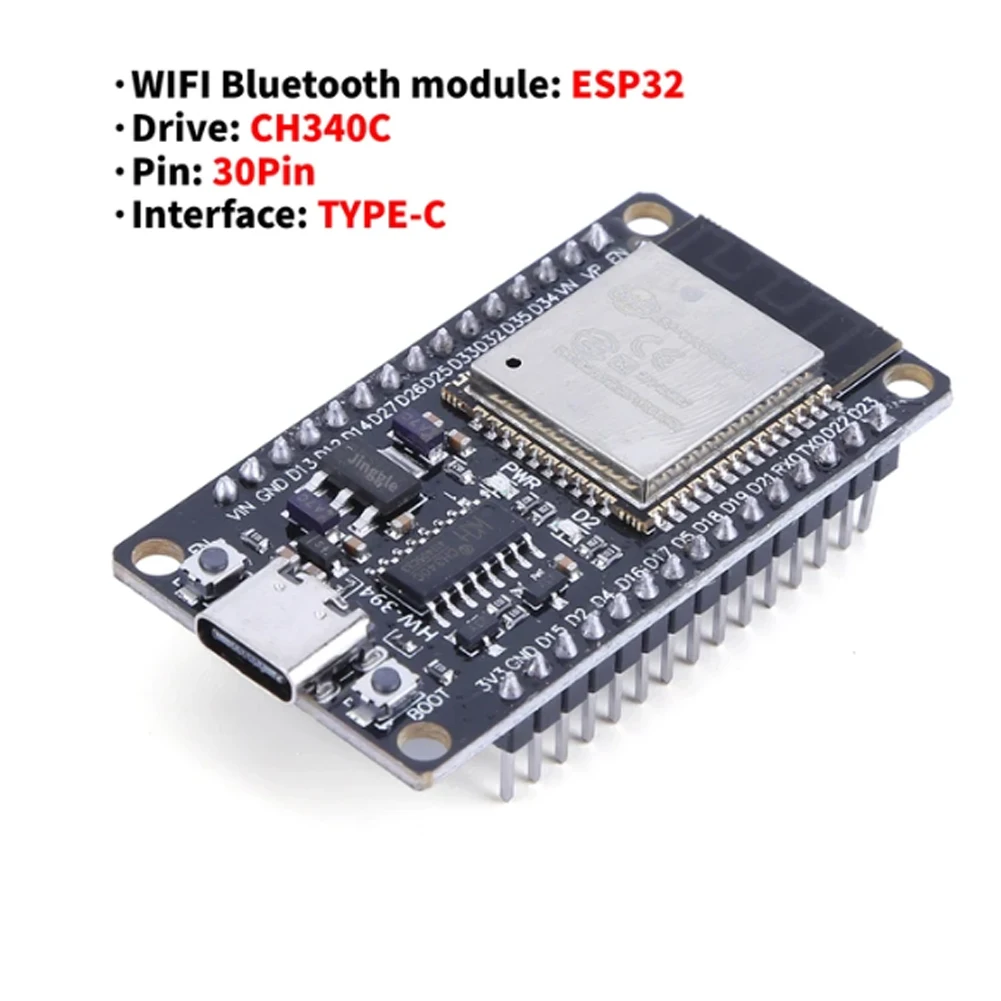

CH340C 30pin Type-c

Specification:

Working voltage: TYPE-C 5V

SPI FLASH: Default 32MBIT

Serial port speed: 115200BPS

Frequency range: 2412-2484MHZ

Bluetooth-compatible protocol: Bluetooth-compatible 4.2BR/EDR and BLE standards

WIFI protocol: 802.11B/G/N

Antenna form: onboard PCB antenna, gain 2DB

Supported interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC

Product size: about 54 * 28 * 10mm/2.12 * 1.10 * 0.39inch

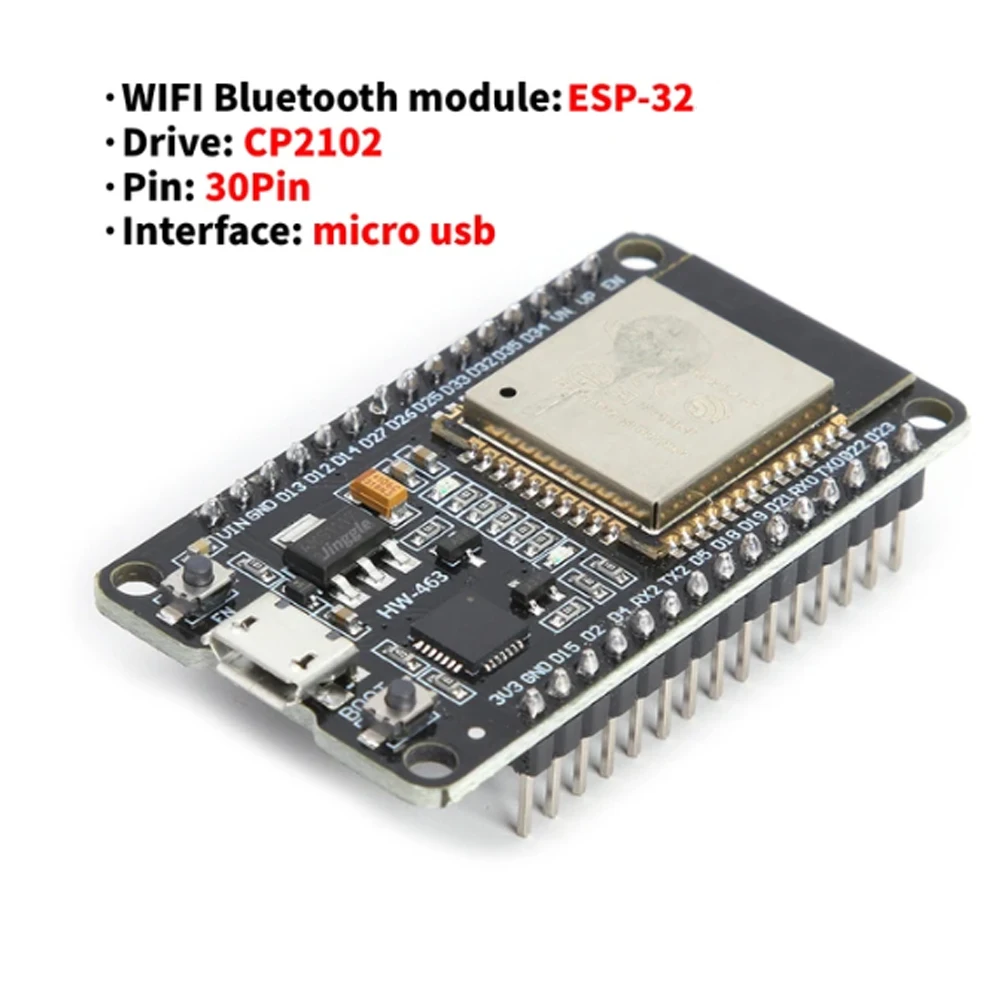

CP2102 30pin Micro USB

Specification:

SPIFlash: default 32Mbit

Bluetooth-compatible: Bluetooth-compatible 4.2 BR/EDR and BLE standards

Supporting interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC

On chip sensors: Hall sensor, temperature sensor, capacitive touch sensor

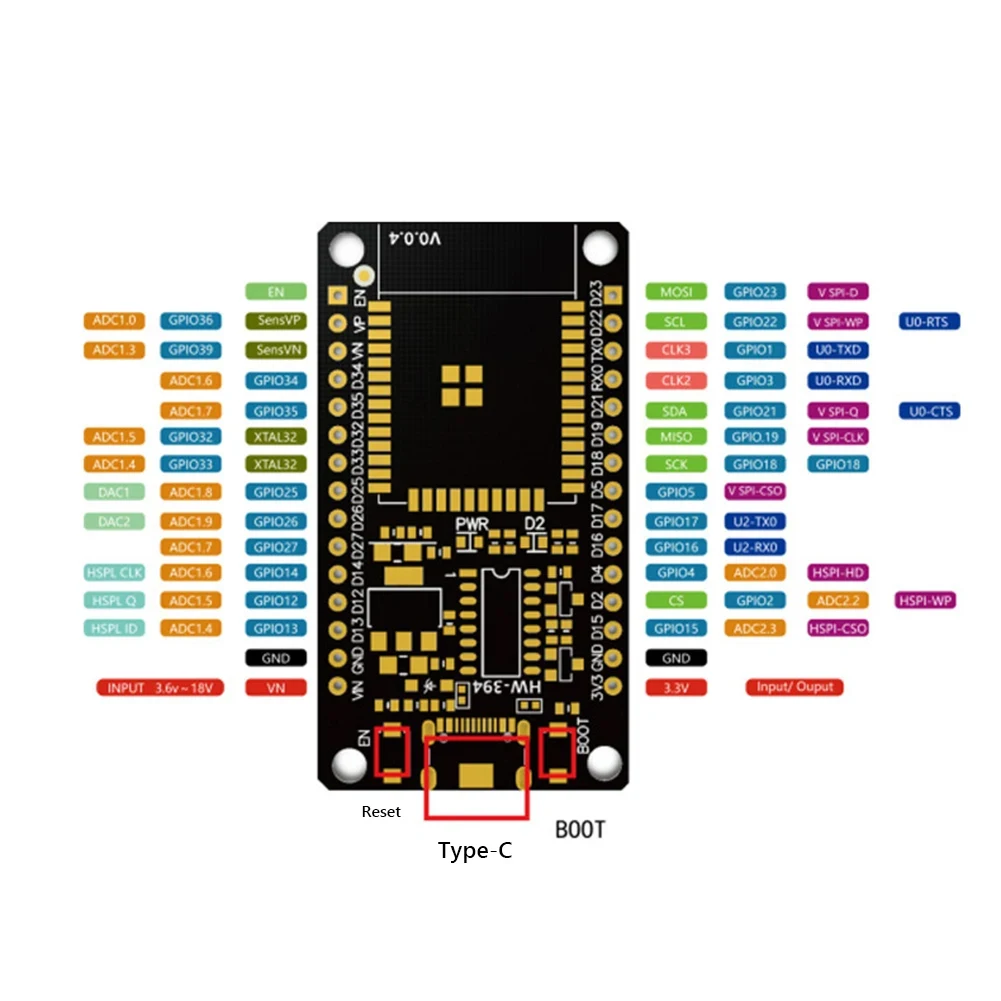

IO port: 22pcs

Serial port rate: 115200 BPS by default

Spectrum range: 2412 ~ 2484MHz

Antenna form: PCB antenna on board, gain 2dBi

Transmitting power: 802.11b: 17 ± 2dbm (11Mbps) 802.11g: 14 + 2dbm (54Mbps) 802.11n: 13 ± 2dbm (MCS7)

Receiving sensitivity: CCK, 1Mbps: - 90dbm CCK, 11Mbps: - 85dBm 6Mbps (1 / 2bpsk): - 88dbm 54Mbps (3 / 464-qam): - 70dBm mcs7 (65mbps, 72.2mbps): - 67dbm

Power consumption: 300mA 3.3V

Security: WPA / WPA2 / WPA2 Enterprise / WPS

Power supply range: USB power supply: 5V pin power supply: 5.0V~12V

Working temperature: - 20 ~ 85 ℃

Storage environment: - 40 ~ 90℃, < 90% RH

Product size: 52 * 29 * 15mm/2.04*1.14*0.59''

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

Package include:

1 x Expansion Board

Or

1 x ESP-WROOM-32 development board

Or

1 x ESP-WROOM-32 development board

1 x Expansion Board
