ESP32-S3-Touch-LCD-7

Integrates RGB Interface LCD With 5-Point Capacitive Touch, Multiple Peripheral Interfaces




Features

ESP32-S3-Touch-LCD-7 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 7inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

  • Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

  • Onboard 7inch capacitive touch display, 800×480 resolution, 65K color

  • Supports capacitive touch control via I2C interface, 5-point touch with interrupt support

  • Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

  • Supports flexible clock, module power supply independent setting, and other control to realize low power consumption in different scenarios

Application Scenarios

Supports Multiple Peripherals

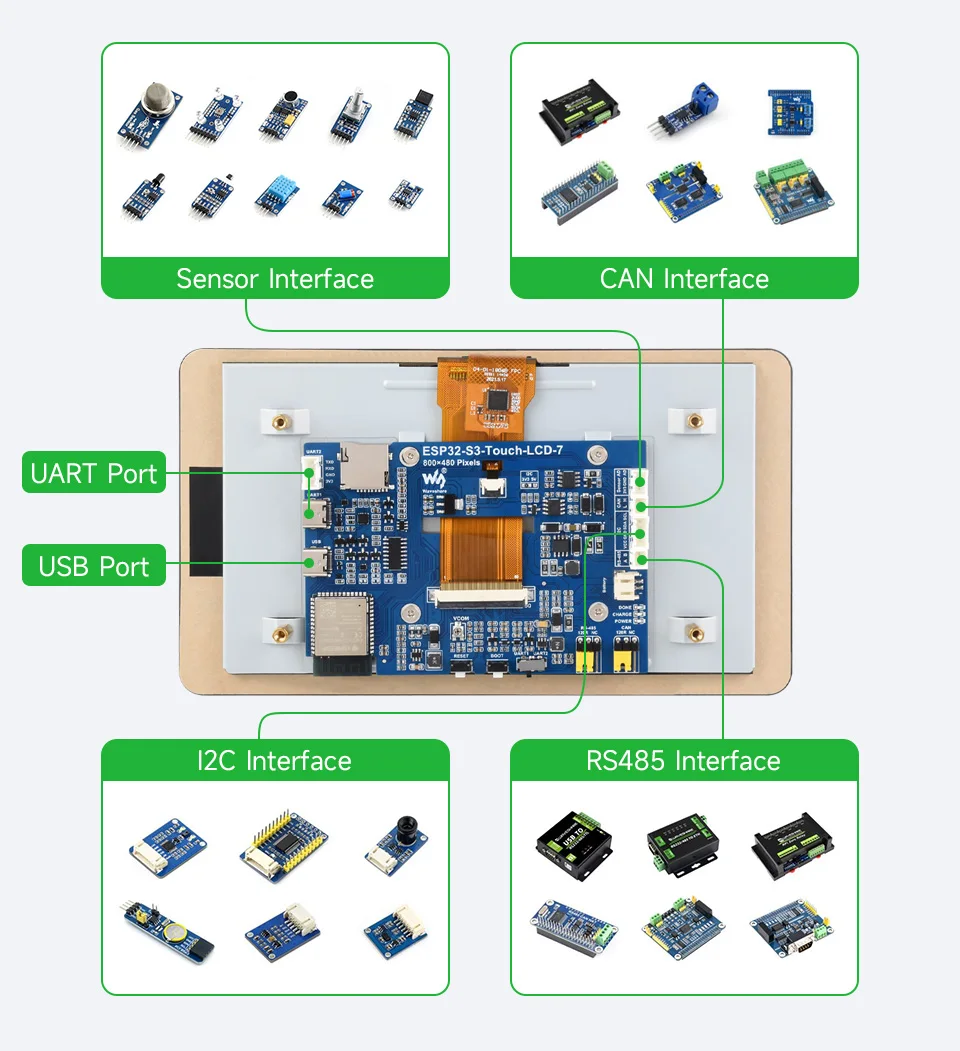

Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485, And I2C Interfaces

Application Example

for reference only, please refer to the Package Content for the detailed part list

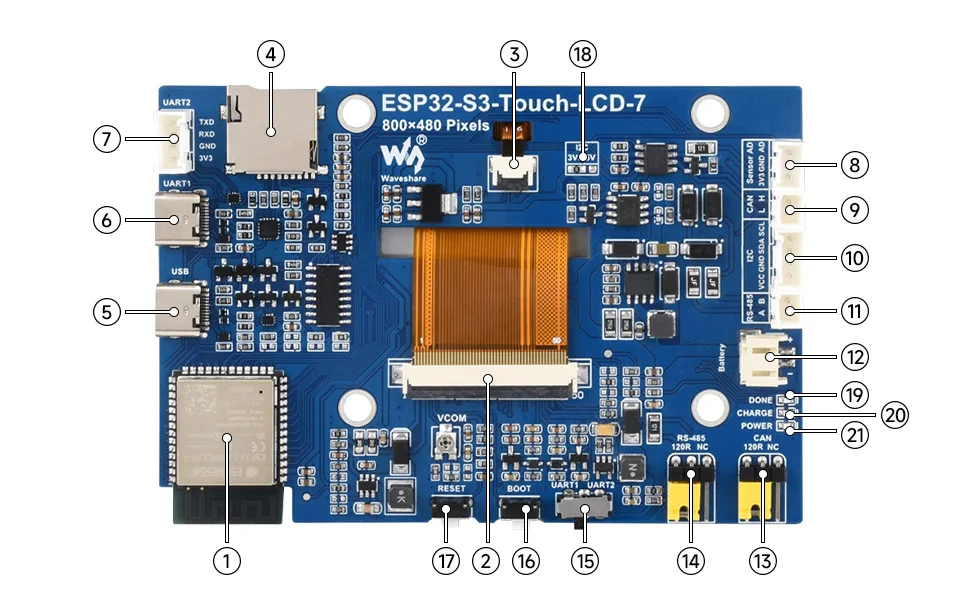

What's On Board

  1. ESP32-S3N8R8
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash

  2. 7inch display panel connector

  3. Touch panel connector

  4. TF card slot

  5. USB Type-C port

  6. UART1 Port
    USB TO UART Type-C port

  7. UART2 connector
    UART1 and UART2 are the same UART, selected by switch

  8. Sensor header

  9. CAN header

  10. I2C header

  11. RS485 header



  1. 3.7V single lithium battery PH2.0 header

  2. CAN terminal resistor selection

  3. RS485 terminal resistor selection

  4. UART selection
    select UART1 or UART2

  5. BOOT button
    Press and hold while powering on for program burning

  6. RESET button

  7. I2C level selection
    3.3V / 5V

  8. DONE
    Lithium battery charging completed indicator

  9. CHG
    Lithium battery charging indicator

  10. PWR
    Power supply indicator

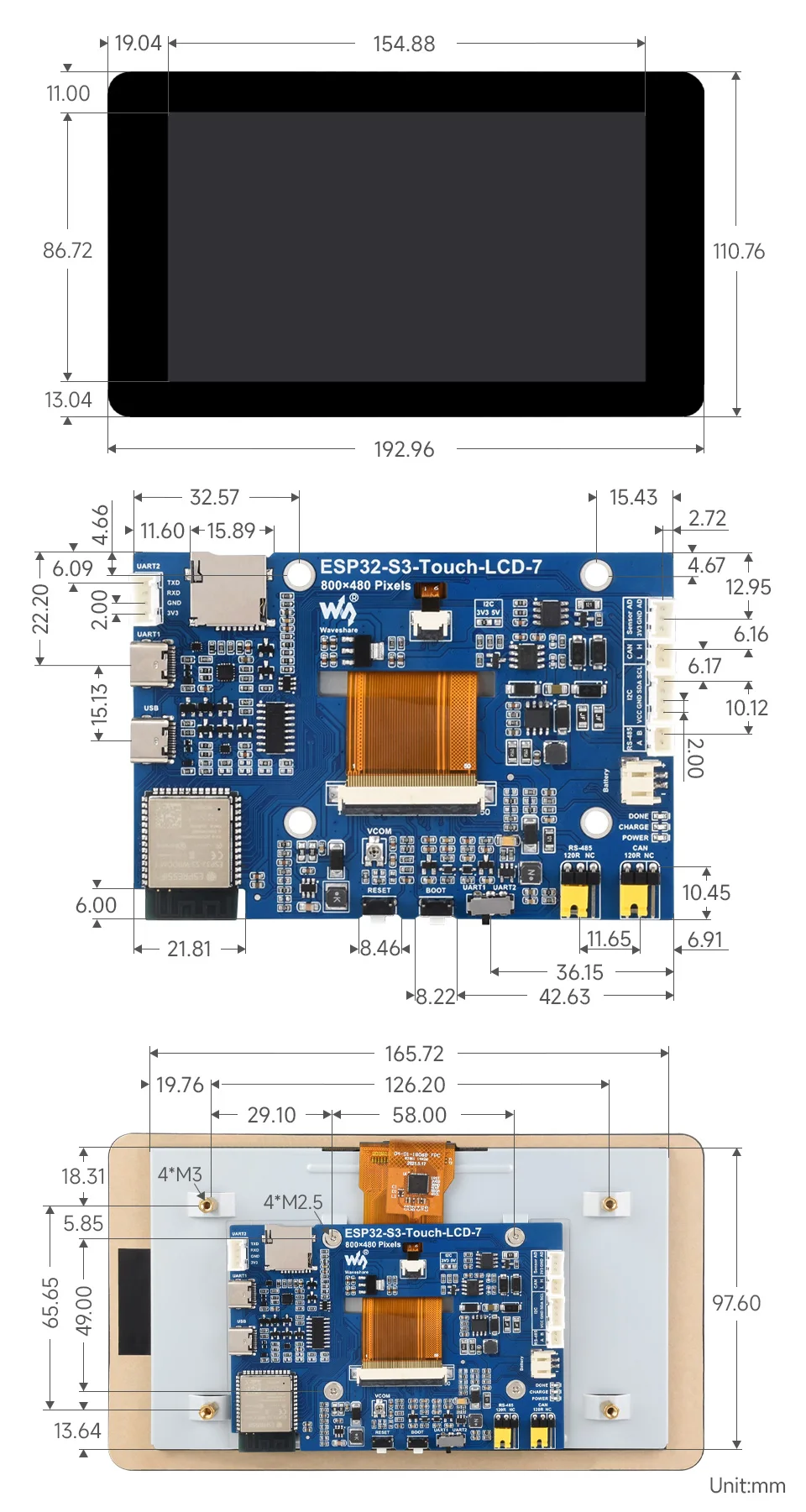

Outline Dimensions
