The Access Control System JS-092-A2L has a top quality and favourable price. It has usb transmitter and wireless receiver. Connect the USB transmitter to the interface of your car and connect the wireless receiver to your auto gate opener. The door will be auto open when your car heads for the door. It is hands free and you needn't extra remote control or smartphone to control the door.
If you have any questions about the operation, you can contact me .

functions of JS-092-A2L automatic door receiver

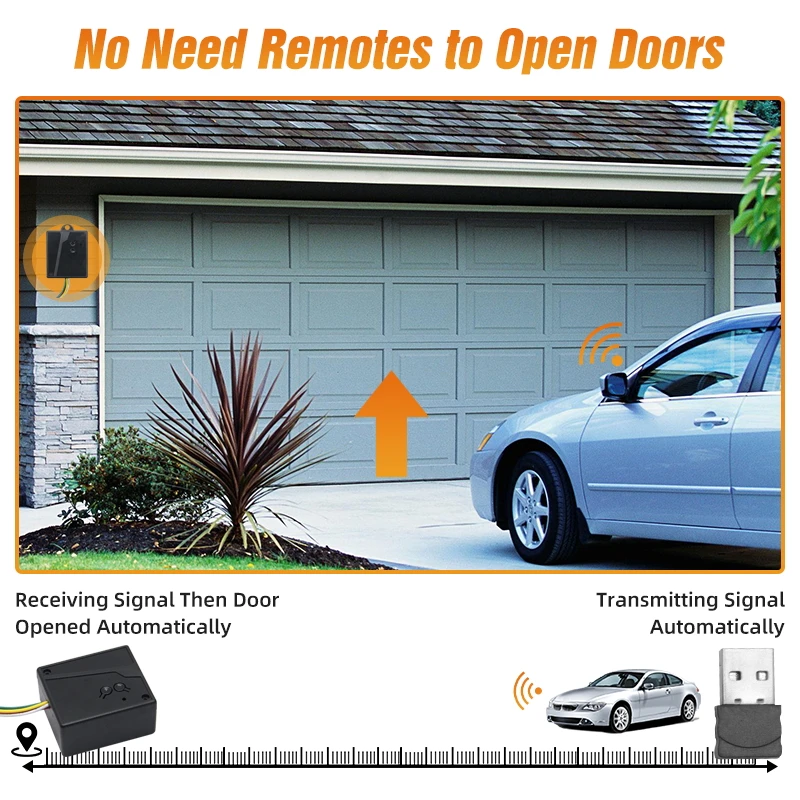

This receiver and USB plug set can be used for sliding gate motor, swimming gate motor, garage door and boom barrier. People can install the receiver into their gate motor, and match the code for the receiver and the USB plug. When people drive their car with USB plug inserted into the usb charging port , the door will be open automatically within 10 meters. The door will close automatically after the car entering into the gate if the gate motor has automatic close function.

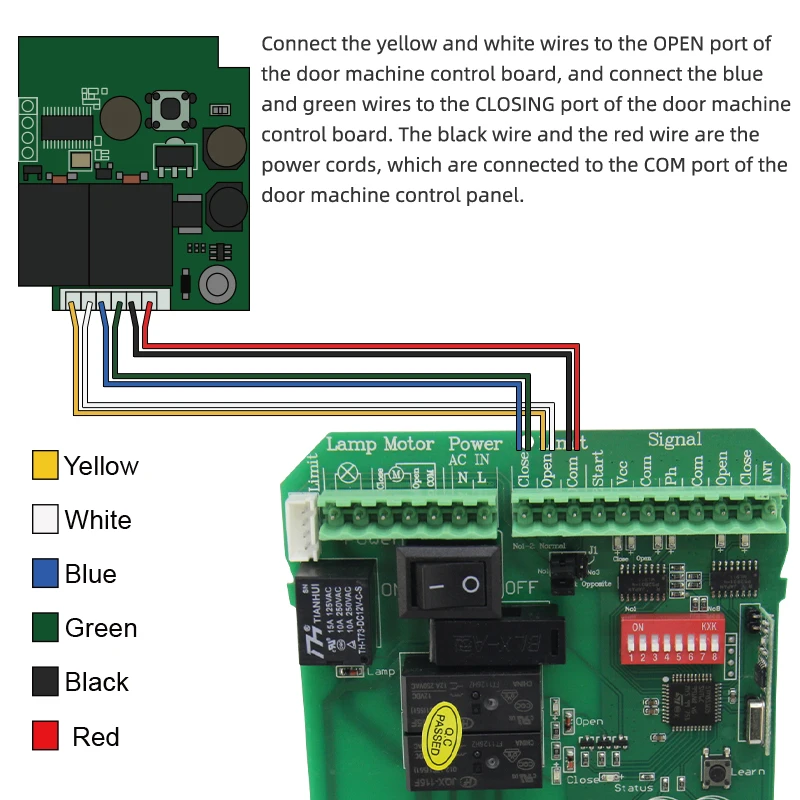

092-A2L Wiring Diagram

Connect the yellow and white wires to the OPEN port of the door machine control board, and connect the blue and green wires to the CLOSING port of the door machine control board. The black wire and the red wire are the power cords, which are connected to the COM port of the door machine control panel

Product packaging drawing and size

1*receiver
1*USB
1*Product manual
