Description
CCTV Camera Tester


This is a nice cctv tester monitor

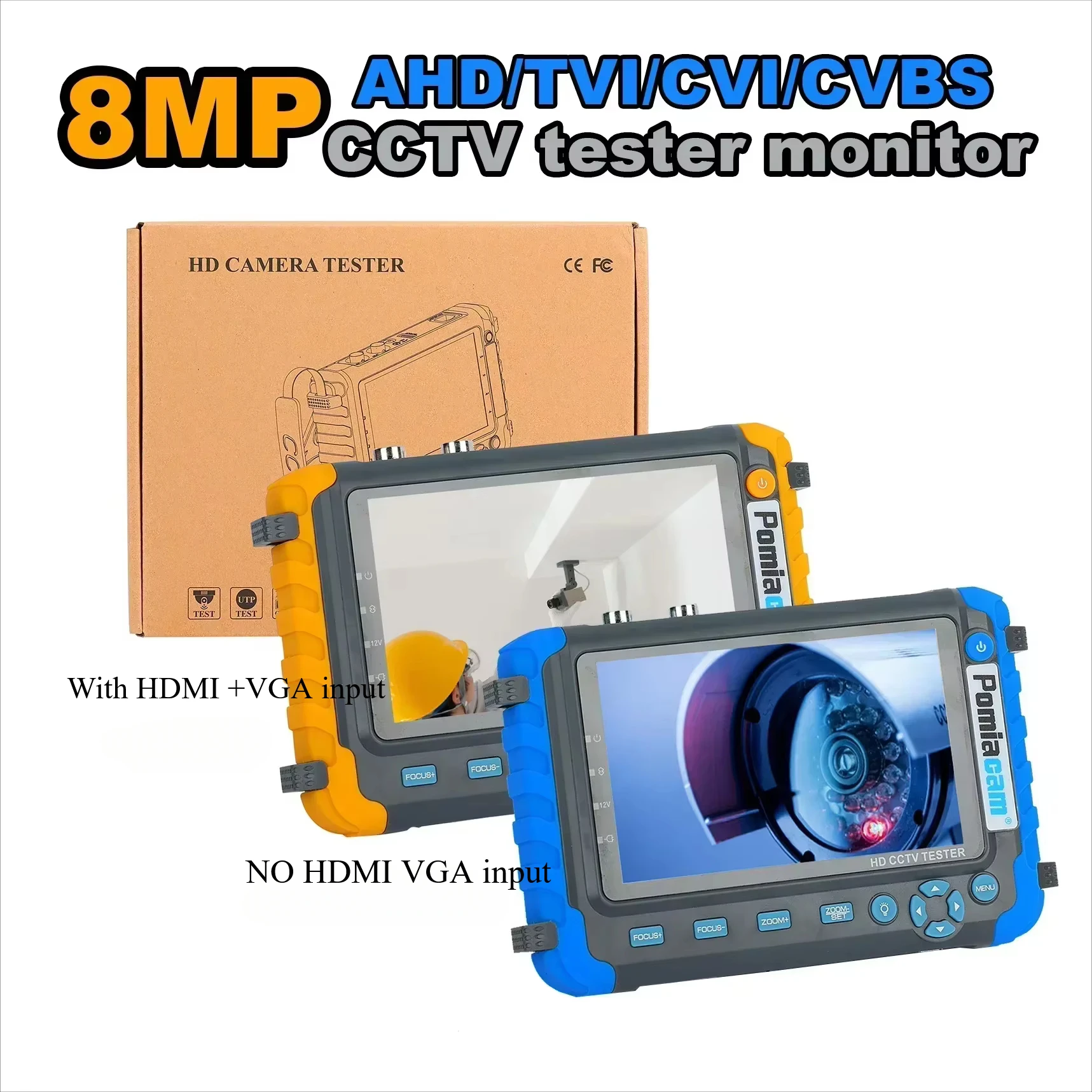

1. Yellow CCTV tester monitor have HDMI/VGA input, Blue cctv tester no HDMI/VGA input . Other functions are the same .

2.  This CCTV tester monitor supports 720P, 1080p, 2MP. 3MP, 4MP, 5MP, 6MP, 7MP, 8MP AHD TVI CVI camera test.

3.The built-in battery ,CCTV tester can work for 11 hours and can provide DC 12V power to the camera

CCTV tester monitor of CCTV TESTER IV8W  IV8C ,8MP AHD camera test monitor FOR IV8W IV8C optional

it cannot support IPC test  . If you need IP camera tester , please order this link : https://www.aliexpress.com/item/4000918175904.html

CCTV tester product details are as follows

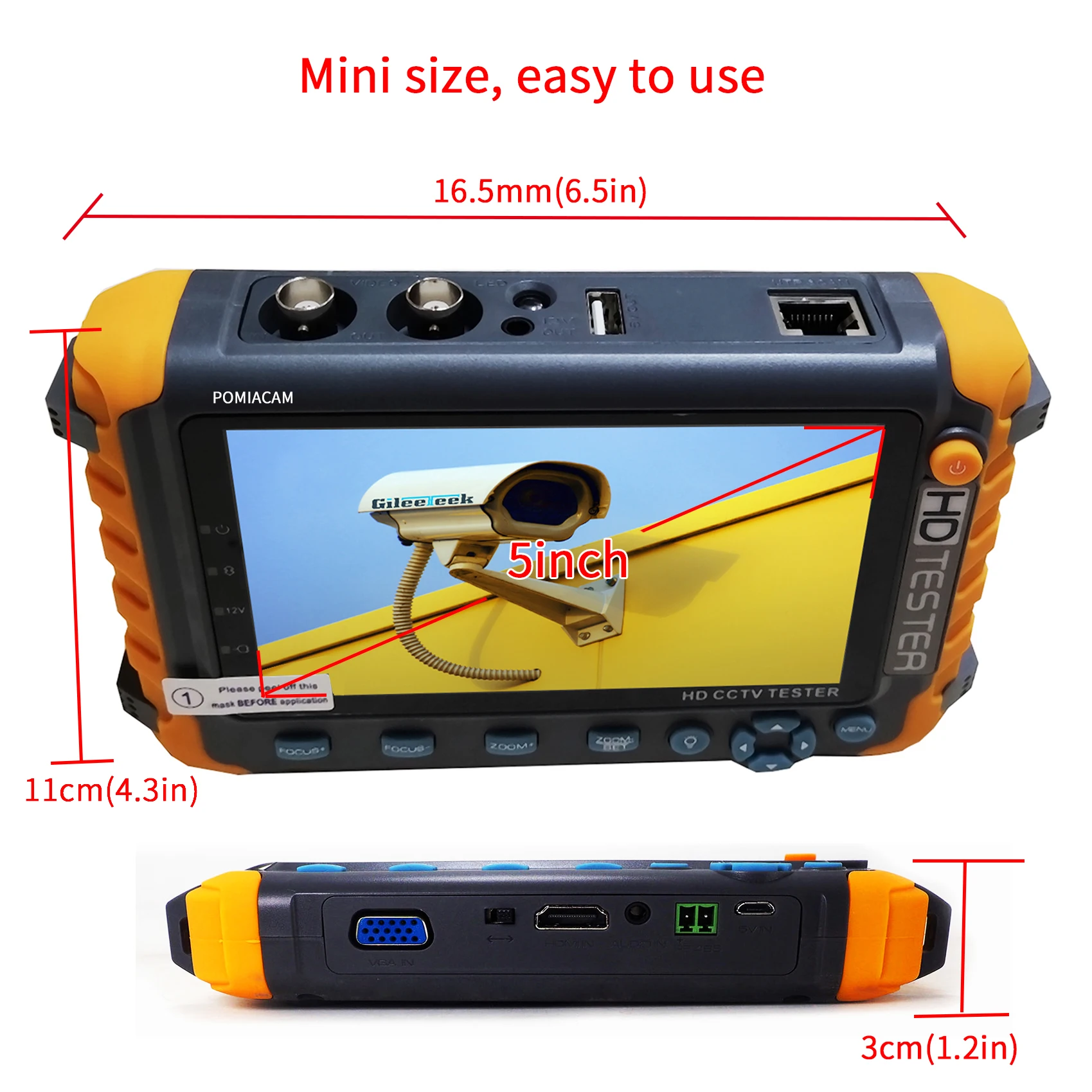

(Yellow CCTV tester monitor)IV8W,---------------------------1. Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Test,with VGA/HDMI input. 4-In-1 CCTV Tester Monitor.5.0 inches 800 x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal.

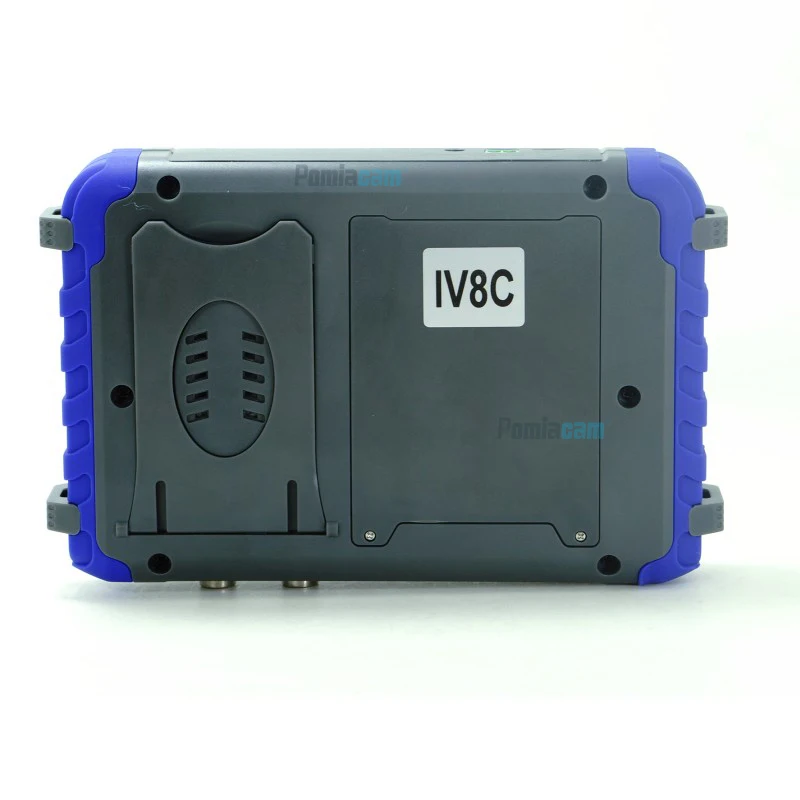

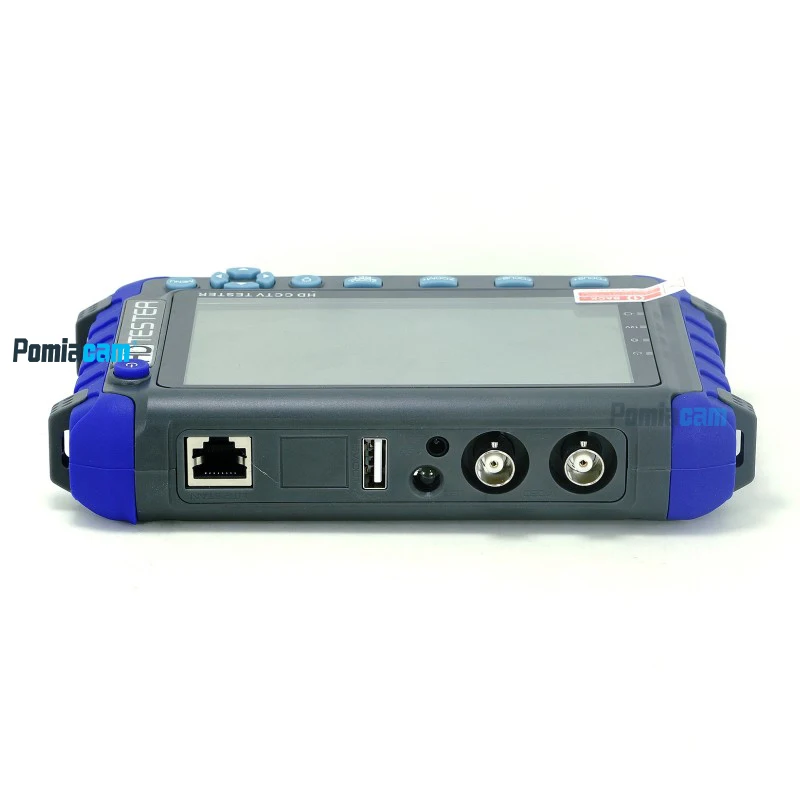

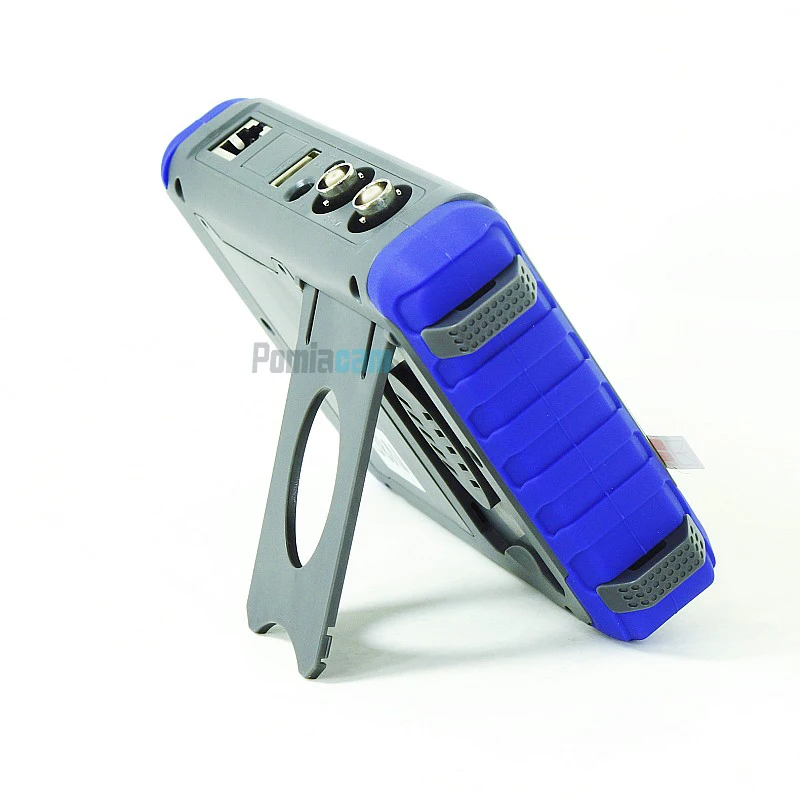

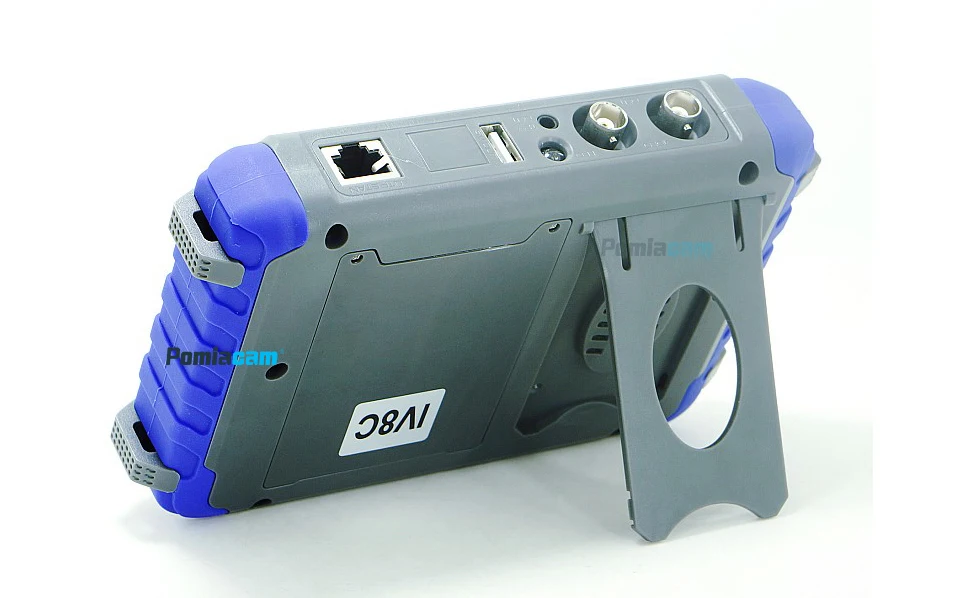

(Blue cctv tester monitor )IV8C, -------------1. Support Support CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera Test without VGA/HDMI input .
4-In-1 CCTV Tester Monitor . 5.0 inches 800 x480 High-resolution view angle display, more intuitive and easy to display the camera image quality, support PAL/NTSC standard video signal.

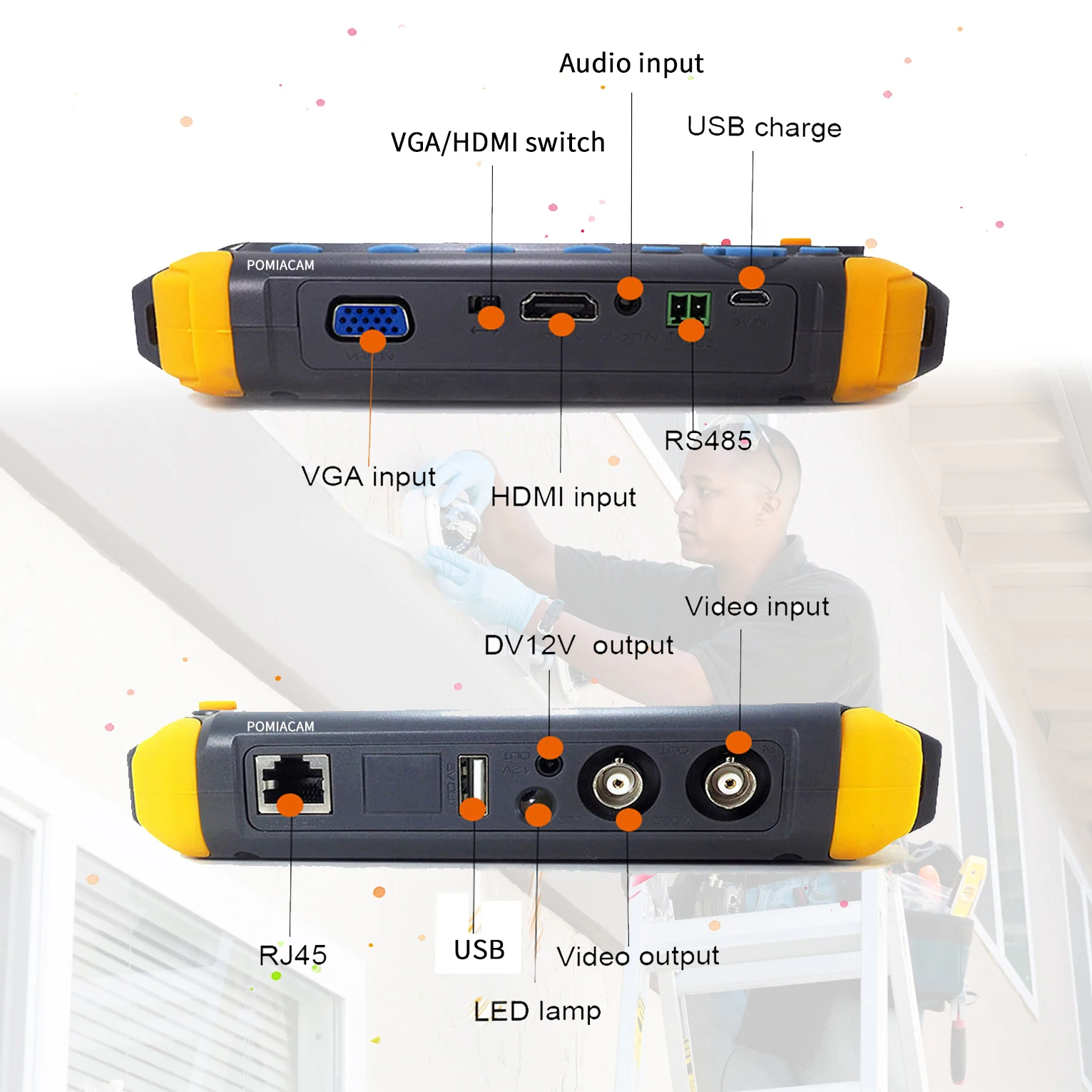

2 . The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having TVI,CVI, AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

3.VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

4.PTZ controller: Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

5. DC12V 1A output power: Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available. Rechargeable: Built-in 18650 2600mA battery X 2,after charging 3-4 hour, working time lasts 11 hours.


CCTV Camera Tester

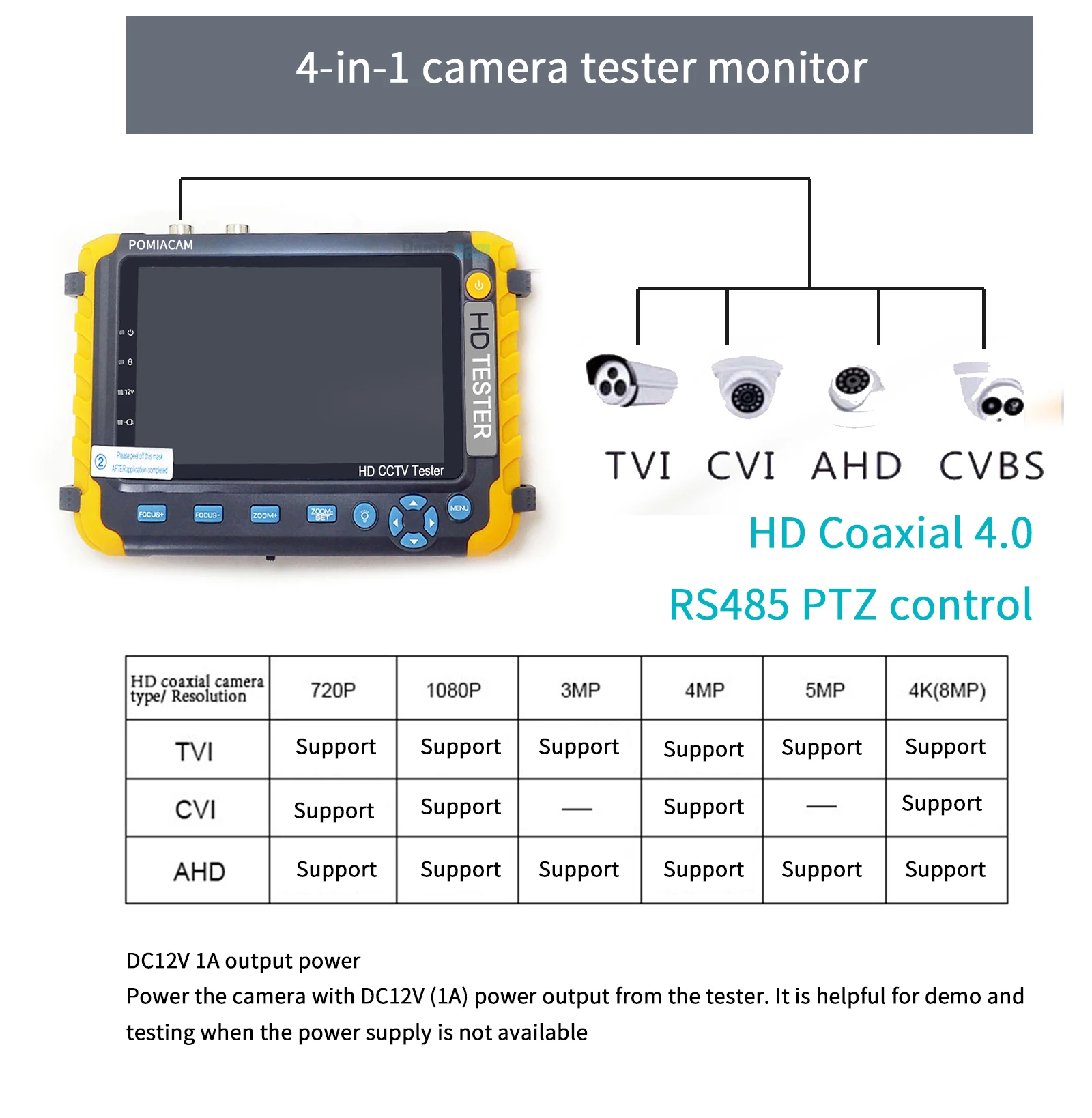

IV8W / IV8C both update to:  CVBS + AHD (8MP) + TVI (8MP) + CVI (8MP) Camera VideoTest:

(1) AHD Signal test:  8MP 5MP 4MP 3MP 1080P 720P camera test;

(2) TVI Signal test: 8MP 5MP 4MP 3MP 1080P 720P camera test

(3) CVI Signal test: 8MP 4MP 3MP 1080P 720P camera test
;

This CCTV tester not supported Digital Multimeter , can not test IP camera .


Product overview

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.


Product Funtions


  • Video signal testing

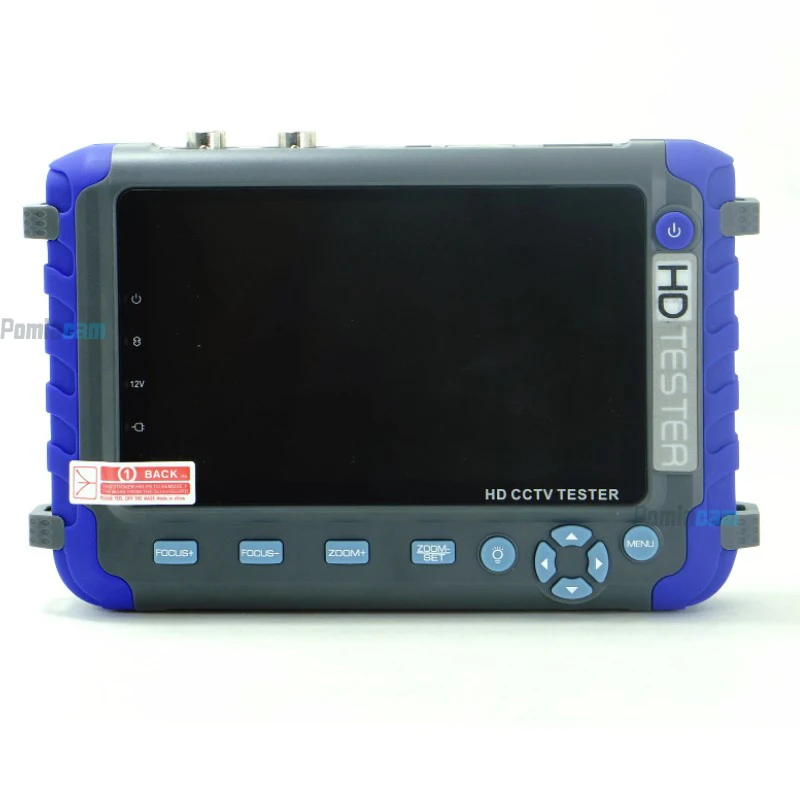

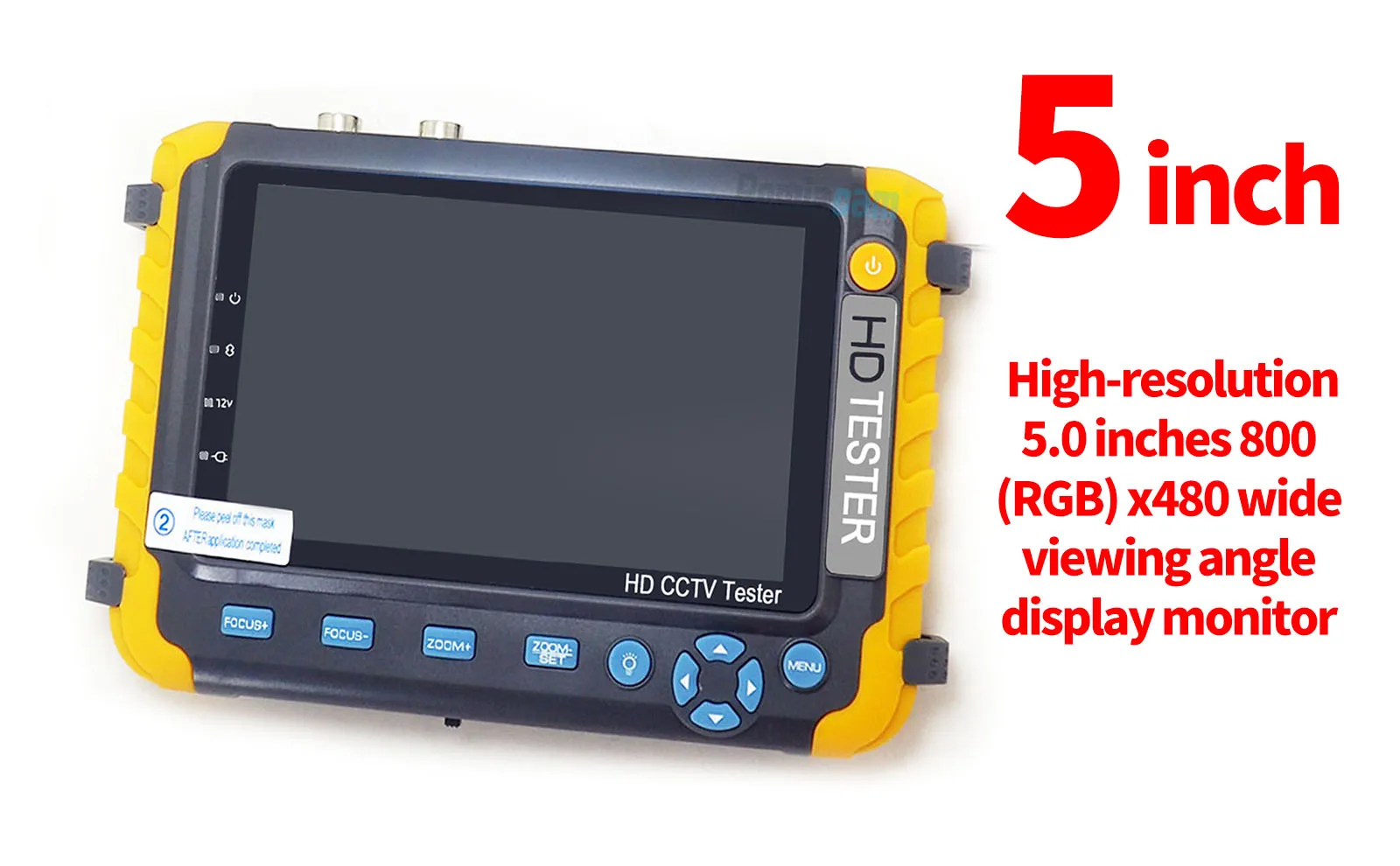

Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

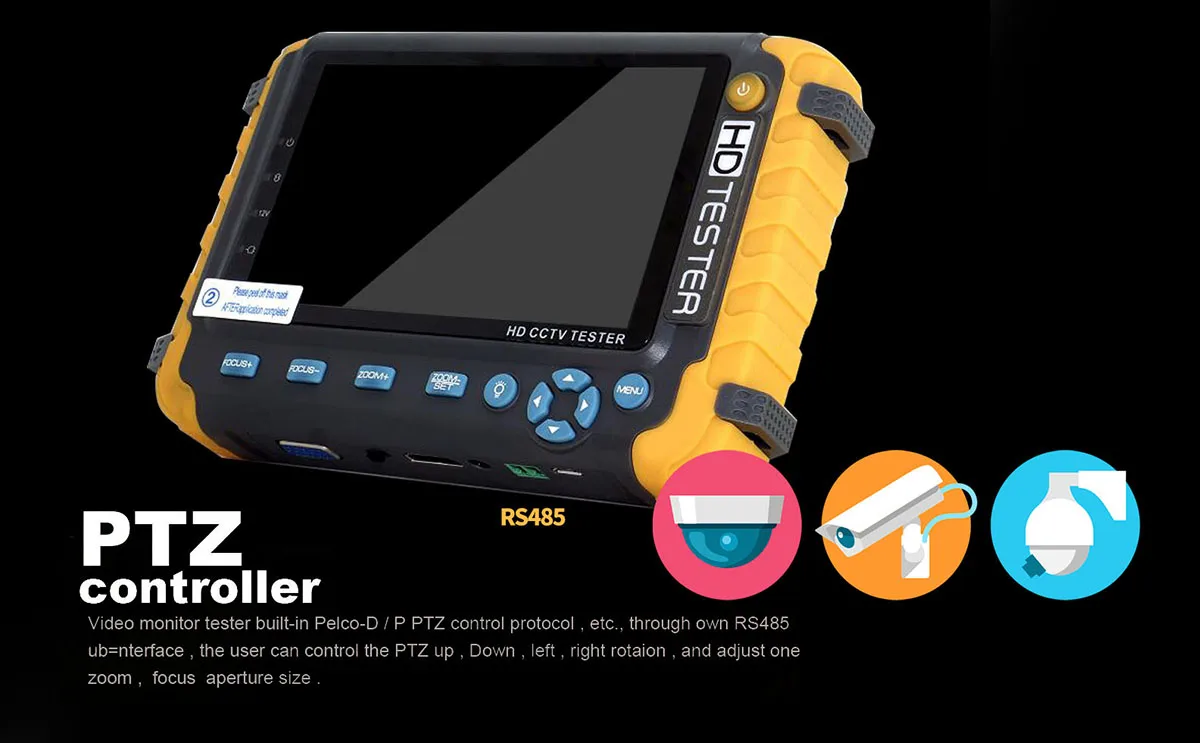

  • PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
  • Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
  • DC12V 1A output power

Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
  • Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
  • Enhanced network cable testing

By UTP CABLE TEST port on the meter, you can test the connection of network cable.

  • VGA/HDMI input

Support VGA/HDMI 1.0 video input, once connect VGA/HDMI video, please switch selector to select HDMI or VGA mode. The maximum resolution is Max 8MP
  • TVI camera test

HD TVI video surveillance testing, support Max 8MP
. When TVI signal input, the tester will display HD TVI camera image.
  • AHD camera test

HD video surveillance testing, support AHD 2.0 version, Max 8MP
. When AHD signal input, the tester will display the AHD camera image.
  • CVI camera test

HD CVI video surveillance testing, support Max 8MP . When TVI signal input, the tester will display HD TVI camera image.
  • LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
  • The battery graphic display

The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

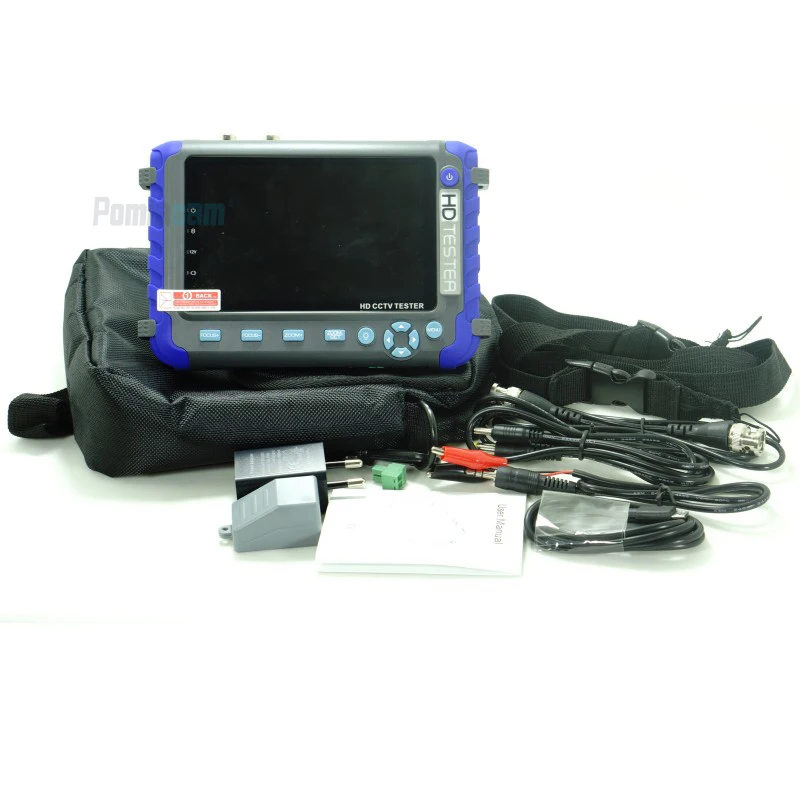

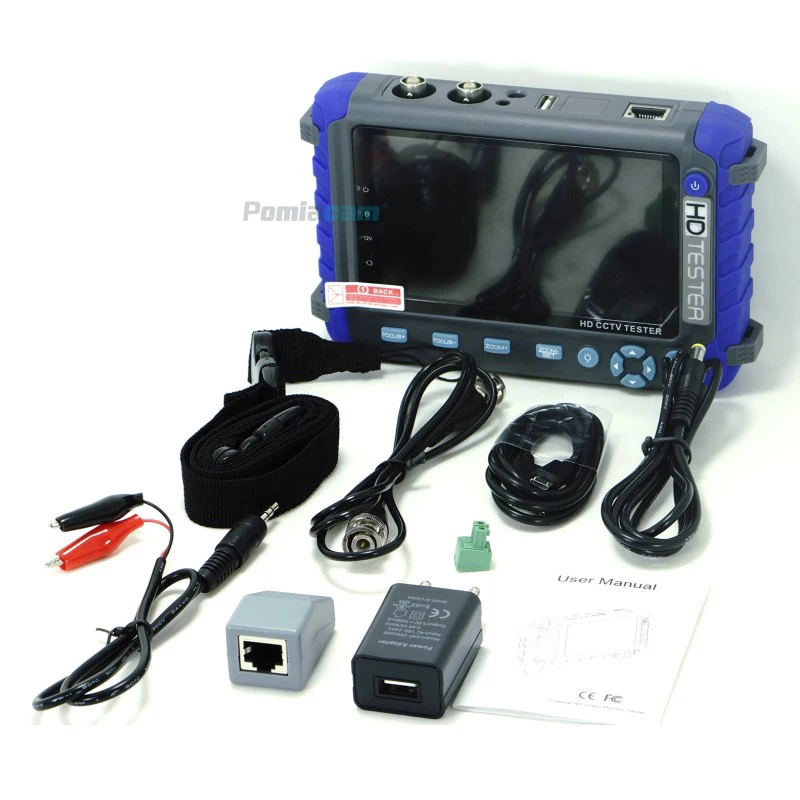

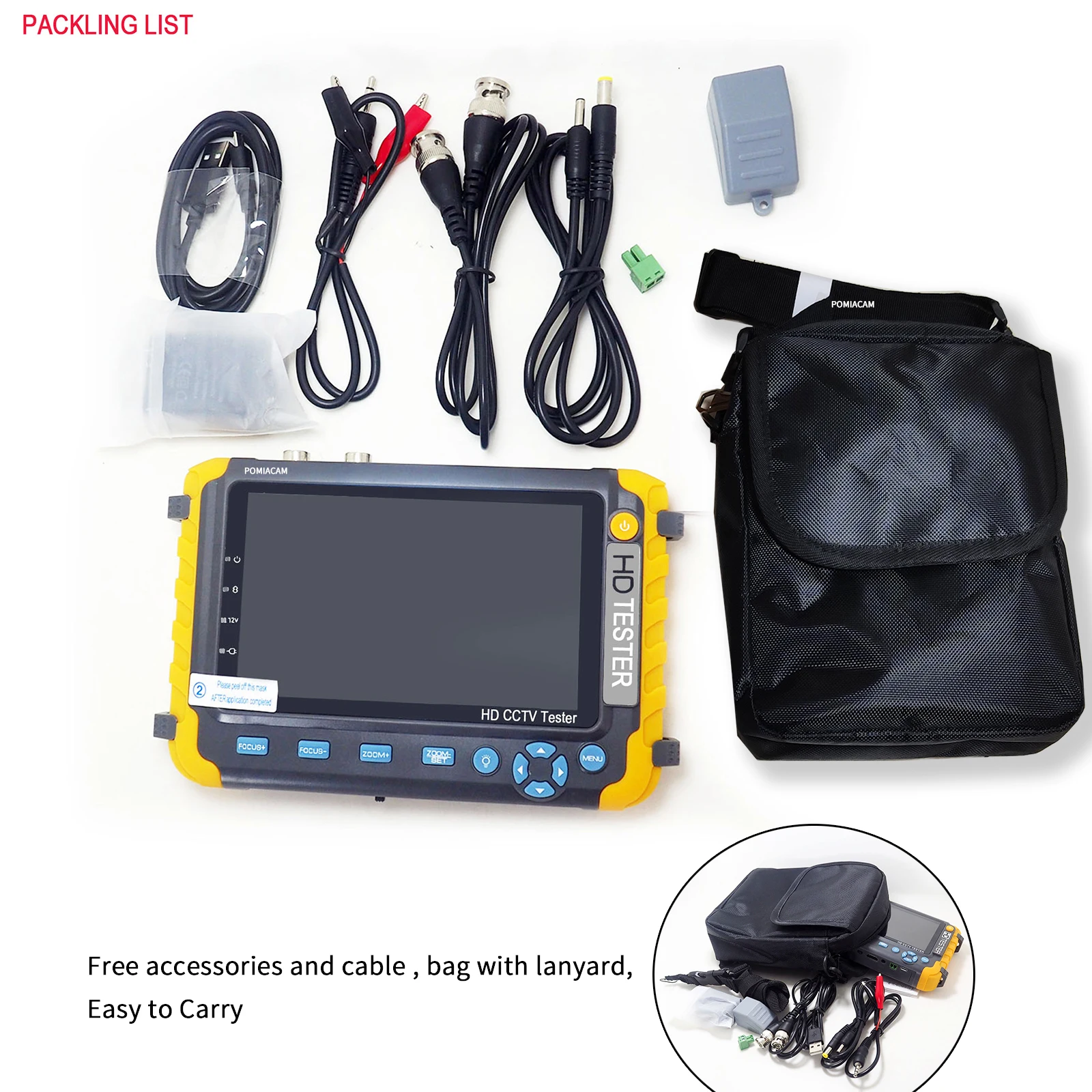

Package
  • 1*HD coaxial CCTV tester monitor .

  • 1*Adapter DC5V 1A(with USB cable)

  • 1*International Standard 18650 2600ma battery

  • 1*BNC cable

  • 1*RS485 connector

  • 1*Power output conversion cable

  • 1*Audio cable

  • 1*Lanyard

  • 1*Tool bag

  • 1*Instruction Manual
