1.PLA Filament Features & Parameter:

PLA Filament Features :

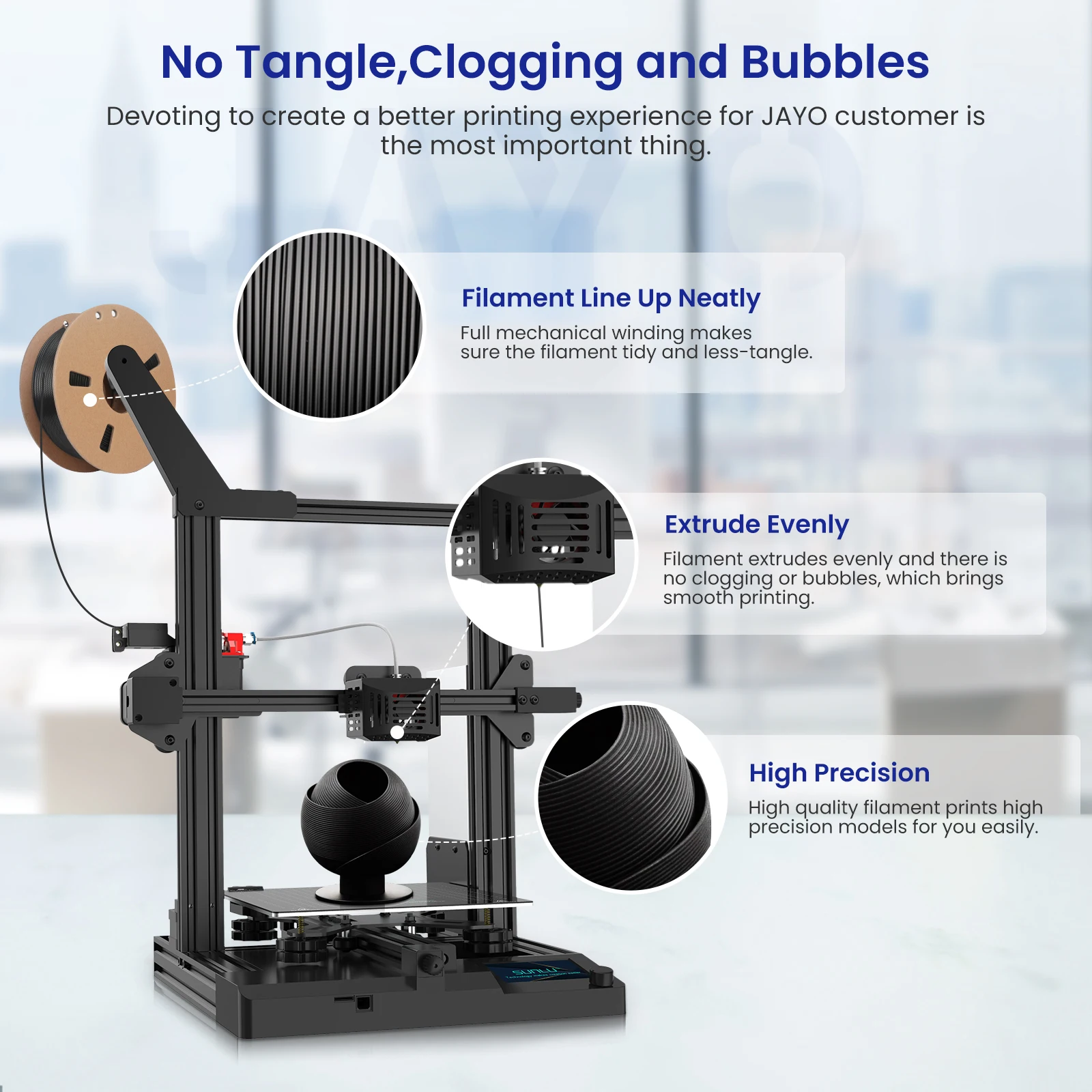

【Super Neat Filament Spool】JAYO 3D printer filament product line is equipped with an excellent self-developed neat winding device, 100% neat rate, no clogs, making filament easier to use.

【JAYO PLA 3D Printer Filament】PLA filament is the most basic, the most used filament, no clogs, no bubbles, no tangle, SUNLU PLA filament has good layer adhesion, very easy to use.

【1.75mm Filament Diameter】Dimensional Accuracy +/- 0.02mm. JAYO filament has wide compatibility due to the small diameter error, making it suitable for almost all 1.75mm FDM 3D printers.

【Filament Spool Diameter】Spool Diameter: 8.00", Spool Width: 2.50", Spool Hub Hole Diameter: 2.20". The size of the JAYO filament spool is suitable for hanging on a lot of FDM 3D printers.

【Recommend Settings】We recommend printing the PLA filament at nozzle temperature of 200-230°C, bed temperature of 50-65°C, and printing speed of 50-100mm/s.

【JAYO Main Products】FDM 3D Printer, 3D Printer Accessories, 3D Printer Filament, Filament Dryer, 3D Pen, 3D Printer Resin, LCD 3D Printer, Resin Curing Box.

PLA Product Parameter:

Wire diameter: 1.75/3.0MM
Tolerance: ±0.02MM
Printing temperature: 200-210℃
Bottom plate temperature: need to apply glue when not heating
Heating 60-80℃, no glue
Rally (KGF): 11-16
Melt index: 7-9g/10min
(190℃, 2.16Kg)
Elongation at break: 4%
Printing speed: 50-100MM/s
Air bubbles: 100% zero bubbles
Net weight: 1.1KG/roll
Gross weight: 1.45KG/roll
Length: 1.75MM(1KG)=330M,
3.0MM(1KG)=110M

2.PLA Meta Filament Features & Parameter:

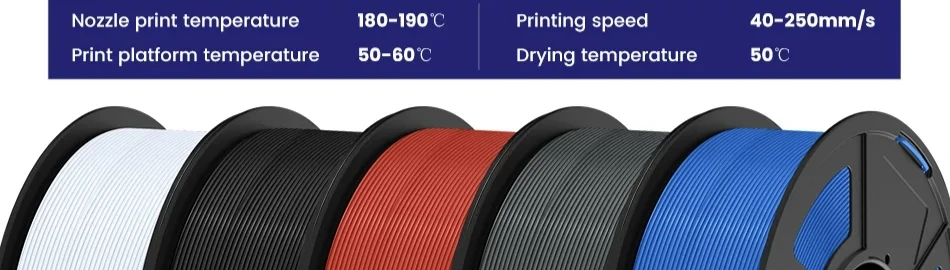

PLA Meta Filament Features :

【High Speed Printing PLA META Filament】JAYO 1.75mm PLA Meta 3D printer filament(Tolerance Level : ± 0.02mm)smooth squeeze. PLA Meta filament is 1.5 times more fluid than regular PLA. Minimum tolerance

【PLA META Filament Recommend Settings】 JAYO PLA Meta filament is very tough and not easily brittle, the model does not break easily when dropped from a height to the ground. PLA Meta filament Print nozzle temperature 185-195℃, Hot bed temp: 50°C-65°C, Print speed: 50-100mm/s, low printing temperature printing for greater energy efficiency.

【Glossy Surface & Good Adhesion】Brightly coloured PLA Meta 3d printer filaments bring glossy surface prints to arts, crafts and 3D projects. JAYO PLA Meta filament 1.75mm has the advantages of high purity with good adhesion and superb layer bonding.

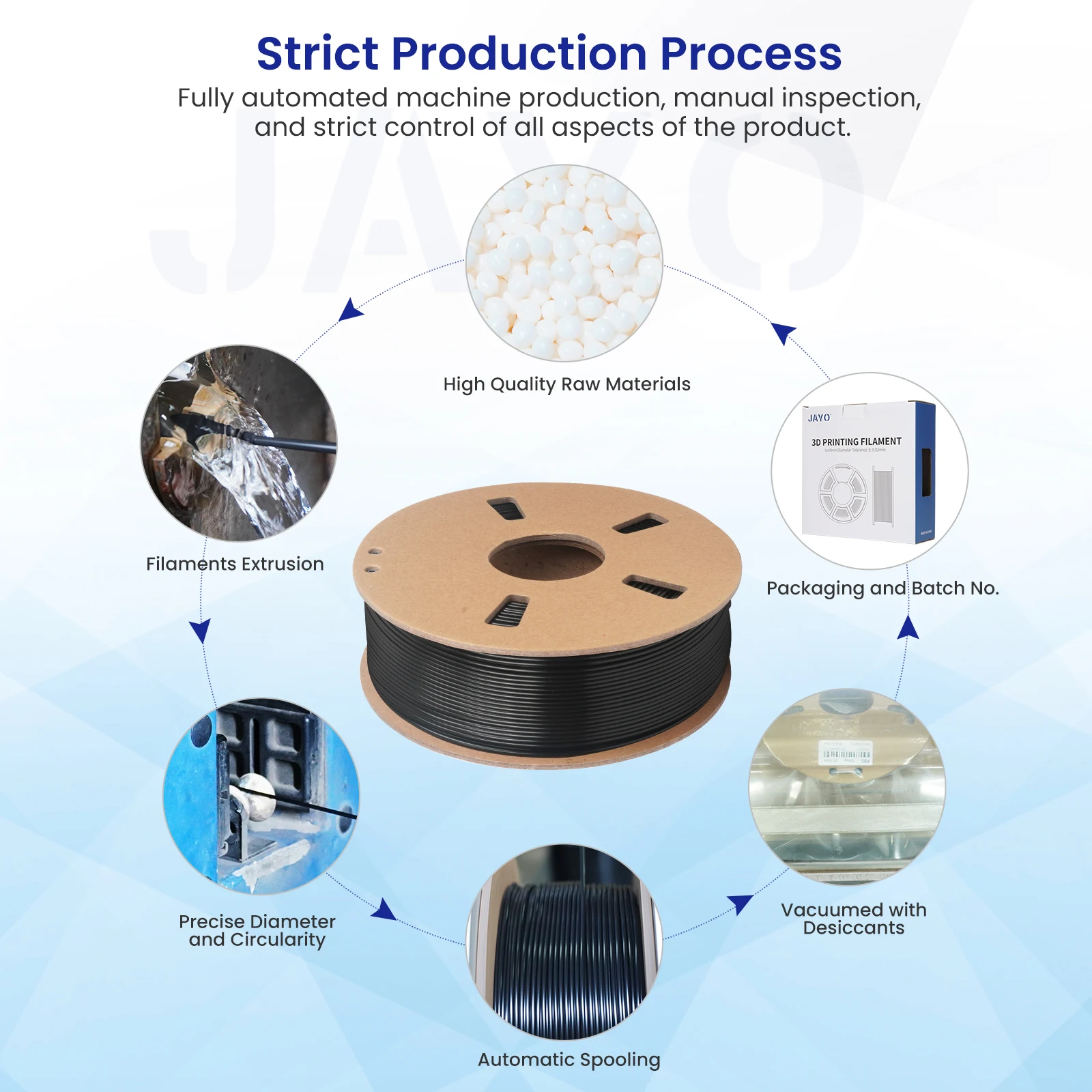

【Neatly Wound Filament 】JAYO has a professional production line with strict control of neatly lined up lines to avoid knots during printing.Completely mechanical wire winding and strict manual checks to ensure neat lines with few kinks, avoiding possible breaks.

PLA Meta Product Parameter:

Wire diameter: 1.75MM
Tolerance: ±0.02MM
Printing temperature: 185-195℃
Bottom plate temperature: Glue is required when not heated, and glue is not required when heated at 50-65°C
Heating 60-80℃, no glue
Rally KGF: 9-12
Melt index: 8-12g/10min (190℃, 2.16kg)
Elongation at break: 35%
Density: 1.24 (g/cm³)
Printing speed: 50-100MM/s
Bubbles: 100% zero bubbles
Net weight: 1.1KG/roll

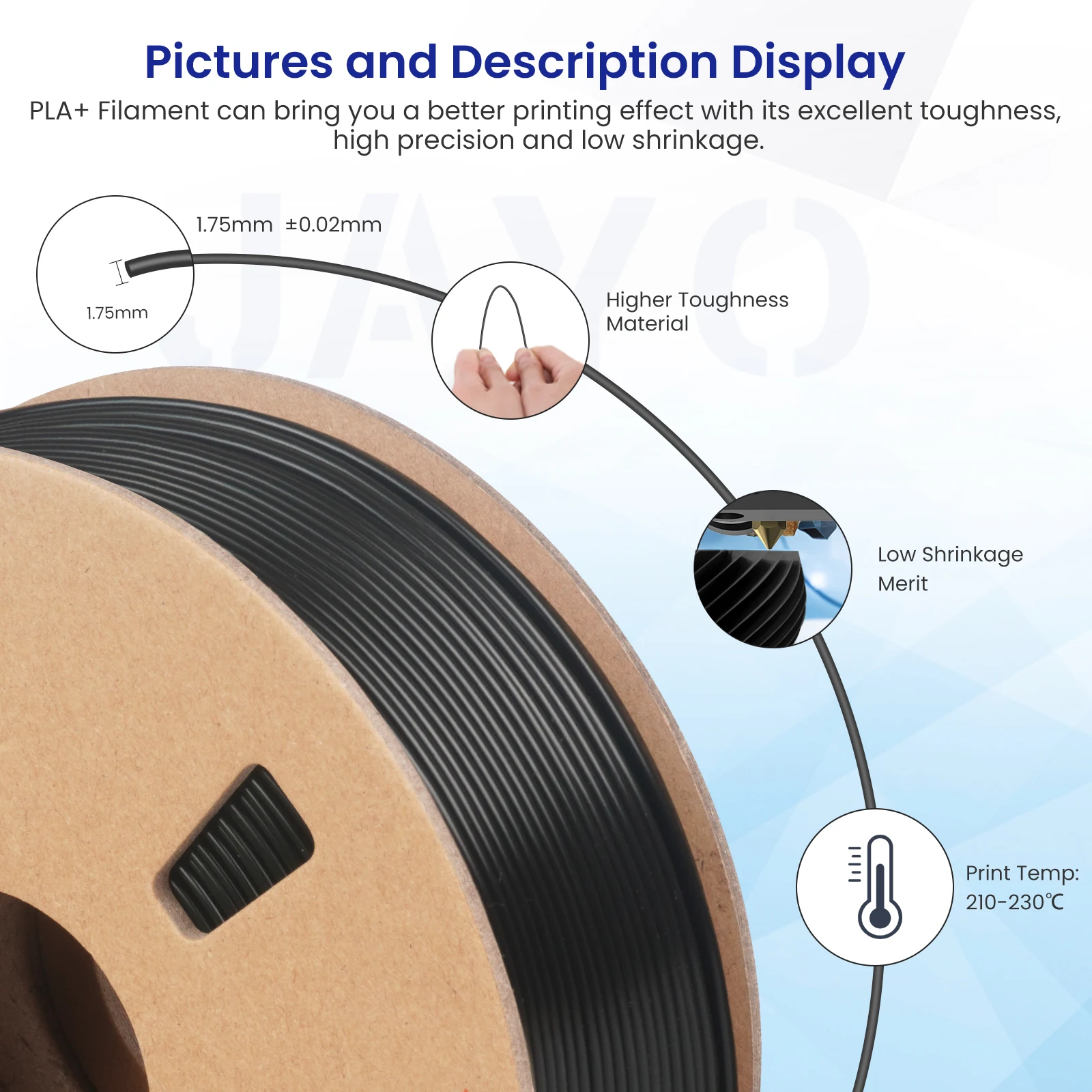

3.PLA PLUS Filament Features & Parameter:

PLA PLUS Filament Features :

【 100% Wound Neatly Filament】 100% Neatly Wound PLA+ Filament, No knot, no winding, improve printing efficiency.

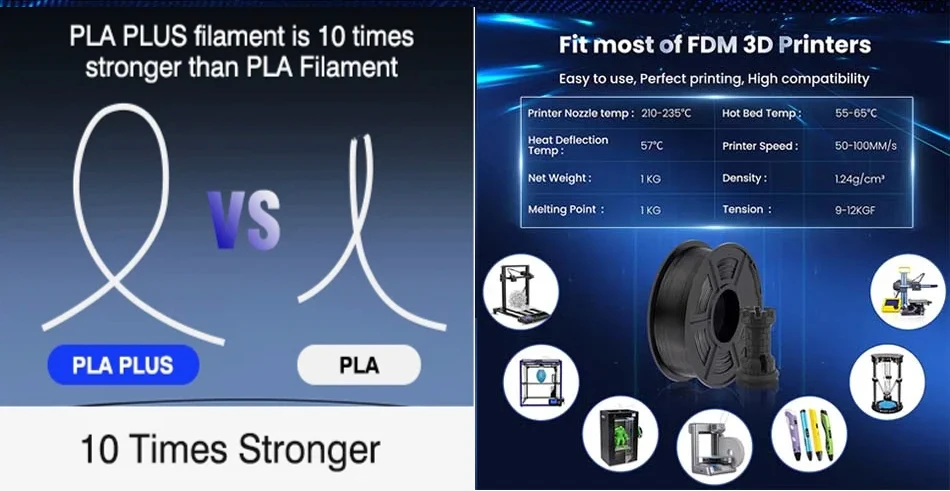

【 PLA PLUS 3D Filament Advantages】- PLA PLUS filament is 10 times stronger than PLA Filament, the color is brighter, it has many advantages,Clog/Bubble/Tangle/Warping/Stringing free, easy to Use, better layer adhesion.

【1.75mm Diameter】- Dimensional Accuracy +/- 0.02mm. SUNLU filament has wide compatibility due to the small diameter error, it's suitable for almost all 1.75mm FDM 3D printers.

【Spool Diameter】- Spool Diameter: 8.00", Spool Width: 2.50", Spool Hub Hole Diameter: 2.20". The size of the JAYO filament spool is suitable for hanging on many 3D printers.

【Recommend Settings】- We recommend printing at a Nozzle/Extrusion temperature of 210°C - 235°C (410°F - 455°F) and Bed/Platform temperature of 55°C - 65°C (131°F - 149°F).

【Strong compatibility】- JAYO 3D Filament is not only applicable to all JAYO 3D printing products: FDM 3D Printer, 3D Printer Accessories, Filament Dyer, but also applicable to almost all FDM 3D printers of other brands. For example: Ender 3/Ender 3V2, etc.

Product Parameter:

Wire diameter: 1.75/3.0MM
Tolerance: ±0.02MM
Printing temperature: 205-215℃
Floor temperature: 70-80℃
Rally (KGF): 11-15
Melt index: 9-11g/10min
(190℃, 2.16kg)
Elongation at break: 45%
Printing speed: 50-100MM/s
Air bubbles: 100% zero bubbles
Net weight: 1.1KG/roll
Gross weight: 1.45KG/roll
Length: 1.75MM(1KG)=330M,
3.0MM(1KG)=110M

4.PETG Filament Features & Parameter:

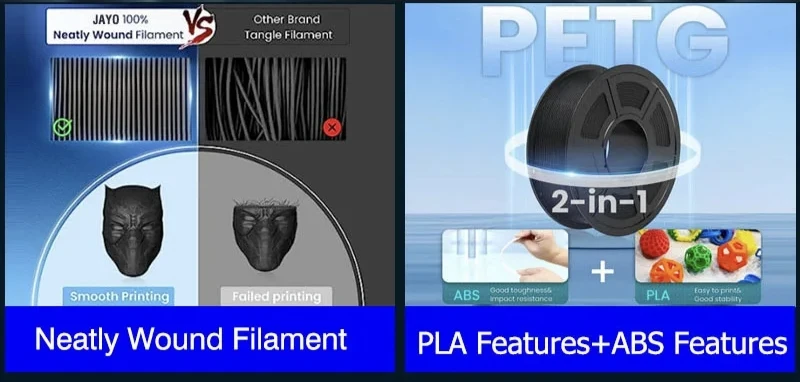

PETG Filament Features:

1. Environmental protection and non-toxic;
2. Bright color;
3. Low shrinkage;
4. Good toughness, not easy to be brittle, good acid and alkali resistance, excellent
The toughness, weather resistance, and good adhesion.
5. Good dimensional stability, no cracks
And warping.
6. High transparency and good gloss.
Suitable for all types of FDM3D printers, suitable
Co-print all kinds of commonly used models, crafts, industry
Pieces, advertising words, etc.

PETG Product Parameter:

Wire diameter: 1.75/3.0MM
Tolerance: ±0.02MM
Printing temperature: 230-240℃
Bottom plate temperature: need to apply glue when not heating
Heating 60-80℃, no glue
Rally (KGF): 8-14
Melt index: 6-11g/10min
(220℃, 2.16kg)
Elongation at break: 210%
Printing speed: 50-100MM/s
Air bubbles: 100% zero bubbles
Net weight: 1.1KG/roll
Gross weight: 1.45KG/roll
Length: 1.75MM(1KG)=320M,
3.0MM(1KG)=105M

5.PLA matte Filament Features & Parameter:

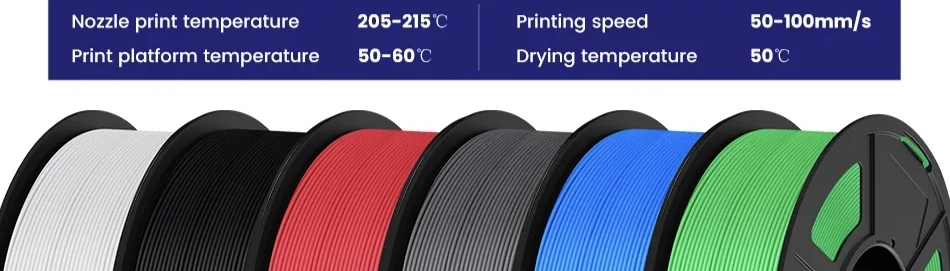

PLA matte Product Parameter:

Wire diameter: 1.75mm
Tolerance: ± 0.02MM
Printing temperature: 205-215 ℃
Bottom plate temperature: Apply glue when not heated
Heating 50-60 ℃ without applying glue
Printing speed: 50-100MM/s
Bubble: 100% zero bubble
Net weight: 1.1KG/roll
Gross weight: 1.3 KG/roll
Length: 1.75MM (1KG)=330M

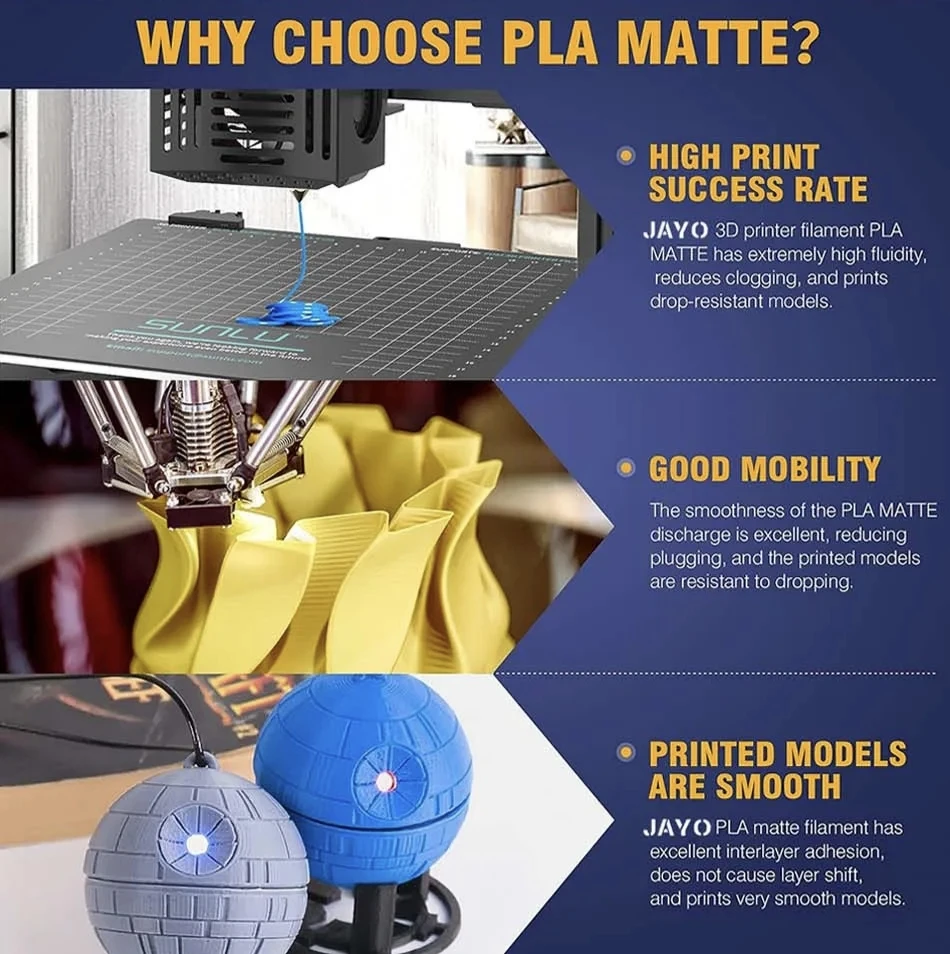

PLA Matte Filament Features

1. 【PLA Features & Matte Color】- JAYO's newly upgraded Matte PLA Filament colors retain the original JAYO PLA advantages: Easy Printing, No Clogging, while adding more color options. Matte PLA can print prints with non-glossy colors and frosted textures, suitable for more premium and mysterious 3D models.

2. 【SUNLU 100% Wound Neatly 3D Filament】- JAYO R&D team has mastered advanced technology and produced 100% Neatly Wound 3D Printer Filament, which is impossible for other brands. No knot, no winding, improve printing efficiency.

3.【Recommend Settings & Easy to operate】- We recommend printing the PLA Matte Filament at nozzle temperature of 200-230°C, bed temperature of 50-65°C, and printing speed of 50-100mm/s. JAYO PLA MATTE Filament Dimensional Accuracy +/- 0.03mm. Minimum tolerance and low warping to ensure consistent feeding and stable prints, good layer bonding, less stringing, easy handling, resulting in an outstanding surface finish and are highly precise.

6.HS PLA Filament Features & Parameter:

HS PLA Product Parameter:

Wire diameter: 1.75/3.0MM
Tolerance: ± 0.02MM
Printing temperature: 205-215 ℃
Bottom plate temperature: 50-60 ℃
Printing speed: 50-300MM/s
Bubble: 100% zero bubble
Net weight: 1. 1KG/roll
Gross weight: 1.3 KG/roll

HS PLA Filament Features :

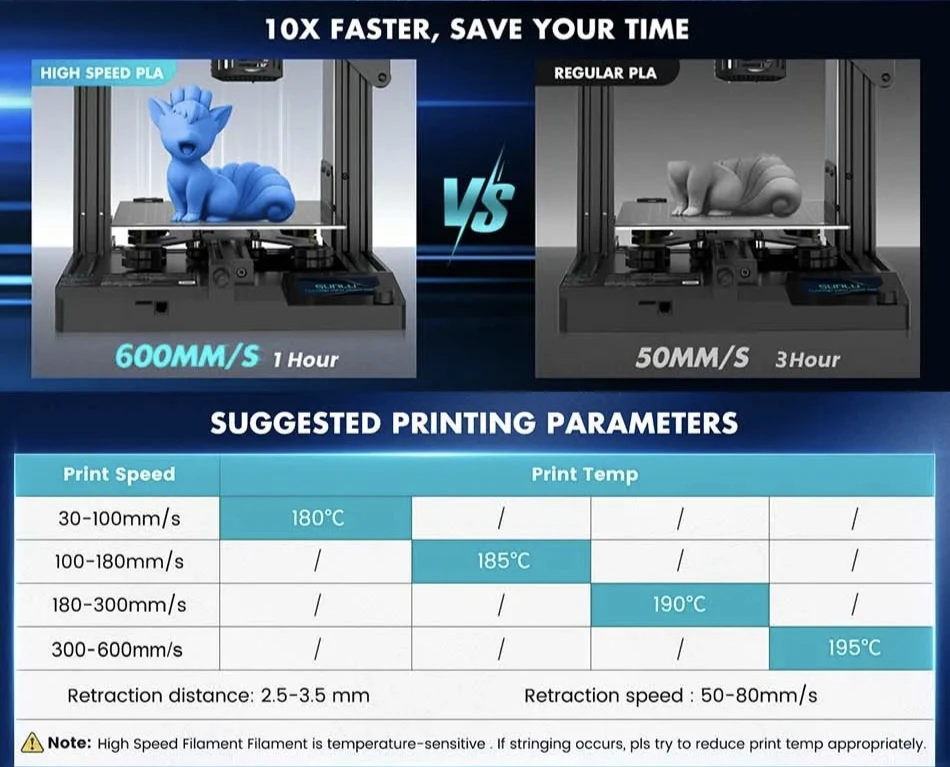

1.【Print Faster】 -JAYO high-speed 3D printer PLA filament, designed to turbocharge your printing from slow to swift. Experience a colossal 500% increase in flowability, ensuring smooth printing even at speeds exceeding 250mm/s, without clogs or filament shortages. Bring your ideas to life with high-speed printing, on average, save 70% printing time.

2. 【Efficient Cooling】 -High speed PLA filament boasts a 180% boost in heat dissipation, enabling quicker cooling and curing than regular PLA filament under the same conditions. This prevents 3d filament material buildup during fast prints, improving printing speed while also ensuring accuracy and mechanical performance.

3.【High Speed PLA Printing Tips】 -The average printing temp of JAYO High Speed PLA filament is lower than regular PLA filament, saving time and energy consumption. As HS PLA Filament is temperature-sensitive, please set slicing parameters according to recommended print speed and temp matching based on your 3D printer. If stringing occurs, please reduce print temp appropriately.

Q&A:

1. Wire diameter error
Use a caliper to measure consumables at a certain distance and calculate the average diameter of the consumables. Fill in the corresponding location of the slicing software.

2. Inconsistent color of consumables
The printing temperature is inconsistent, and the same consumables may present slightly different colors at different printing temperatures. The printing temperature should not be too high

3. Consumable tying==caused by production issues or customer usage habits
You need to first find the knot and then withdraw the consumables from the knot.
Remember to pass the thread through the hole in the wire reel after using it simultaneously.
(1) Pictures of winding and knotting, and whether there are small cards worn on consumables
(2) Wire coil label
(3) Did you tie the knot during the newly opened package printing process or did you print it before and take it out again to print the knot

4. Bubbles appear in consumables
If the temperature is too high or the consumables are damp, lowering the printing temperature and drying the consumables can improve the quality

5. Rainbow color changes less
Rainbow changes color once at 18m, and smallmodels may have less color change. You can increase the size of the printed model

6. Consumables are prone to breakage
If the temperature is too low, the printing speed is too fast, or the wire diameter is too large or there is a problem with incoming materials, increasing the temperature and reducing the printing speed can solve the problem
