Parameter

1.Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling
2.Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to ensure riding mileage;
3.Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on;
4.Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;
5.Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding;
6.Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
7.Cadence function:In the assistance mode, the display will show the pedal///'s Revolutions Per Minute (RPM);
8.Cruise and constant speed:With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
9.Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;
10.Password setting:With three-bit of power-on password setting;
11.Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

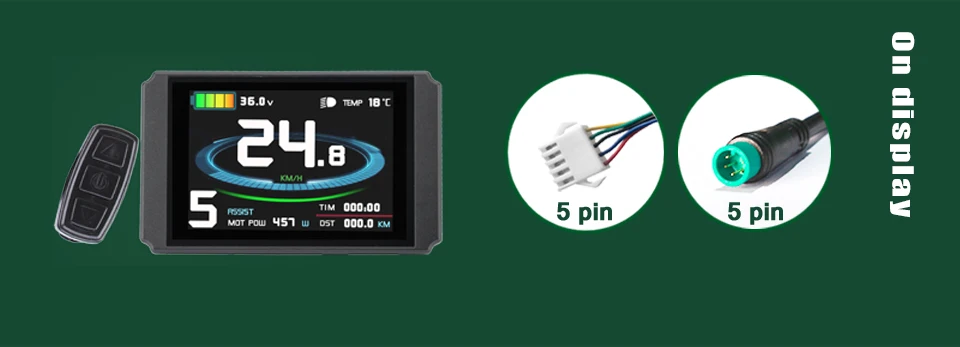

12.Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

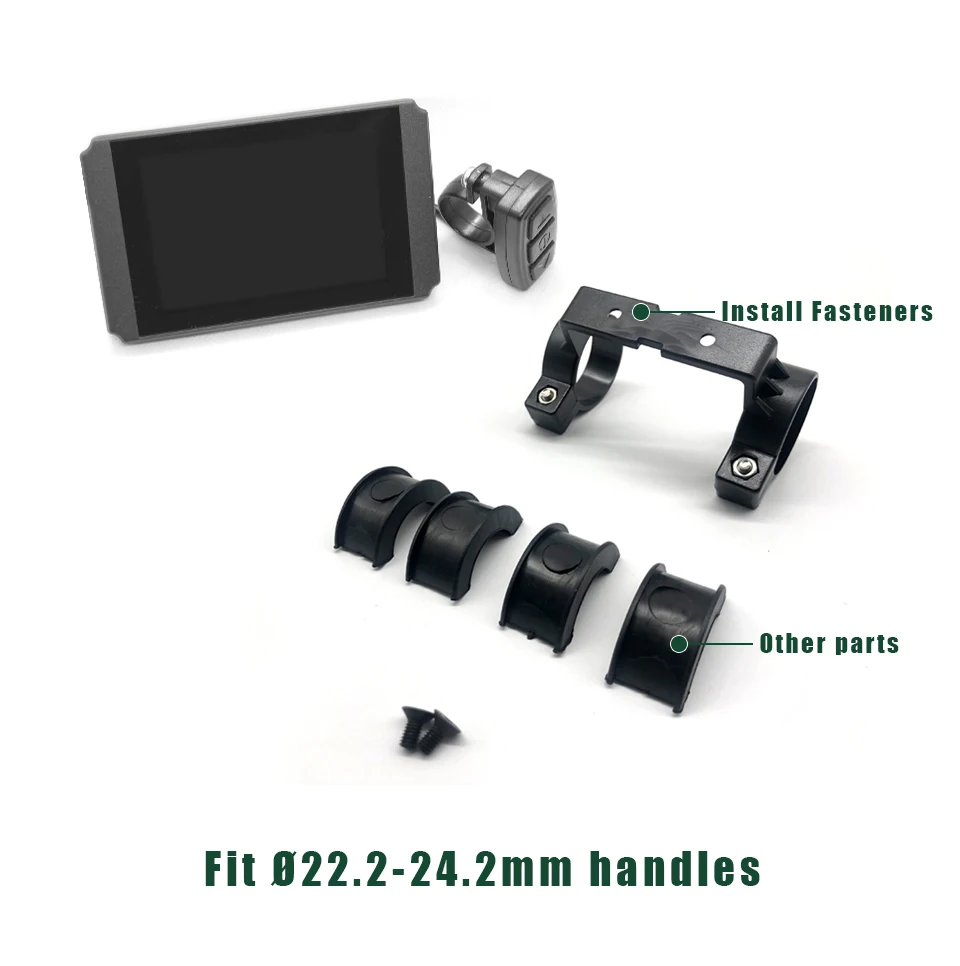

13.Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;
14.Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

Packing List

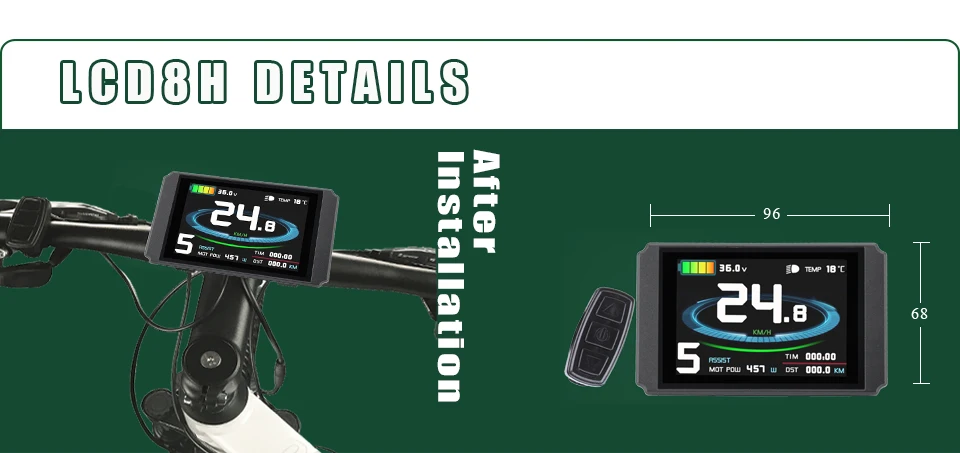

1.KT LCD8H display
2.Display manual
