Module 1: 30W+ Optical Power Laser Module

Product Description:

Laser Tree K30 is a real 30W+ output laser module designed for powerful cutting. It uses beam compression technology, built-in 6pcs 5.5W laser diodes. The comprehensive product configuration realizes compatibility with various laser engraving machines. The adapter board is used for electrical compatibility (suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines). The sliding plate has multiple holes for installation compatibility. Built-in air assist improves cutting performance, and excellent heat dissipation improves product stability and service life. If you need to cut a lot of thick materials and speed up production, the powerful Laser Tree K30 is a good choice.

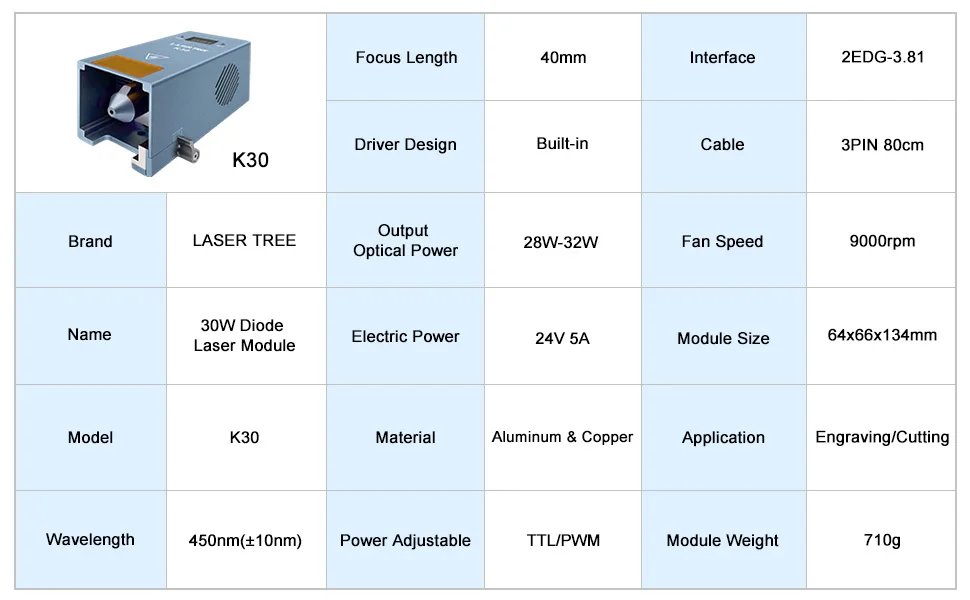

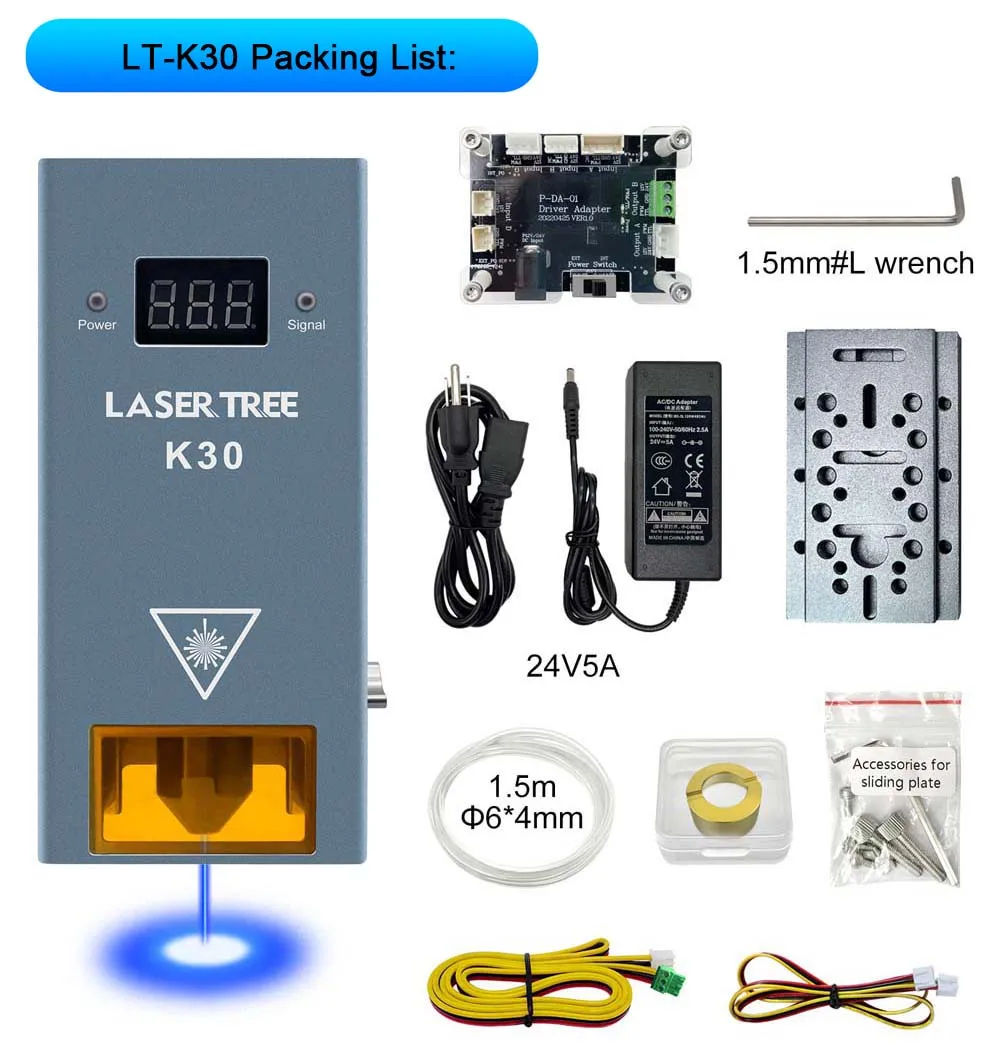

LT-K30:

Ultrahigh Power Laser Module

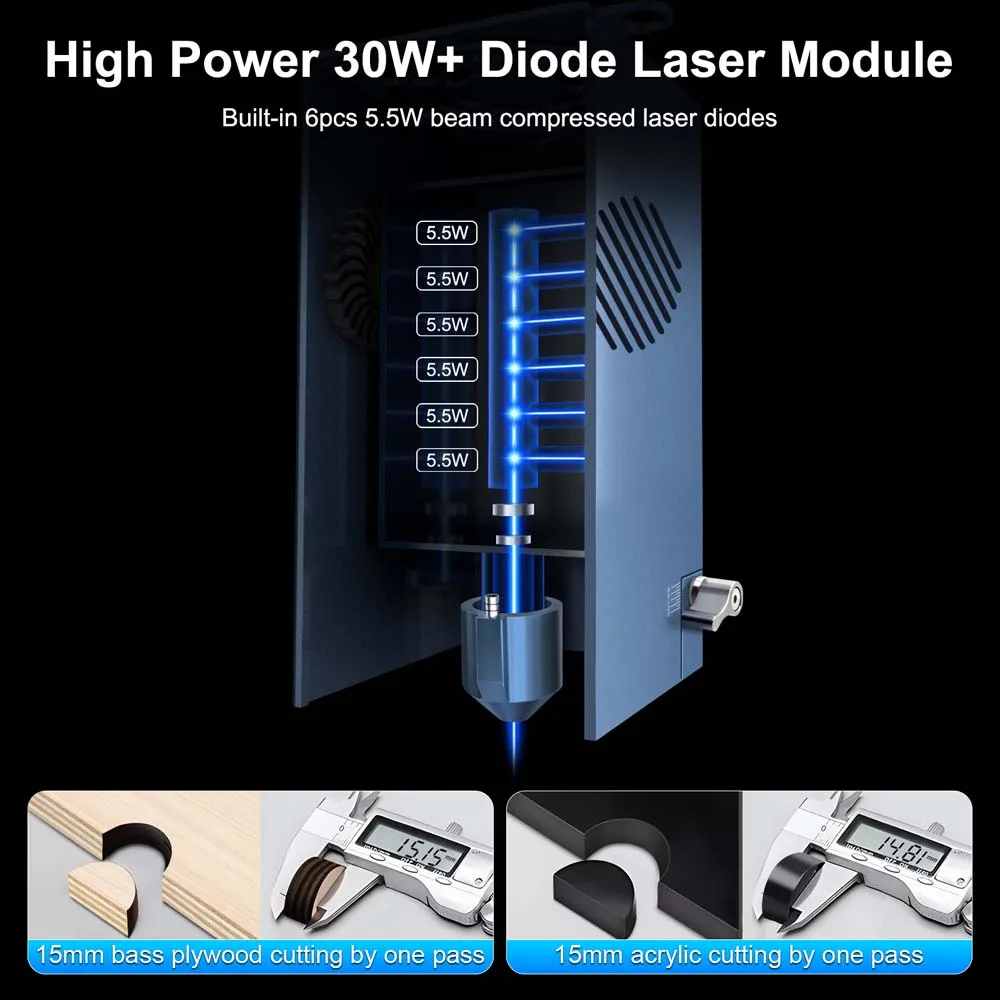

K30 is a high power 30W+ (28W-32W) optical power laser module, built-in 6pcs 5.5W beam compressed laser diodes

Cut 15mm bass plywood: 180mm/min, 100% power,  by one pass

Cut 15mm black acrylic:    35mm/min,  100% power,  by one pass

Cut 20mm pine wood: 120mm/min, 100% power, by one pass

Cut 9mm MDF: 300mm/min, 100% power, by 2 passes

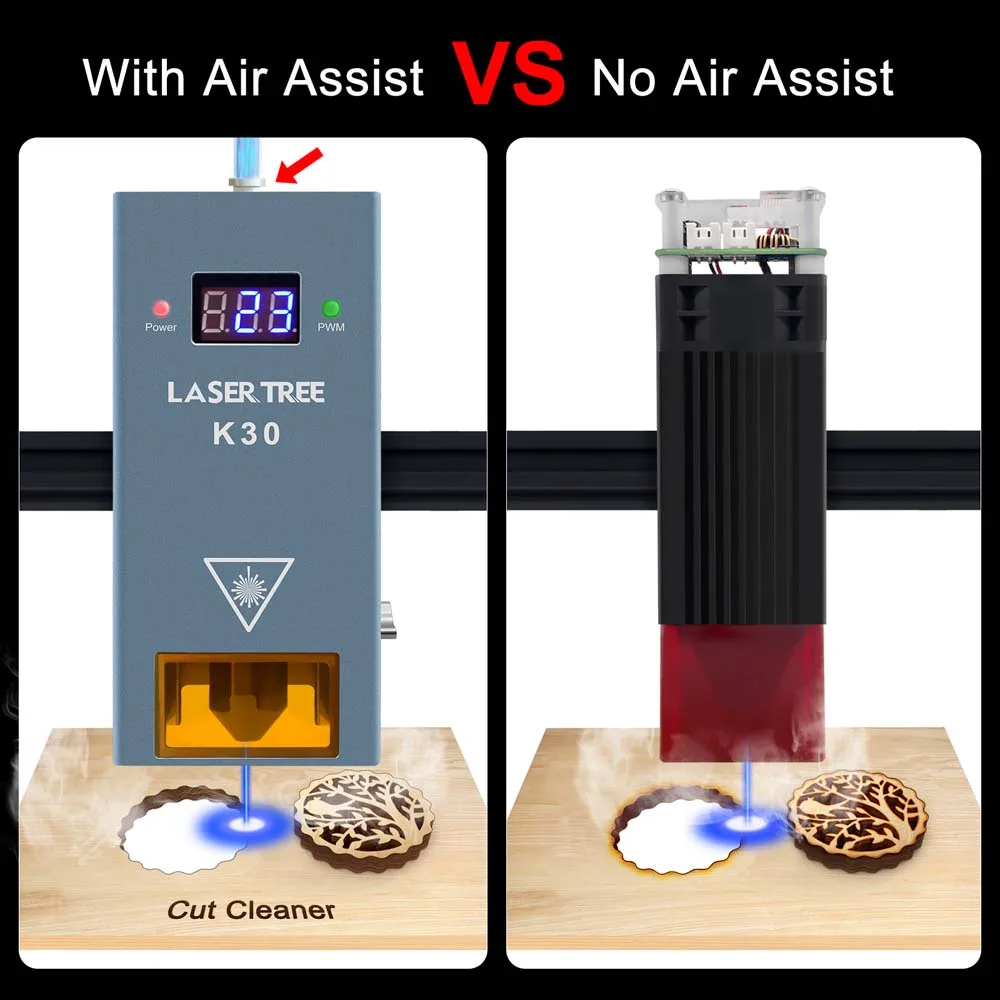

Built-in Air Assist & Dual-Fans Cooling Systerm

a. Built-in air assist to get clean-cut edges, improve cutting performance

b. Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life

Temperature Display & Alarm Function & Red Cross-positioning Light Design

a. Use in high working temperature will affect the life of the laser module.

b. The buzzer will sound an alarm when the temperature of the laser head is higher than 55℃ ( Suggested working temperature <35℃.)

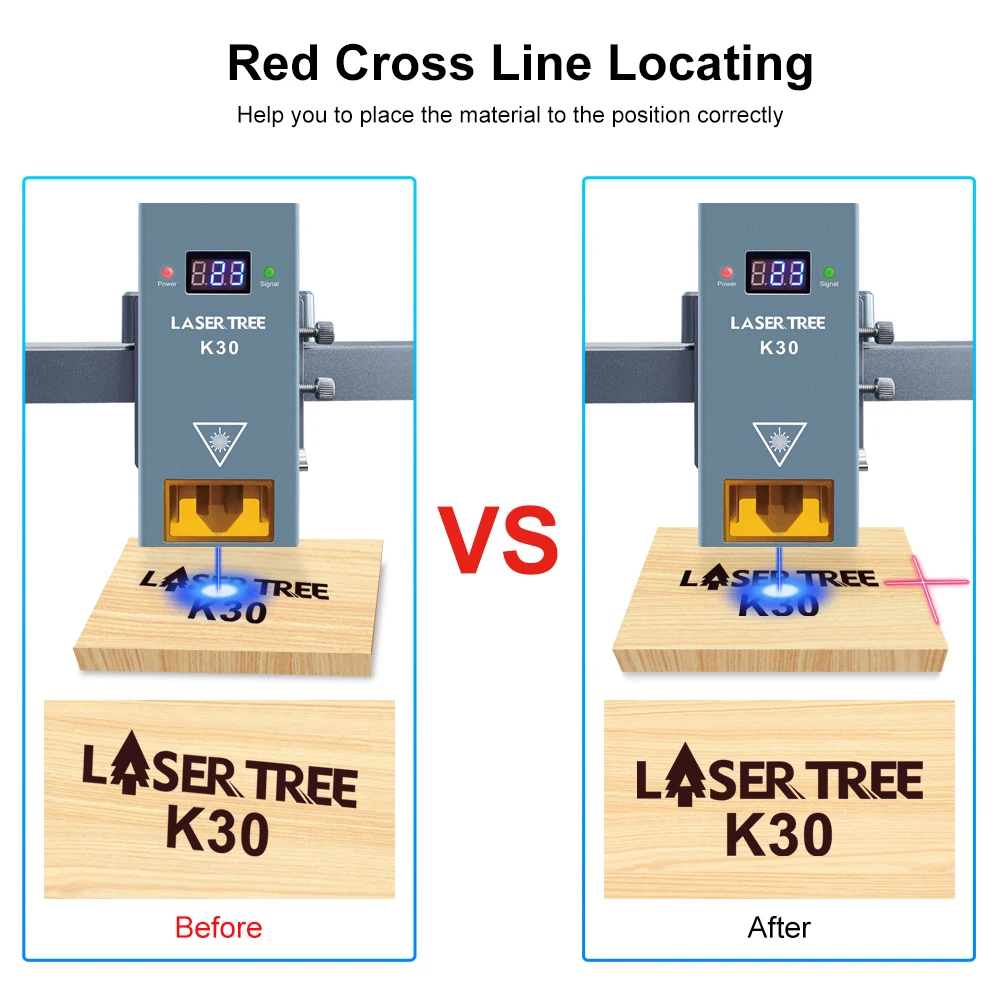

c. Red cross-positioning light design, It helps laser engraving or cutting precise positioning

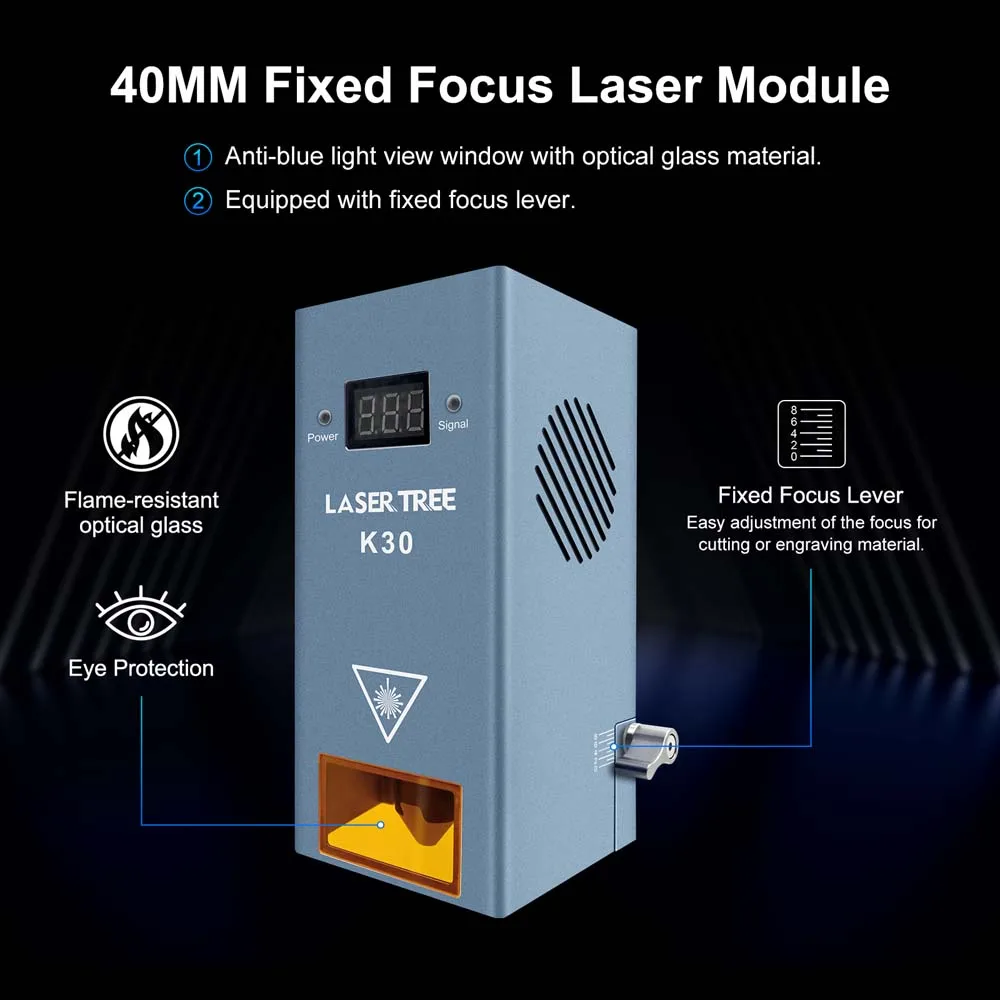

Easy to Set Focus & Fireproof and Anti-blue Light Design

a. 40mm fixed focus laser module, with fixed focus lever, focusing is more convenient

b. Glass eye protection window, It can effectively prevent blue light and fire resistance

For Engraving

Please make the focus locate on the engraving material surface.

For example, if you want to perform engraving, just make the focus on the engraving material surface and adjust the fixed focus lever to 0mm.

For Cutting

Please make the focus locate lower than the cutting material surface.

For example, if you want to cut 10mm material, the focus should be 4mm lower than material surface, please adjust the fixed focus lever to 4mm.

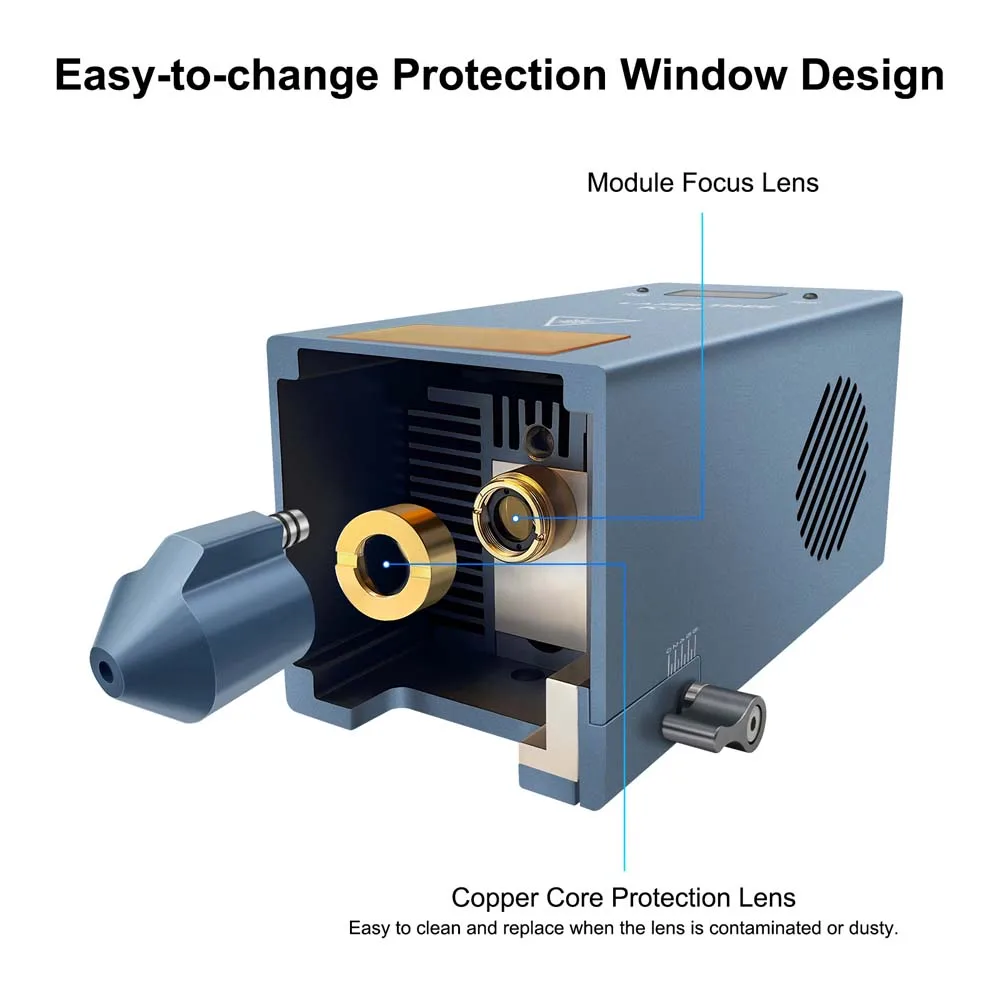

Easy-to-change Protection Window Design

Copper core protection lens, easy to clean and replace when the lens is contaminated or dusty.

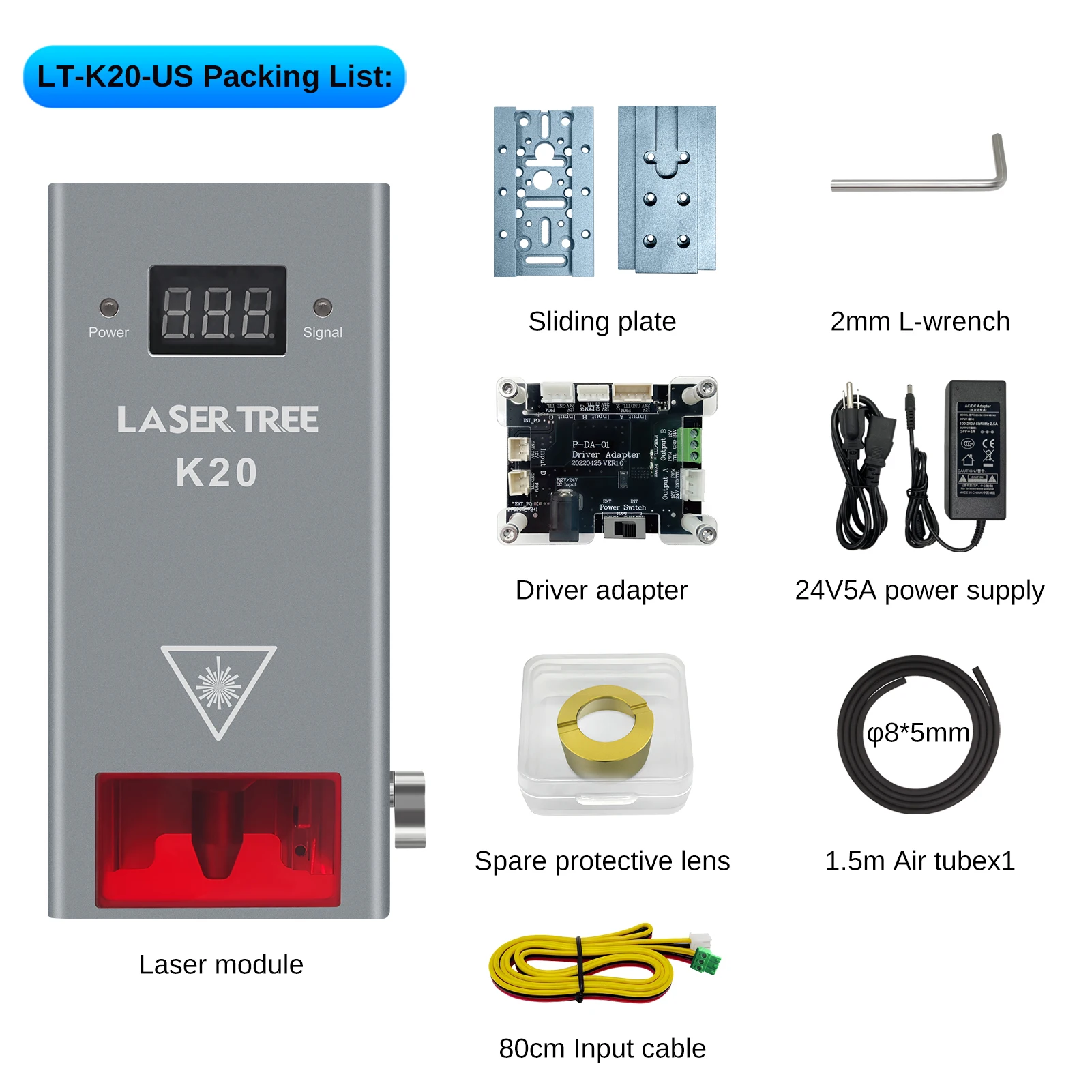

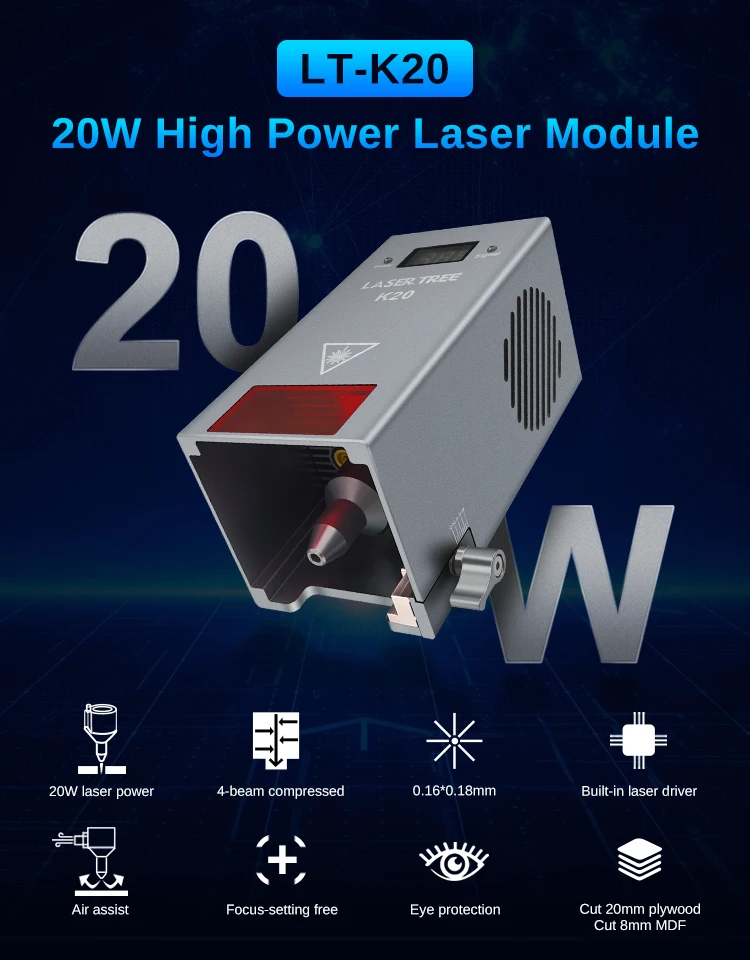

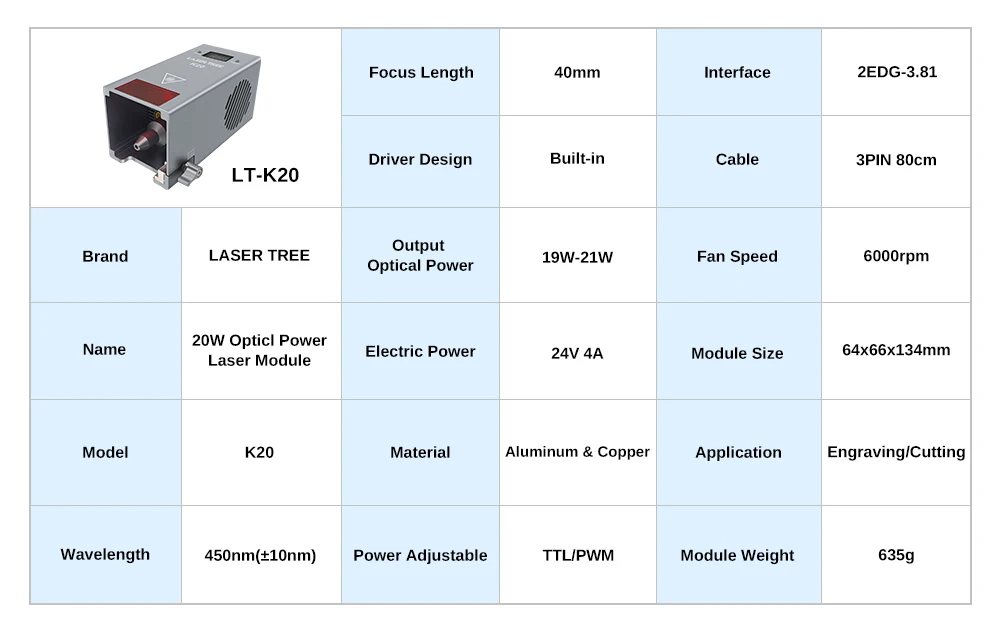

Module 2: 20W+ Optical Power Laser Module

Description:

Ultra High Power

LaserTree K20 is a true 19-21W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.

Powerful Cutting Ability

12mm basswood plywood: 100mm/min, one pass

15mm black acrylic: 15mm/min, one pass

15mm pine wood: 100mm/min, one pass

9mm MDF: 100mm/min, 2 passes


LT-K20 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(please contact us if you are not sure about compatibility)

4-Beam Compressed Technology

Bulit-in 4pcs bean compressed laser diodes

Professional Air Assist

With air assist (clean-cut edges) VS no air assist (scorched edges)

Air assist for an excellent cutting experience and greatly reduced burn marks

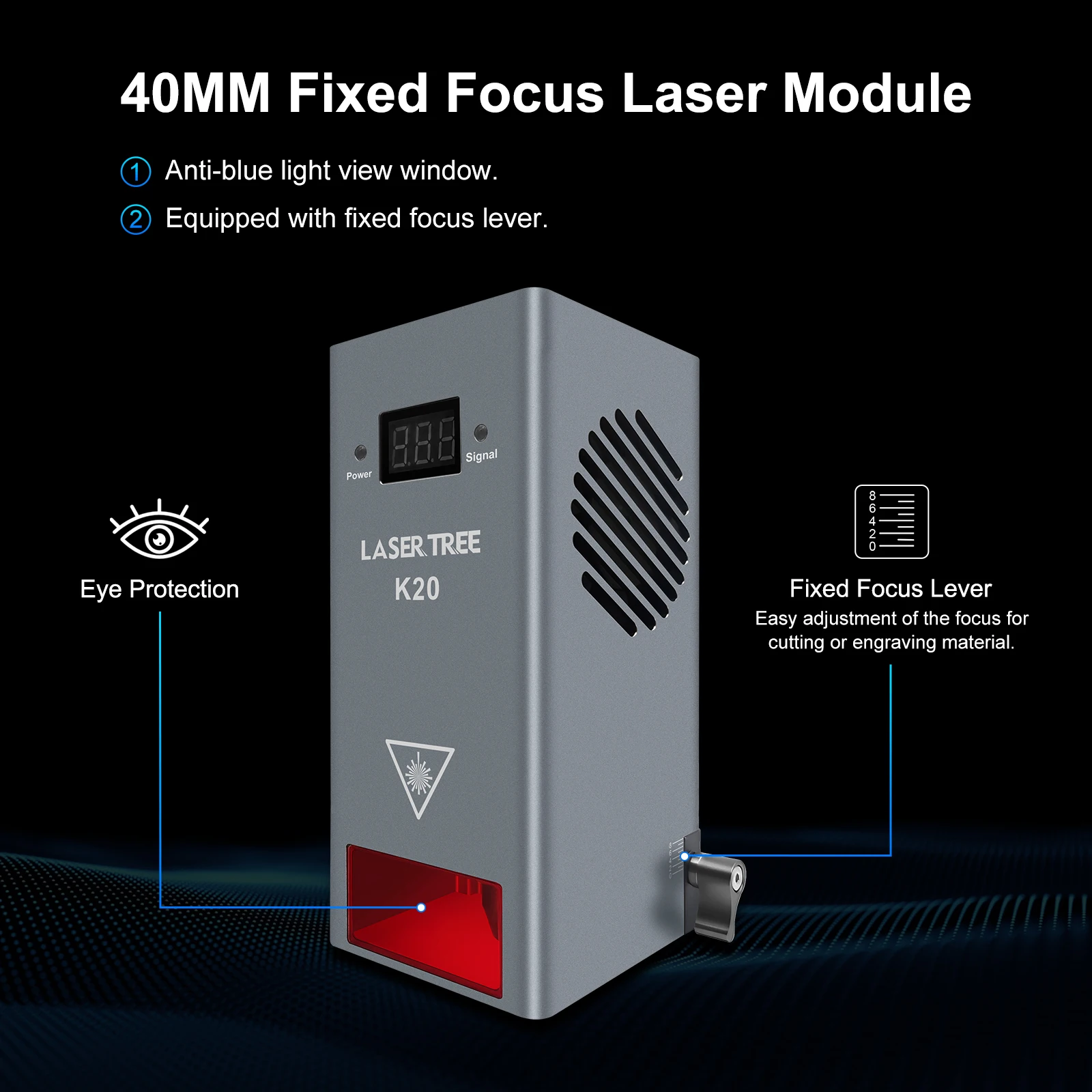

40MM Fixed Focus Laser Module

①Anti-blue light view window.
②Equipped with fixed focus leve

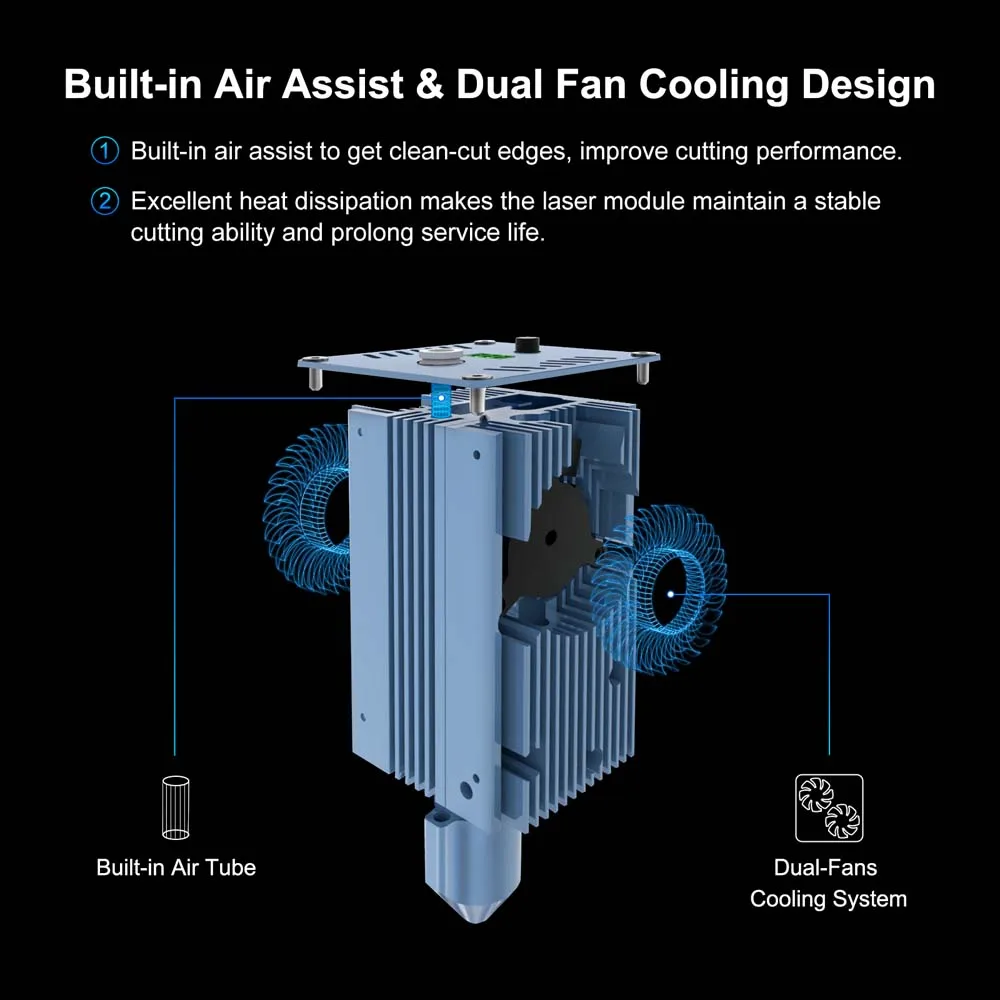

Built-in Air Assist & Dual Fan Cooling Design

① Built-in air assist to get clean-cut edges, improve cutting performance
②Excellent heat dissipation makes the laser module maintain a stablecutting ability and prolong service life.

Plywood & Acrylic & MDF Cutting(One-pass)

Materlal: 12mm bass plywood ，Power: 100% Speed: 10mm/min

Materlal: 8mm Acrylic ， Power: 100% Speed: 50mm/min

Materlal: 5mm MDF，Power: 100% Speed: 360mm/min

Temperature Display & Alarm Function

①Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
②When the working temperature of laser module over 55°C, it will sound an alarm through the buzzer

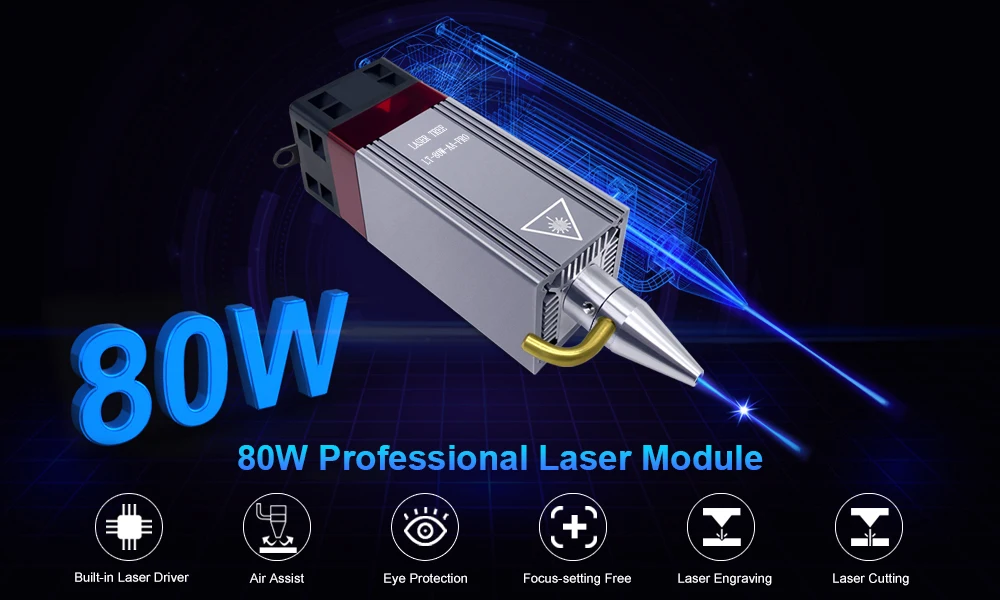

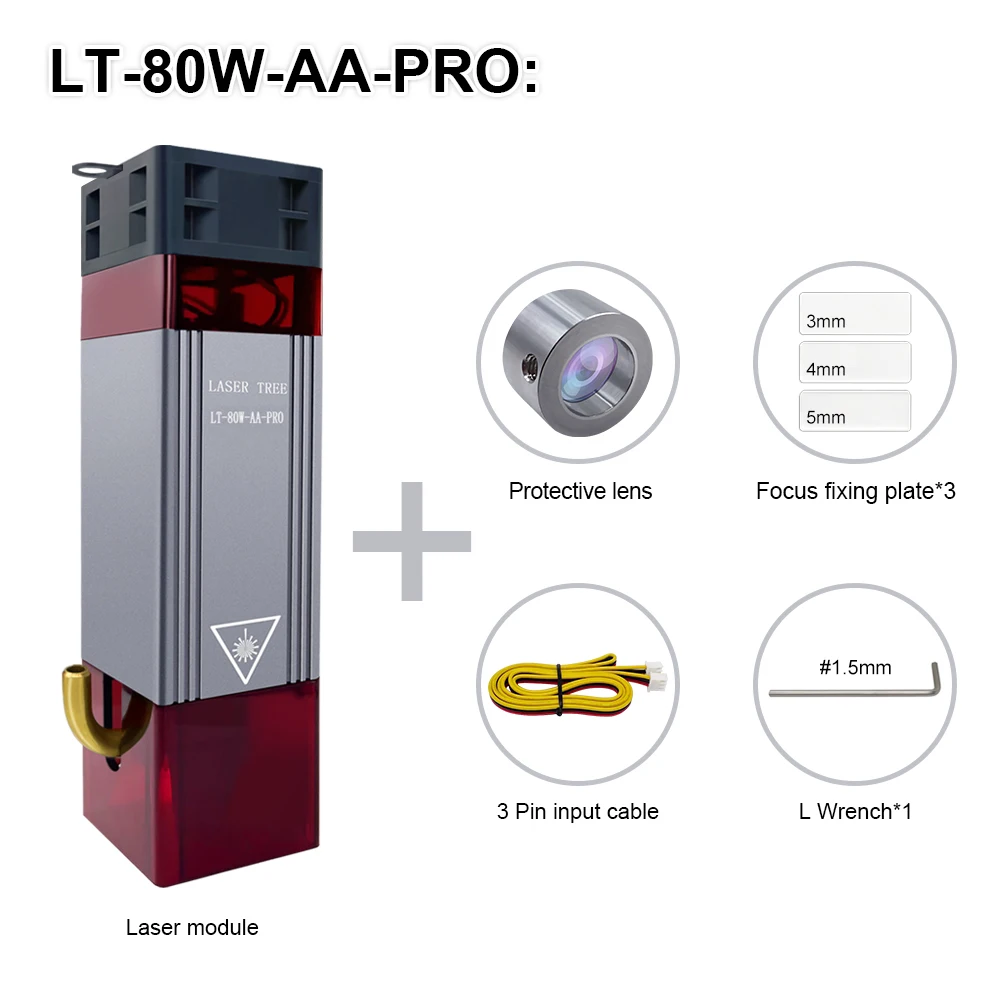

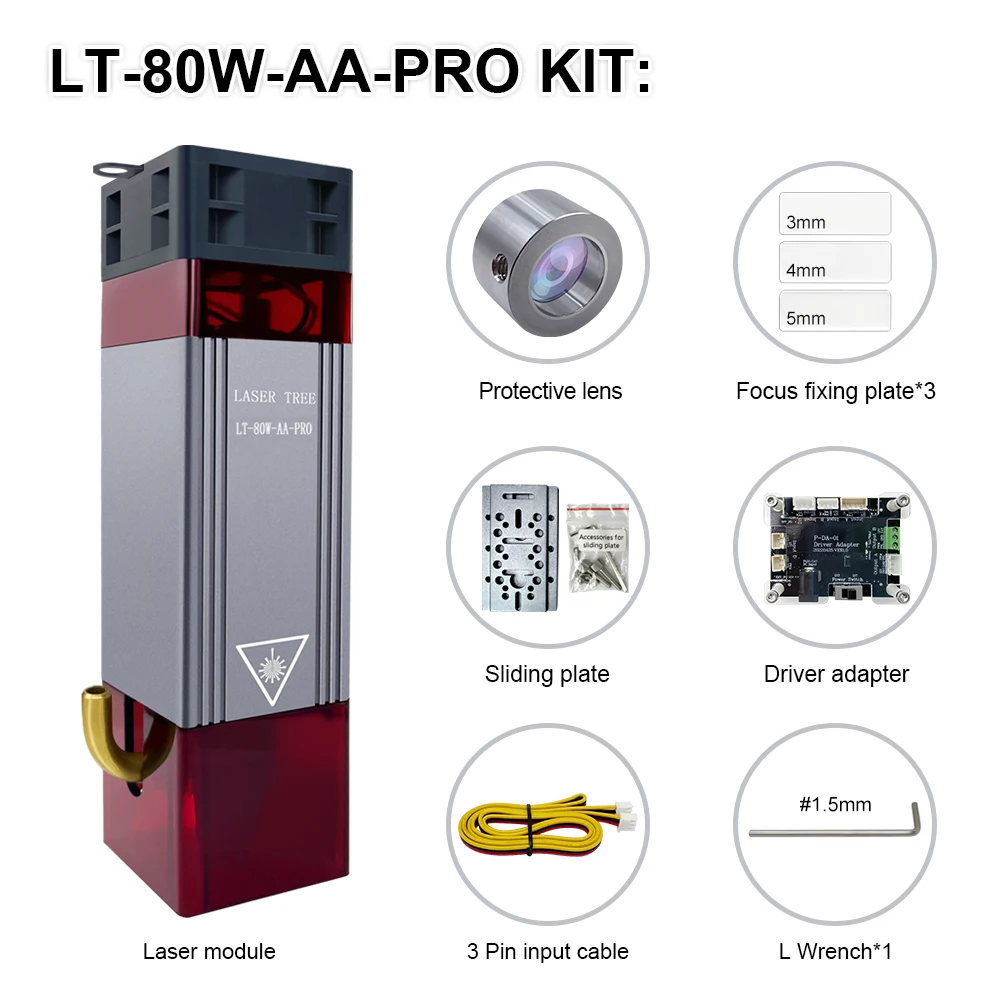

10W Optical Power laser head LT-80W-AA-PRO(KIT):

1.LT-80W-AA-Pro

It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

2.With the Air Asssit Nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

3. Remarkable Cutting Ability

Cutting 8mm bass plywood ,120mm/min ,one pass.

Cutting 5mm bass plywood, 50mm/min, one pass.

Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

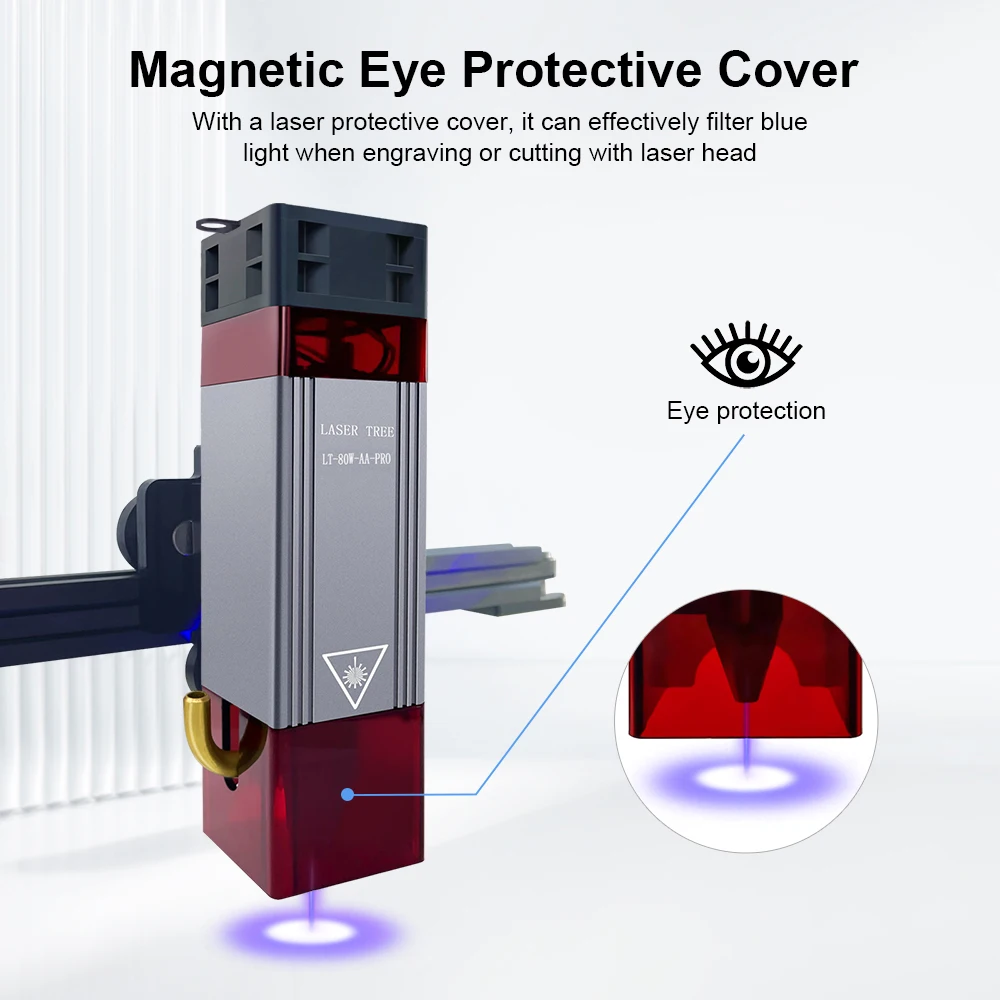

4.With the Laser Protective Cover

Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.

5. Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

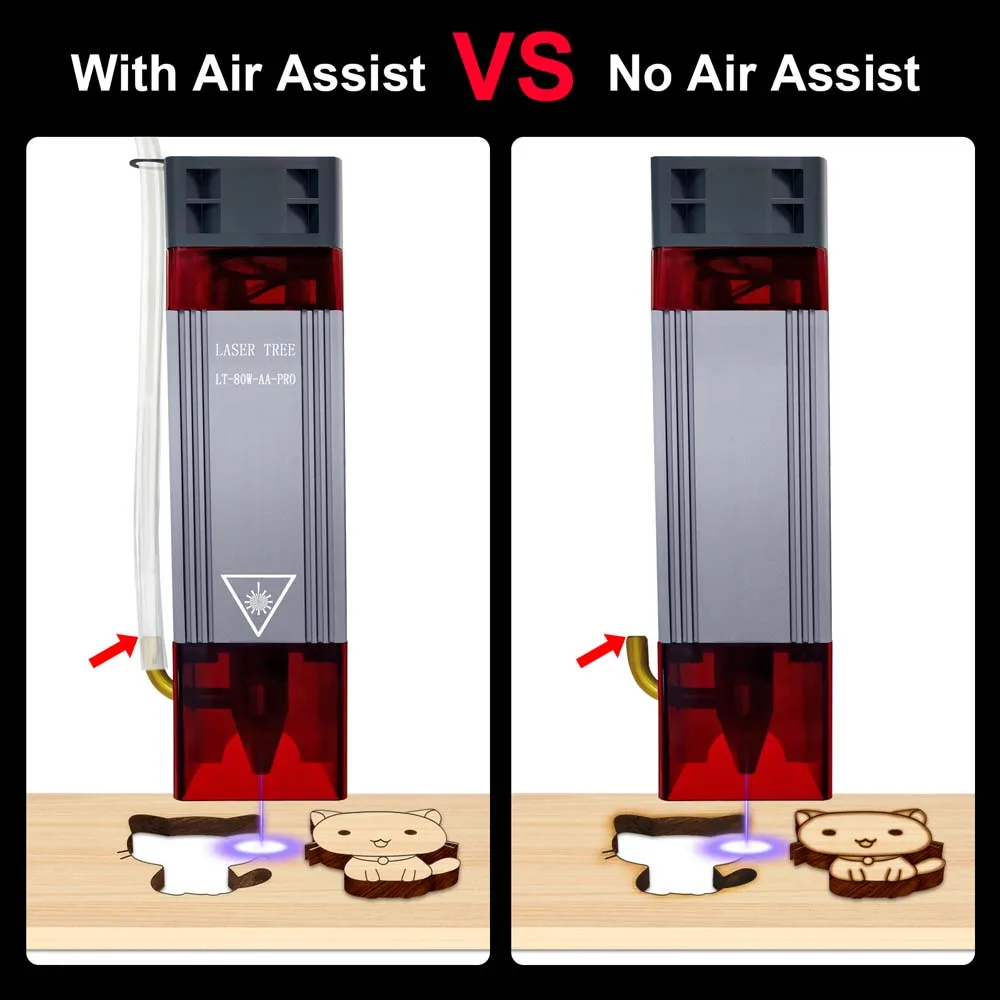

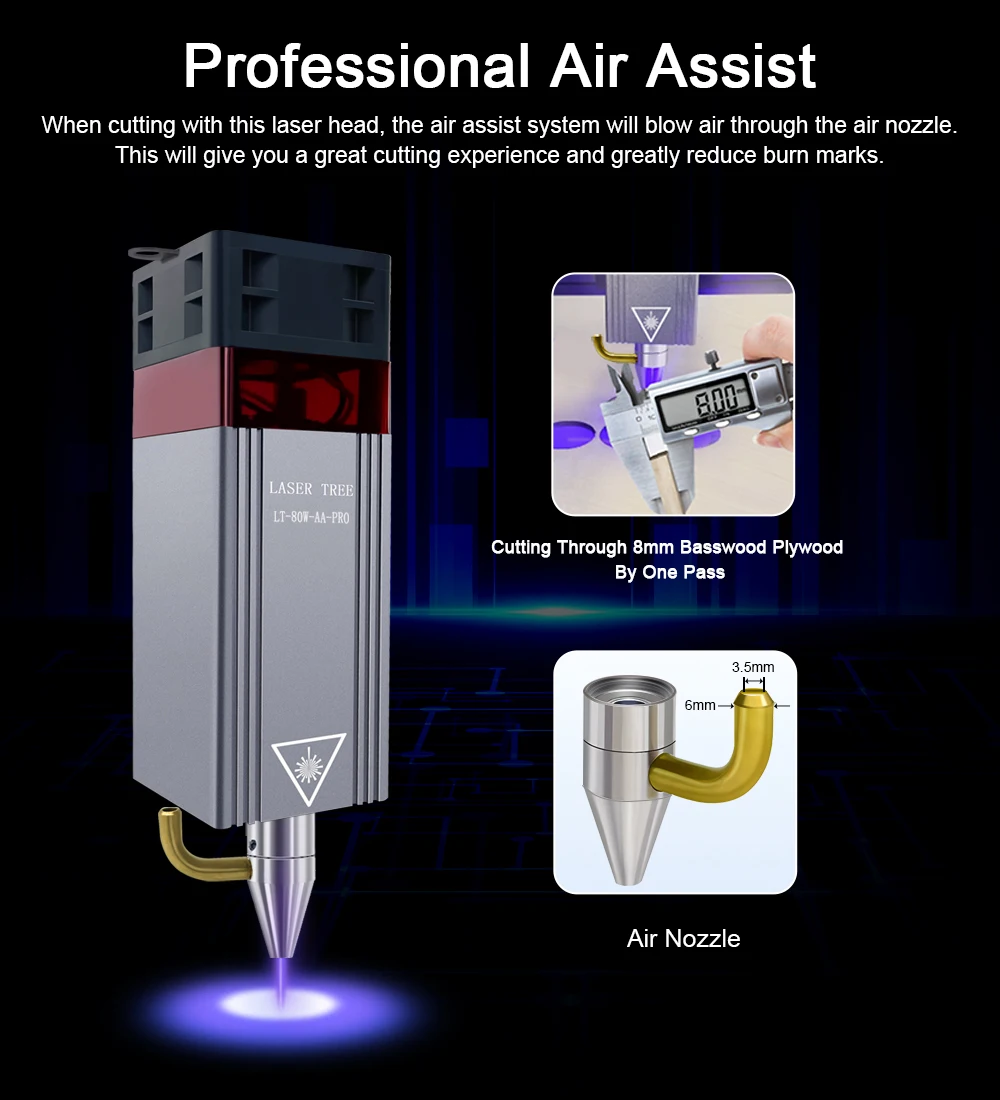

Professional Air Assist

When cutting with this laser head, the air assist system will blow air through the air nozzle
This will give you a great cutting experience and greatly reduce burn marks.
