LED Lamp Bead 10PCS High Power 8090 RGB 3W 9W Lighting BULB 20MM Aluminum Plate Flashlight

Limited Time Offer
Choice Trending
Now: $10.90
Was: $11.12
-2% Now

Deliver to

Ship from Local Warehouse
Adding to cart… The item has been added

LED Lamp Bead 10PCS High Power 8090 RGB 3W 9W Lighting BULB 20MM Aluminum Plate Flashlight

Now: $10.90
Was: $11.12

LED Lamp Bead 10PCS High Power 8090 RGB 3W 9W Lighting BULB 20MM Aluminum Plate Flashlight

Now: $10.90
Was: $11.12
Free Shipping Delivery byWednesday, January 14, Order within

Shipped By:

Fast Delivery
  • $5.00 coupon code if delayed
  • Refund if package lost
  • Refund if items damaged
  • Refund if no delivery in 30 days
SKU: AE65212400095
Brand: SZCHENRUI 123 Store
Security & Privacy
  • Safe payments: We do not share your personal details with any third parties without your consent.
  • Secure personal details: We protect your privacy and keep your personal details safe and secure.
FREE Return
Shop sustainably

Hot Commodity UV LED Lamp 200W Printer Head 365-370NM with Power 11*75.5V Light SurfaceCNY1638.0-1865.5 LED UV Lamp Module for Printers 216 Watts Viol…

Description

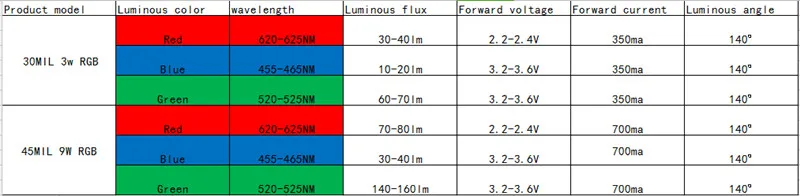

power:30MIL 3W  , 45MIL 9W

Current:30MIL 350MA ,45MIL 700MA

chip:Taiwan Guanghong

LED material:Gold wire, copper bracket, silicone packaging

Beam angle:140 degrees angle

Stent size:80*90

Wavelength classification:R  620-625NM  ,G 520-525NM,B 460-465NM

Aluminum plate size:20MM

RGB ,Six feet RGB,

8090RGB          9280RGB   9080RGB   LED BULB

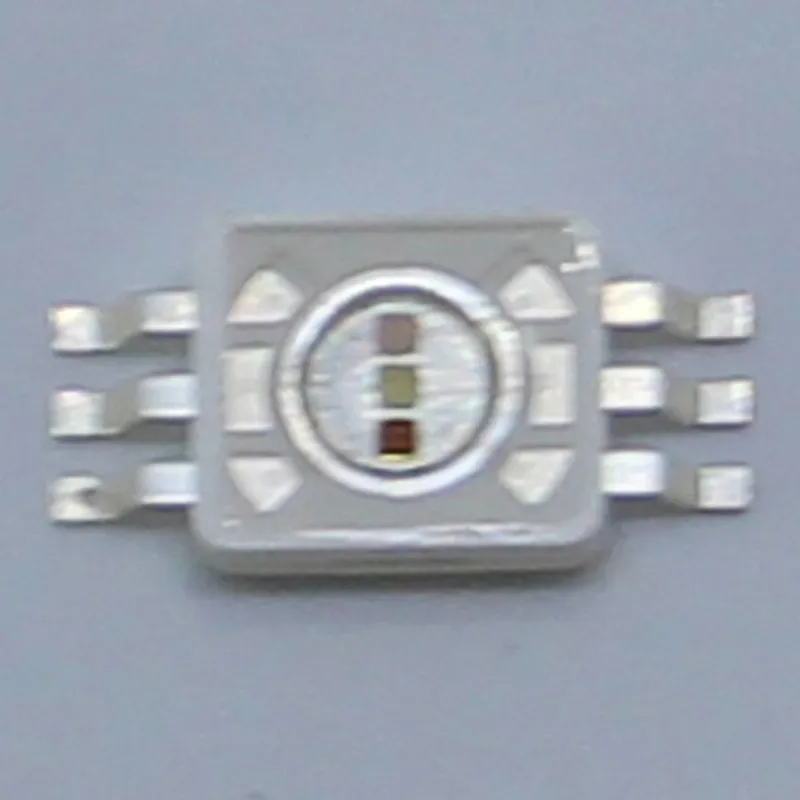

8090RGB lamp beads




common problem:

1, then a good light, the LED lights kept flash, what is the problem?

Reason: LED lamp beads and power does not match lead, please consider the replacement of power or lamp beads, we shop are supporting the foot.

2, how to determine whether the original lamp is less than tile or tile?

High power is the most common cast light industrial and mining lamps, from the weight of this heat sink kit point of view, the light is not enough tile, the standard description of the top picture for your reference, the corresponding weight is the real wattage!

3, when the replacement lamp beads to pay attention to what place?

The most important thing is to wipe the previous thermal grease, because the thermal grease also has a shelf life, wipe clean our new.

B lamp beads fixed, four corners to the four screws, not less, to tighten, do not move so far, it is best to use an A4 paper to see if it can plug into the lamp beads and heat sink, Row.

C drive do not no-load test, equipped with lamp beads and then test the voltage and current, otherwise the test then then connected to the lamp beads, the voltage is too high to easily burn the lamp beads (burning rate of up to 10%).

note

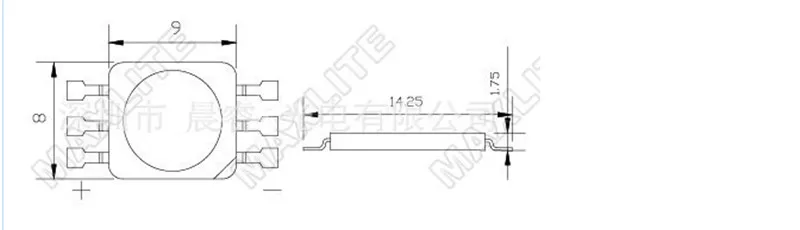

1, all sizes are in millimeters.
2, prohibit the drive led without cooling device.
3, it is strongly recommended to use the temperature is not higher than 55 ℃.
4, must comply with the appropriate current derating to keep the junction temperature below the maximum.
The LED is not set to drive with a bias bias.


1, delivery
  After the buyer payment, we will deliver the goods on time, the product delivery, delivery of goods, delivery service time provided by the carrier, not including weekend holidays. Transit time may vary, especially during holidays.
Parents must fill in the correct address at the time of purchase and we will use this address

EMS: 5 ~ 9 working days.
DHL, UPS, FEDEX, TNT: 3 ~ 6 working days.
AliExpress Standard Shipping Cost: 12 ~ 30 working days
China Post Registration E-mail: 12 ~ 30 working days

2, warranty
All lamp beads will be tested and delivered 100% before delivery, safe packing.
We promise 2 years warranty, please follow the lamp beads in strict accordance with the use of parameters
We are very grateful to you for providing us with 5 star positive feedback,
If you are not satisfied with the professionals, please contact us, we will be happy to serve you

3, After sale
If you are not satisfied with these items, please contact us within 7 days after receipt of the goods, exchange or refund, to return or replacement of the lamp beads, please do not use welding, please return or replacement before contact me. In the case of no quality problems, if you want to return or replacement, you can still send it back to us, but you have to pay an additional round-trip shipping costs!
