Linear Guide Rail CNC Slide Stage Actuator Ball Screw Motion Table Nema 23 Motor

No reviews yet Write a Review
7 sold in last 17 hours
Choice Sale
Limited Time Offer
Now: $57.32
Was: $100.55
43% Now
31 sold

Deliver to

Columbus
🇺🇸 Ship from U.S.
Free Shipping Delivery byThursday, April 24, Order within
11 hrs 59 mins 58 secs

Shipped By: AliExpress

Fast Delivery
  • $1.00 coupon code if delayed
  • Refund if package lost
  • Refund if items damaged
  • Refund if no delivery in 30 days
SKU: AE12000043969673081
Brand: NoEnName_Null
Security & Privacy
  • Safe payments: We do not share your personal details with any third parties without your consent.
  • Secure personal details: We protect your privacy and keep your personal details safe and secure.
FREE Return
Shop sustainably

Features：Model: GGPEffective stroke: 100mm /200mm/ 300mm Accuracy: 0.03mmBallscrew diameter: 12mm; Lead:  4mmSpeed:40-100mm/sHorizontal load: 30kg-max…

Selected Color is 200mm (black) - 979
Adding to cart… The item has been added

Linear Guide Rail CNC Slide Stage Actuator Ball Screw Motion Table Nema 23 Motor

Now: $57.32
Was: $100.55
Choose Options
✕

Linear Guide Rail CNC Slide Stage Actuator Ball Screw Motion Table Nema 23 Motor

Now: $57.32
Was: $100.55
6 customers are viewing this product
Description

Features：

Model: GGP

Effective stroke: 100mm /200mm/ 300mm

Accuracy: 0.03mm

Ballscrew diameter: 12mm; Lead:  4mm

Speed:40-100mm/s

Horizontal load: 30kg-max 50kg

Vertical load:  15kg


Nema 23 stepper motor;

Diameter 57 * 56mm

Voltage: 24V

Current: 3A

Torque: 0.9NM


Package Included:

1pc Ball Screw Guide Sliding Table

1pc 23nema stepper motor

High quality

First of all this store has one of the best support you will receive and I mean it. I bought the actuator from them and they even gave me another one that was used as a gift for free! They responded through ALL of my questions as I was designing my product. They also gave me a free replacement coupling to fit my smaller motor shaft. Second, their product is definitely better than I expected especially for the.The ball screw and linear shafts are made very precise and there is barely any play. The ball screw nut has a built in pre-load so their should not be any play or backlash for driving forces. Not sure how much force it can handle but i'm sure it can handle alot since the design is well built for it. The best part of it is that this specific actuator comes in with a set of limit switches , a dust cover, a motor bracket, and mounting holes all in one package!

Widely application

Bought one unit to test, and it worked great for my application. Amazon did not have enough for my entire application, so contacted the vendor through Amazon. They were extremely fast to respond, and even offered to make a custom mount for my motors (for a very fair). Very responsive and very quick shipping. Will be using again in the future.

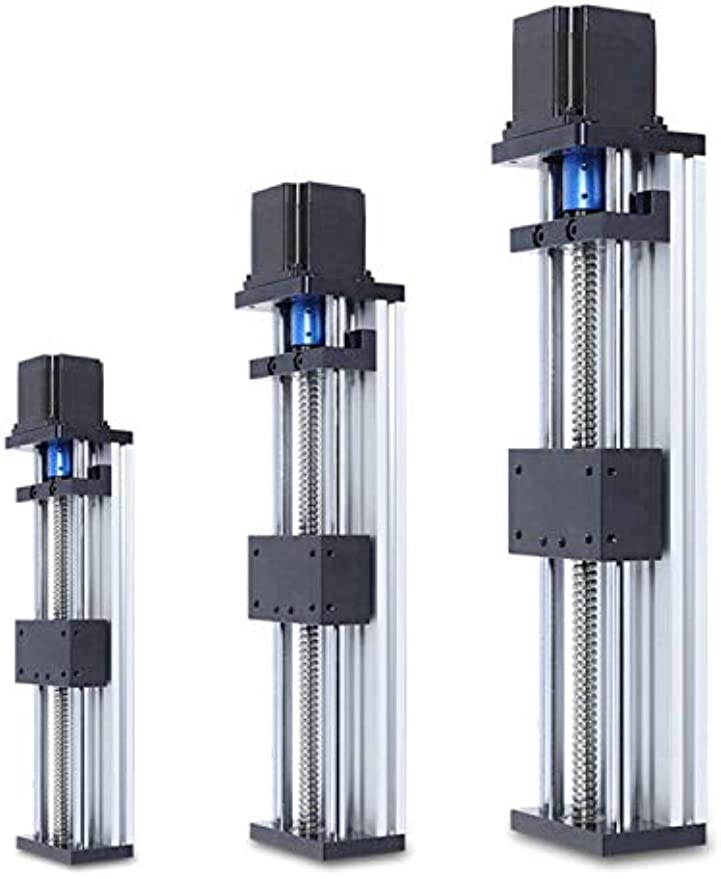

Three options

The part is machined more solid than expected, also heavier than the images make it look like. Runs smooth and easy. Great deal. CS replies pretty fast during office hours in CN, they are happy to provide drawings if things are unclear





100mm

200mm

300mm


40-100mm/s

40-100mm/s

40-100mm/s


24V

24V

24V


30kg-max 50kg

30kg-max 50kg

30kg-max 50kg



Main parameter

Model: GGP

Effective stroke: 100mm /200mm/ 300mm

Accuracy: 0.03mm

Ballscrew diameter: 12mm; Lead: 4mm

Speed:40-100mm/s

Horizontal load: 30kg-max 50kg

Vertical load: 15kg

Nema 23 stepper motor;

Diameter 57 * 56mm

Voltage: 24V

Current: 3A

Torque: 0.9NM
