Product Description

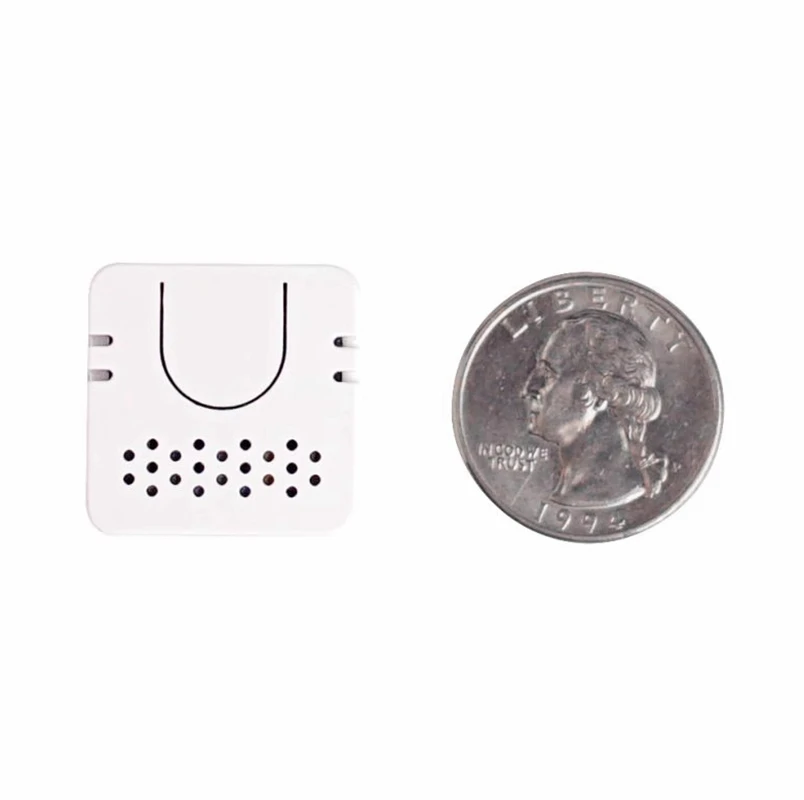

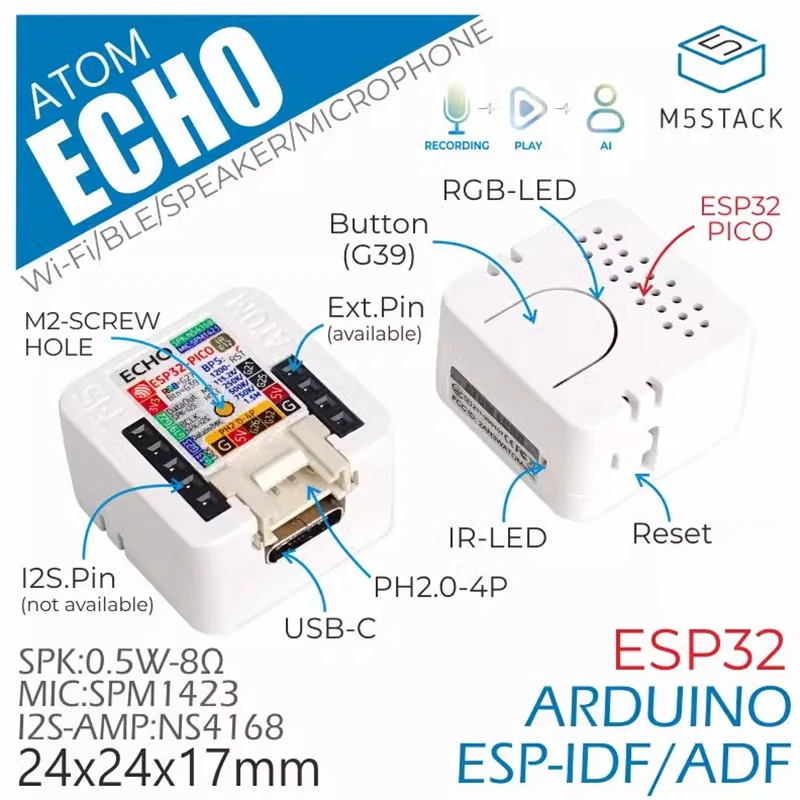

ATOM ECHO is a programmable intelligent speaker designed based on ATOM, with a very small size of only 242417 millimeters. It can play music by connecting to mobile phones, tablets, etc. through the built-in Bluetooth function of ESP32, and can also play specified streaming music through WIFI. In order to facilitate users' use of voice function, we have integrated STT (Voice to Text) service in ATOM ECHO. You can enable this function by burning specific firmware and complete various operations through voice commands. Of course, you can also write your own code to access cloud platforms such as AWS and Google, and use built-in microphones and speakers for voice interaction, enabling ATOM ECHO to have certain AI capabilities and achieve functions such as voice control, intelligent dialogue, and the Internet of Things. The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a smart speaker, it still has the control capabilities of the ATOM series. You can connect external devices through the GROVE interface. G21/G25 can only be used for general IO, and does not support UART and I2C. There is an M2 screw hole on the back for easy user fixation.
Note: This product does not recommend playing bass music for long periods of time.
Product characteristics
Lightweight and compact
Support STT services
Based on ESP32, supports A2DP, BLE 4.0
WIFI protocol IEEE 802.11b/g/n
Integrated microphone and speaker
RGB LED status display
GROVE extension interface
Recording and sound playback
Independent programmable buttons
Programming platforms: Arduino, ESP IDF/ADF
contain

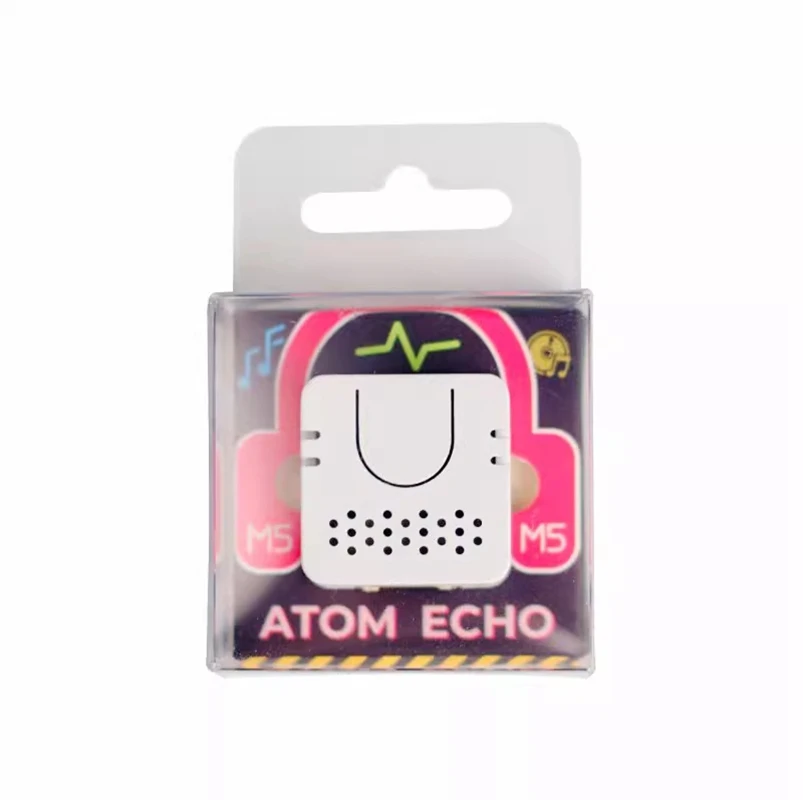

1x ATOM ECHO
application
Bluetooth Speaker
Voice control
Internet of Things
