CM4STACK is an integrated micro host based on the Raspberry Pi CM4 core board, using the CM4104032 module with built-in WiFi, 4GB of memory, and 32GB eMMC. The host includes rich peripheral devices: a 2.0-inch IPS-LCD screen with capacitive touch, with a resolution of 320x240; 2 USB3.2-A ports (pcie+ASM3042); a USB-C (2.0) interface that supports OTG and host power supply; 1 HDMI interface; 1 Gigabit Ethernet interface (RJ45); 1 DC-JACK DC power input interface (12V@3A); 2 HY2.0-4P expansion ports, which are I2C and UART interfaces respectively; built-in 2W speakers, equipped with AW88298 16-Bits I2S amplifier; 1 ATECC608B security encryption chip; 1 RTC chip BM8563; built-in active cooling fan and aluminum alloy heat sink frame. This product supports DIN rail, wall hanging, and screw fixing methods in structure, and is suitable for industrial automation, smart homes, and IoT fields.

To learn more about the CM4Stack boot configuration, visit https://docs.m5stack.com/en/quick_start/cm4stack

Features

1.High-performance embedded system: built-in multiple powerful chips and interfaces, equipped with a 2.0-inch LCD screen and touch function, capable of displaying high-quality videos and images.
2.Multiple interfaces and functions: including antenna interface, 2W speaker, HDMI interface, USB-C (2.0) interface, USB3.2 interface, Gigabit Ethernet interface (RJ45), I2C interface, serial port, and DC power input port, supporting various peripheral devices and data transmission methods.
3.Security performance: equipped with a security authentication chip AW32901ID-KEY (ATECC608B), capable of secure data transmission and storage.
4.Clock function: equipped with RTC chip BM8563, capable of clock function.
5.Heat dissipation design: equipped with a heat dissipation base and heat dissipation fan to ensure stable system operation for a long time.

Includes

1 x CM4Stack
1 x CM4Stack Power Adapter (DC_12V 3A)
1 x Hex key 2mm
1 x CM4Stack instruction manual
1 x CM4Stack base snap
1 x CM4Stack screw holder

Applications

Industrial Automation
Smart Home
Internet of Things (IoT)
Education and Development

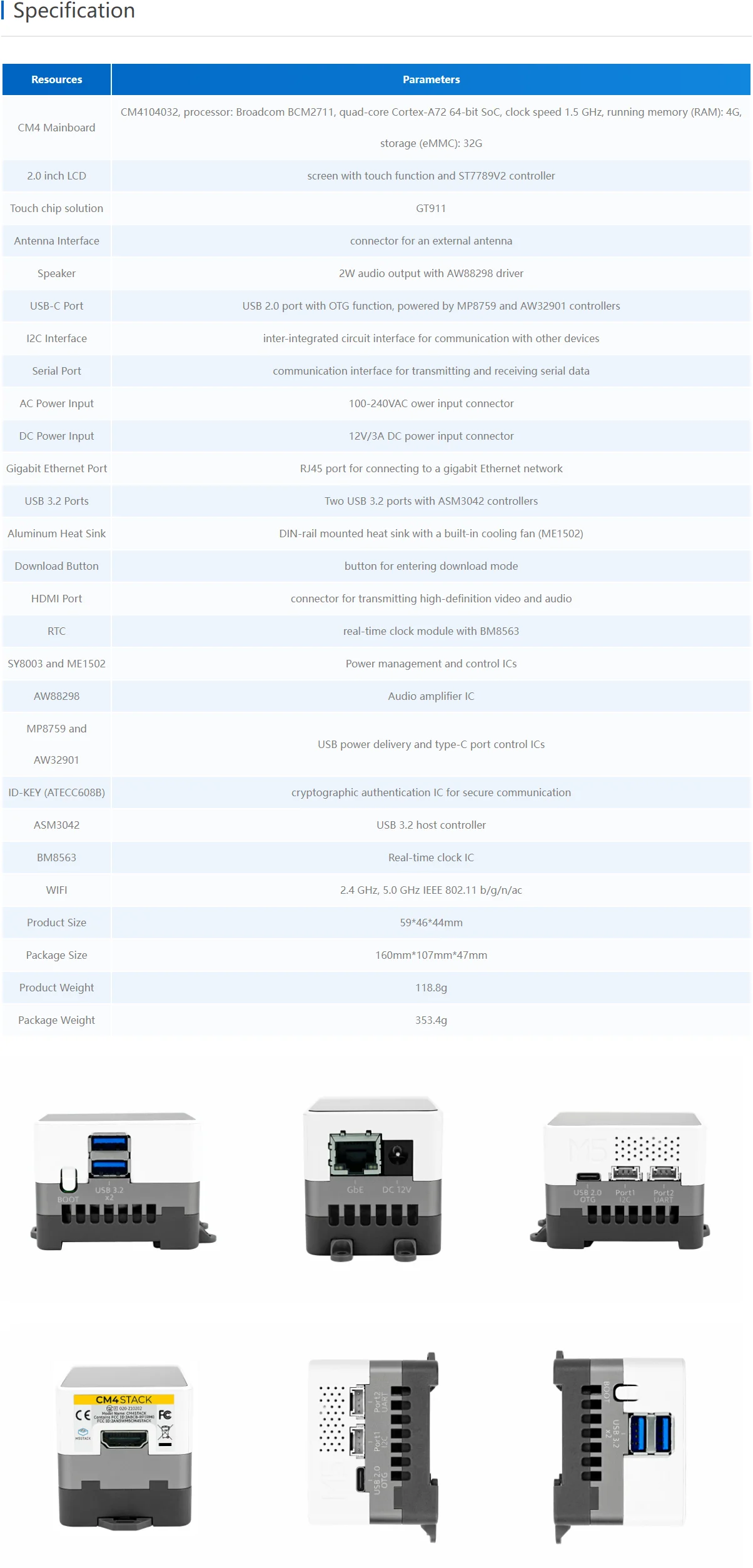

Specification
