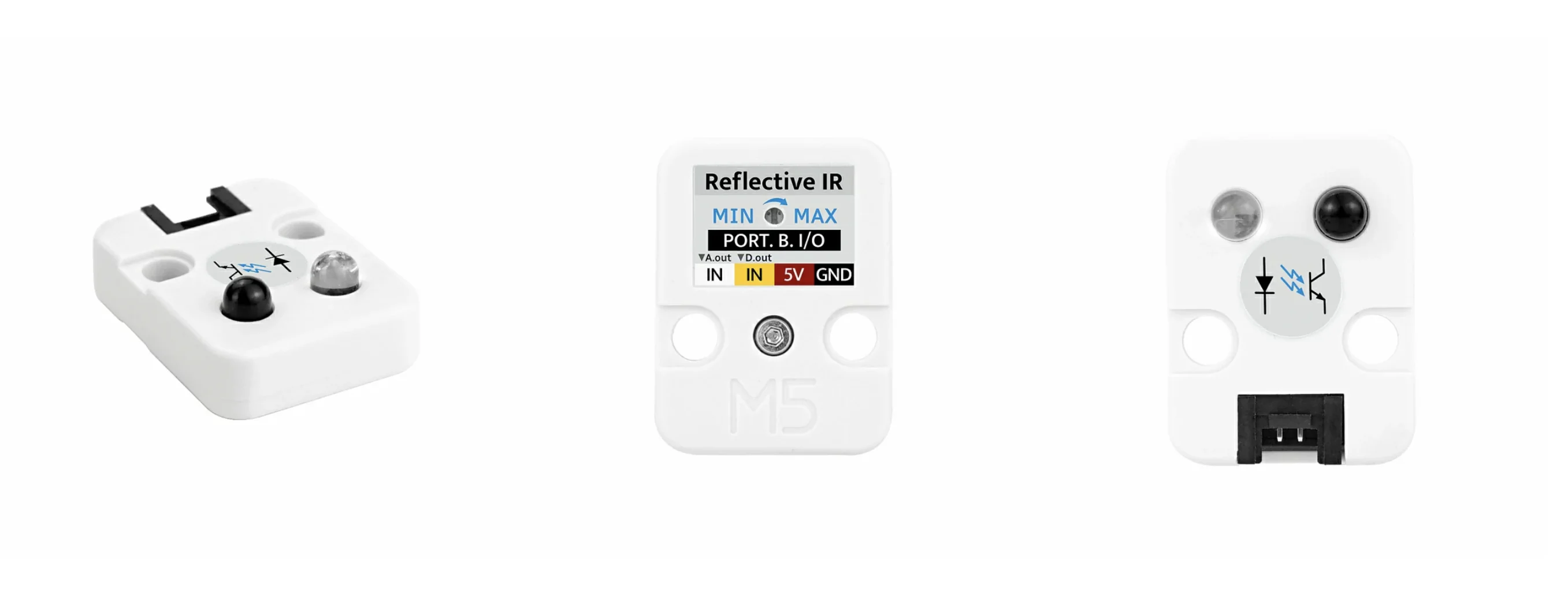

Reflective IR Unit is an infrared sensing unit that can efficiently and accurately detect the reflected infrared light from target objects. It is suitable for applications such as object detection, tracking, distance measurement, and automation systems.

It generates a corresponding voltage value based on the intensity of infrared signals reflected by obstacles. At the same time, Reflective IR Unit also integrates the design of LM393 comparator, which can convert analog signals into reliable digital signals for processing and interpretation in digital systems. This dual output of analog and digital signals provides users with diversified choices and application scenarios.

When using the Reflective IR Unit, the LED indicator can play an important role. By digitally controlling the LED indicator, it can intuitively display the sensing state of the sensor, allowing users to quickly understand the operating status of the system. Whether in the laboratory or engineering projects, this intuitive feedback mechanism can help users find problems and make adjustments in a timely manner.

Reflective IR Unit is also equipped with a 10k adjustable potentiometer. Users can optimize the sensor performance by adjusting the sensitivity and threshold to adapt to different environments and application requirements. This flexibility makes the Reflective IR Unit a multifunctional and adaptable sensing unit that can meet the needs of various scenarios.

Features

* Infrared sensing technology: The use of advanced infrared technology can efficiently and accurately detect the reflected infrared light of the target object.
* Analog signal output: Through the infrared receiving tube and 10k resistor voltage division, the corresponding voltage value is generated according to the intensity of the infrared signal reflected by the obstacle.
* Digital signal output: Integrated LM393 comparator converts analog signals into reliable digital signals for easy processing and interpretation in digital systems.
* LED indicator: digital signal control LED indicator, intuitive display sensor detection status, users can quickly understand the system operation.
* Adjustable potentiometer: Equipped with 10k adjustable potentiometer, users can optimize sensor performance by adjusting sensitivity and threshold to adapt to different environments and application needs.
* Programming platform: Arduino, UIFlow, etc

Includes

1x Reflective IR Unit
1x HY2.0-4P Cable（20cm）
1x Potentiometer Screwdriver

Applications

* Object detection
* Range measurement
* Automatic system
* Security and protection system
* Line Fllowing

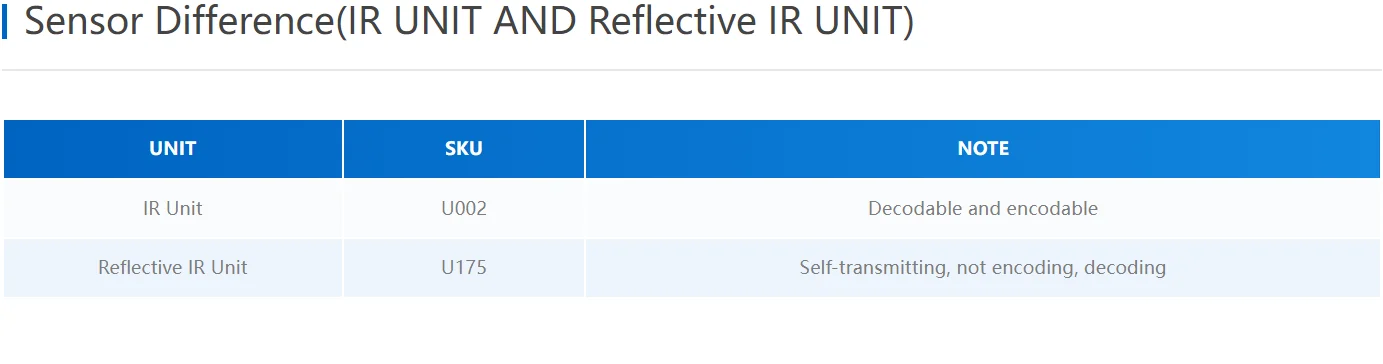

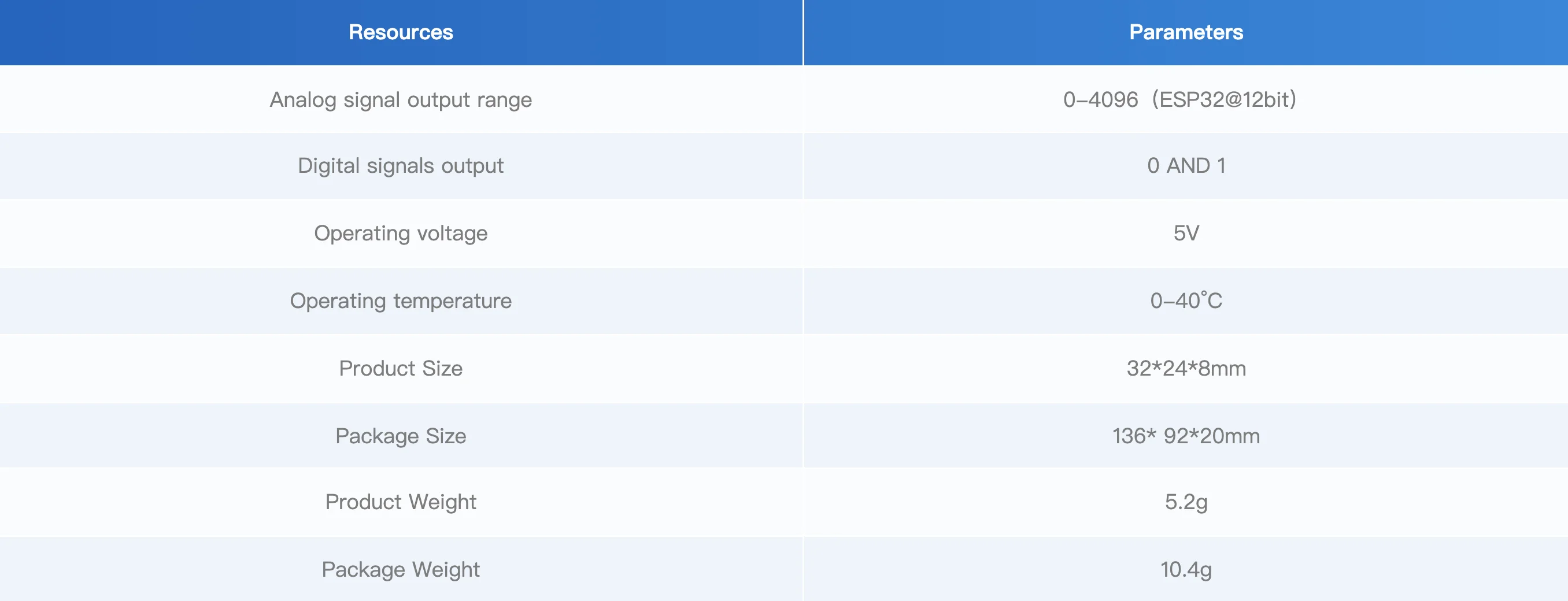

Specification

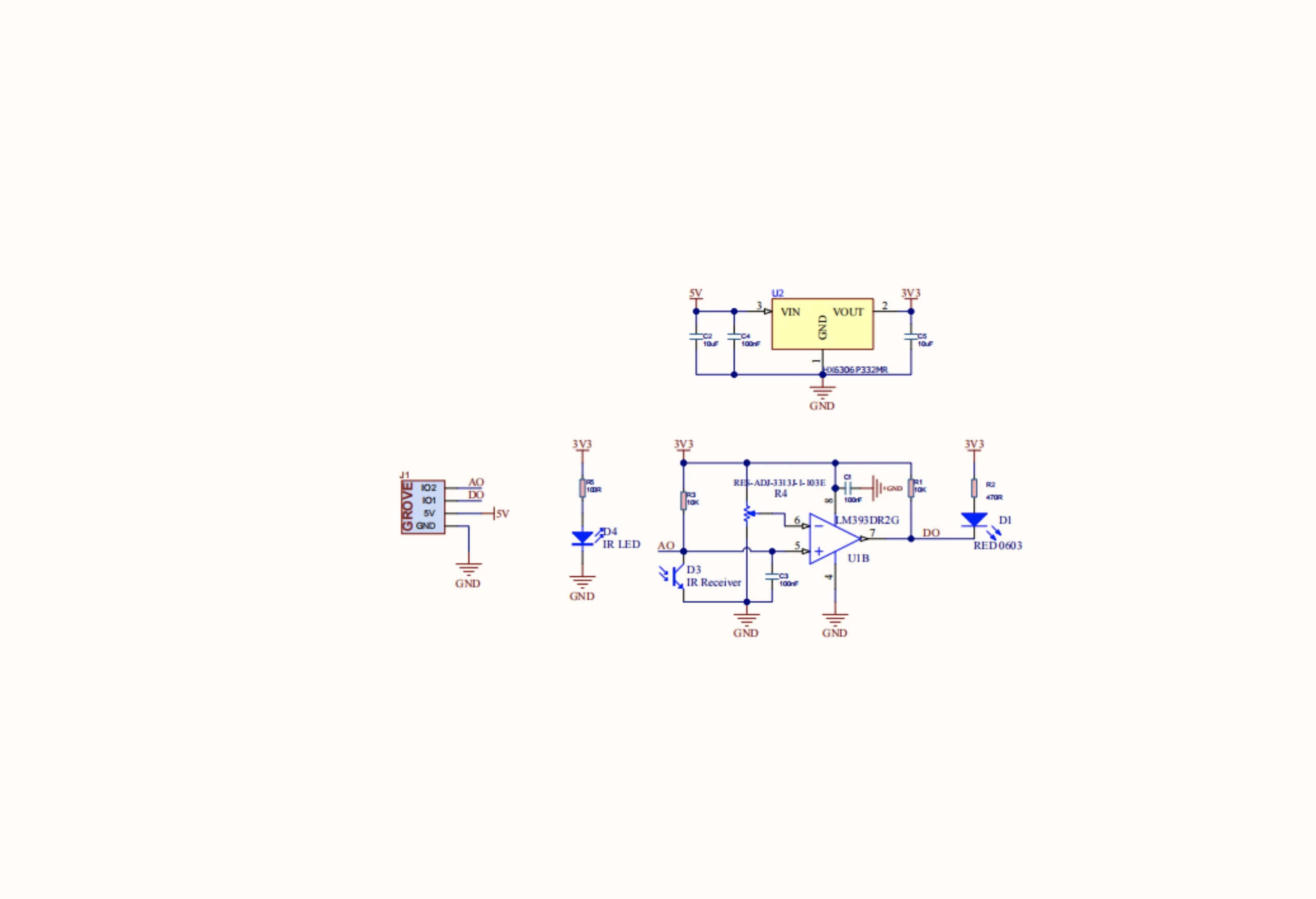

Schematic

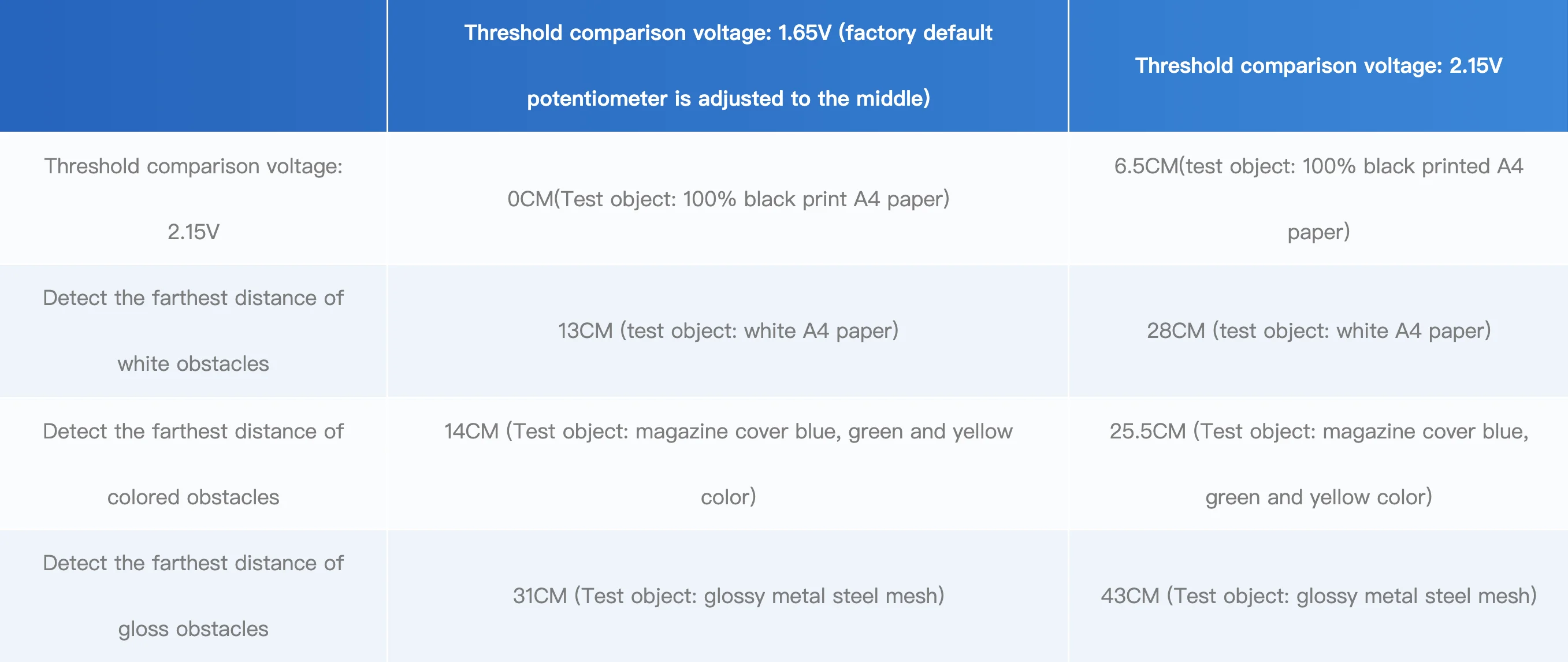

Detection Range

PinMap

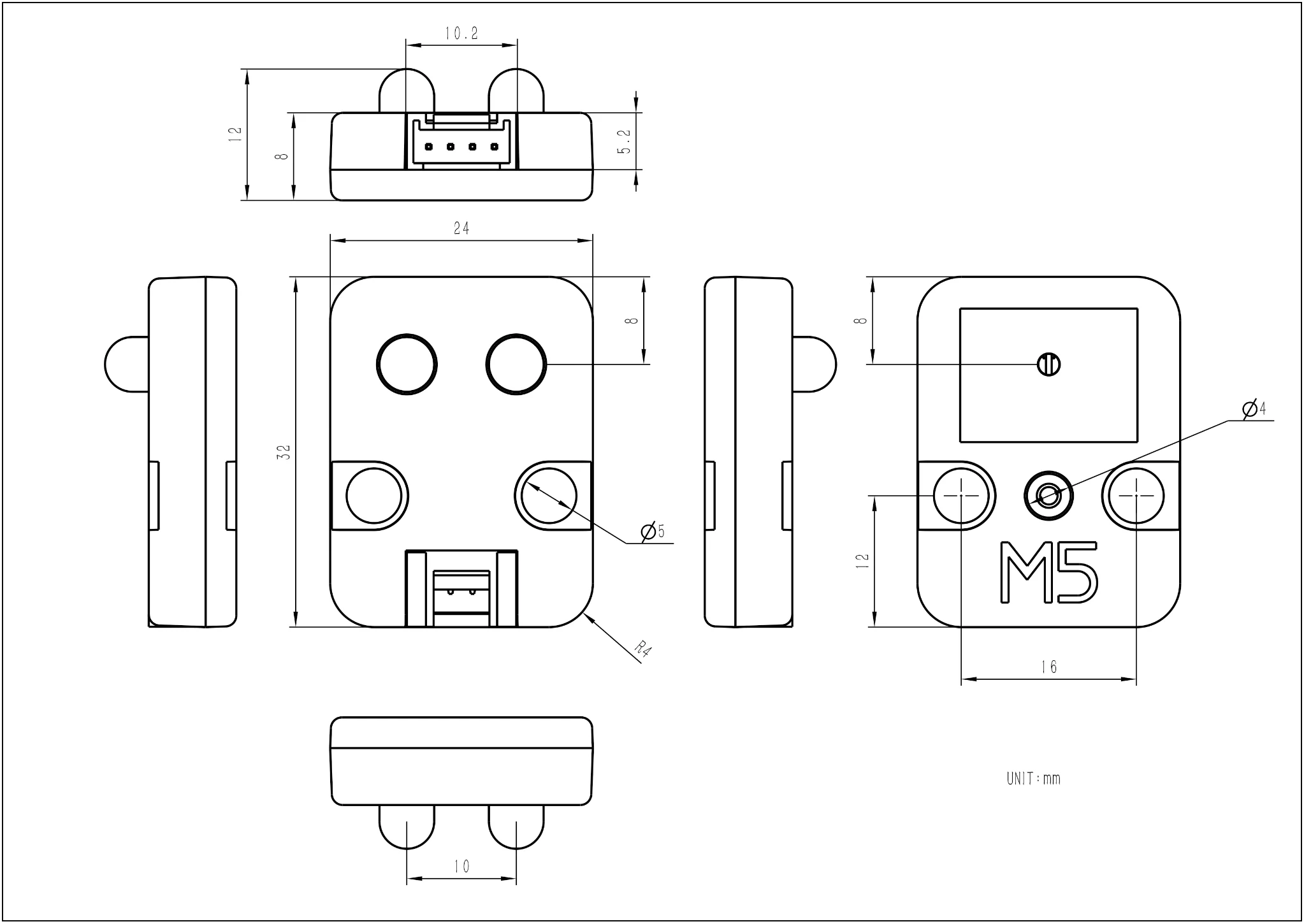

Module Size
