MiniJoyC HATis a 'joystick controller expansion base' used withM5StickC/C-CPlus, which integrates XY axis joystick, 'with button' function, and comes withI2C HY2.0standard interface to facilitate the expansion of other components; Containing200mAh lithium polymer batteryand oneSK6812 RGB LED. This product can be used for remote control of drones or trolleys and remote control of robot joints, etc.

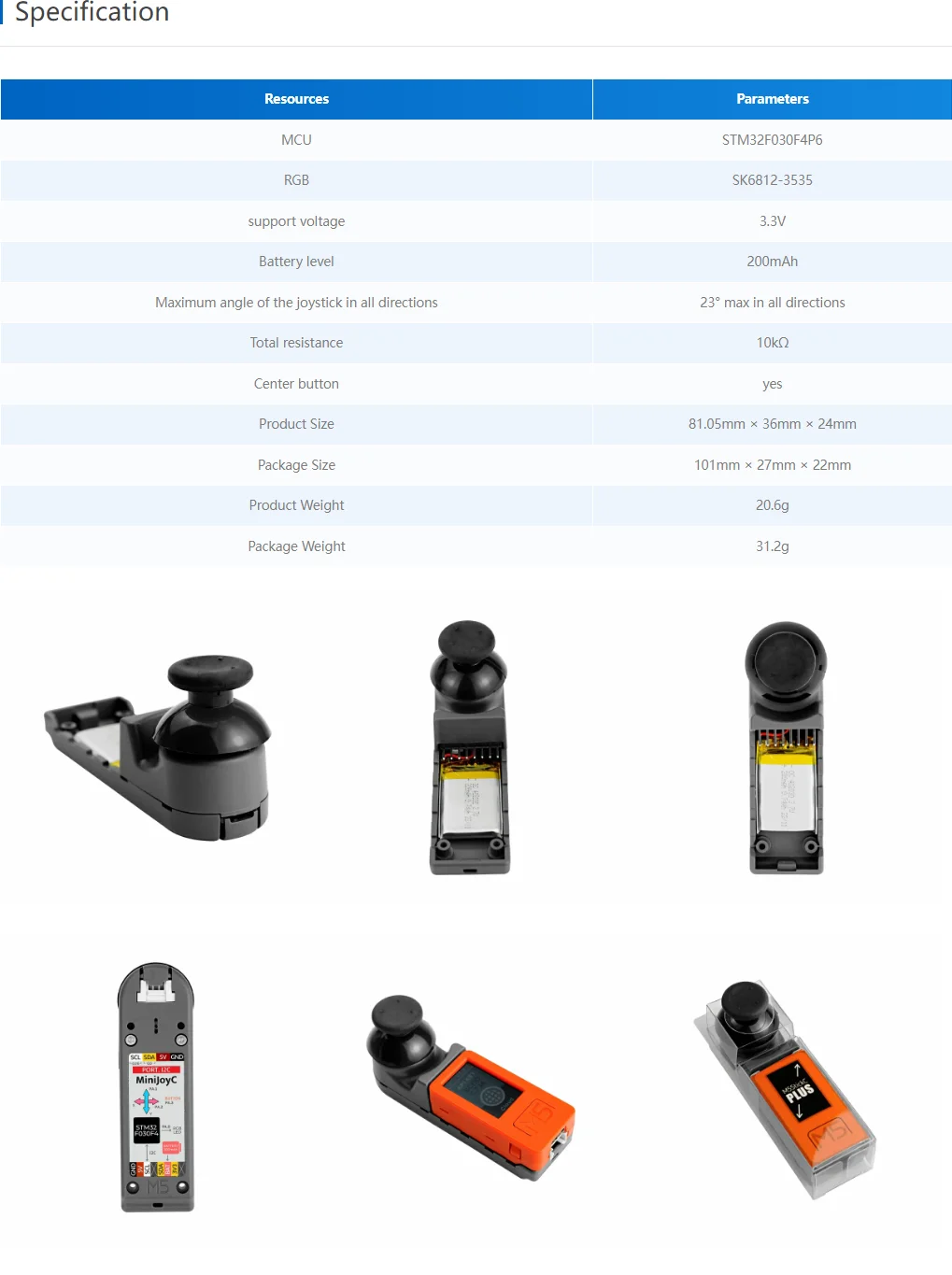

Features

1.The maximum angle of the joystick in all directions is 23°
2.The total resistance is 10KΩ
3.Center button
4.SK6812 programmable RGB LED
5.200mAh battery
6.HY2.0-4P interface

Includes

1x MiniJoyC HAT
1x lanyard
1x 2.0mm hex key
2x M2*8mm screws (cup head, self-tapping)

Applications

Drone remote control
Robotic joint control
Light conditioner
Remote control of the trolley
