NEW VFD Inverter 15/18.5/22/30/37/45/55KW Frequency Converter 3 Phase 380v 3 Phase Motor Speed Control Converter
Limited Time Offer
Choice
Trending
Now:
$470.81
Was:
$547.45
-14% Now
Up to 4 x $118 with no interest
Deliver to
Ship from Local Warehouse
NEW VFD Inverter 15/18.5/22/30/37/45/55KW Frequency Converter 3 Phase 380v 3 Phase Motor Speed Control Converter
Free Shipping
Delivery byWednesday, December 3, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000043931088702
Brand: ECOGOO Factory Store
Security & Privacy
FREE Return
Shop sustainably
Output Power:15kw/18.5KW/22KW/30KW/37KW/45KW/55KWRated Frequency :50hzOutput Frequency Range:0~650HzInput Voltage Range: 3 phase 380V±15% Output Volta…
Related Products
Description

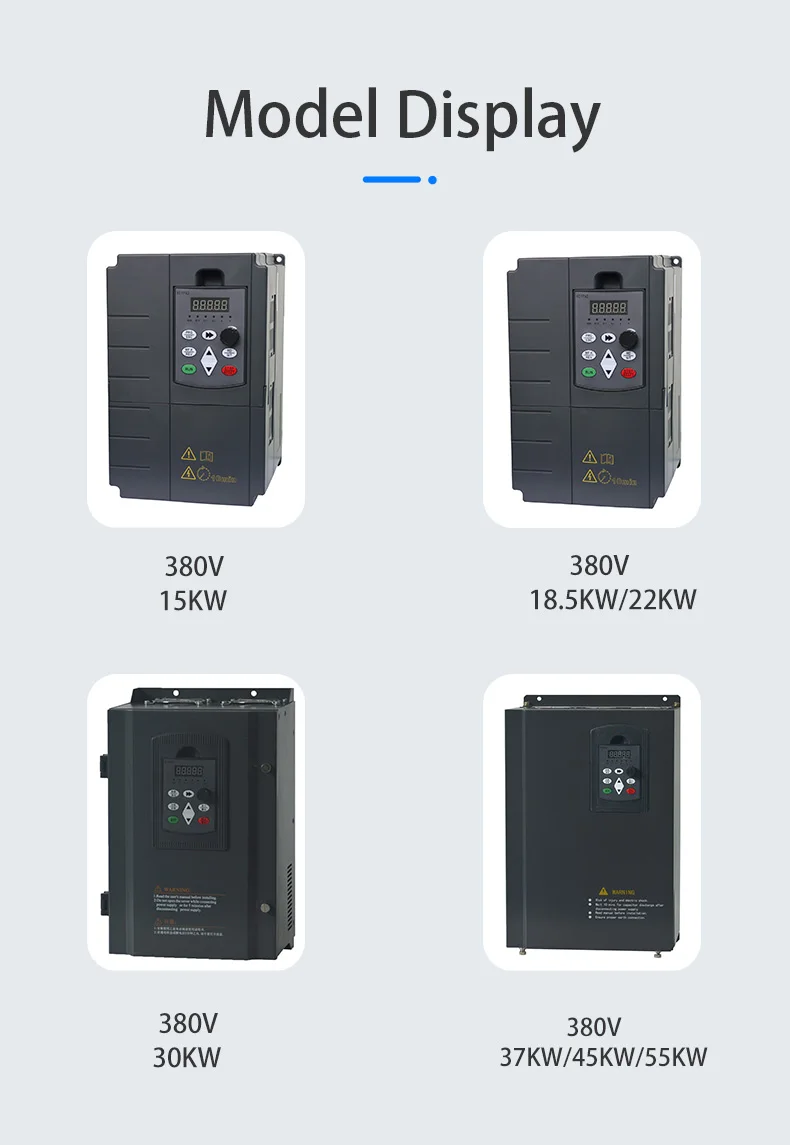

Output Power:15kw/18.5KW/22KW/30KW/37KW/45KW/55KW
Rated Frequency :50hz
Output Frequency Range:0~650Hz
Input Voltage Range: 3 phase 380V±15%
Output Voltage Range:3 phase 0-380V±15%
Control way: Open loop vector control(SVC) V/F control
Starting Torque: G type machine:0.5Hz/150%( SVC)
Basic Function: Speed tracking,PID control,auto speed compensation,AVR,Torque control.time control, multi-speed choice etc
Digital Display/Status ldicator: Display frequency.speed,current.voltage ,forward/reverse,fault etc
Main function: Control and adjust the speed of the ac motor
01 V/F control, vector control and output torque control;

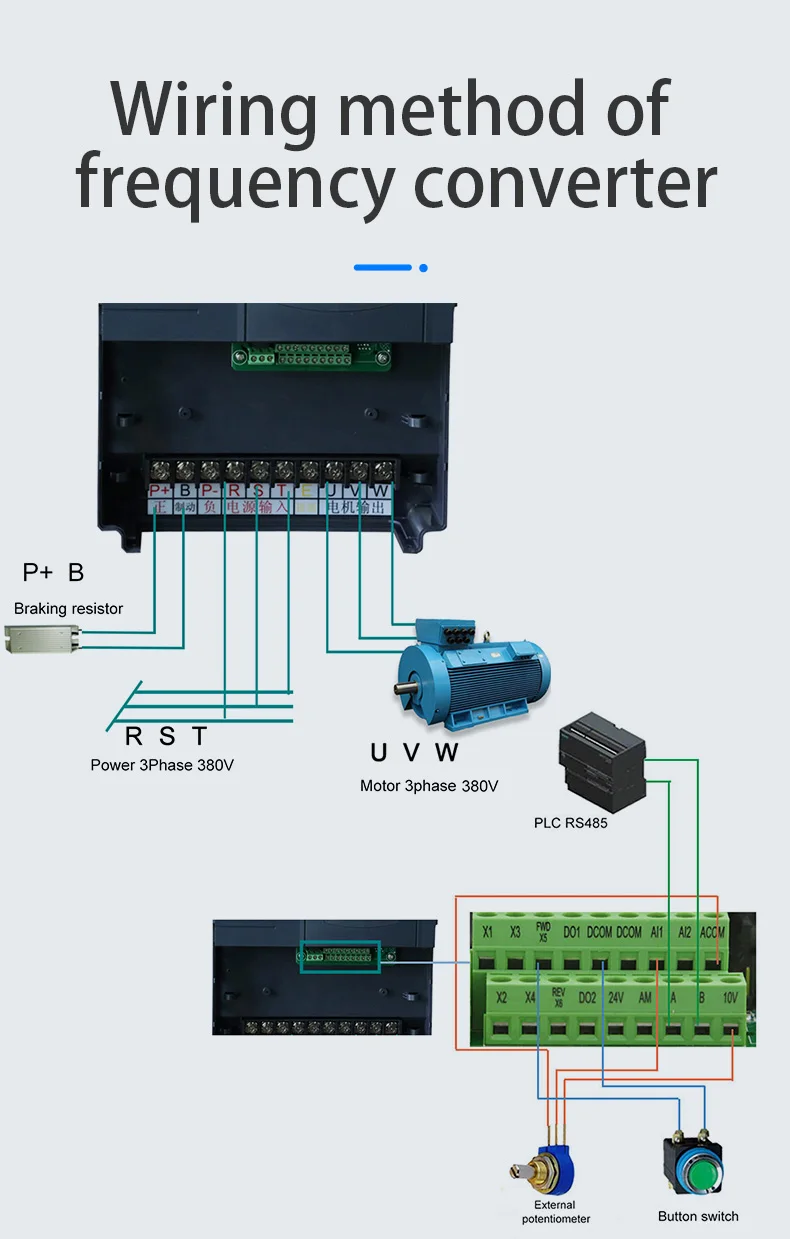

02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake function,instead foreign inverter application on freight elevator and crane.
