PCIe to SATA Expansion Card 8 Port SATA Multiplier PCI Express X1 Controller SATA 3 HDD SSD Adapter PCI E SATA3 Riser for Mining

About Description:

Feature:
1. Good reliability, availability, and high compatibility.
2. Able to achieve fast data transmission, up to 6Gbps transmission mechanism, save more time!
3. 8 standard SATA III ports, which can be connected to multiple devices at the same time.
4. Can be used as a system disk, supports large-capacity hard disks, and can be connected to SSD!

Specification:
Transmission rate: 6Gbps

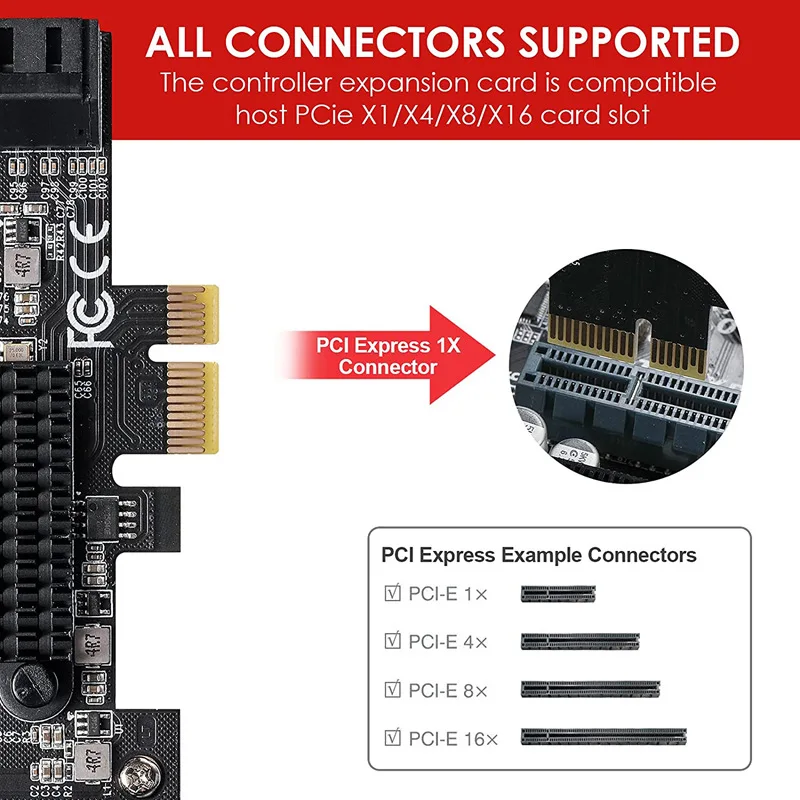

Bus type: PCI-E X1, compatible with PCI-E X4/X8/X16 and other interfaces
Bus speed: PCI-E 3.0
Interface: SATA III
Number of SATA interfaces: 8
Installation conditions: there must be one or more free PCI-E slots on the motherboard
Working temperature: -10~+60 °C
Storage temperature: -20~+40 °C
Application: desktops, workstations, servers, industrial equipment

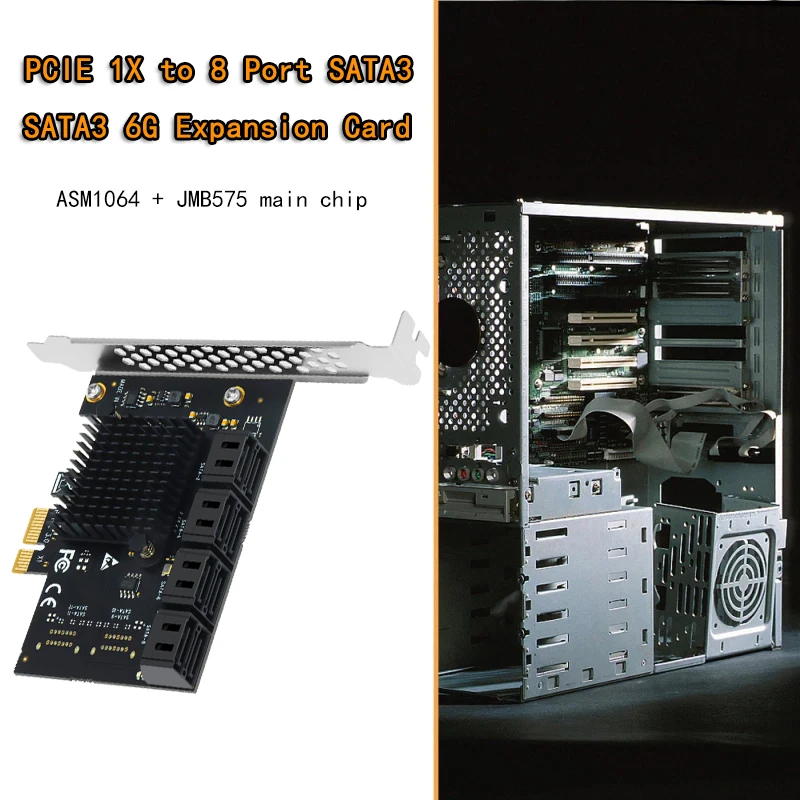

Main chip: ASM1064 + JMB575
Driver support: for Windows, for Mac , for NAS, for LINUX, etc.
Function: Support Mining

Warm Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.


You'll receive:

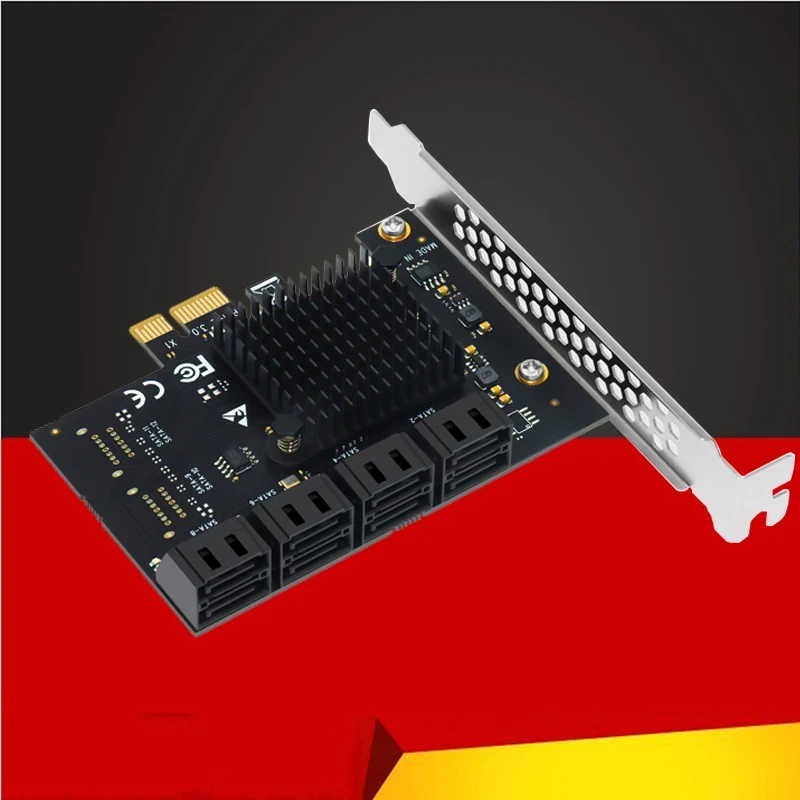

1 x PCIE 8 Port SATA3.0 Expansion Card

• Please check pictures for more details.
