USB HUB HAT (B) For Raspberry Pi Series, 4x USB 2.0 PortsUSB HUB HAT (B)Extended 4x USB 2.0 Ports, Suitable For Raspberry Pi SeriesFeatures At A Glanc…

Description

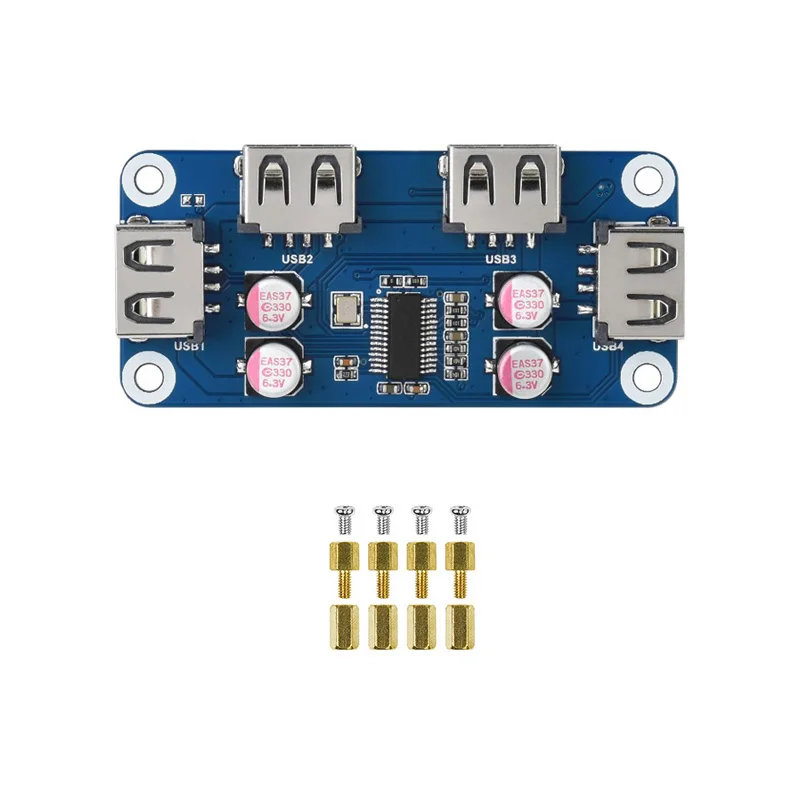

USB HUB HAT (B) For Raspberry Pi Series, 4x USB 2.0 Ports
USB HUB HAT (B)

Extended 4x USB 2.0 Ports, Suitable For Raspberry Pi Series

Features At A Glance

The USB HUB HAT (B) is a 4x ports USB HUB designed for Raspberry Pi. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards or PC through a USB cable.

  • 4x extended USB ports, compatible with USB 2.0 / 1.1

  • Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero 2W/Zero W/Zero WH

  • USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable

Compatible With Raspberry Pi Series

Specialized Pogo Pin For Zero Series, Plug-And-Play, Without Preventing Other HATs
Normal USB HUB Connector For Other Raspberry Pi Boards Or PC


4x Extended USB 2.0 Ports

USB1 ~ USB4, Compatible With USB 2.0 / 1.1

Outline Dimensions

Wiki:

https://www.waveshare.com/wiki/USB_HUB_HAT_(B)


USB HUB BOX For Raspberry Pi Zero Series, 4x USB 2.0 Ports
USB HUB BOX For Zero

Dull polish surface, well designed, nice & dust-proof

Extended 4x USB 2.0 Ports, Suitable For Raspberry Pi Zero Series

Features At A Glance

The USB-HUB-BOX is a HUB kit with USB HUB HAT (B) inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. This HUB BOX will provide 4x extended USB ports for your Zero, no more USB port shortage.

  • Designed for Raspberry Pi Zero, compatible with Zero series boards

  • 4x extended USB ports, compatible with USB 2.0 / 1.1

  • Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH

  • Angle rounded design, smooth hand feeling, "simple snap" case lid

  • Quality ABS material, dull polish surface, anti-fingerprint

  • Comes with two different lids, changing as you like

Compatible With Raspberry Pi Zero Series

Specialized Pogo Pin Connection, Dedicated Cut-Outs For Zero Series, Plug-And-Play


4x Extended USB 2.0 Ports

USB1 ~ USB4, Compatible With USB 2.0 / 1.1

Two Different Lids, Changing As You Like

"Simple Snap" Design, Easy To Change, Allows Attaching Other Zero HATs

Application Example
Raspberry Pi Zero is NOT included.

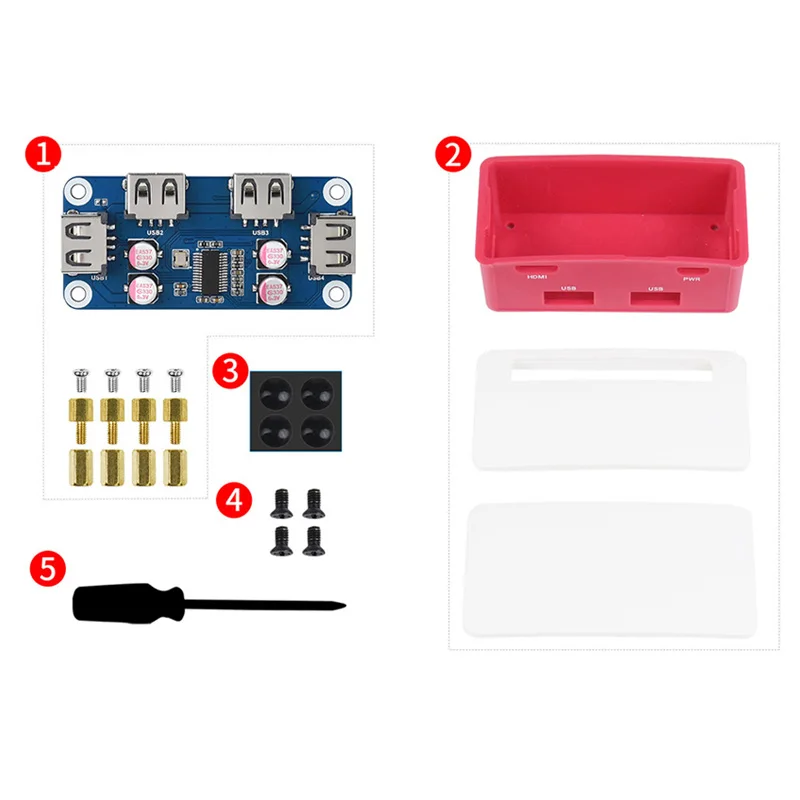

Packing List:

1 x USB HUB HAT (B)

1 x Screws pack



1 x USB HUB HAT (B)

1 x ABS case

4 x Rubber feet

1 x Screws pack

1 x Screwdriver
