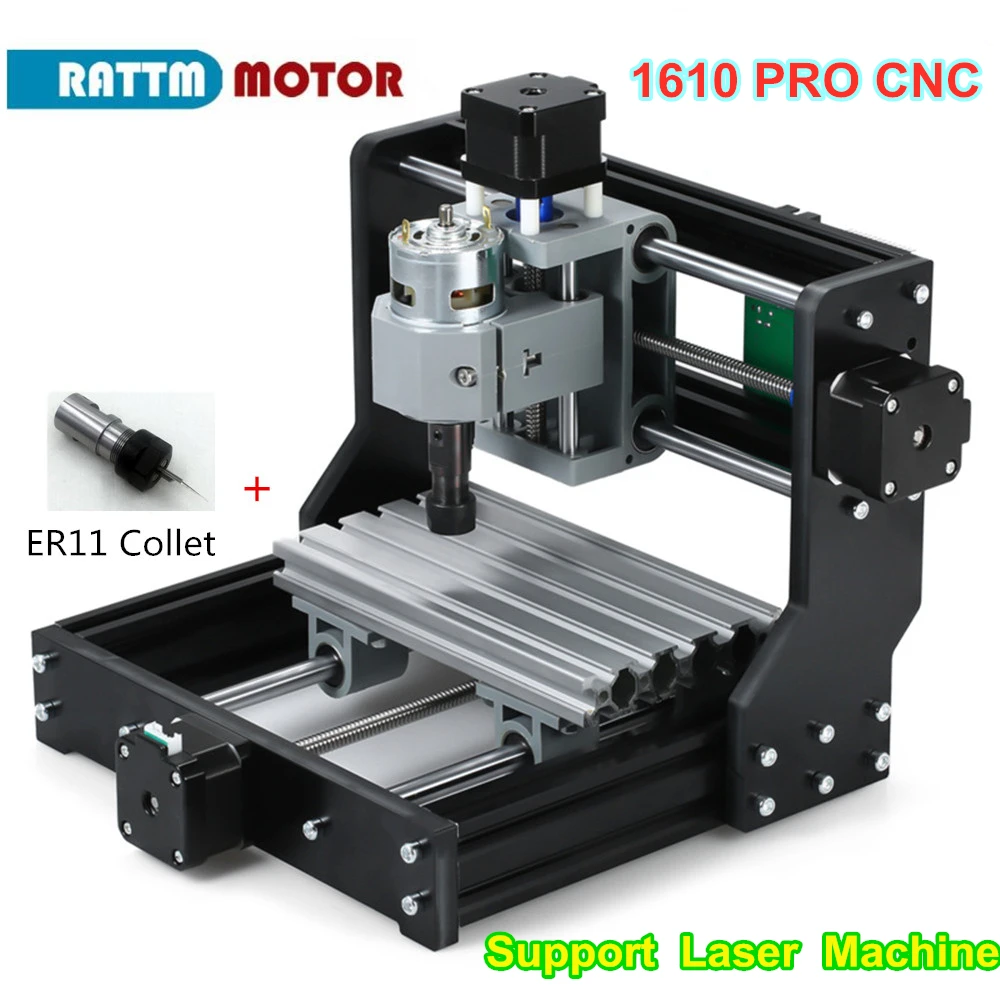

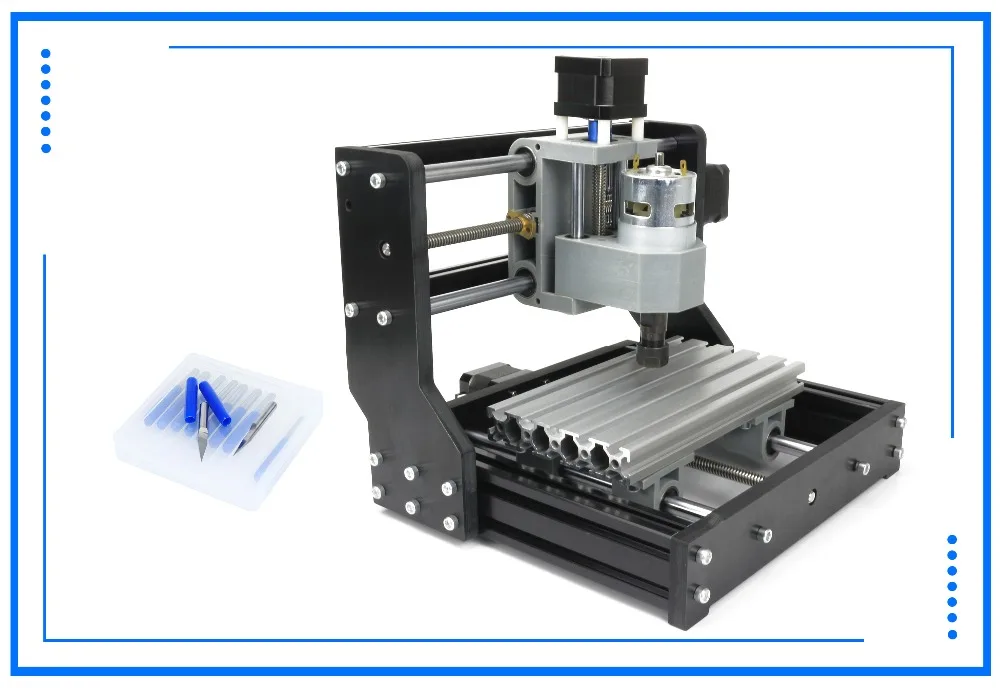

RATTM 1610Pro Mini CNC Milling Machine Upgrade GRBL DIY 3 Axis Laser Engraving Machine CNC Router Table for PCB Wood Cutter
Limited Time Offer
Choice
Trending
Now:
$176.22
Was:
$267.00
-34% Now
Up to 4 x $44 with no interest
Deliver to
Ship from Local Warehouse
RATTM 1610Pro Mini CNC Milling Machine Upgrade GRBL DIY 3 Axis Laser Engraving Machine CNC Router Table for PCB Wood Cutter
Free Shipping
Delivery byFriday, October 24, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000036236022358
Brand: RATTMMOTOR CNC- POWACE Store
Security & Privacy
FREE Return
Shop sustainably
Package include:1 ) 1 set 1610 Pro CNC Laser machine kit (without laser) + ER11-A type nut with Collet ( Self-assembly )2 ) 1 set 1610 Pro CNC Las…
Related Products
Description
Package include:

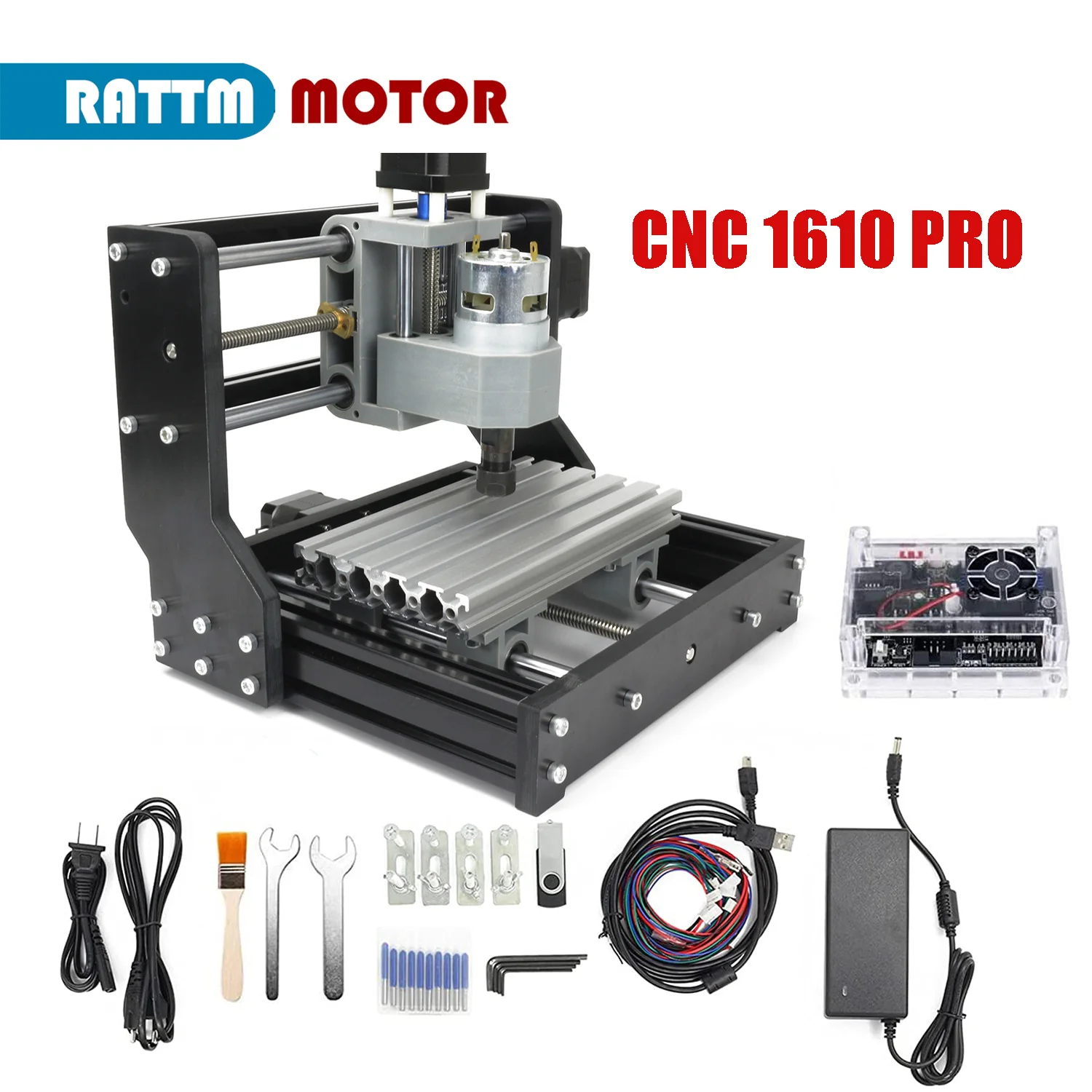

1 ) 1 set 1610 Pro CNC Laser machine kit (without laser) + ER11-A type nut with Collet ( Self-assembly )
2 ) 1 set 1610 Pro CNC Laser machine kit ( with 500mw laser head, only lase shipping from China ) ( Self-assembly )
3 ) 1 set 1610 Pro CNC Laser machine kit ( with 2500mw laser head,only lase shipping from China ) ( Self-assembly )
1 x ER11 collet
10 x 20°0.1mm drill bits
4 x plate
1 Set of allen wrench

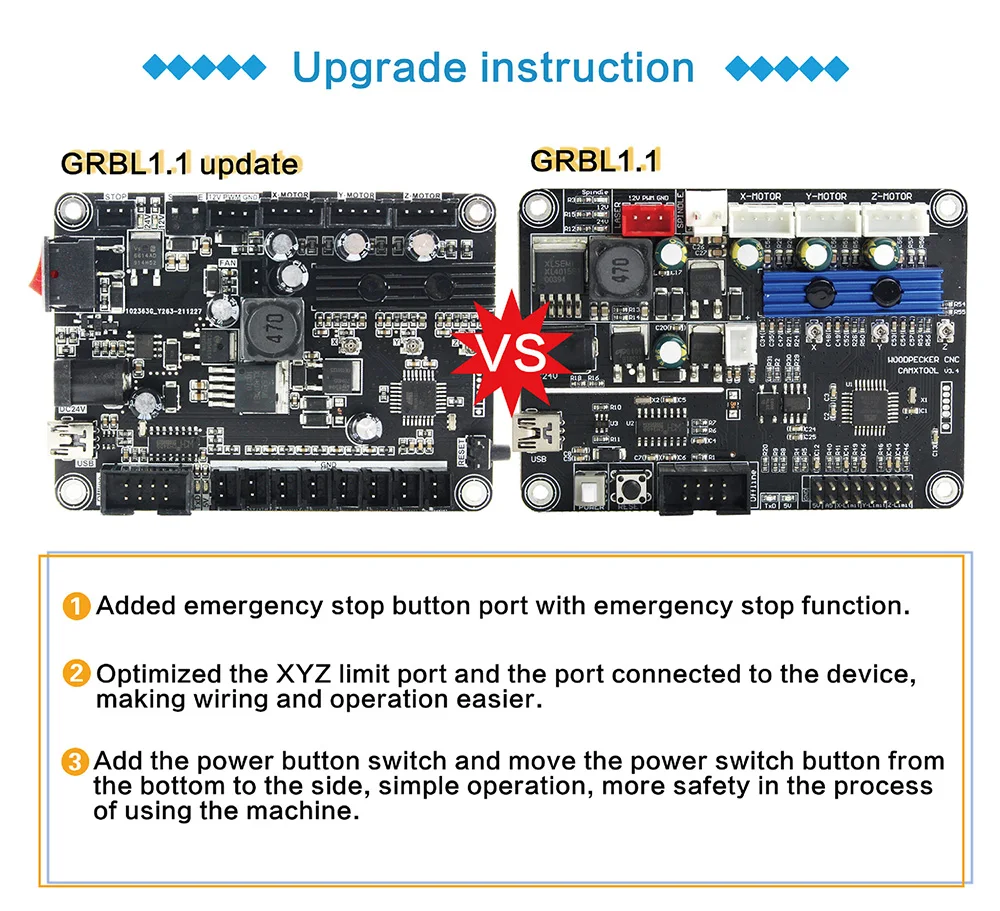

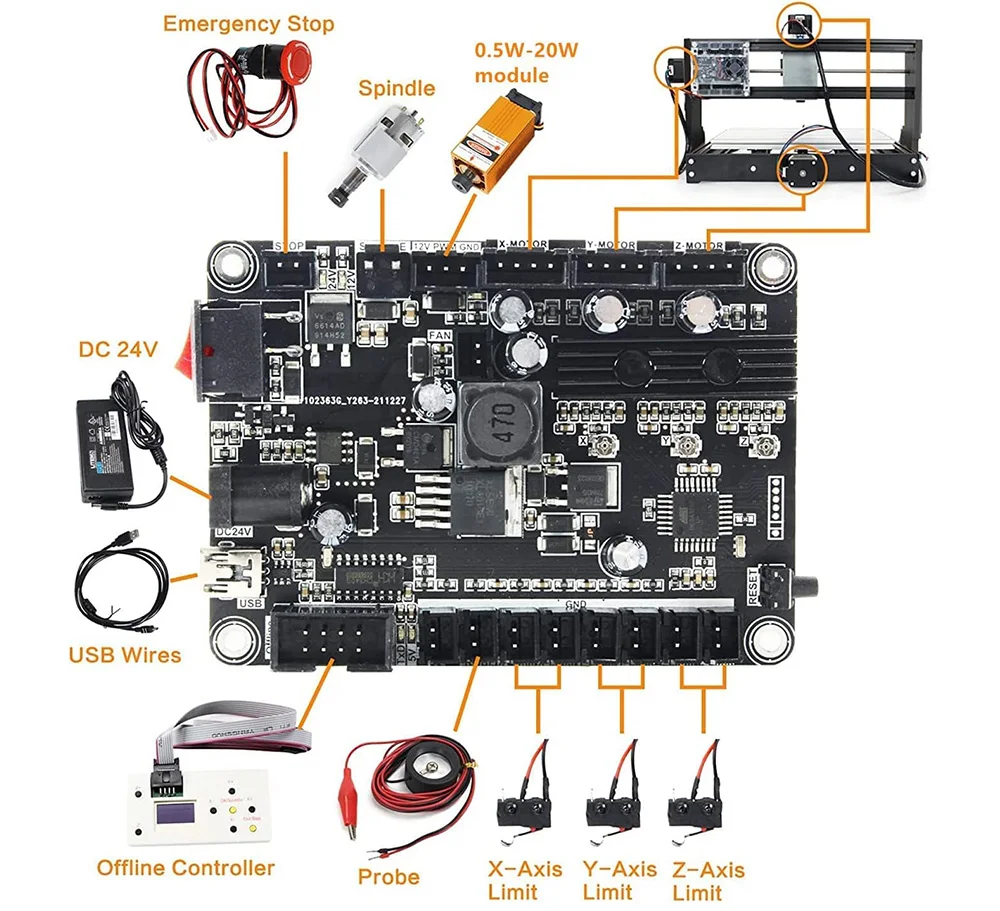

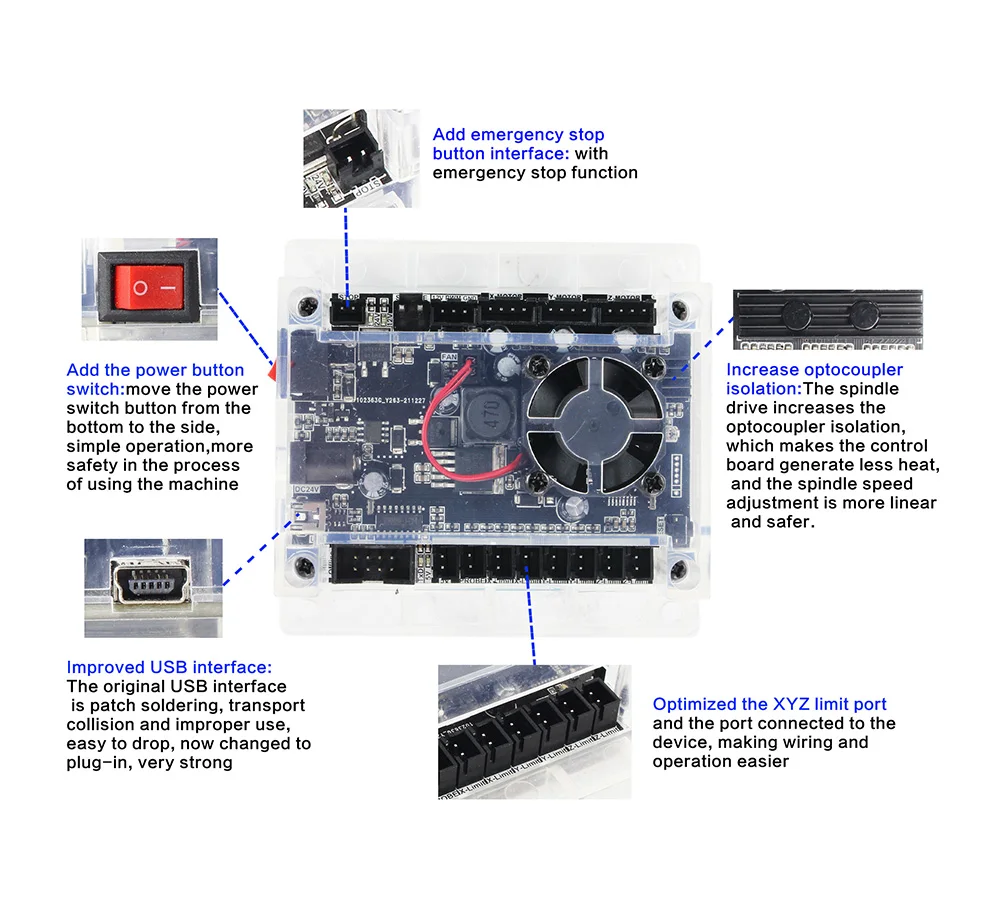

1 x GRBL 1.1f Control board
user manual will give you link to download
Notice: The machine for a full set of spare parts, shall be installed by the buyers,the package include the CD, with detailed user manual and free software,buyers don‘t need to worry about machine .Assembly.We suggest cnc-based buyers to buy,This machine is not industrial grade level.
Specifications:
Laser Power: Without Laser / 500mw / 2500mw / 5500mw (Optional)
Material: Nylon + metal
Guide Rail Diameter: 10mm
Stepper Motor: 42 stepper motor 1.3A/0.3N.n

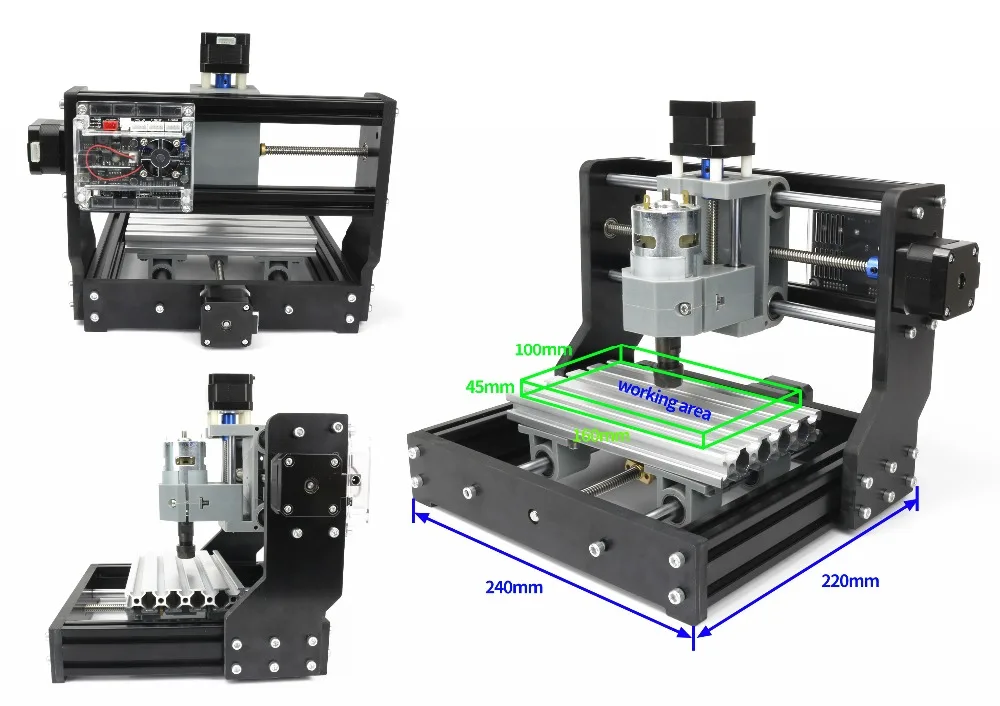

Engraving Area: 18 * 10 * 4.5cm
Table-board Size: 18 * 10cm
Support System: WindowsXP/7
Power Supply: AC110-240V
Control System: GRBL, USB interface

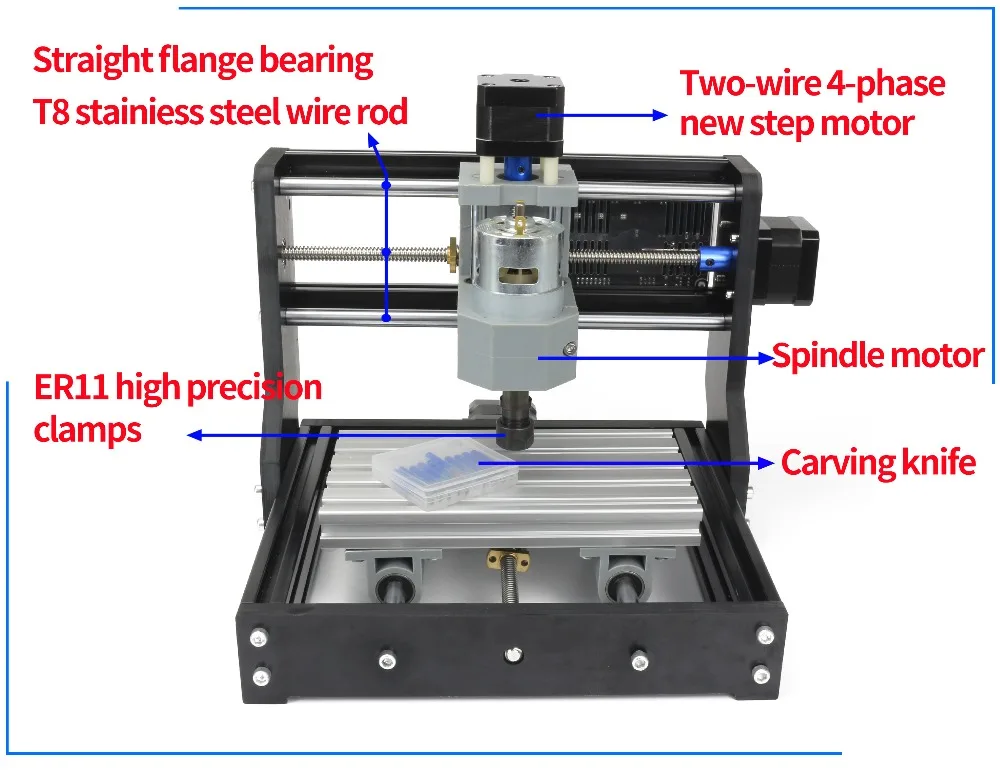

Use Spindle Motor (triaxial engraving):
Spindle Diameter: 45mm
Spindle Rotate Speed: 10000r/min
Spindle: 775 spindle motor (12-36V) 24V: 10000r/min

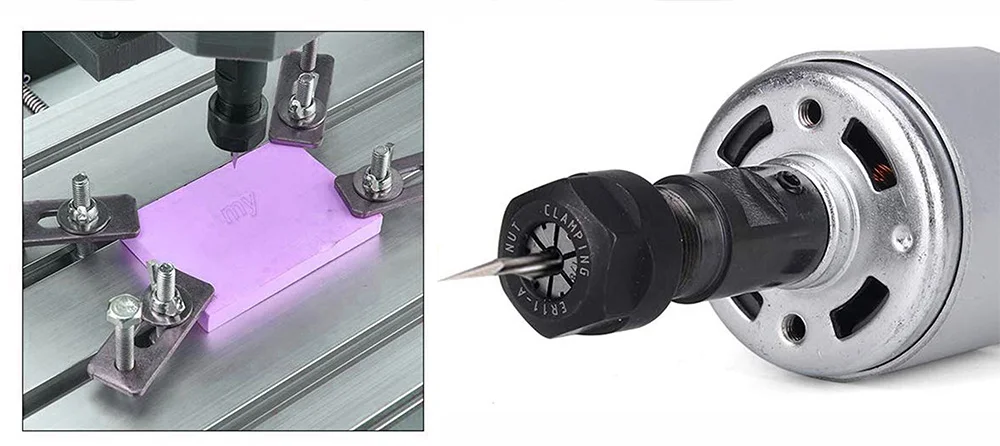

Spindle Chuck: ER11-3.175mm, can change to 0-7mm

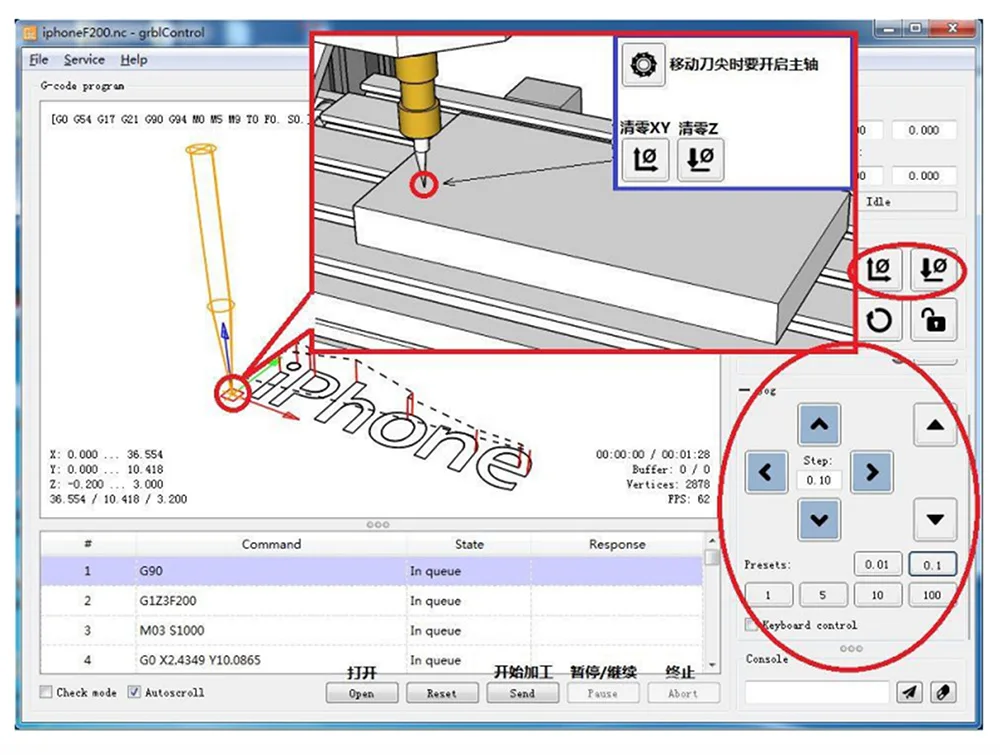

Control Software: grblcontrol(Candle)
Supporting File: G-code(nc.txt.tap.gcode...)
Working Accuracy: Approx. 0.2mm
Machinable Material: Wood, plastic, PCB, carbon fiber, acrylic, density board, etc
Use Laser (2-axis plane carving):
Laser Interface: 12V, support PWN
Laser Power: 500mw/2500mw/5500mw
Control Software: laser GRBL
Support File: G-code/picture
Working Accuracy: 0.1mm
Machinable Material: Wood, plastic, leather, paper, etc
Material: Nylon + metal
Guide Rail Diameter: 10mm
Stepper Motor: 42 stepper motor 1.3A/0.3N.n
Engraving Area: 18 * 10 * 4.5cm
Table-board Size: 18 * 10cm
Support System: WindowsXP/7
Power Supply: AC110-240V
Control System: GRBL, USB interface
Use Spindle Motor (triaxial engraving):
Spindle Diameter: 45mm
Spindle Rotate Speed: 10000r/min
Spindle: 775 spindle motor (12-36V) 24V: 10000r/min
Spindle Chuck: ER11-3.175mm, can change to 0-7mm
Control Software: grblcontrol(Candle)
Supporting File: G-code(nc.txt.tap.gcode...)
Working Accuracy: Approx. 0.2mm
Machinable Material: Wood, plastic, PCB, carbon fiber, acrylic, density board, etc
Use Laser (2-axis plane carving):
Laser Interface: 12V, support PWN
Laser Power: 500mw/2500mw/5500mw
Control Software: laser GRBL
Support File: G-code/picture
Working Accuracy: 0.1mm
Machinable Material: Wood, plastic, leather, paper, etc
Features:
Small and practical, no problem for using on your desk.
The control system is open source (technology that controls system is provided) for some players who like DIY.
Desktop DIY mini CNC engraving machine for carving and more cost-effective than normal engraving machine.
Support our professional English design software for Win 7, XP,.

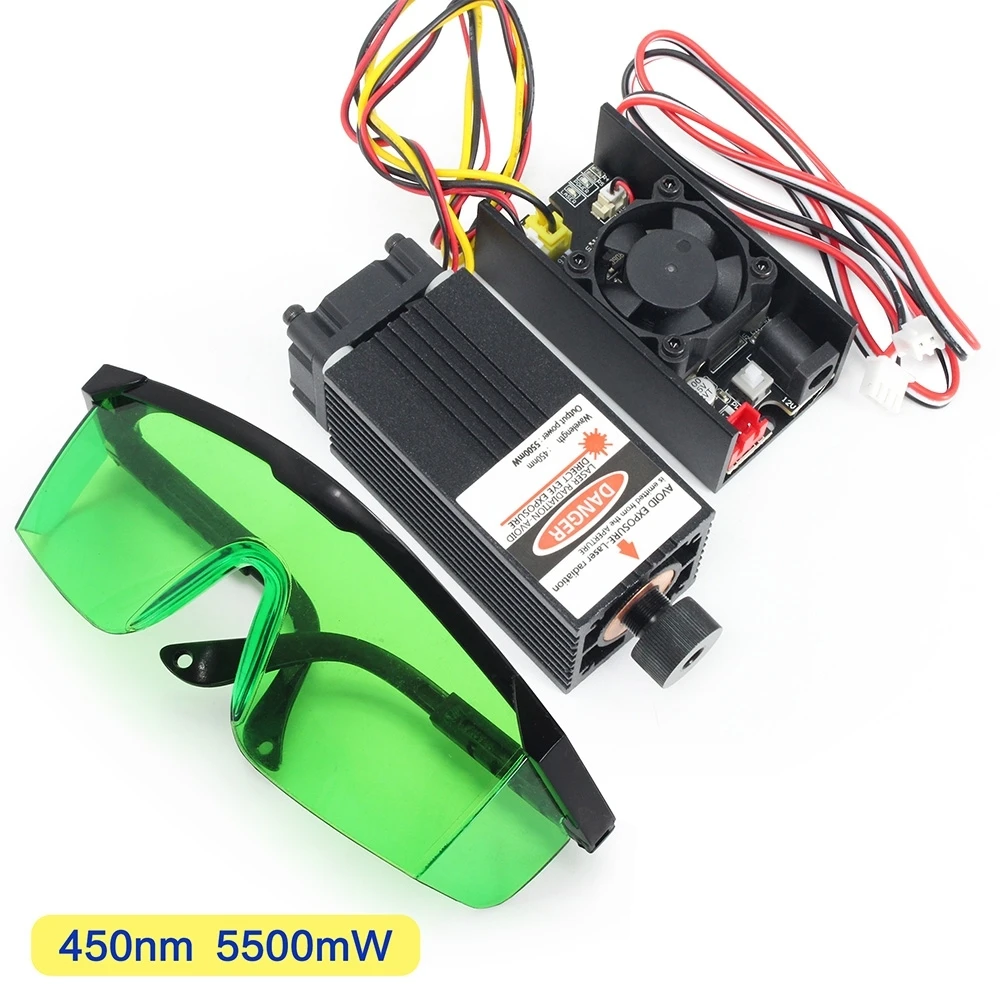

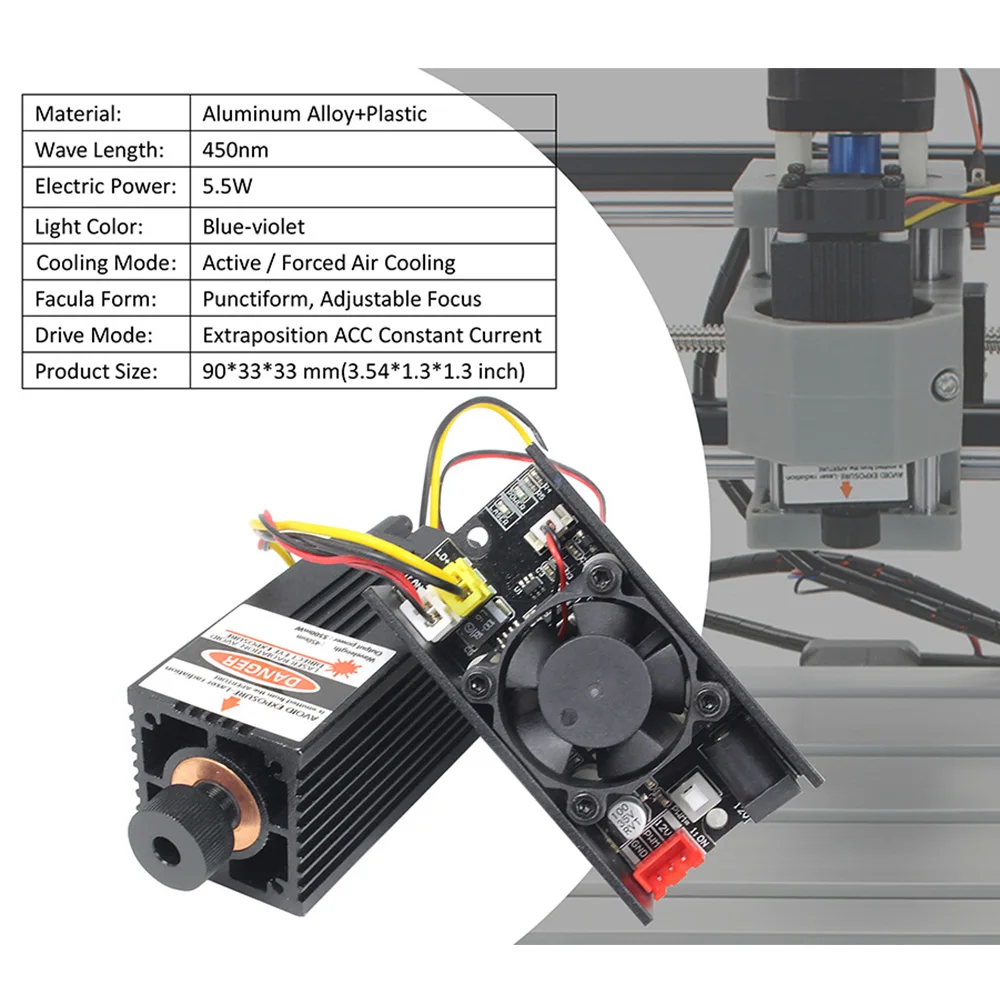

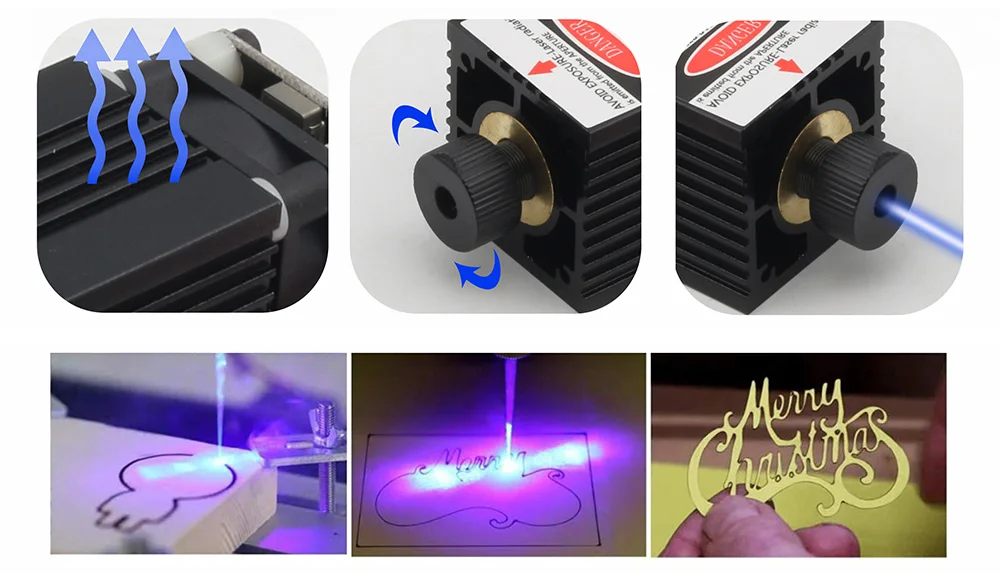

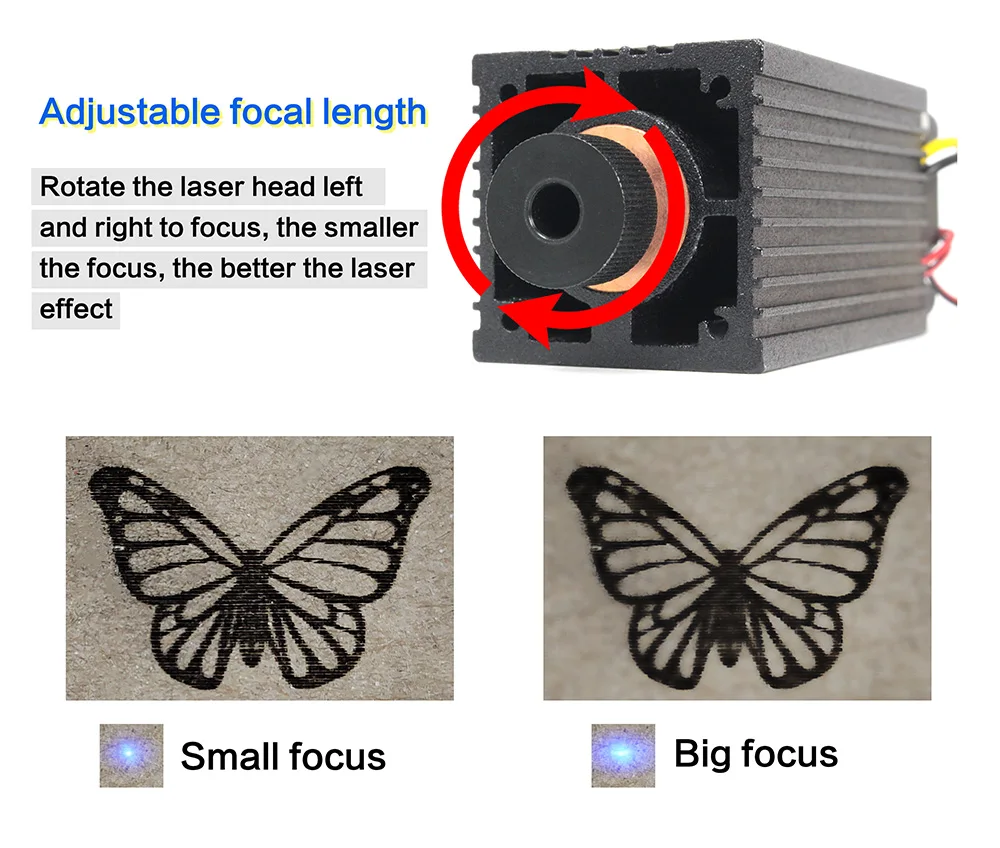

500mw / 2500mw / 5500mw optional laser module with heatsink, high laser engraving power and long working time.
180*100*45mm working area, Control Software: GRBL (include ER11 chuck).
Aluminum alloy and nylon material with fine workmanship show excellence in quality.
Very interesting to install and use, perfect gift for engraving DIY enthusiasts.
Wide application: can be used for print, hand tools and industrial processing.
Main application:
Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.
