▉Name:

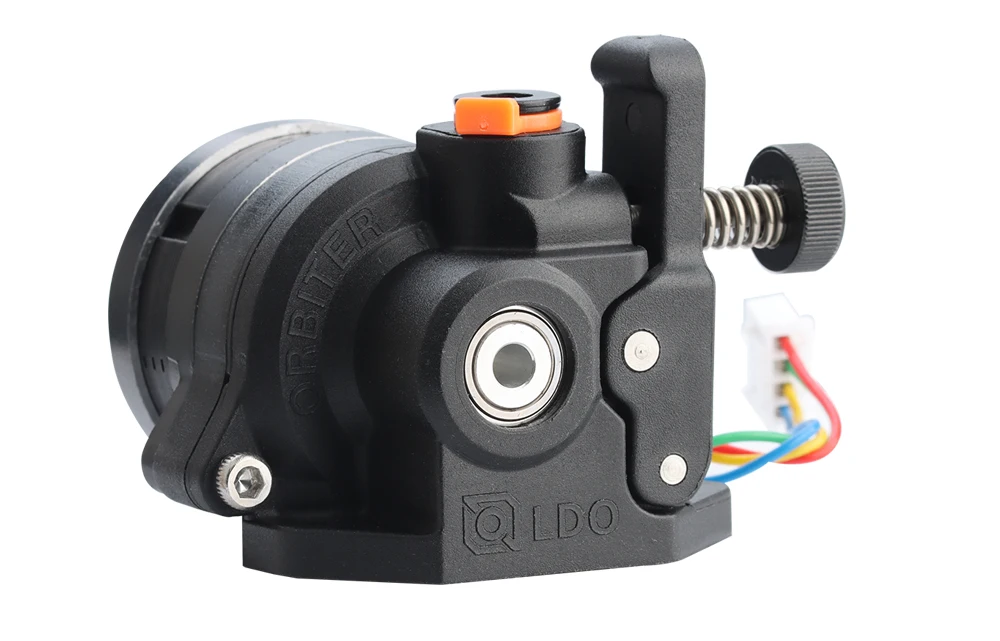

Orbiter Extruder V2.5(1.75mm)
Warning: Orbiter V2.5 has special gears. This is different from V1.5 gears. We will soon find a way to sell gears compatible with V2.5. Please don't buy the wrong gear.

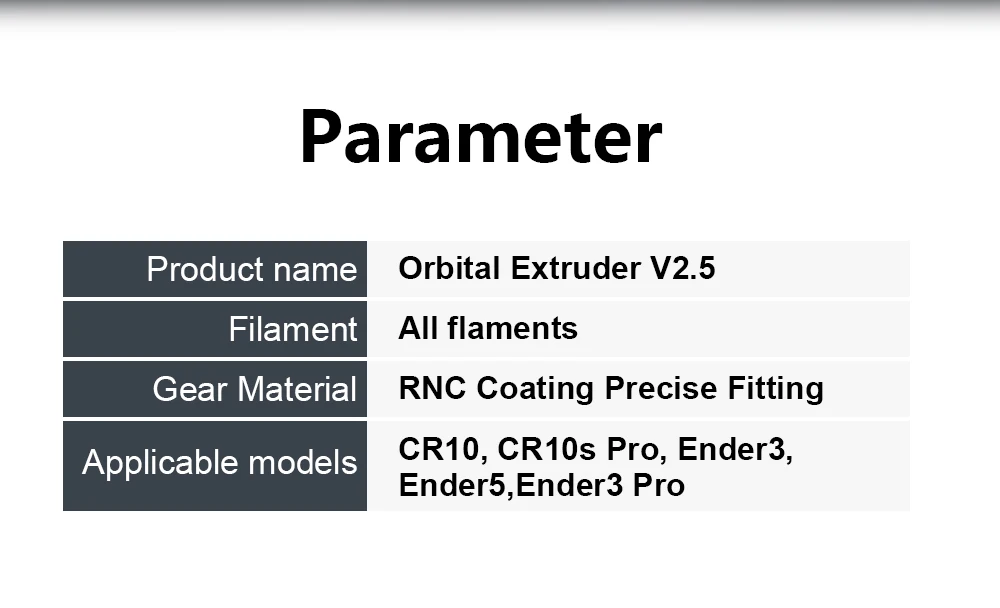

▉Parameter: Product nameOrbital Extruder V2.5
FilamentAll flaments
Gear MateriaRNC Coating Precise Fitting
Applicable modelsCR10, CR10s Pro, Ender3.Ender5,Ender3 Pro
▉Features:
1.Shorter drive gears 11mm vs 15mm
2.Hardened filament drive gears
3.Weight reduced to ~135 grams
4.Smaller more compact dimensions (11.6% shorter)
5.New motor design offers ~40% increase in pushing force in real printing conditions and much improved
acceleration performance
6.Flipped drive gears – filament path closer to the extruder center for a more balanced design and perfect
fit on delta printers as well
7.Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing
experience and extreme wear resistance when using abrasive filaments.
8.High temperature resistant injected housings, GPA12
9.Machined PEEK secondary drive gear sleeve
10.Tension mechanism with grab screw design (Captive Grab Screw)
11.Mounting screws in line with filament exit path – improving housing stiffness and easier mounting
12.Perfectly aligned filament path
13.New smaller and better PTFE input coupler
14.Motor position rotated by additional 10 degrees for easier maintenance and assembly
15.Filament sensor add on with auto load and unload button add on feature
16.And many more small changes to improve mechanical accuracy and design look
▉Basic Configuration:
• Steps: 690 steps/mm @ 16 micro-stepping
• Max. instantaneous speed change (jerk): 600mm/min(RRF), 10mm/s
(Marlin) (recommended 300/5)
• Pressure advance: 0.02~0.03s - to be calibrated
• Retraction: 1~1.5mm - to be calibrated
• Retraction speed: 120mm/s
• Motor current: 1.2A Peak or 0.85A RMS (LDO-36STH20-1004AHG)
• Acceleration: 10000 mm/s2 *
• Normal motor operating temperature: 60-75°C
* The extruder itself without filament can handle acceleration up to
25000mm/s2. Adding weight of the filament it drags along its
recommended to have acceleration limit set not above 10000mm/s2
▉More information:
▉Description:
The outer shell of orbiter extruder V2.5 is morerobust by injection moldingUsing LDO high temperature motor and can outputstrong torque.
High quality gear improves the performance of extruder.
▉Precision spider shaft: New spider shaft has a knurled surfaceThe drive gear is press fitted on the spider shaftleading to improved gear eccentricity

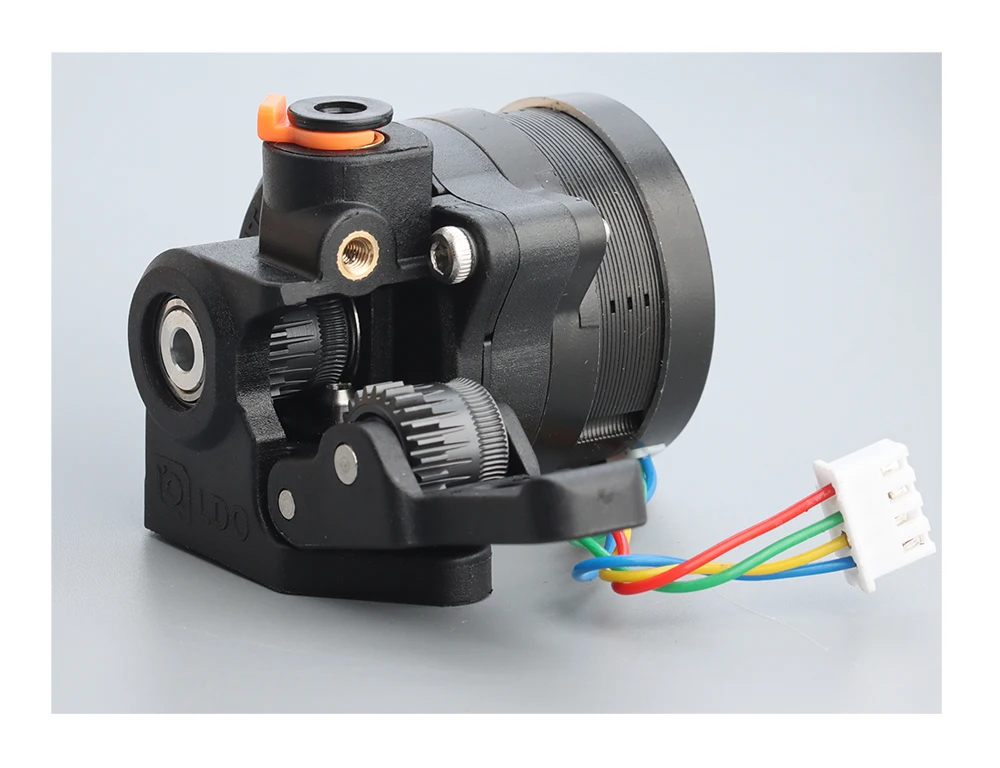

▉Wide cut gears Innovative drive gear design with flat bottom cut.Eliminates the extrusion rate change with filamentposition.
Regardless of the filament position, the effectivedrive gear diameter is the same.
The new gears are RNC coated with higher hardness

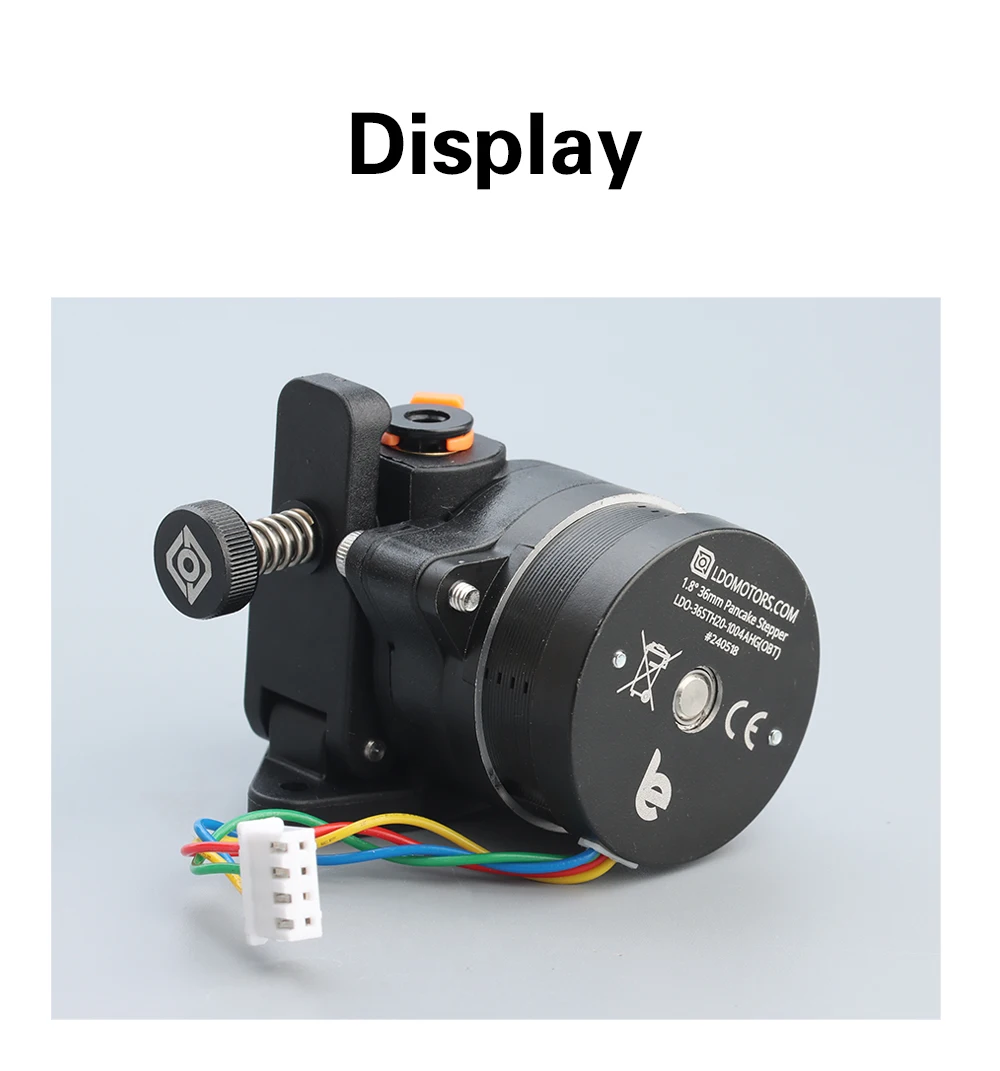

▉LDO Motor 20mm size high torqueenhanced version
▉Extrusion performance Optimized the motordesign to maximize its torquein the speed rangethe extruder needs it.The result is ~40% increaseof the pushing force inrealprinting conditions.Retraction speed up to 120mm/sAcceleration up to 3000mm/s²

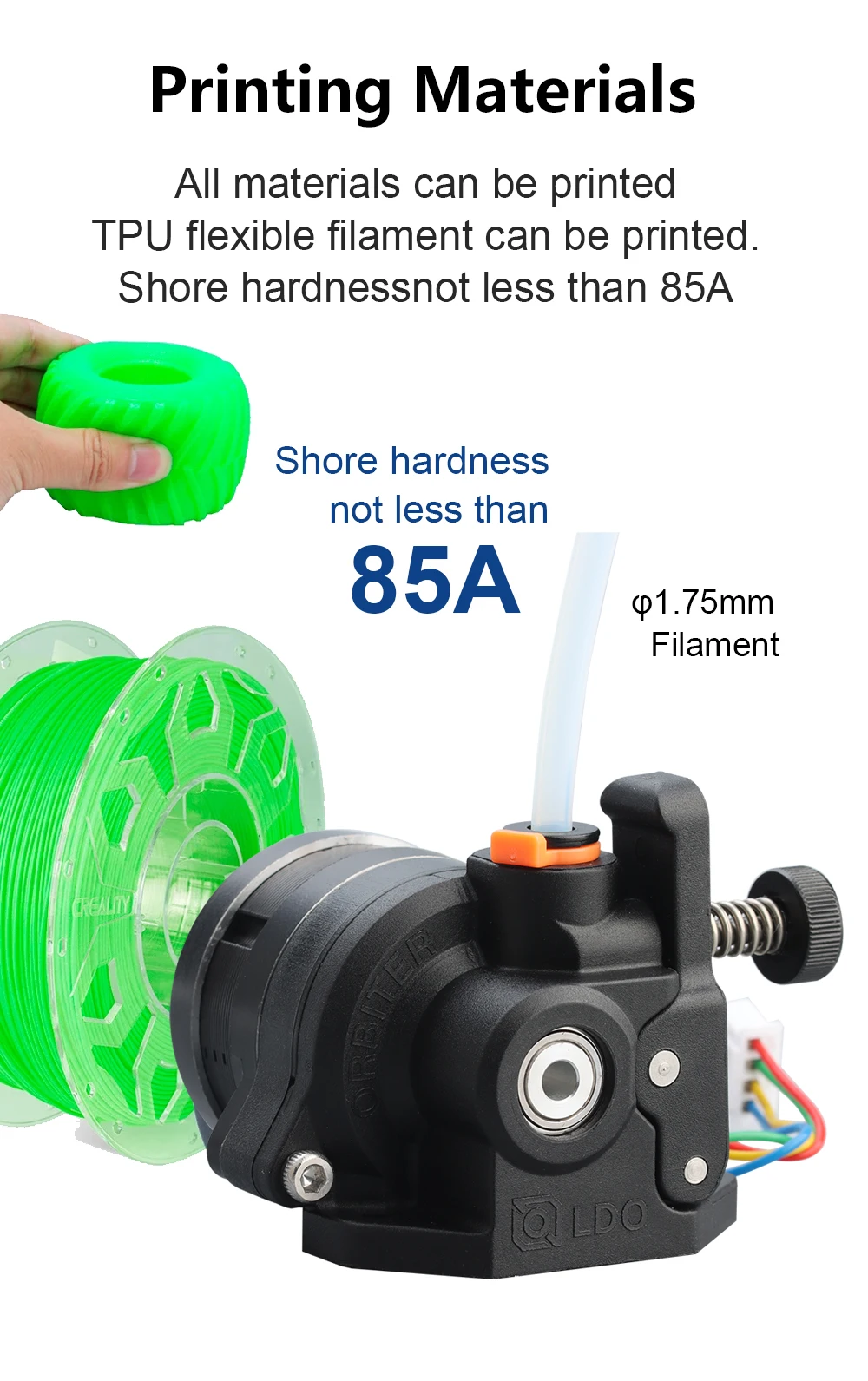

▉Printing Materials All materials can be printed TPU flexible filament can be printed
Shore hardness not less than 85A
