Single Phase 220V Input to 220V Single Phase Output motor speed Control Frequency Converter VFD Inverter 1.5KW/2.2KW
Single phase motors do not require the removal of capacitors
1.Input Voltage Range:single phase (1 phase) 220V±15% 50hz/60hz
2.Output Voltage Range:1phase 220V±15%
3.Output Frequency Range:0~600Hz
4.Control way: Open loop vector control(SVC) V/F control
5.Starting Torque: G type machine:0.5Hz/150%( SVC)
6.This Serial model has 4-20ma or 0-10V analog Input Functio.
7.Support Spindle Motor;you can set P0-10=P0-12=P0-08=P1-04=400HZ ,
Set P0-15=9 Carrier Frequency set High level parameter.
8.Support Replay Output (inside Relay)
9.Support PID function
10.Multi segment function, 16 segment speed programmable
Single-phase motor dedicated frequency converter, single-phase motor current is too high, and selecting the frequency converter power requires 1-2 levels higher than the motor power

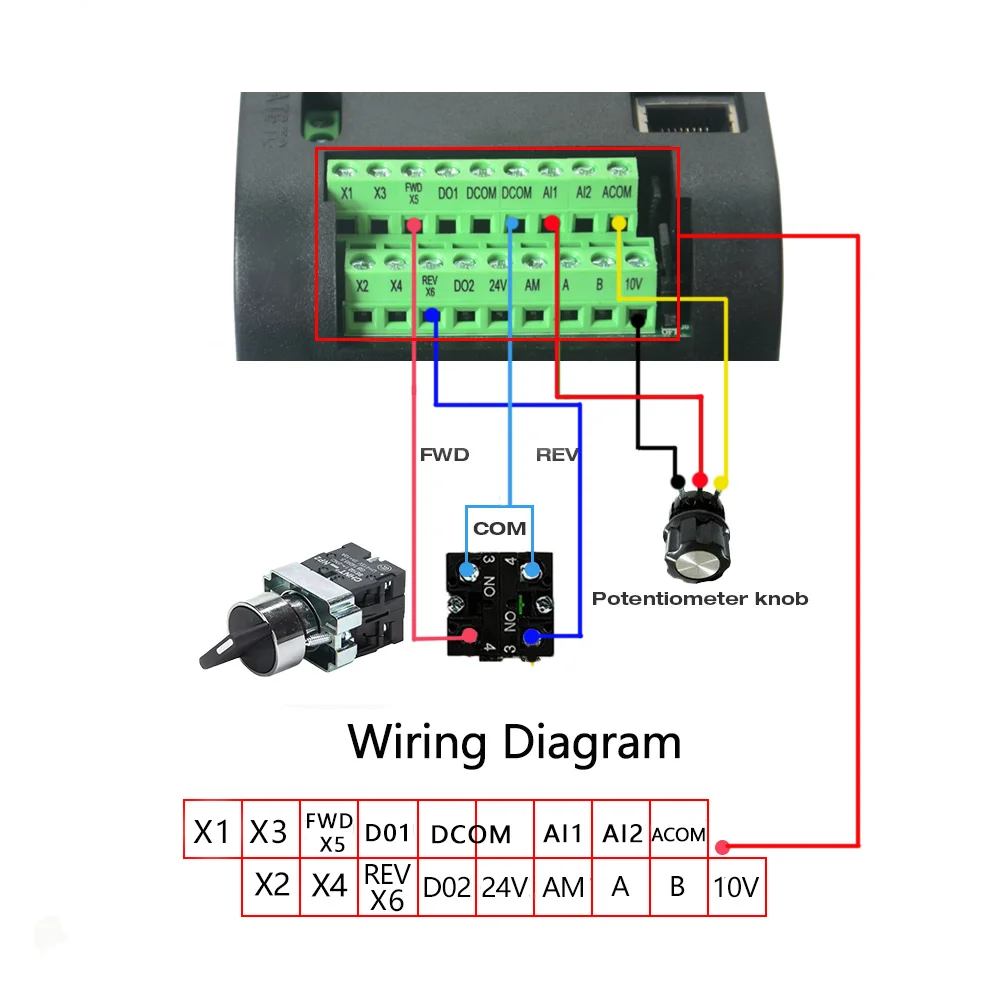

External switch wiring diagram
Type selection instructions:
A. Please read the product instructions carefully, choose the type according to the function and power you need,
and avoid the damage caused by wrong wiring;
B. If your load type is heavy, please choose an inverter with a higher power than the motor;
C. If you don't know how to choose the type, you can also contact us to give you some suggestions;
Type selection instructions:
1. Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring.
2.Single-phase motor selection must be enlarged by one level selection, 0.75KW single-phase motor, please choose 1.5KW inverter
3. Speed regulation of three-phase AC motors with six or more stages. Please purchase a converter with higher power than the motor.
4.If you don't know how to choose the type, you can also contact us to give you some suggestions.
5.Single-phase motor mode is dedicated mode, you need to set parameters P0-20=20, P1-00=3 or P1-00=4,
single-phase motor mode, output V W terminal is connected to single-phase motor, no need to remove capacitor.
Supplementary Note:
A.If you need detailed version of product manual, you can contact us to send it to you free of charge.
B. If there is no paper product manual in the packing case, it is because of product changes or upgrades. Please contact us for the latest and accurate electronic product manual.
Type Selection Table
220V/0.75KW | 220V/1.5KW | 220V/2.2KW | |
Model NO. | WK600D-0007-MIT | WK600D-0015-MIT | WK600D-0022-MIT |
Input voltage | Single phase 220V±10% 50Hz/60Hz | ||
Output voltage | Single phase 220V or Three phase 0-220V 0-500Hz | ||
Power | 0.75KW/1HP | 1.5KW/2HP | 2.2KW/3HP |
Rated current | 4A | 7A | 10A |

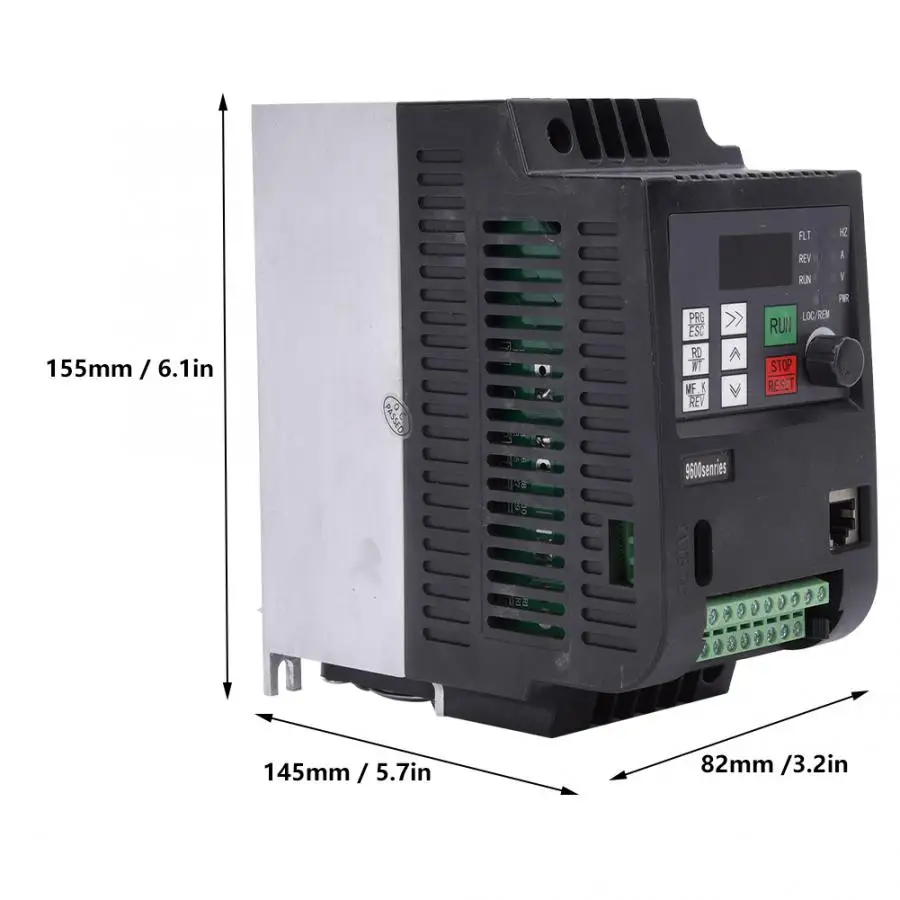

Shape size(mm) | 155*82*135 | ||
packing size(mm) | 220*150*130 | ||
Weight | 1.2KG | ||
Type Selection Table
220V 4KW | |||
Model NO. | WK600D-0040-G1T | ||
Input voltage | Single phase 220V±15% 50Hz/60Hz | ||
Output voltage | Single phase 220V or Three phase 0-220V 0-500Hz | ||
Power | 4KW/5HP | ||
Rated current | 16A | ||
Shape size | 170*130*160 | ||
packing size | 225*190*230 | ||
Weight | 2KG | ||
Supplementary Note:
R, S, T are input terminals of three-phase power supply of frequency converter single-phase power supply connected with S, T).
U, V, W are output terminals of frequency converter, and connected three-phase asynchronous motor
(Single-phase motor output connected to V W).
P and PB are connection terminals of brake resistance . If you need to use the brake function, please specify when ordering
