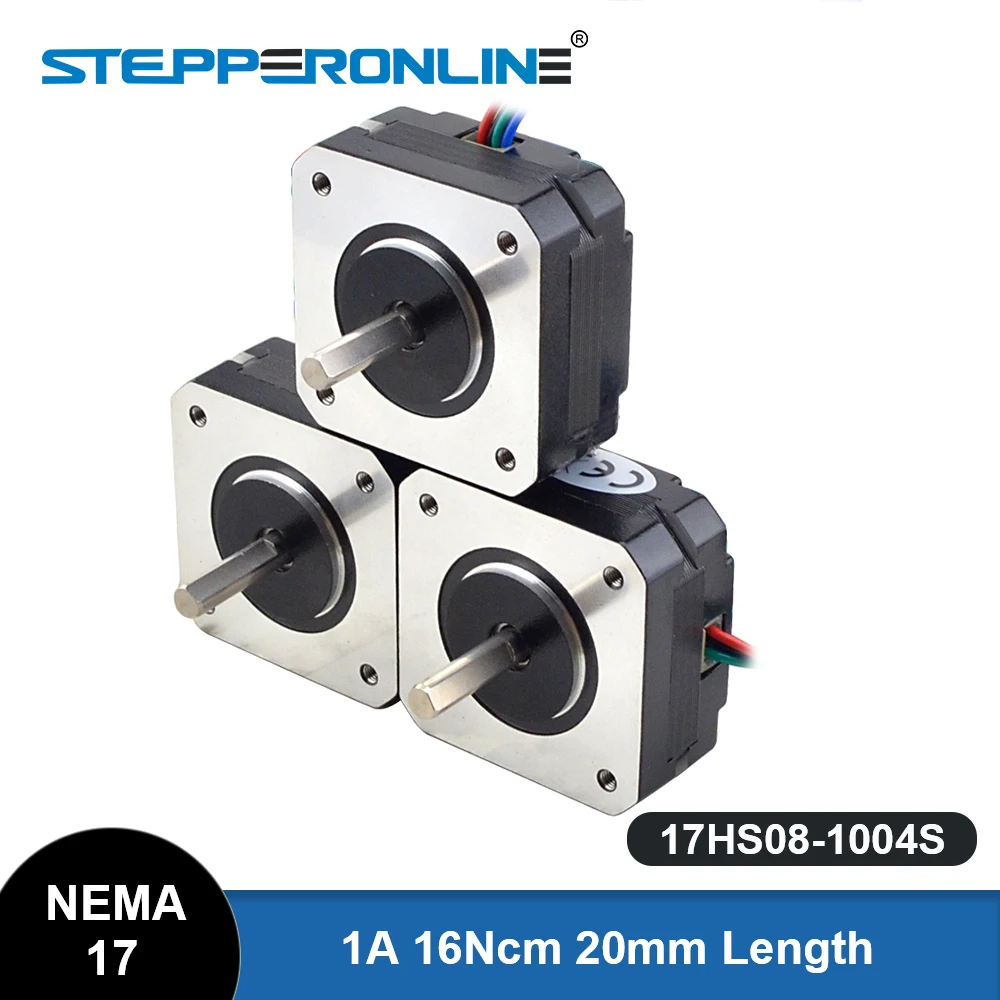

STEPPERONLINE 17HS08-1004S Nema 17 Stepper Motor 20.5mm 16Ncm 1A 42 Step Motor 4-Lead for Extruder CNC XYZ 3D Printer
Limited Time Offer
Choice
Trending
Now:
$30.41
Was:
$42.24
-28% Now
Deliver to
Ship from Local Warehouse
STEPPERONLINE 17HS08-1004S Nema 17 Stepper Motor 20.5mm 16Ncm 1A 42 Step Motor 4-Lead for Extruder CNC XYZ 3D Printer
Free Shipping
Delivery byWednesday, September 24, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000024752672784
Brand: STEPPERONLINE Official Store
Security & Privacy
FREE Return
Shop sustainably
This is the shortest bipolar Nema 17 stepper motor we have, it with step angle 1.8deg and size 42x42x20.5mm. It has 4 wires, each phase draws current …
Related Products
Choice
Trending
Nema 17 42 stepper motor 23mm 0.42N.m 1.5A for 3D print step motor 4023
Now:
$5.87
Was:
$6.16
Description

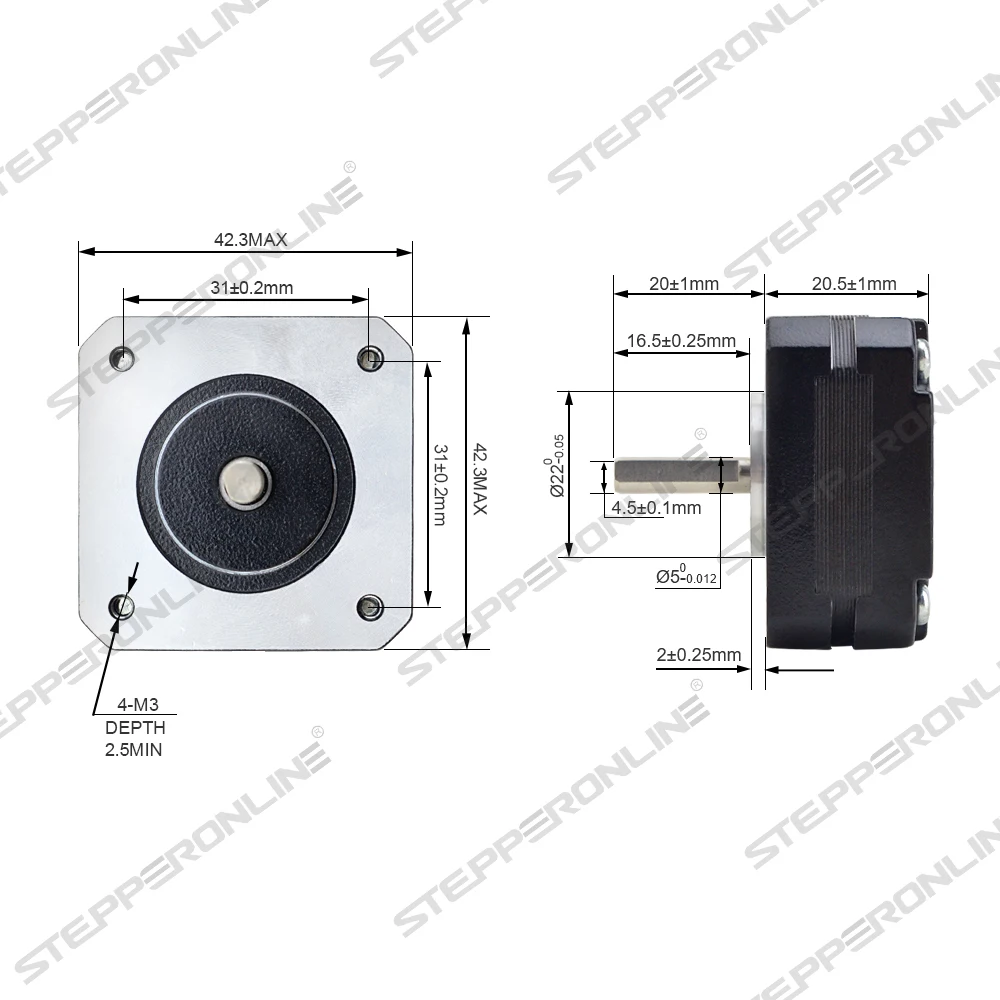

This is the shortest bipolar Nema 17 stepper motor we have, it with step angle 1.8deg and size 42x42x20.5mm. It has 4 wires, each phase draws current 1.0A, with holding torque 16Ncm (22.6oz.in).
Model | 17HS08-1004S |
|
Phase Number | 2 | |
Step Angle(deg) | 1.8deg | |
Holding Torque(N.cm) | 16Ncm | |
Rated Current(A) | 1.0A | |
Phase Resistance(Ohm) | 3.7±10%ohms | |
Number of Leads | 4 | |
Rotor Inertia(g.cm²) | 15g.cm² | |
Shaft Diameter(mm) | 5mm | |
Motor Weight(g) | 140g | |
Wire Length(mm) | 400mm |
