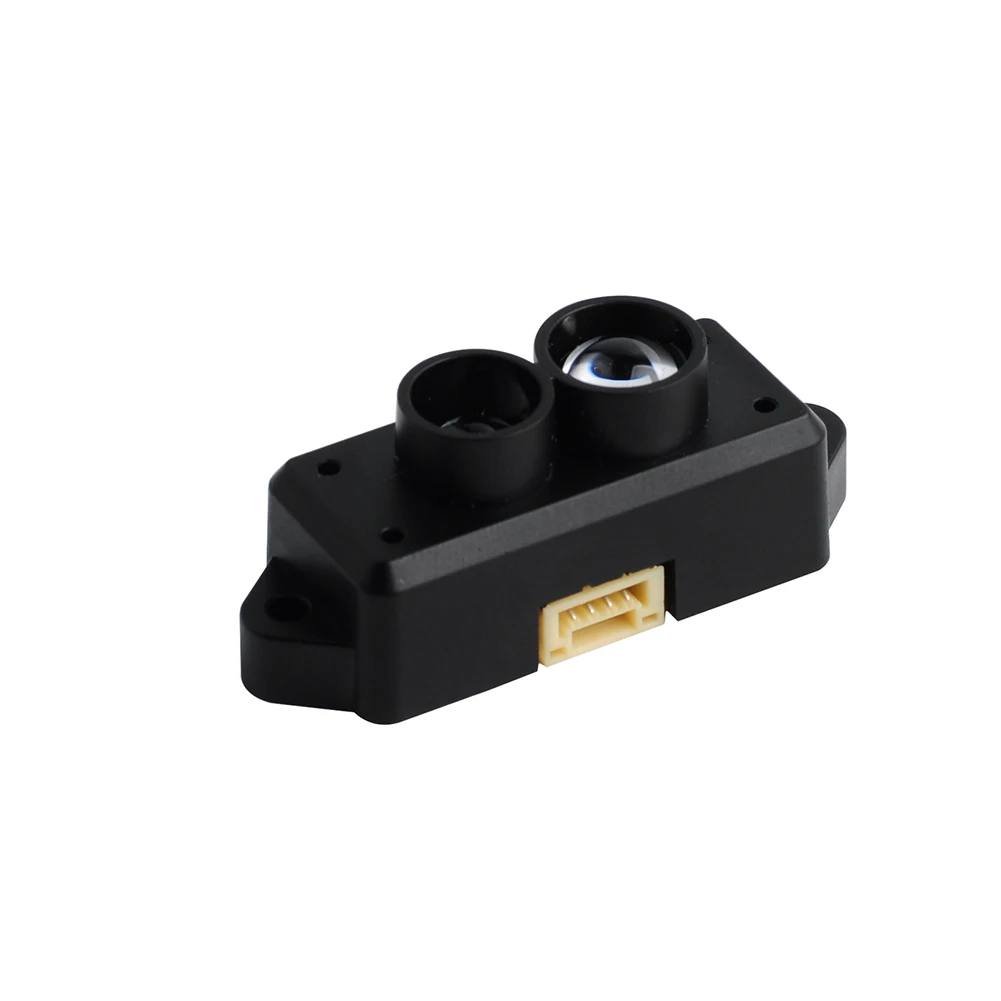

TFmini-S Lidar Range Finder Sensor Module Single-Point Micro Ranging Module for Arduino for Raspberry Pi for Pixhawk 4.5-6V
Limited Time Offer
Choice
Trending
Now:
$36.76
Was:
$44.83
-18% Now
Up to 4 x $9 with no interest
Deliver to
Ship from Local Warehouse
TFmini-S Lidar Range Finder Sensor Module Single-Point Micro Ranging Module for Arduino for Raspberry Pi for Pixhawk 4.5-6V
Free Shipping
Delivery bySaturday, December 27, Order within
Shipped By:
Fast Delivery
- $5.00 coupon code if delayed
- Refund if package lost
- Refund if items damaged
- Refund if no delivery in 30 days
SKU:
AE12000033328539209
Brand: DIYmalls Store
Security & Privacy
FREE Return
Shop sustainably
Fmini-S Lidar Range Finder Sensor Module Single-Point Micro Ranging Module for Arduino for Raspberry Pi for Pixhawk 4.5-6VDescription:TFmini-S i…
Related Products
Choice
TF-Luna Lidar Ranging Sensor Module Range Finder Sensor Single-Point Micro Ranging Module for Arduino Pixhawk 5V UART IIC AE3256805689475918
Free Shipping above $10
$21.83 - $39.18
Choice
Trending
Elecrow Crowtail BME280 Atmospheric Sensor 2.0 Module With Cable Electronic DIY Environment Kit Sensor for Raspberry Pi Modules
Now:
$12.02
Was:
$15.03
Choice
Trending
1pcs AMG8833 IR 8x8 Thermal Imager Array Temperature Sensor Module For Raspberry Pi
Now:
$14.58
Was:
$17.15
Description
Description:

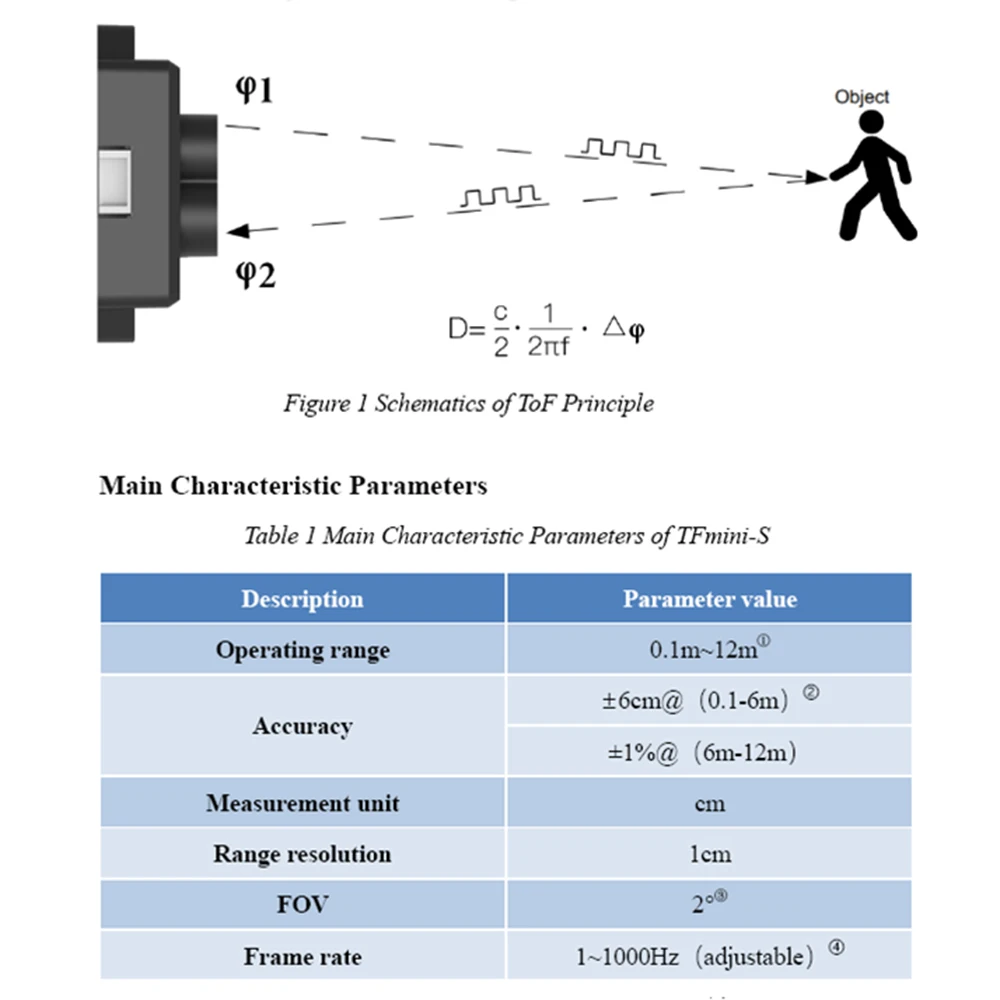

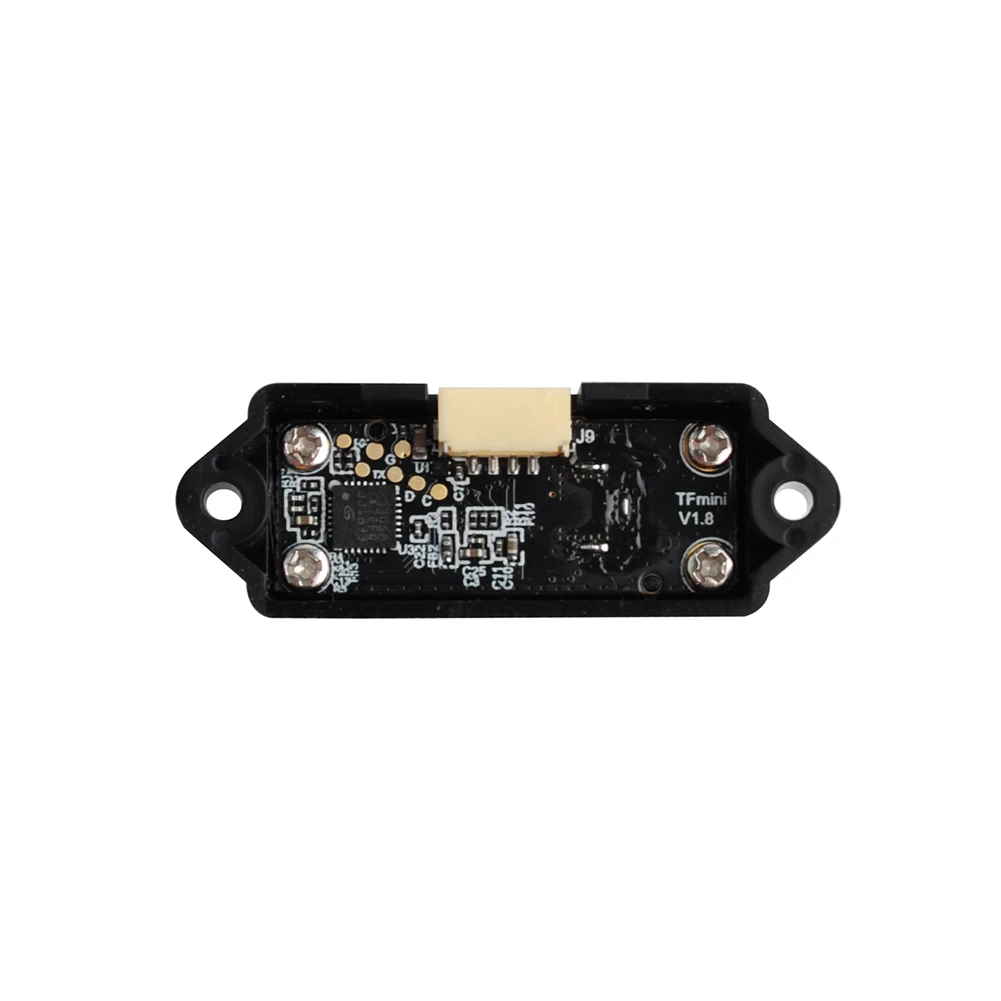

TFmini-S is the improved version of TFmini, it is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial equipments. It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.

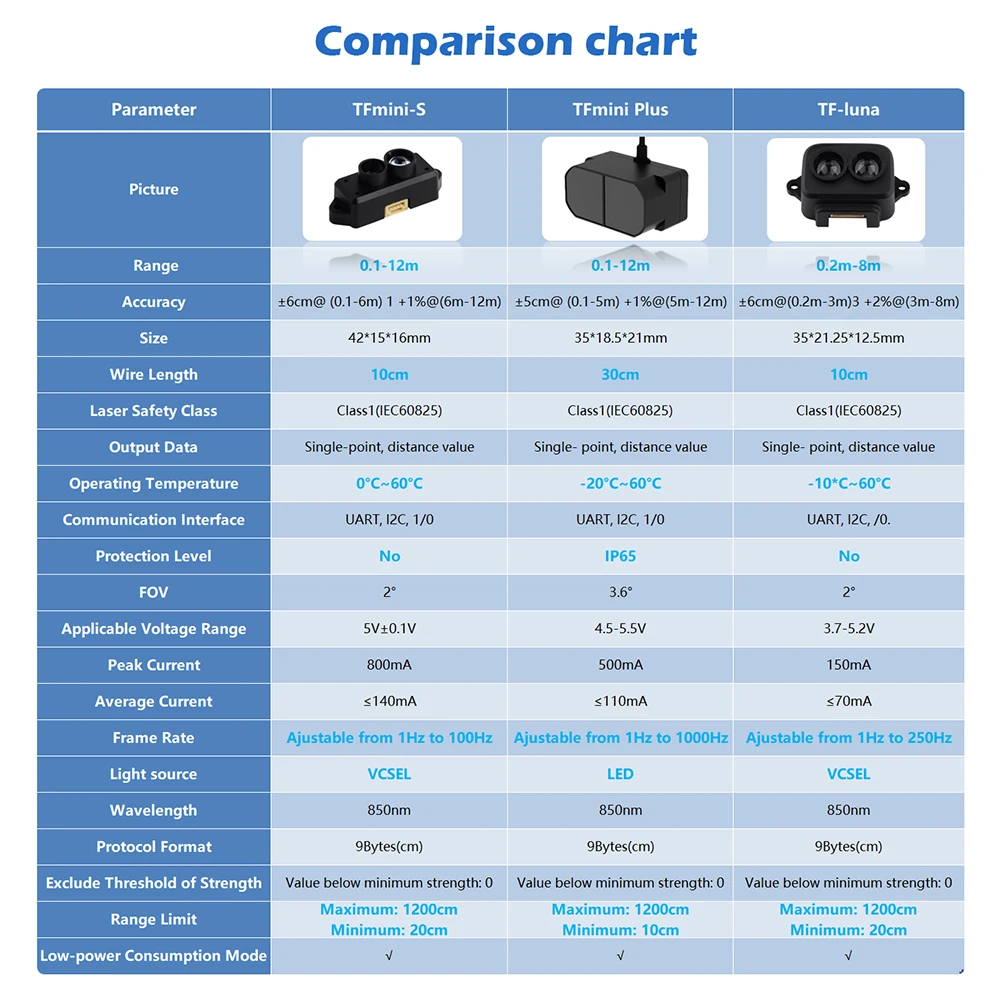

Features:
Operating Range : 0.1-12m
Maximum operating range at 10% reflectivity : 5m
Applicable voltage range : 4.5-6V
Average power consumption : 0.12W
FOV : 2°

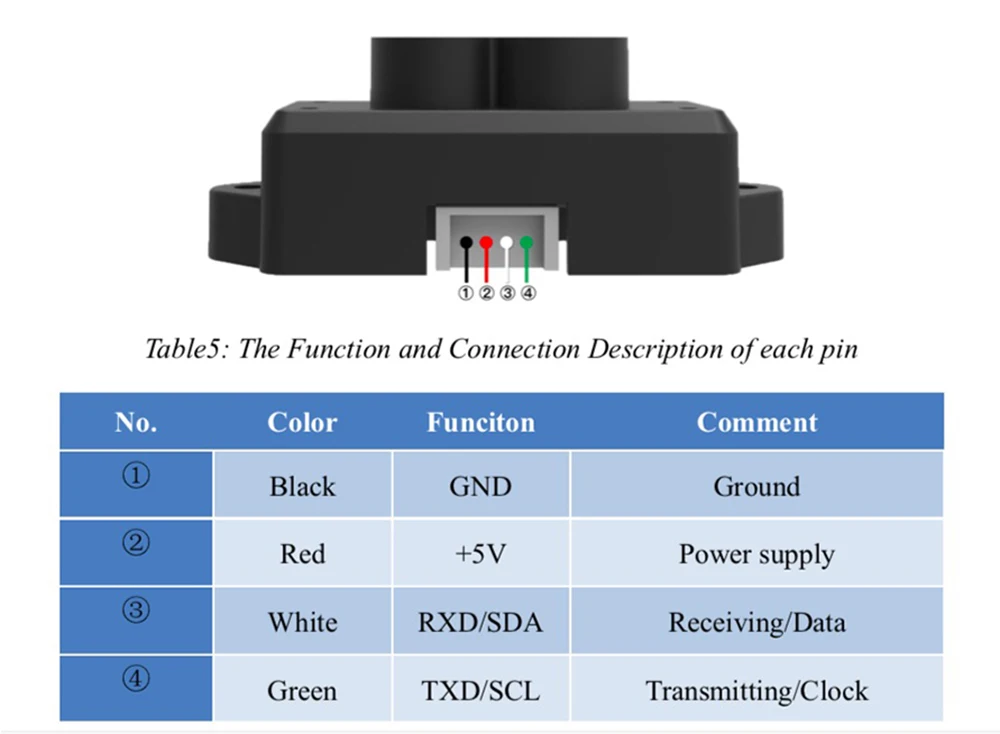

Communication interface : UART/I2C
Electromagnetic Compatibility(EMC):EN 55032 Class B
Baud rate:115200
Data bit:8
Stop bit:1
Parity bit:0
Minimum resolution ratio : 5mm
Frequency: 100Hz(1-1000Hz adjustable)
Light source:VCSEL
Wavelength:850nm
Operating temperature : 20-60C
Light sensitivity : 70,000lux
Accuracy : 1% (less than 6m), 2% (6m-12m)

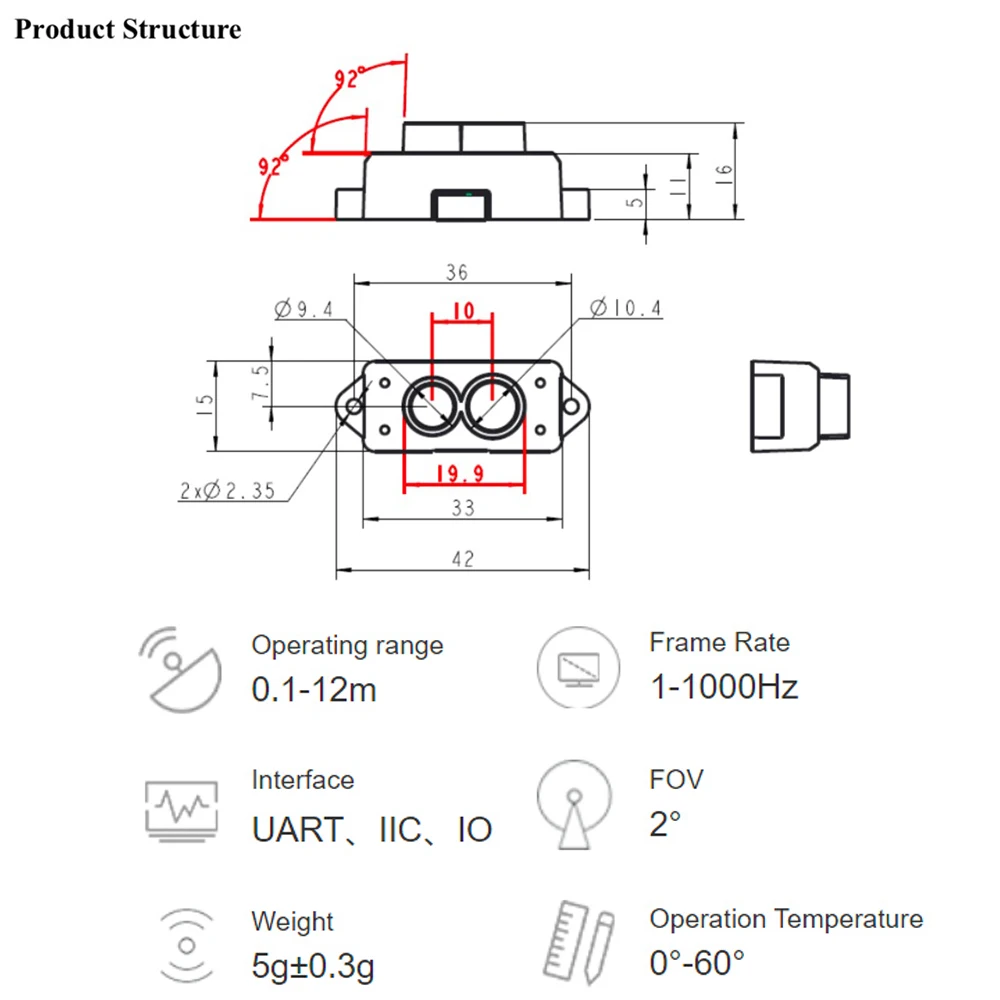

Size : 42mm * 15mm * 16mm
Weight : 6.1g
Certification:CE,FCC,ROHS
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument
Package Includes:
1 X TFmini-S Lidar Range Finder Module
2 X Cable
FAQ
Q1: Is TFmini-S available with 3.3V or other power supply voltage?
A1: Sorry, it is not available for the time being. The Standard power supply of TFmini-S is 5V±0.1V. If you have any further requirement, please contact our sales person to consult a customization design matter.
Q2: TFmini-S will heat up after operating for a while. Is it broken?
A2: This is the normal operating condition of the product. The temperature of the chip and circuit board will slightly up after a continuous operation, which is a normal case.
Q3: Can TFmini-S be connected with Arduino or Raspberry Pi for use?
A3: Yes, it can. TFmini-S adopts serial communication protocol so that it can connect to any control board supporting serial port communication.
Q:Hello, the manual helped me to understand a lot, but i have one question: how i calculate the checksum, if the checksum is over 265(for exampel I would to set a frame rate of 250hz) thank you for the fast help. ich love this device and i will give a good appraisal.
A: This is hexadecimal, if the checksum is over 265, you just need the lower 8 bits.
Q: I have the TFmini-S.
I've read the manual and read it again and I still don't understand this part:
0--standard data
mode
1--I/O,near high
and far low
2--I/O,near low
and far high
Can you expand at all?
A: 0 Standard mode is the factory default mode, it means continuous output mode
1 and 2 are both high and low level output modes. For example, if the threshold is set to 5m, then mode 1 means if output below 5m is high level , above 5m is low level; mode2 means if output below 5m is low level , above 5m is high level
Q: Has anyone adapted this for use under water ? I was thinking if encapsulation in acrylic and seeing if it could distance underwater.
A: This lidar sensor can not work underwater.
