Note:

If you don't have this Zigbee gateway,please choose WiFi version!

https://www.aliexpress.com/item/1005005236418545.html

Zigbee version is fully applicable to Tuya zigbee gateway. Other third-party zigbee gateways (zigbee2mqtt) may not be able to control all 12 channels due to network chip compatibility issues (only 8-10 channels of relays can be controlled). If there is a need to control 12 channels of other zigbee gateways, it is recommended to purchase 8-channel relays module.

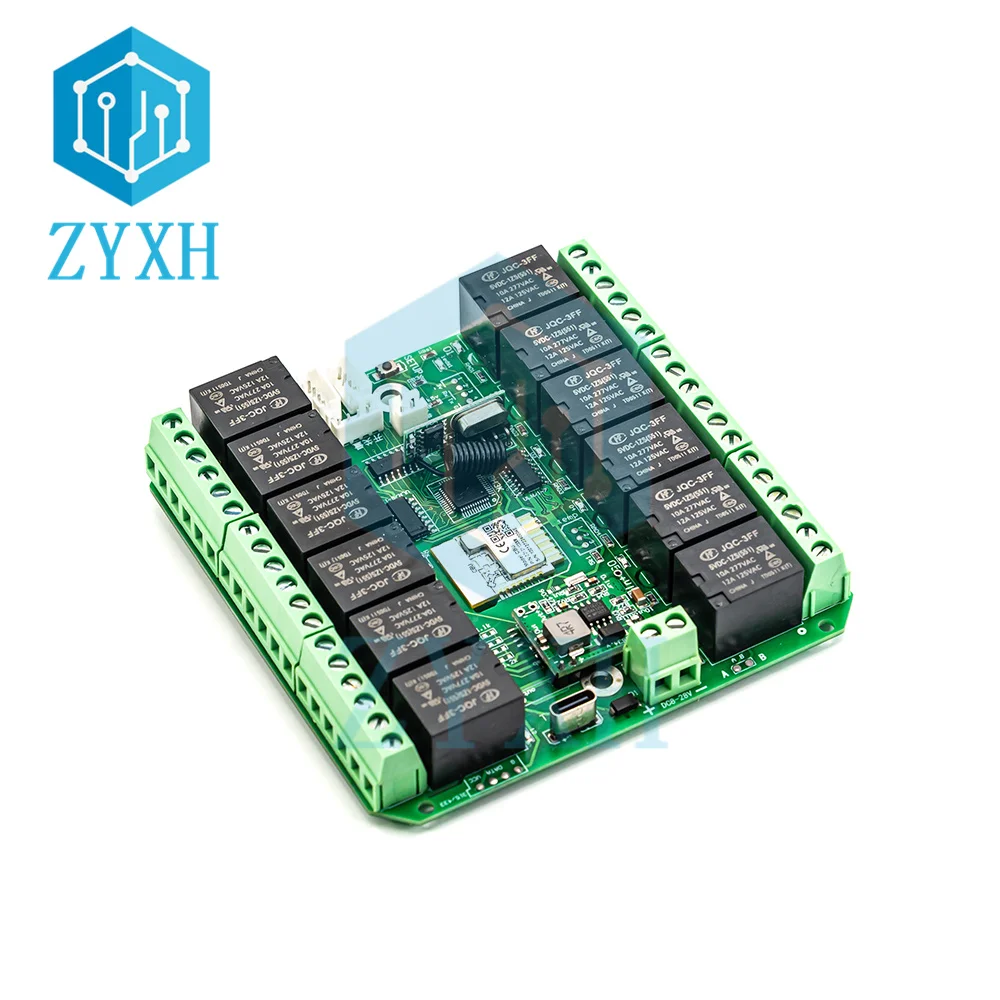

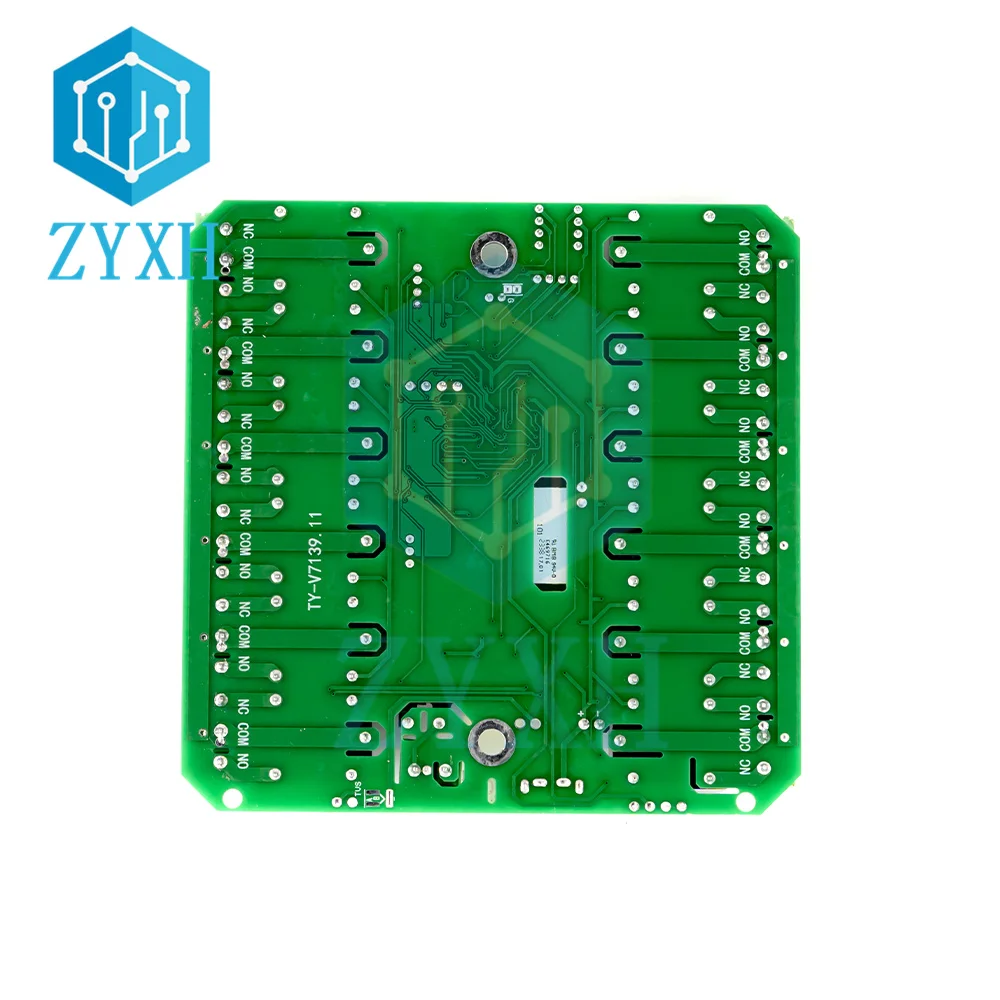

[4G remote] (basic function) Tuya 12-way wifi or Zigbee remote control jog interlock linkage 433 remote control RF IoT remote relay module

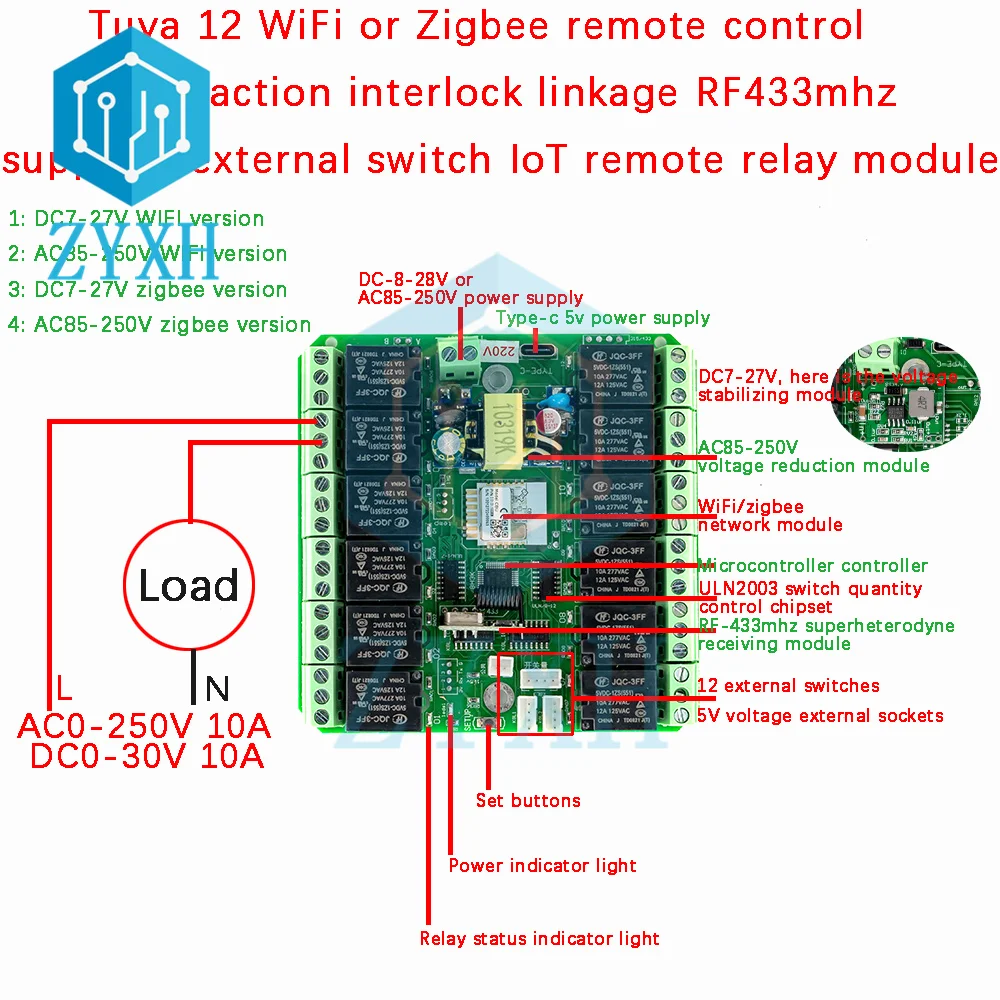

The power supply of the product is 5V type-c interface power supply or DC7-27V and 5V type-c interface power supply or AC85-250V power supply

Product models are divided into:

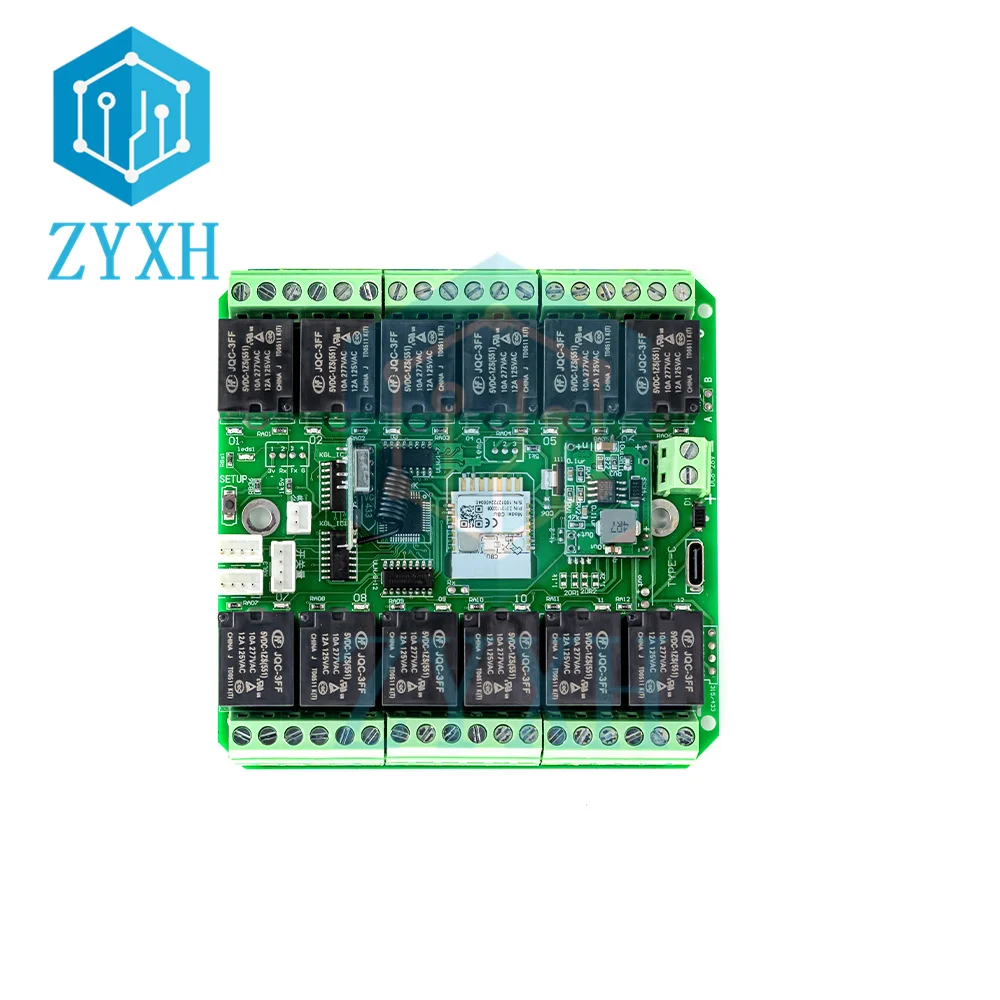

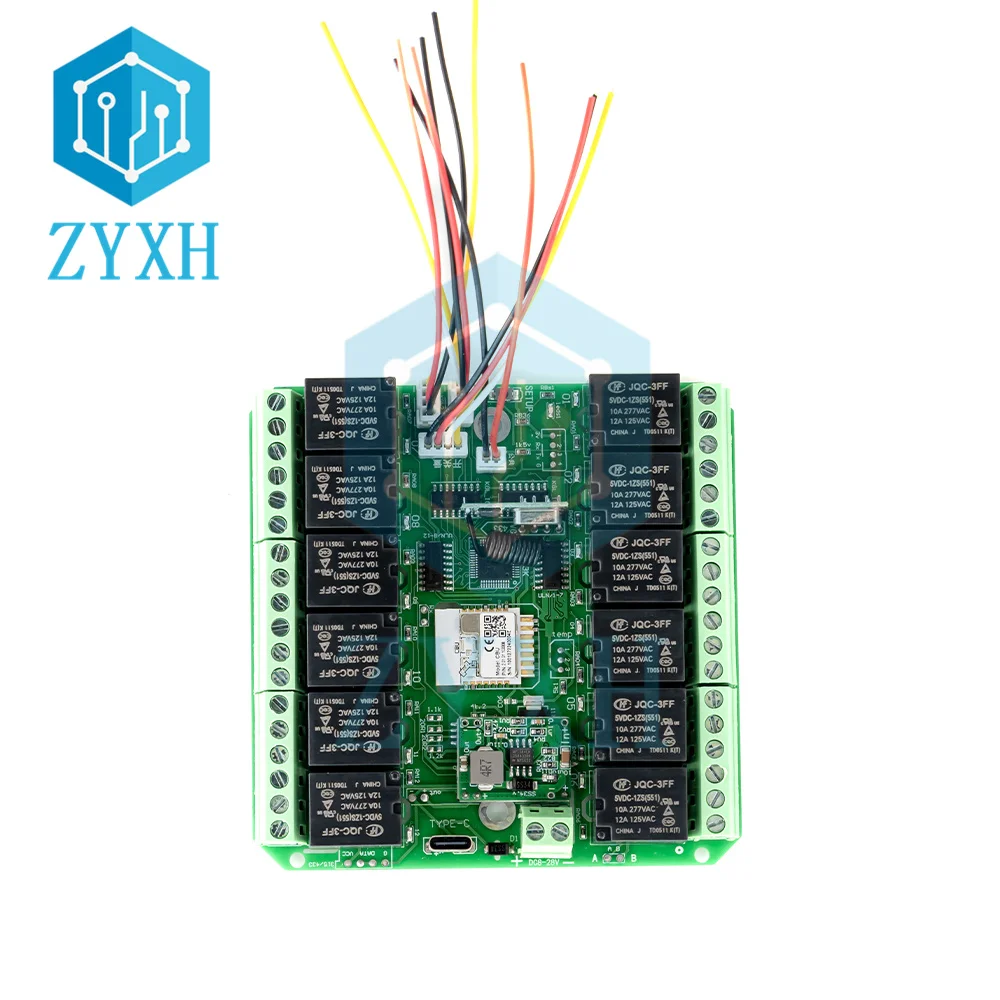

1: DC7-27V WIFI version

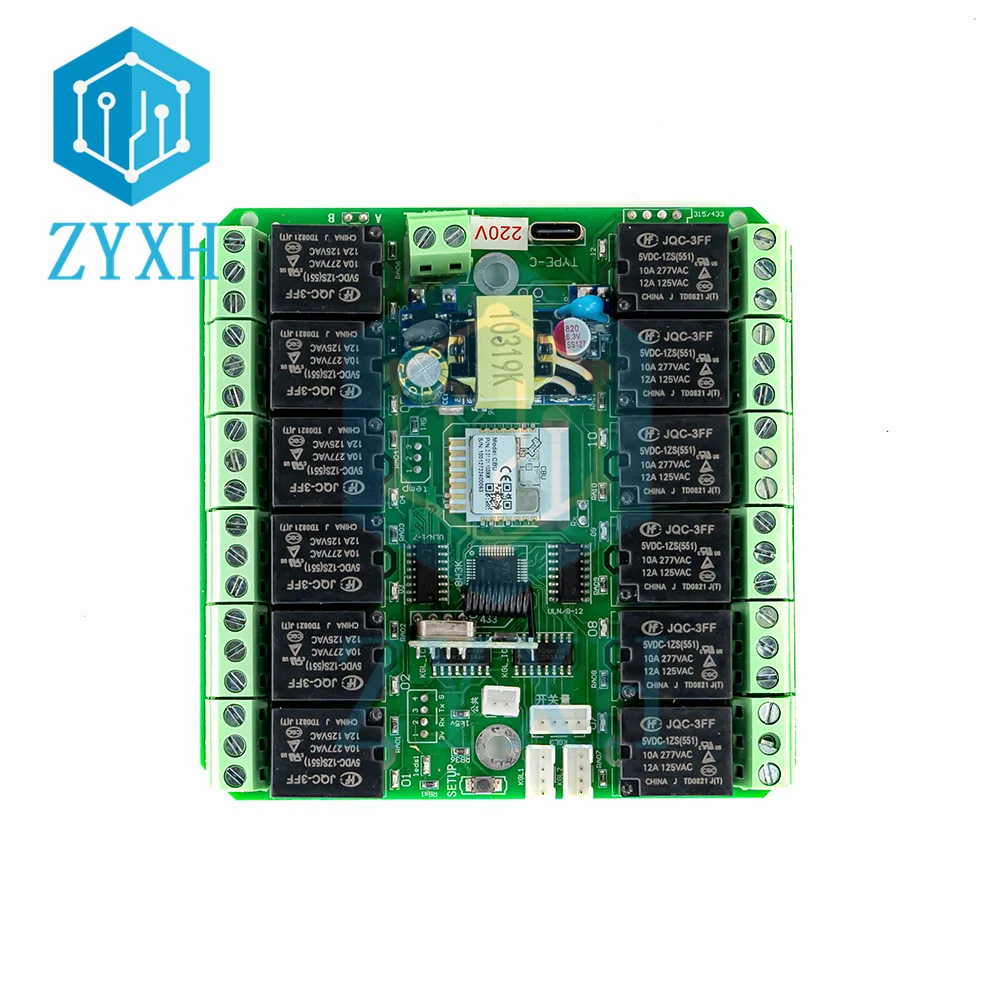

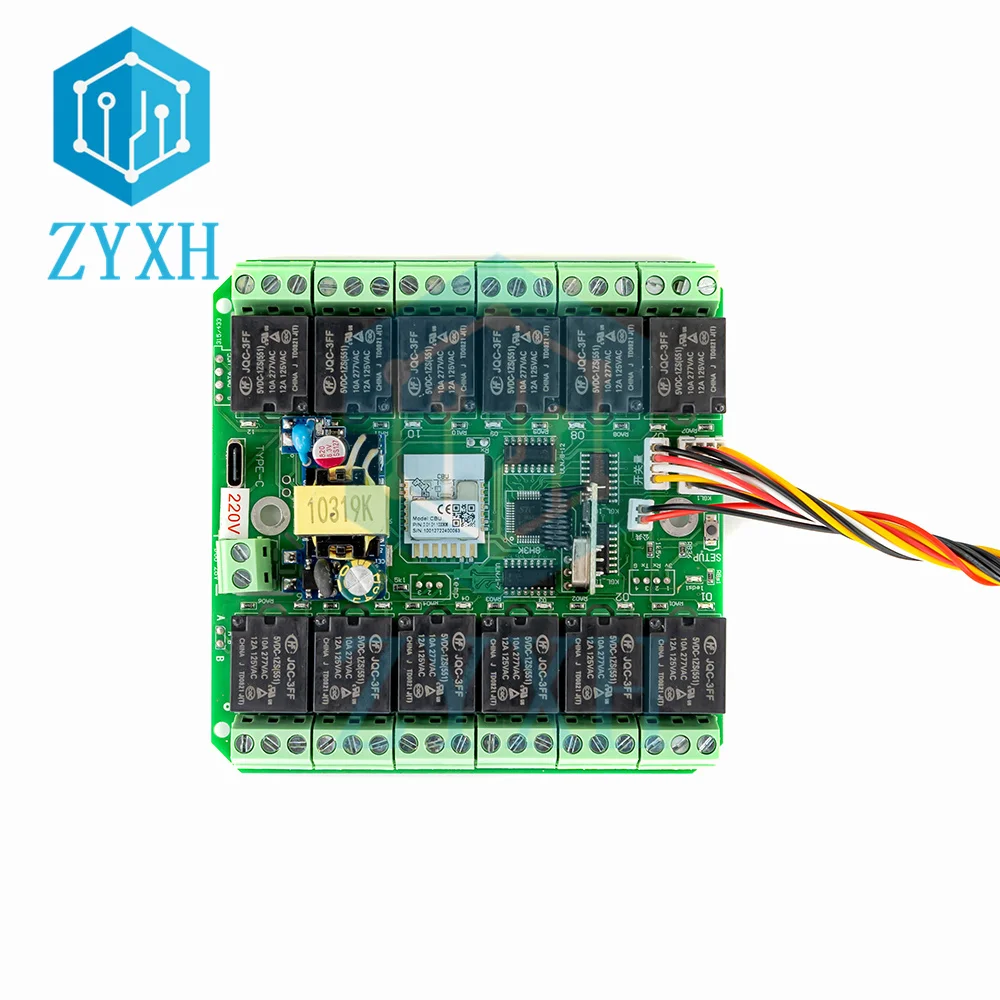

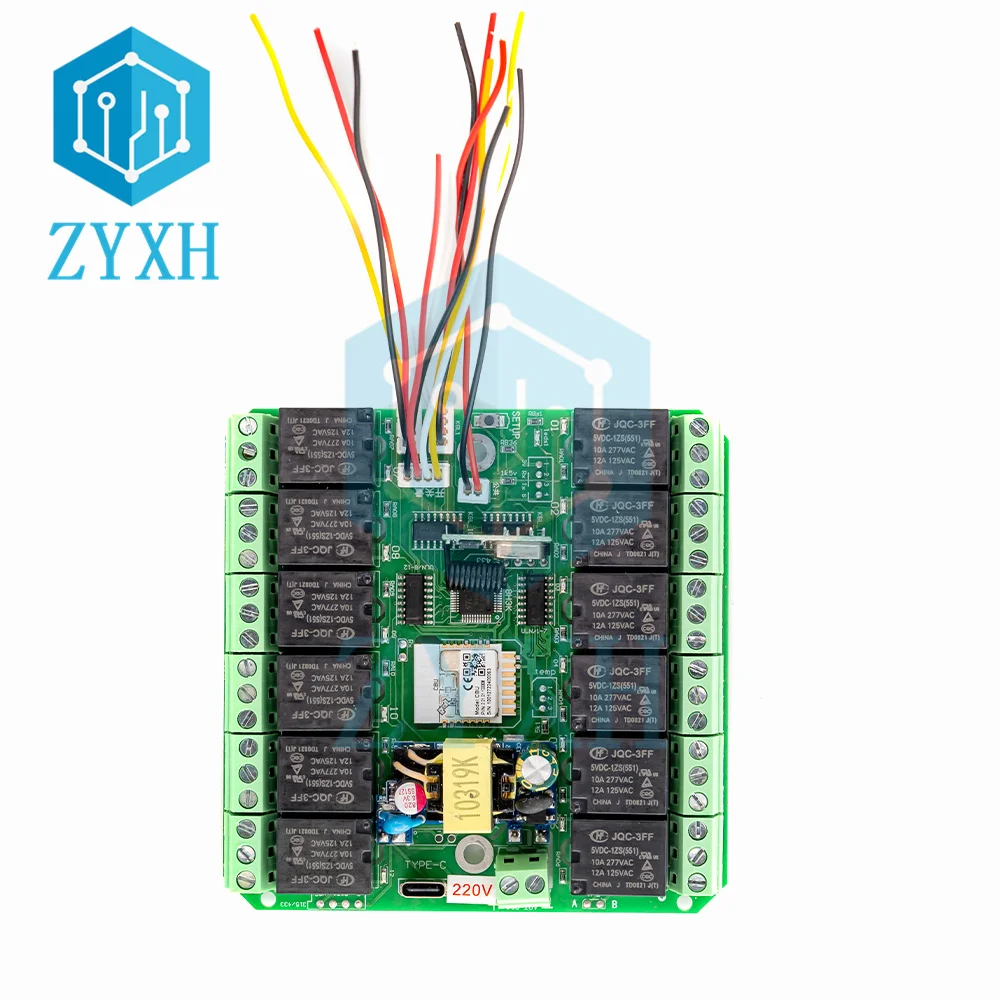

2: AC85-250V WIFI version

3: DC7-27V zigbee version

4: AC85-250V zigbee version

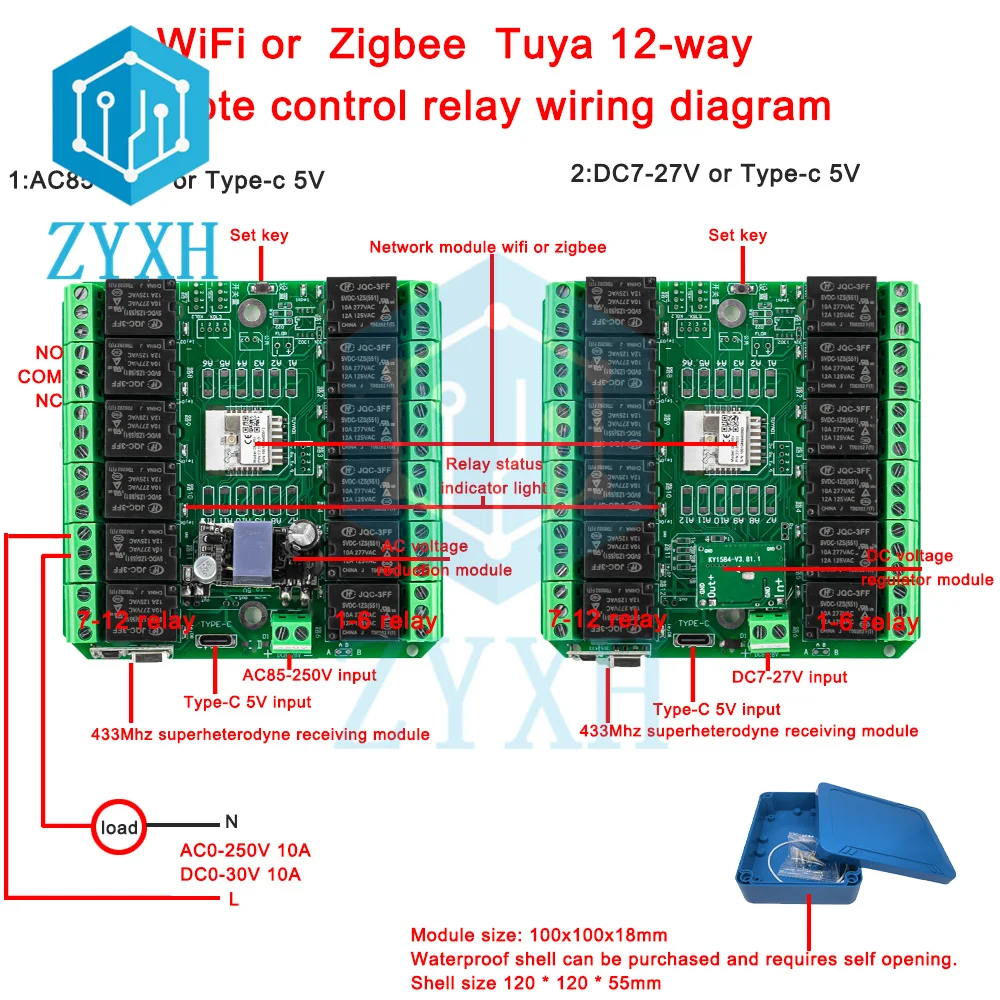

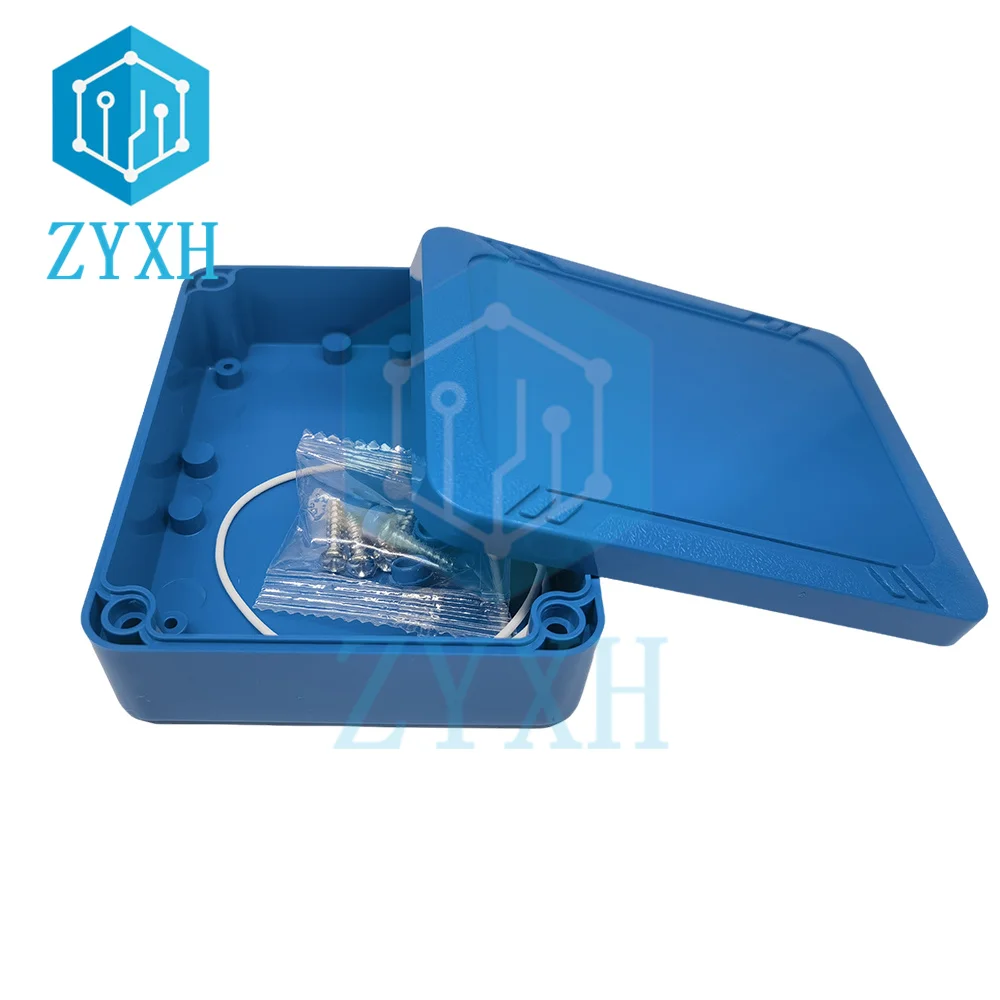

5: Matching shell

Download "Tuya Smart" from the software market, install and register, power off the module and restart it, open the APP, and click the + sign in the upper right corner to add devices.

【Remote control】Only supported if you have purchased a remote control) (If there is a flash that does not meet the steps during the operation, please turn off the power and try again),

Note: Power off and on again, wait for the indicator light to finish flashing before operating.

Action explanation: self-locking (press once to open, press again to close)

Action explanation: jog (click and turn on and off automatically after about 0.5 seconds),

Action explanation: Press the lock (press and hold it, release it and close it)

Action explanation: only open (this key can only be opened, cannot be closed)

Action explanation: only close (this key can only be closed, not open)

Action explanation: interlock (this function needs to be set on the APP)

Action explanation: Timing (this function needs to be set on the APP)

Action explanation: delay (this function needs to be set on the APP)

The circuit board setting button setting method supports remote control and 433mhz remote control as follows:

(Learning self-locking) Quickly press the "Setting" button 5 times, relay 1 flashes, (click the setting button to change the learning relay number), at this time, long press a key on the remote control to learn a key, you can continue to press all the keys, after the operation, you need to power off and restart;

Interlock setting instructions: (requires Tuya APP setting)

●Input 2 on the top and 2 on the bottom, which means channel 1.2. Interlock

●Input 3 on the top and 3 on the bottom, which means channel 1.2.3 interlock

●Input 10 on the top and 10 on the bottom, which means interlocking channel 1.2.3.4.5.6.7.8.9.10

●Input 4 on the top and 2 on the bottom, which means channel 1.2. Interlock, 3.4. Interlock

●Input 8 at the top and 2 at the bottom, which means 1-2 interlock, 3-4 interlock, 5-6 interlock, 7-8 interlock

●Input 10 at the top and 5 at the bottom, which means channel 1.2.3.4.5 interlock, 6.7.8.9.10. interlock

●Enter 0 above and 0 below, indicating no interlock

【Jog setting】

●Input 1 for the channel number, the current jog time of channel 1 will be displayed below, and the jog time can be changed such as 500 milliseconds.

●Channel number input 2, the current jog time of channel 2 will be displayed below, and the jog time can be changed such as 500 milliseconds.

●Jogging time input 0 means this channel does not jog, set other channels by analogy.

Description: Jog time range: 1-999999999 milliseconds

【Power-on settings】

●Input 1 for the channel number, the value of the current channel will be displayed below

●Input 1 below, which means that the channel will be automatically opened when the power is turned on

●Enter 2 below to indicate that the channel is turned off after power-on

●Input 3 below, which means that the switch state before power-off will be maintained after power-on

●Input 4 below, which means it is forced to open after power-on, and the mobile phone will never be able to operate this channel

[Delayed opening] (Some products do not support it, if you need it, you can add it before shooting)

●Input 1 on the top, and the current setting value of channel 1 will be displayed on the bottom

●Input 3000 below, which means that the channel will not be opened when clicked to open, but will be opened automatically after 3000 milliseconds.

[Delay off] (Some products do not support it, if you need it, you can ask for more before shooting)

●Input 1 on the top, and the current setting value of channel 1 will be displayed on the bottom

●Input 3000 below, which means that the channel will not be closed when you click Close, but will be closed automatically after 3000 milliseconds.

[Learning Remote Control] (Optional)

●Power off and on again for 5 seconds, quickly press the setting button 5 times (press faster), the indicator light of channel 1 will keep flashing, at this time press and hold 1 button of the remote control until channel 2 flashes, and then press Hold down the other key on the remote control until channel 3 flashes, press all the keys in the same way, and finally turn off the power and turn it on again;

[Restore factory settings]

Press and hold "Settings" for 10 seconds, let go when the indicator light flashes quickly, and it's done.
