WS2812B 5050 RGB Led Digital Panel Matrix Flexible 8x8 16x16 8x32 Pixel Screen WS2812 Ring Individually Addressable DC5VWS2812 LED Pixel RingSpecifi…
WS2812B 5050 RGB Led Digital Panel Matrix Flexible 8x8 16x16 8x32 Pixel Screen WS2812 Ring Individually Addressable DC5V

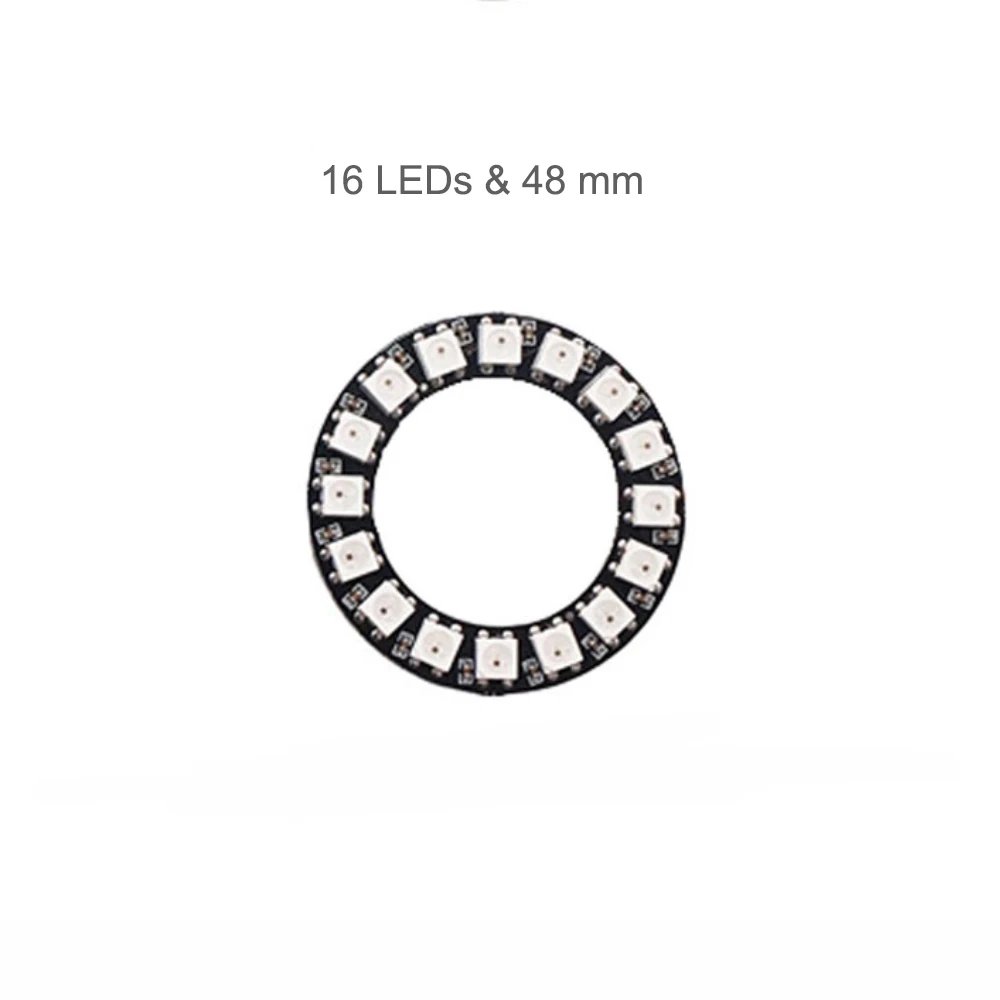

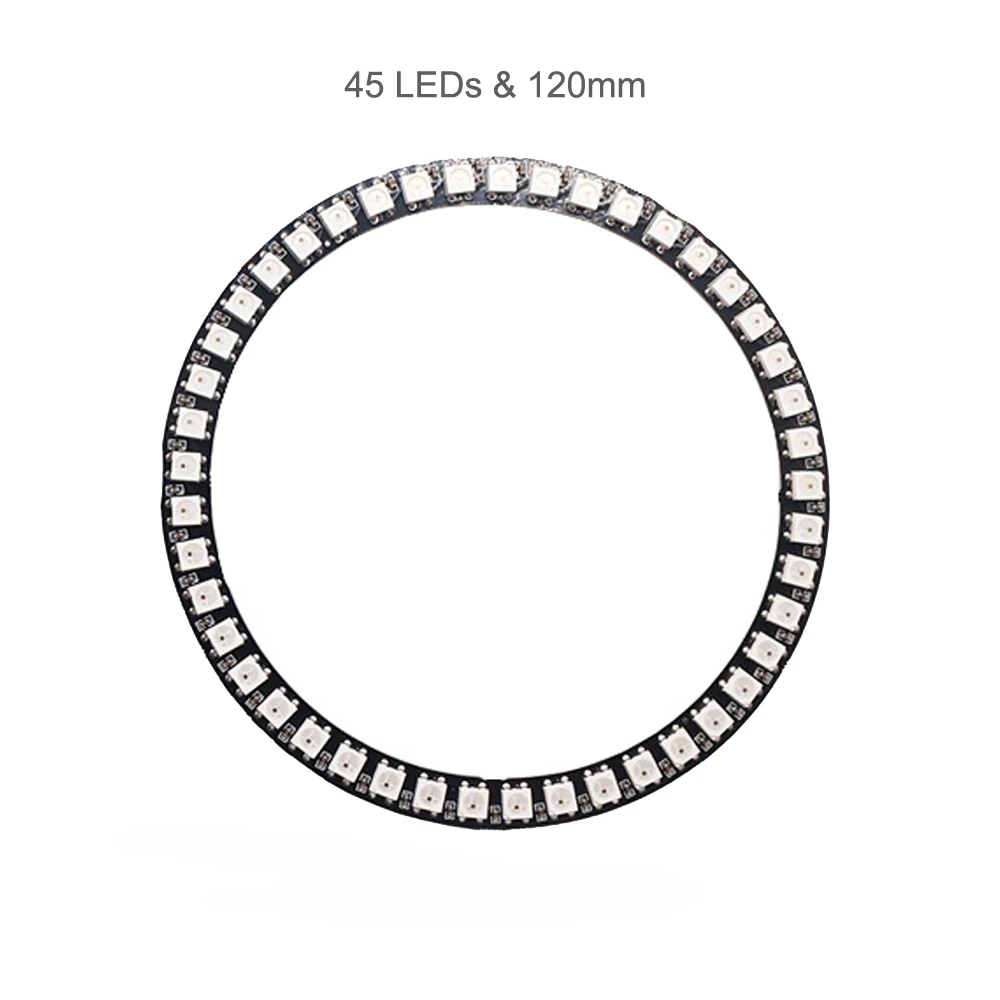

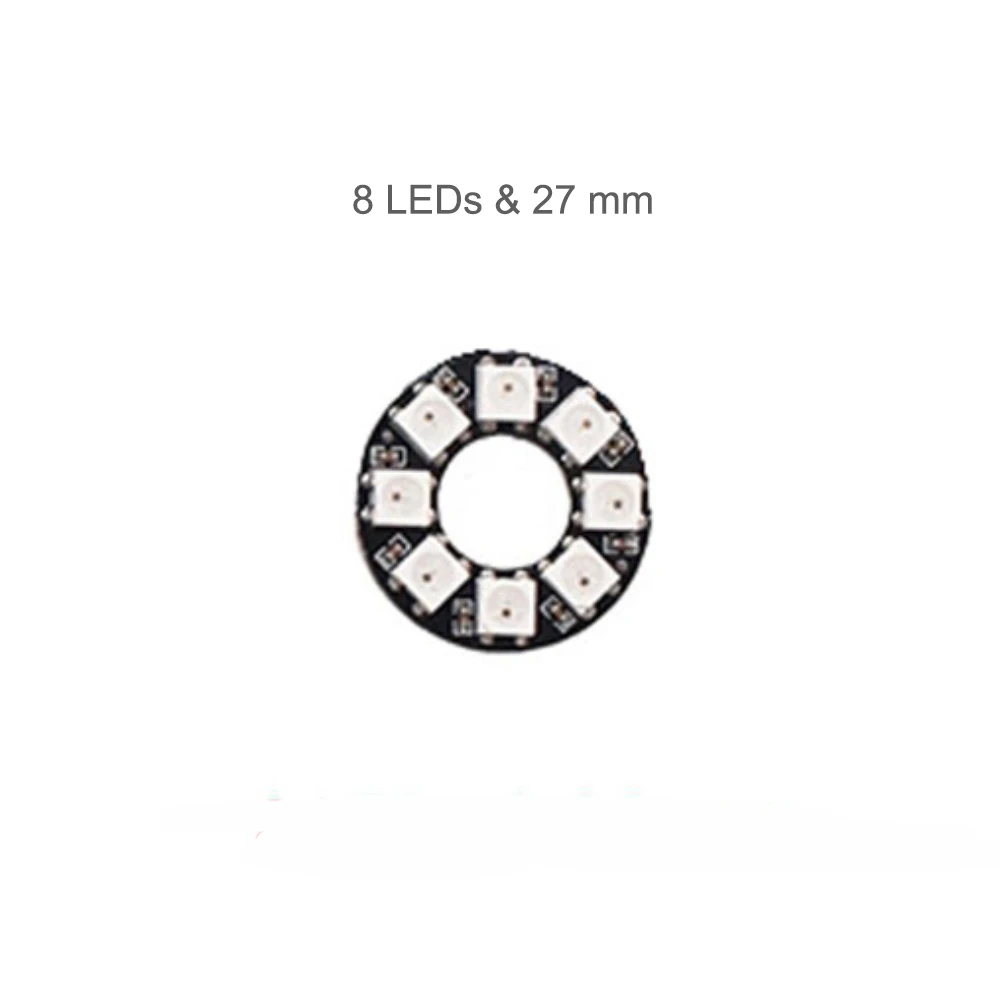

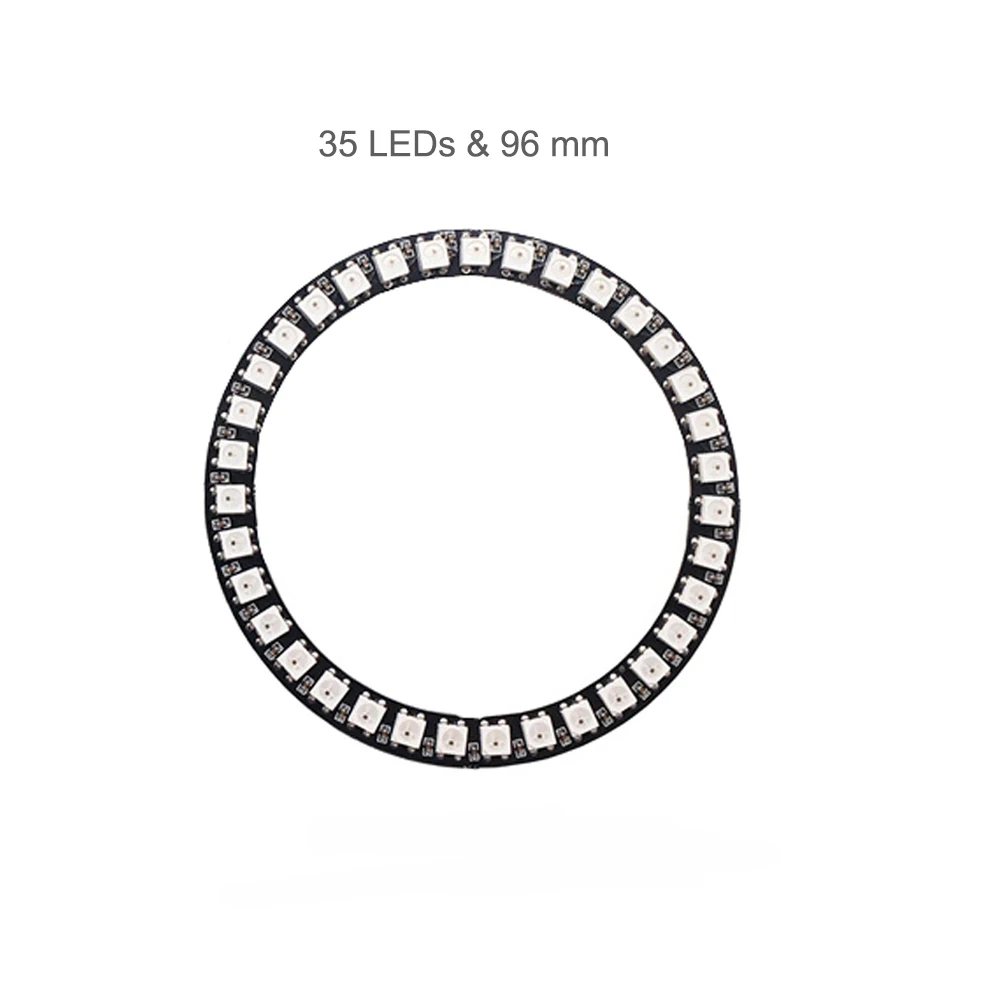

WS2812 LED Pixel Ring
Specification:
Voltage: DC 5V
LED Source: WS2812B IC
Light Color: RGB
LED Quantity: 8/16/24/35/45led
Board Color: Black, White
3-Pin JST Connector: Red:VCC, Withe:GND, Green:DATA
Application:
With Gorgeous color, this module can be used to decorate dress or or the holiday decoration

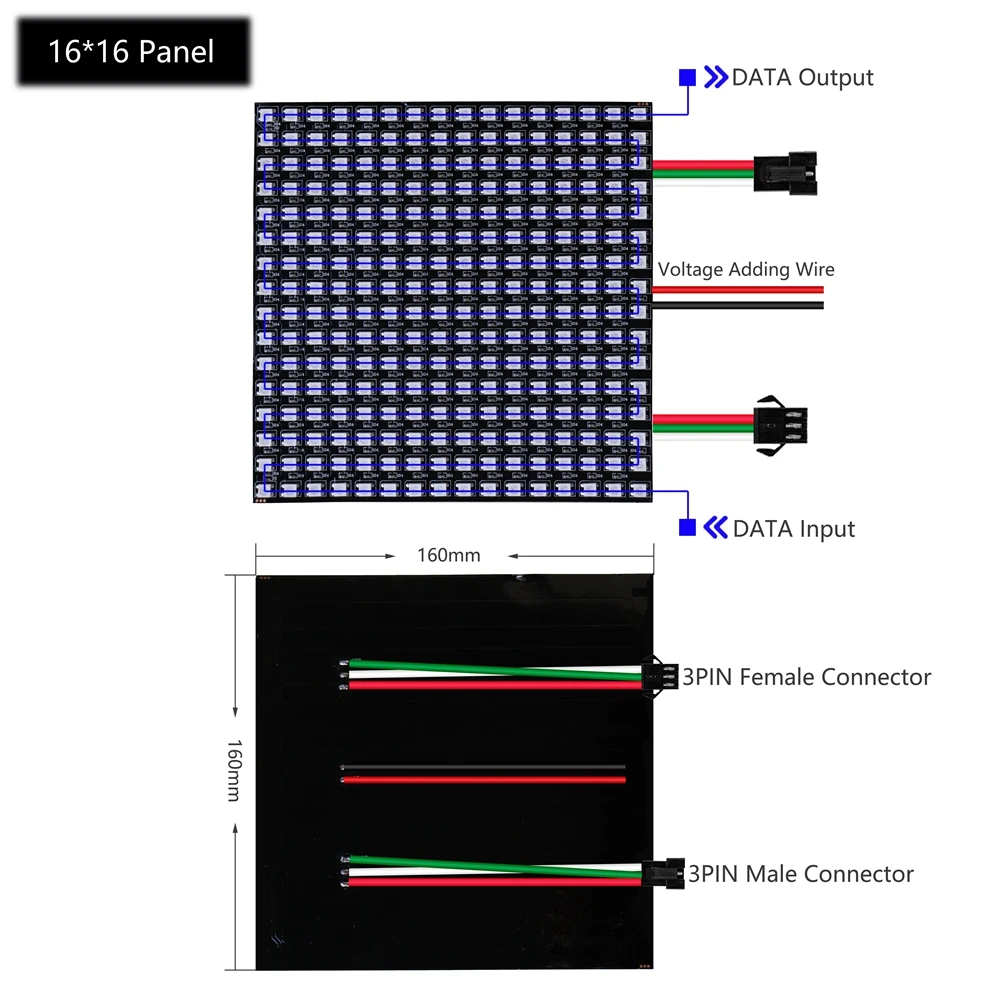

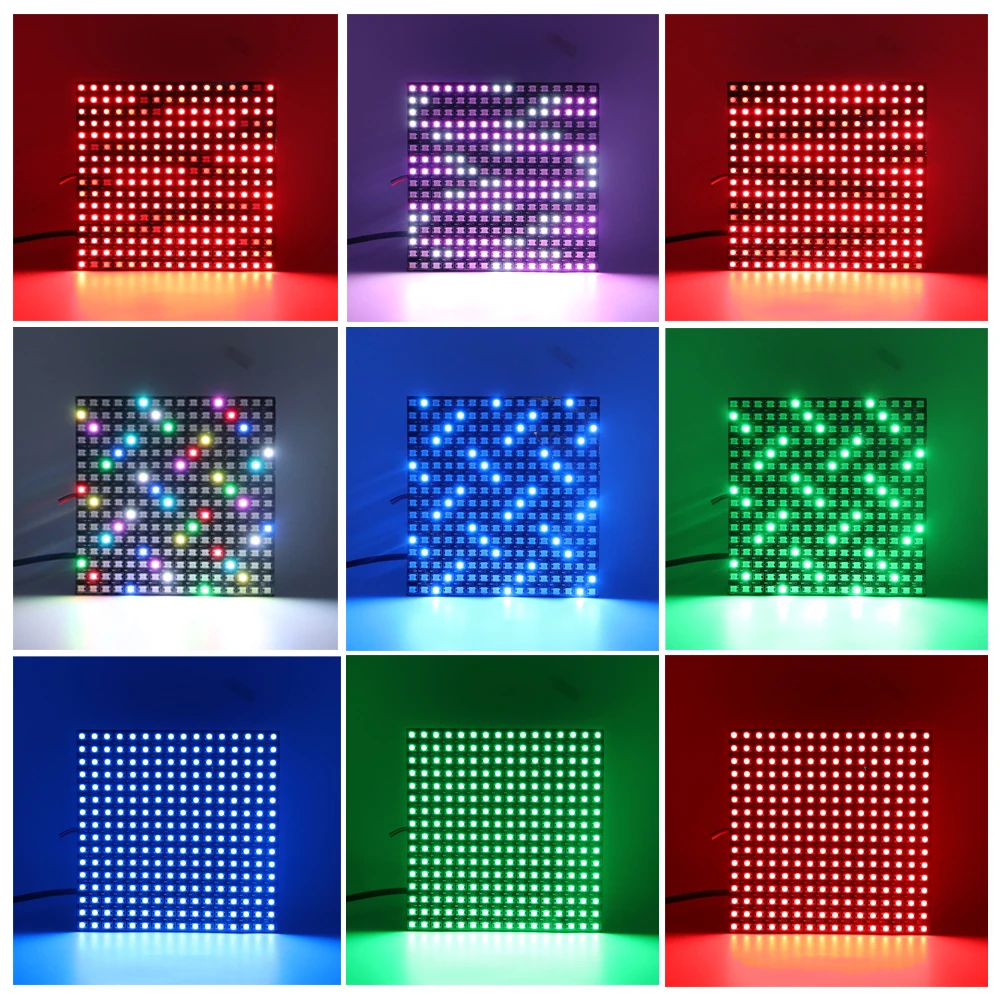

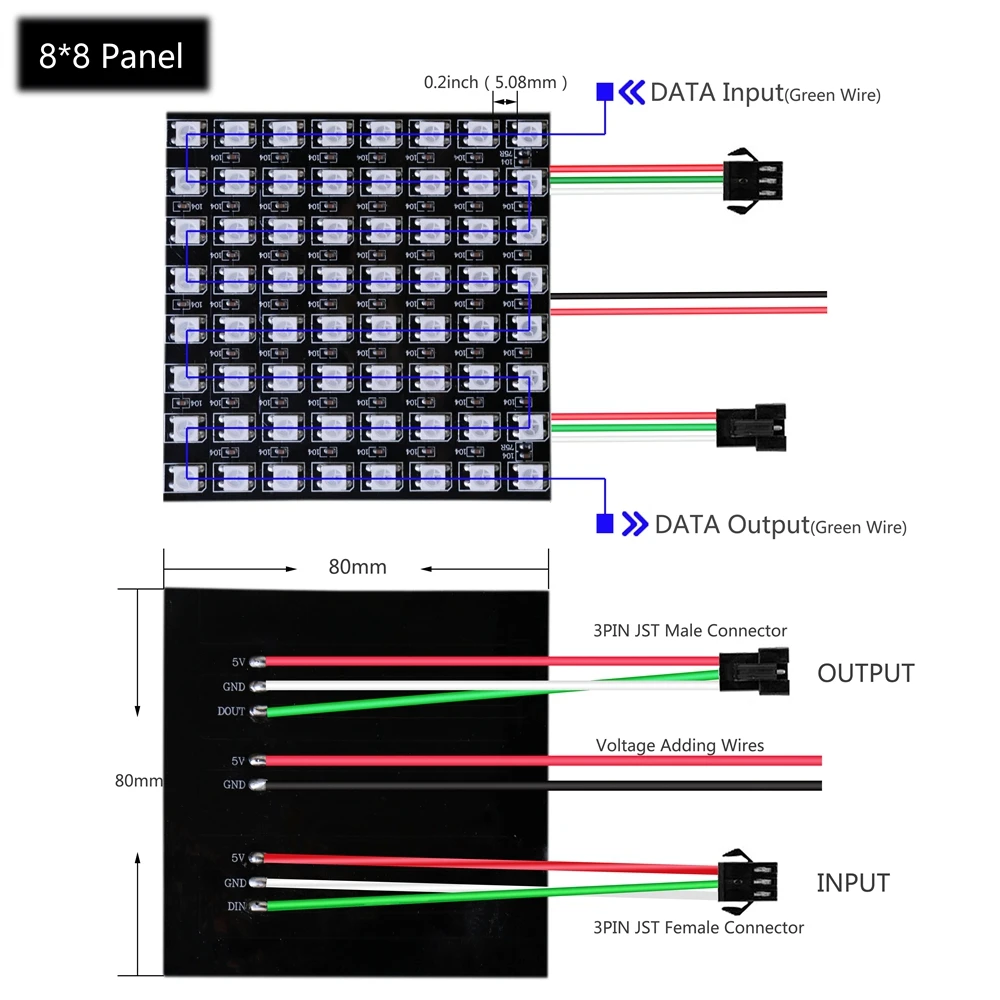

WS2812 LED Pixel Panel
Product Description:
Working Voltage: DC5V
3-Pin JST Connector : Red:VCC, Withe:GND, Green:DATA
FPCB Colors: Black
IC: WS2812B (WS2812 IC built-in RGB chip)
Light Source: SMD5050 RGB
Working Life: >50,000 hours
Beam Angle: 120 °
LED Quantity: 16*16 8*32 256 Pixels/8*8 64Pixels
Power: 64LEDs 19.2W/ 256LEDs 75W
Emitting Color: Full Color (24-bit)
Plate: Soft Copper
Waterproof: IP30 non- waterproof
Working temperature:-20°C~40°C
