Product Description:

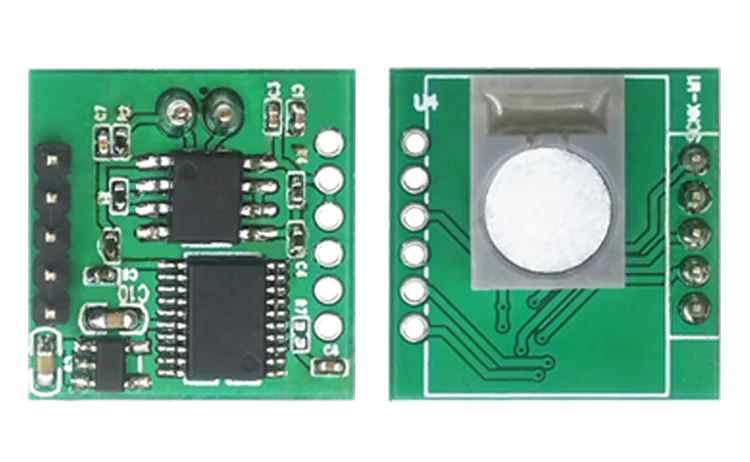

SC16-CO electrochemical carbon monoxide module is a general-purpose, miniaturized module. The electrochemical

principle is used to detect CO in the air with good selectivity and stability. The module has digital output and analog voltage output mode, which is convenient to use. SC16-CO is a general-purpose gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.

Module features:

High sensitivity, high resolution, low power consumption, long service life

High stability, good anti-interference, temperature compensation, excellent linear output

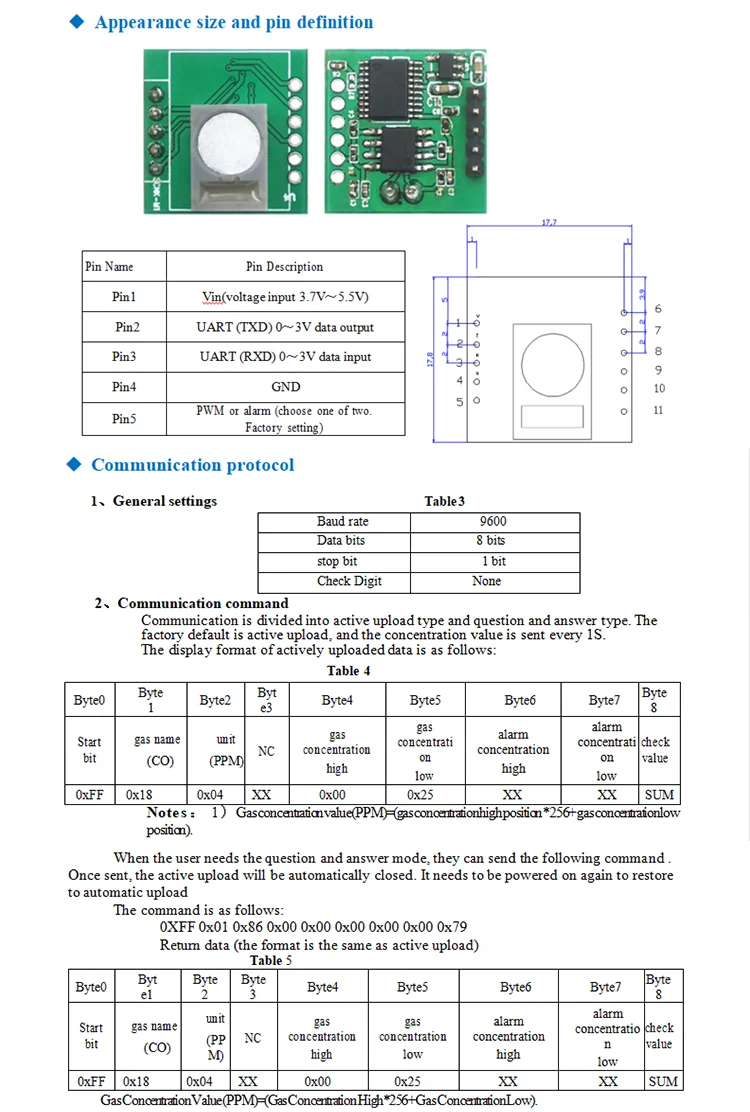

Provide UART/PWM data output, alarm output

Main Application:

Portable instruments, air quality monitoring equipment, air purifiers, fresh air ventilation
systems, air conditioners, smart home equipment, etc

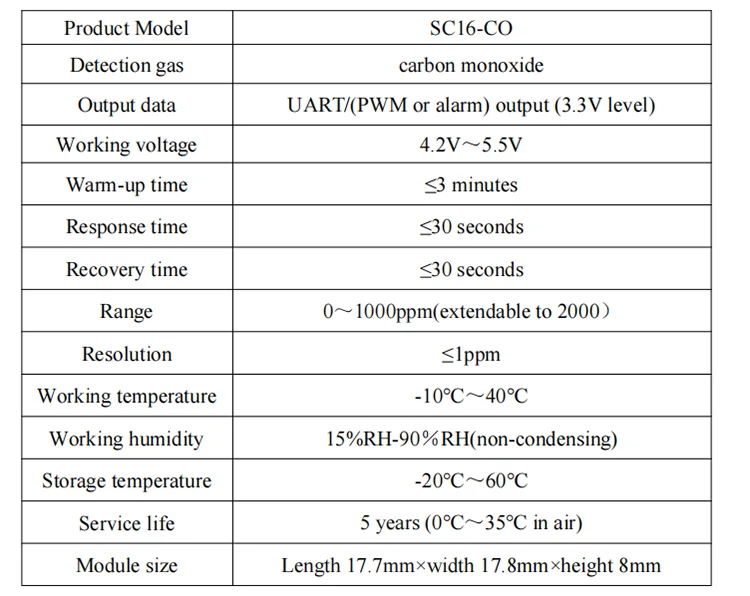

Specifications:
